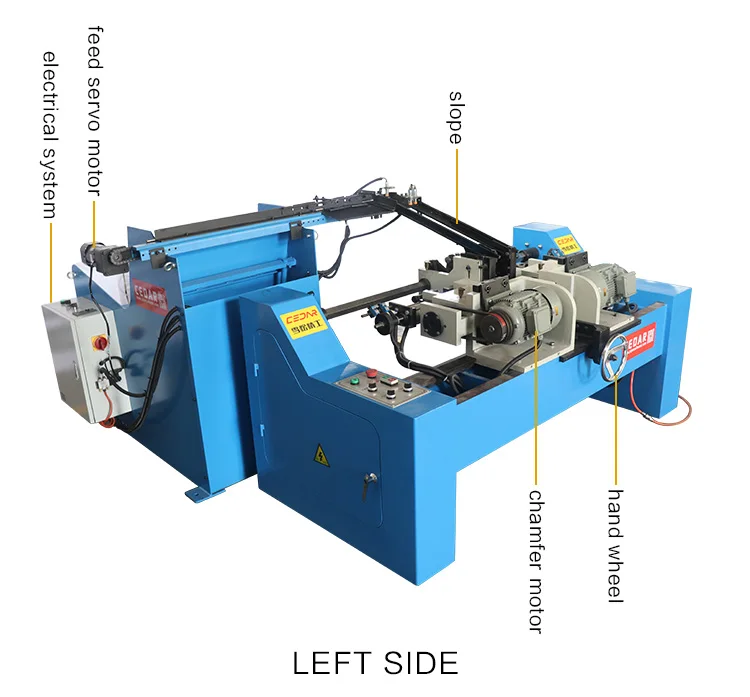

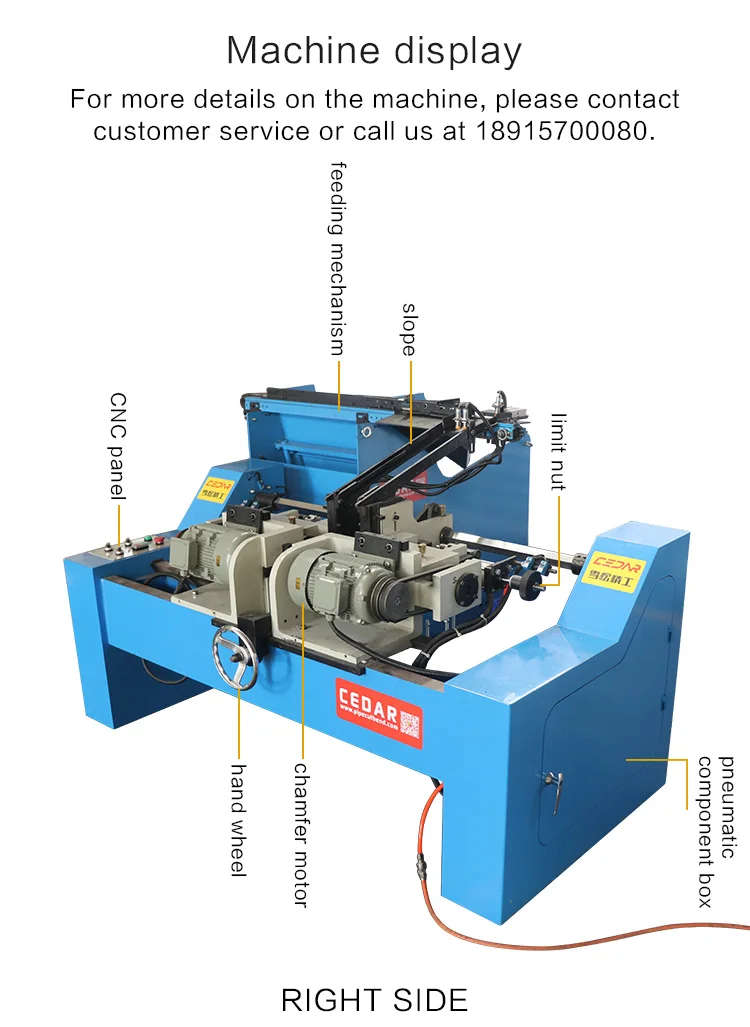

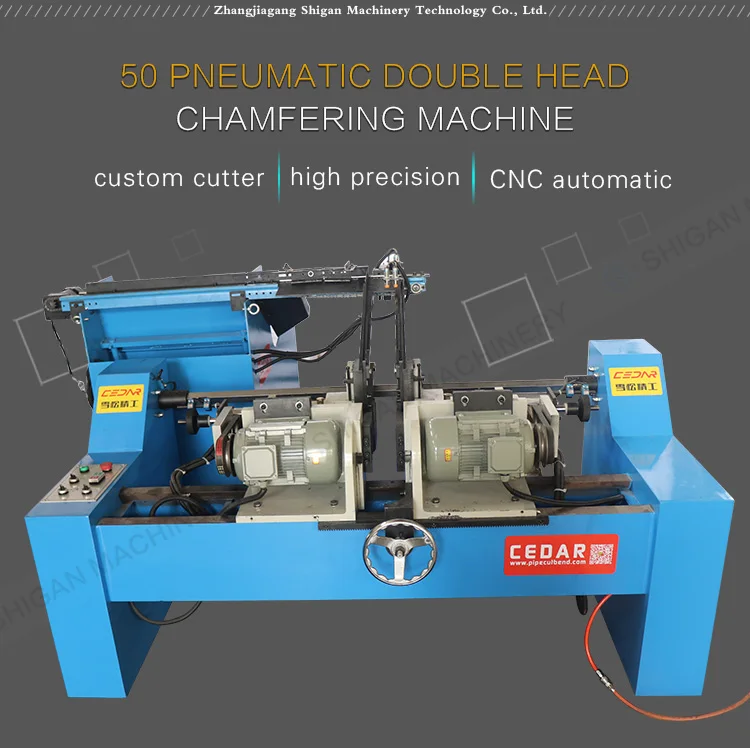

50 pneumatic automatic cnc double head chamfering machine with servo motor feeding

Product Overview

Description

Equipment features:

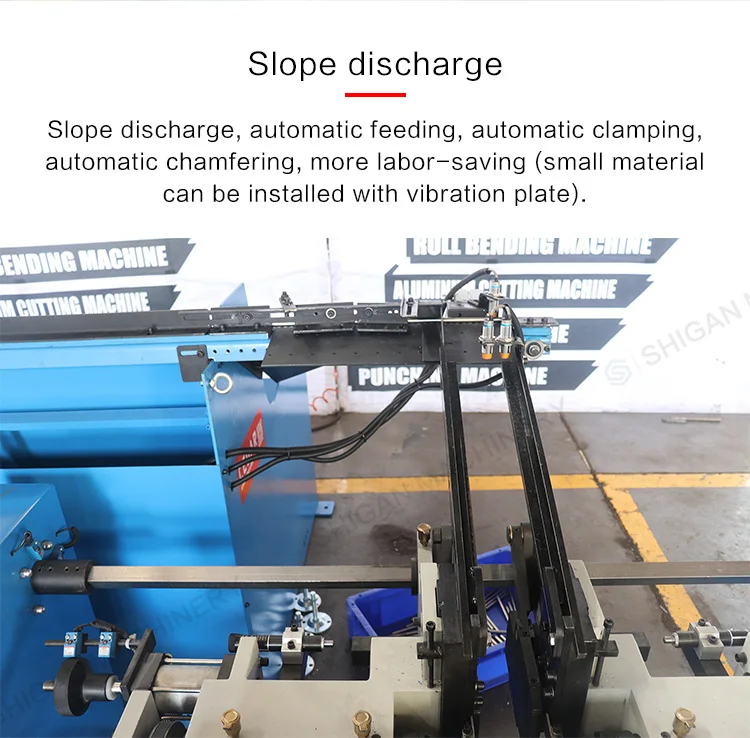

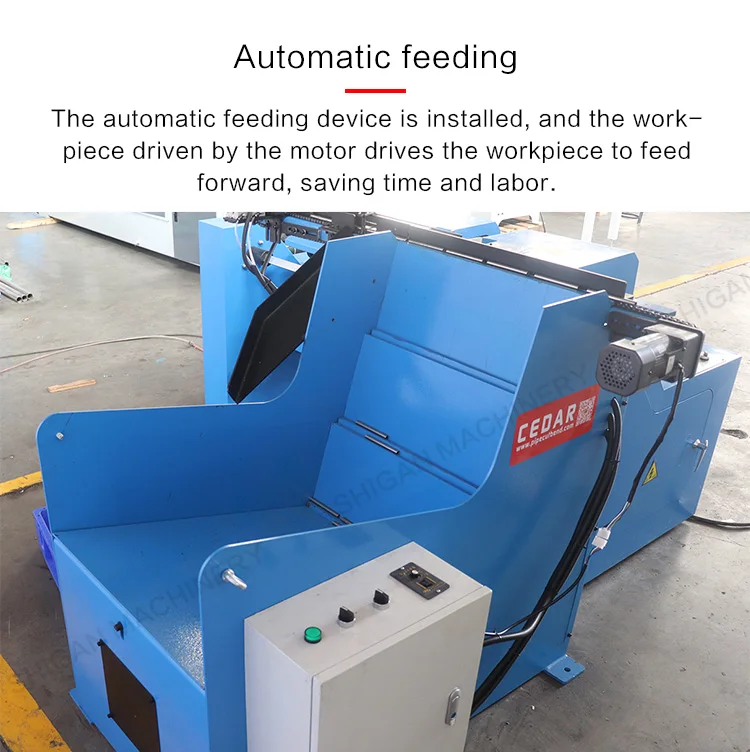

1. Automatic feeding, fast and accurate, saving manpower.

2. The special design feeding mechanism is accurate and reliable, and the intermediate conveying station can select the type according to the outer diameter of the pipe fittings, and the type change is easy to save time.

3. Super strong cutter head design, fixed cutter head. Increase the life of the cutter head.

4. Self-centering clamp clamping to ensure processing concentricity

5. Double-stage feed speed, saving man-hours, and slow speed is easy to adjust without steps, perfect processing.

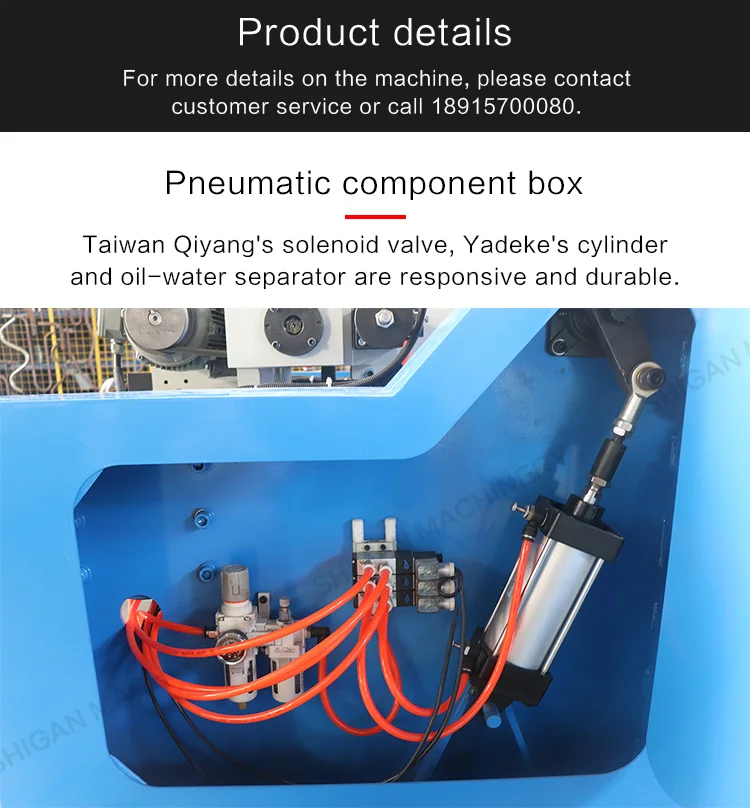

6. The whole process of electrical and pneumatic automatic control, pneumatic clamping, pneumatic feeding, easy to operate;

7. There are manual and automatic functions for easy debugging.

8.Special cutterhead design, using standardized blade, the adjustment knife is simple and convenient. The inner corner of the pipe, the outer corner and the plane are finished once, with an average of 3-10 seconds (according to the size and thickness of the pipe diameter), fast and high efficiency.

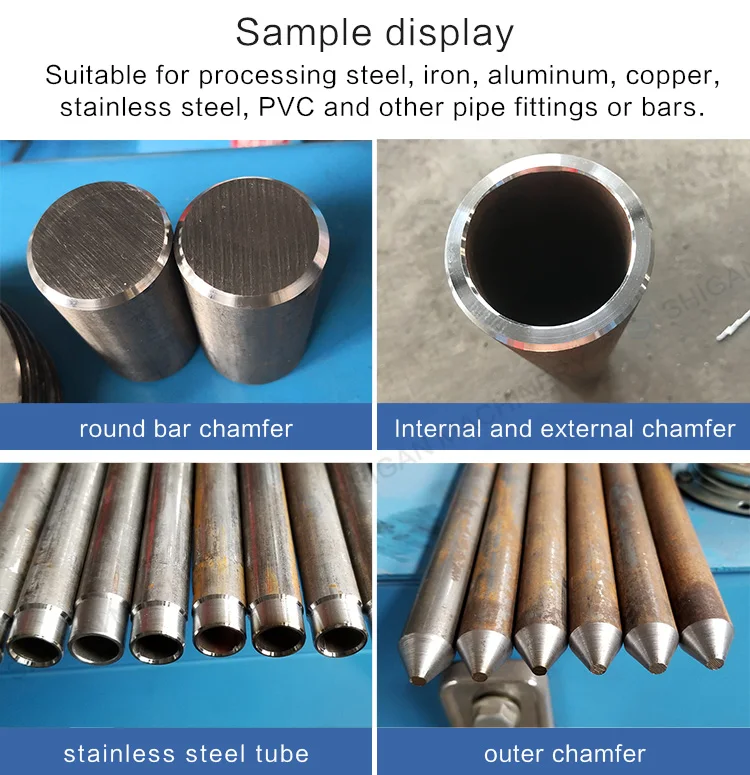

9. Adaptation materials: steel pipe, iron pipe, aluminum pipe, copper pipe, stainless steel, PVC pipe, round bar, nylon pipe.

After-sales service:

1.Warranty period: We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely.

2.Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.

3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by Skype,Whatsapp,WeChat, Email and Telephone at any time, we provide 24 hours on-line service.
