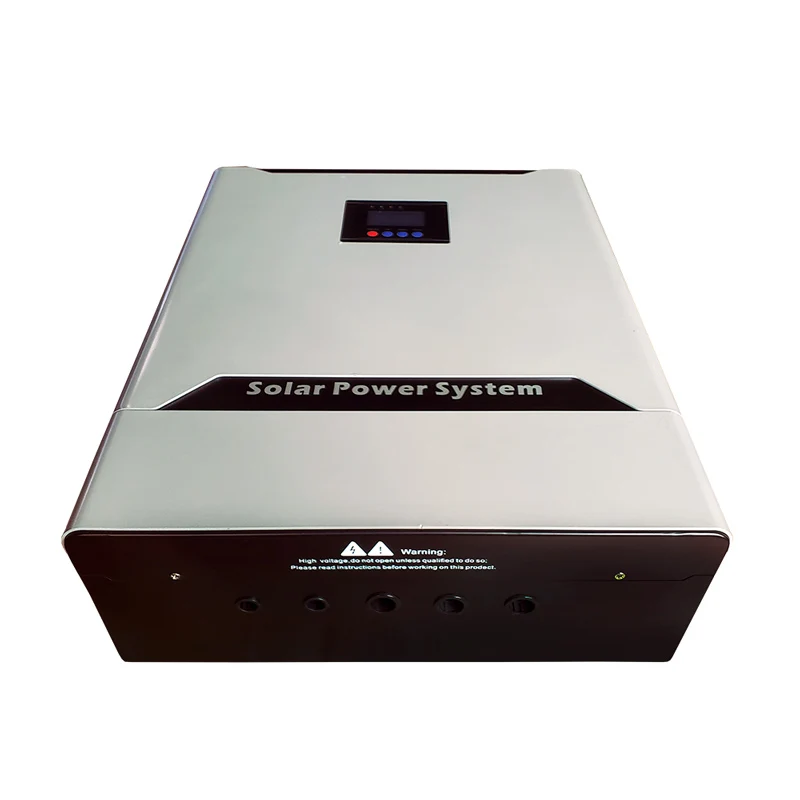

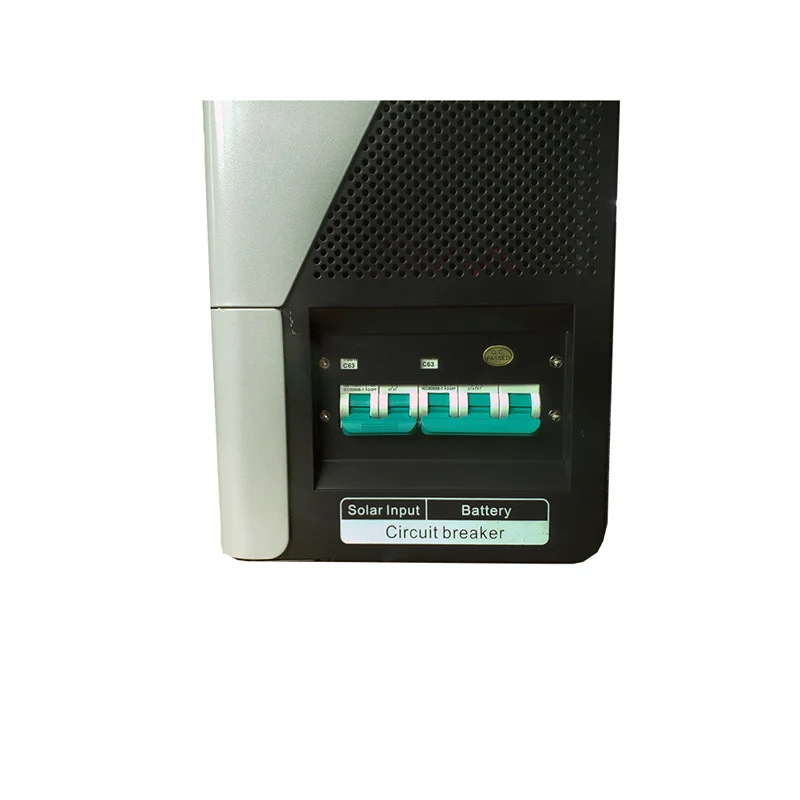

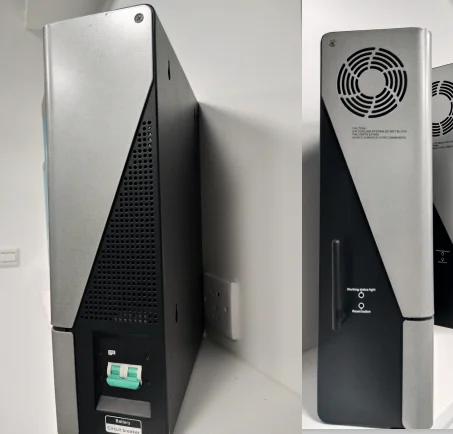

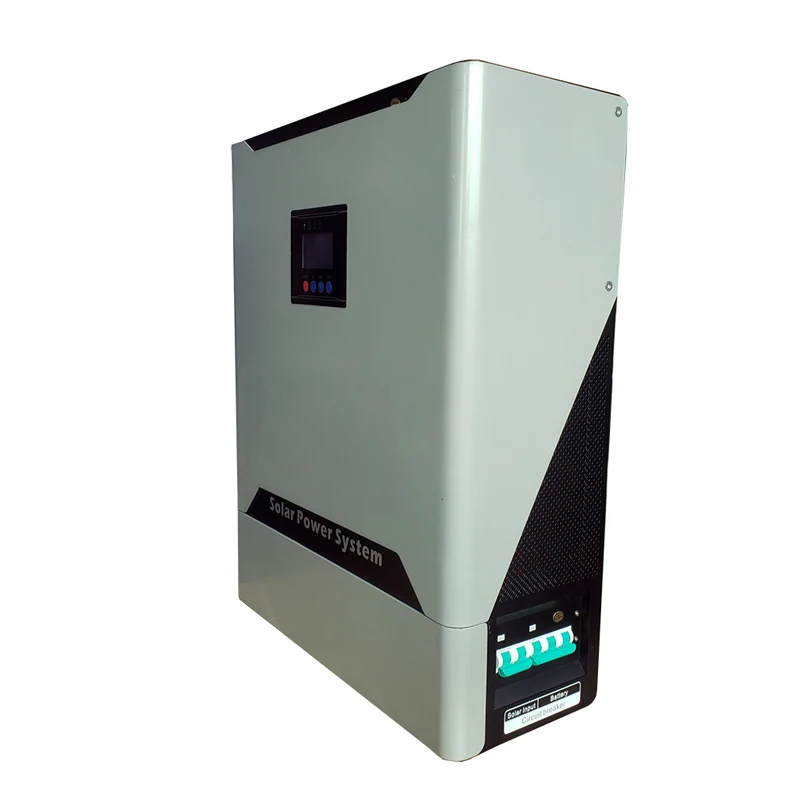

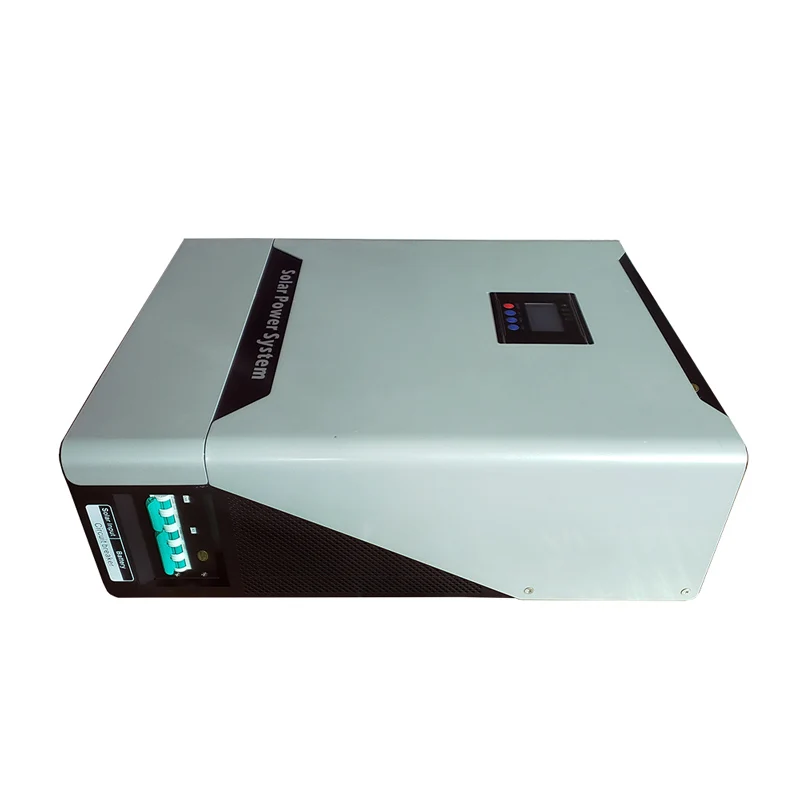

60A MPPT charger 5KVA 4000W 24V 48V hybrid solar power Inverter
- Category: >>>
- Supplier: Foshan Snat Energy Electrical Technology Co. Ltd.
Share on (62384287879):
Product Overview
Description
Product Description
The MPPT Hybrid solar inverter series with Double CPU intelligent control technology,MPPT
controller and inverter integrated optimization solutions,is high efficiency pure sine wave inverter,to provide users the best performance.Its comprehensive LCD display offers user-configurable
and easy-accessible button operation such as battery charging current, AC/solar charger priority,
and acceptable input voltage based on different applications.It is widely applied to families,
schools,streets,frontier,defense,pasturing areas,industrial equipment,satellitecommunication
equipment,military ,vehicle-borne equipment,ambulances,police cars,ships and so on.
MAIN FEATURES
1)Double CPU intelligent control technology, performance excellence;
2)The power mode / energy saving mode / battery mode can be set up,Flexible application;
3)Smart fan control, safe and reliable;
4)The pure sine wave output, can adapt to various types of load;
5)Wide input voltage range,high-precision output automatic voltage function.

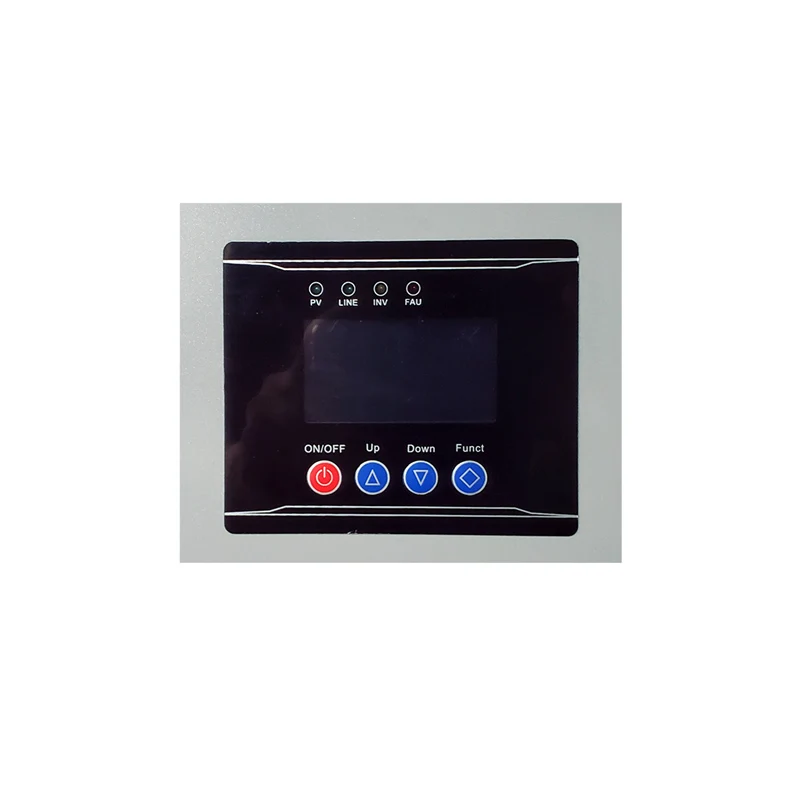

6)The LCD real-time display device parameters, running status at a glance;
7)The output overload, short circuit protection, automatic protection and alarm;
8)The intelligent MPPT solar controller, overcharge,overdischarge protection,current
limiting charging, multiple protection.
Product parameter
Model:MPPT | 0.3-1KW | 1.5-6KW | ||||
power rating(w)
| 300 | 700 | 1500 | 3000 | 5000 | |
500 | 1000 | 2000 | 4000 | 6000 | ||
Battery | Rated voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48 | |
Charge Current | 10AMAX | 30AMAX | ||||
Battery Type | Canbe set | |||||
Input | Voltage Range | 85-138VAC/170-275VAC | ||||
Frequency | 45-65Hz | |||||
Output | Voltage Range | 110VAC/220VAC; ±5%( Inverter mode) | ||||
Frequency | 50/60Hz ±1%(Inverter mode) | |||||
Output wave | Pure Sine Wave | |||||
Change time | <10ms(Typical load) | |||||
Frequency | >85%(80% Resistive load ) | |||||
Overcharge | 110-120%/30S;> 160%/300ms ; | |||||
Protection function | Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature | |||||
Solar Controller | MPPT Voltage Range | 12VDC:15V~150VDC;24VDC:30V~150VDC; 48VDC:60V~150VDC | ||||
PV Power | 12VDC-30A(400W); 24VDC-30A(800W) | 12VDC-60A(800W); 24VDC-60A(1600W); 48VDC-60A(3200W) | ||||
Rated charge current | 30A(Max) | 60A(Max) | ||||
MPPT efficiency | ≥ 99% | |||||
Average charging voltage (lead acid battery) | 12V/14.2VDC;24V/28.4VDC;48V/56.8VDC | |||||
Floating charge voltage | 12V/13.75VDC;24V/27.5VDC;48V/55VDC | |||||
Operating ambient temperature | -15 ± 50 ºC | |||||
Storage ambient temperature | -20 ± 50 ºC | |||||
Operating / storage environment | 0-90% No Condensation | |||||
Dimensions:W * D * H (mm) | 420*320*122 | 520*420*222 | ||||
Packing size: W * D * H (mm) | 535*435*172 | 635*535*252 | ||||
