Hot sale vegetable and fruits drier

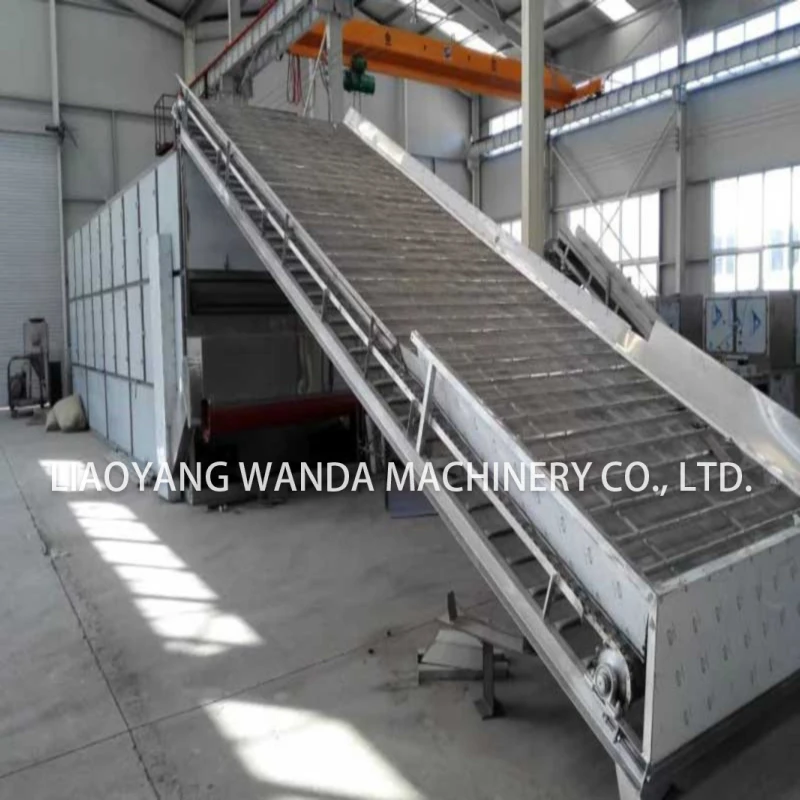

DW Series Ginger Multi-Layer Mesh Belt Drying Machine







Description:

SINGLE-LAYER

This machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as de-watering vegetable, herbal medicine of traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not high. The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality. The de-watered & filtered cake state paste material should be made into particles or strips before drying process.

MULTI-LAYER

DW series many layers belt dryer is used in the material hard to dry and low dry speed. The equipment structure is compact. It covers small area with easy operation, convenient maintain and steady running. The equipment extend and promote the heat wind circle oven which design the dryness process with different heat wind circle as per the dryness characteristics of materials. It is widely used ir chemical, metallurgy industry, food, packaging. The dryer has lots of superiorities as high efficiency, saving energy, easy management, larger output, constant product and varied ability.

Principle:

The materials are uniformly distributed on the mesh belt by the material feeder. The mesh belt generally adopts 12-60 mesh stainless steel mesh and it is drawn by a transmission device and move inside the dryer . The dryer is composed of several sections. For each section, the hot air is circulated separately. Part of exhausted gas is exhausted by a special moisture exhaust blower. The waste gas is controlled by an adjustment valve. The hot air passes through the mesh-belt covered with bring water material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final products after the drying process will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the user's requirements. The number of section might be selected according to the production demands.

Features:

1. In the mesh belt dryer system, the following data can be a special set and adjusted in order to achieve the best drying effect: heating temperature, air flow, staying time.

2. Agility specified: we can add mesh belt washing system and product cooling system in mesh belt dryer system.

3.Agility operating: after conveying on mesh belt, wet material is dried in a totally sealed chamber during the whole drying process. Working condition is good because the system does not have powder leaking outside.

4. When wet material loaded in conveying belt, the relative position between every single material is quite stable. So for every single material, drying time is almost the same. This is especially suitable for drying that product that needs good color and uninformed water content. Additionally, during a drying process, the product will not be heavily shocked and vibrated, so granule size of granule will not break down. So this kind of mesh belt dryer is especially suitable for that product that should keep the good shape.

5. Wanda mesh belt dryer can also bake, cook and cooling raw material besides other than drying function.

6. Wanda mesh belt dryer designed intelligent air distribute construction in order to separate hot air into every single material uninformed.

7. Total construction is not complicated. Through our human design principle, mesh belt dryer is easy for assembly, each for maintenance and transportation.

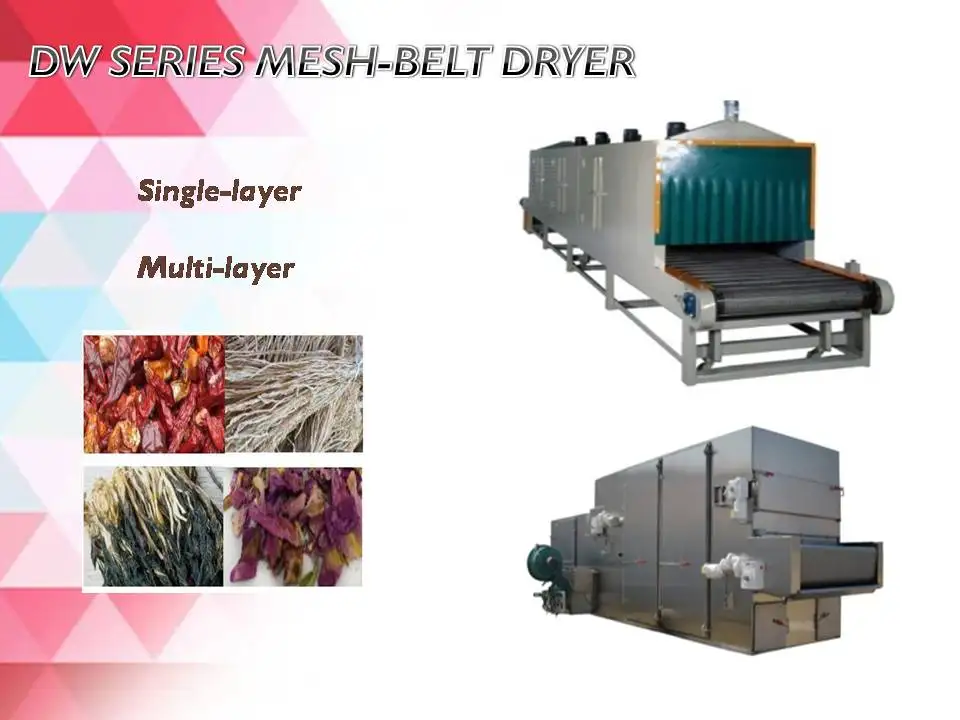

Application:

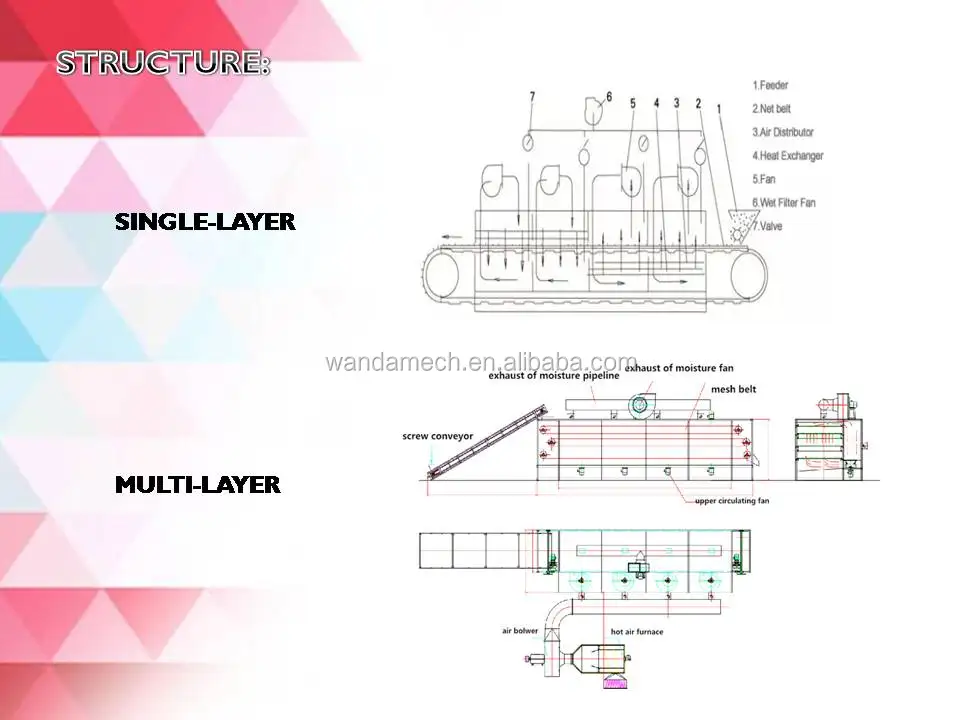

Structure chart:

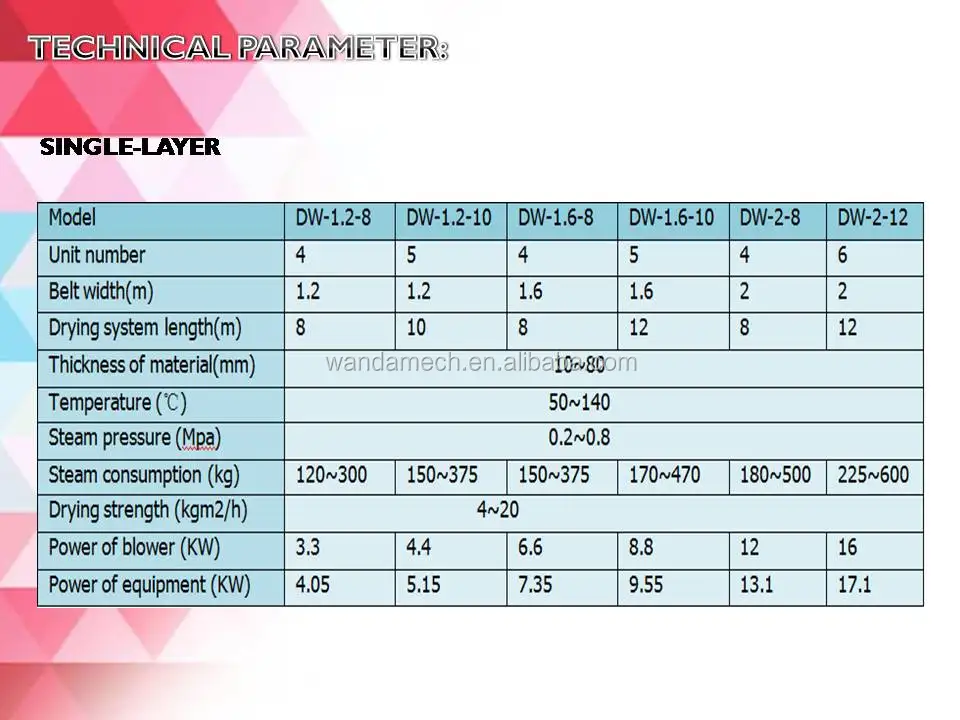

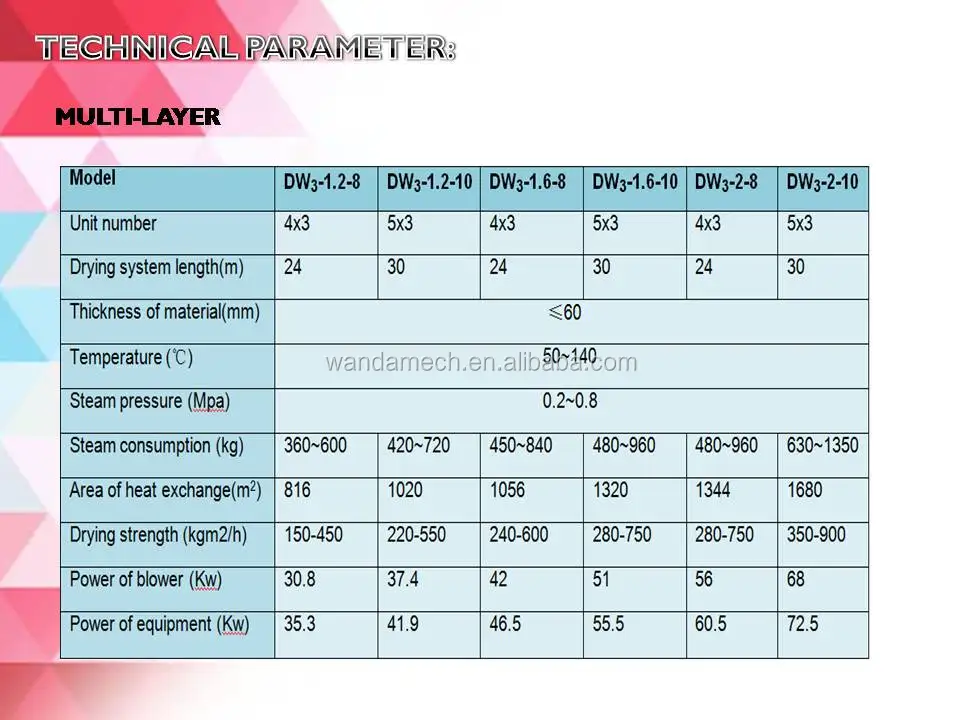

Product technical parameter:

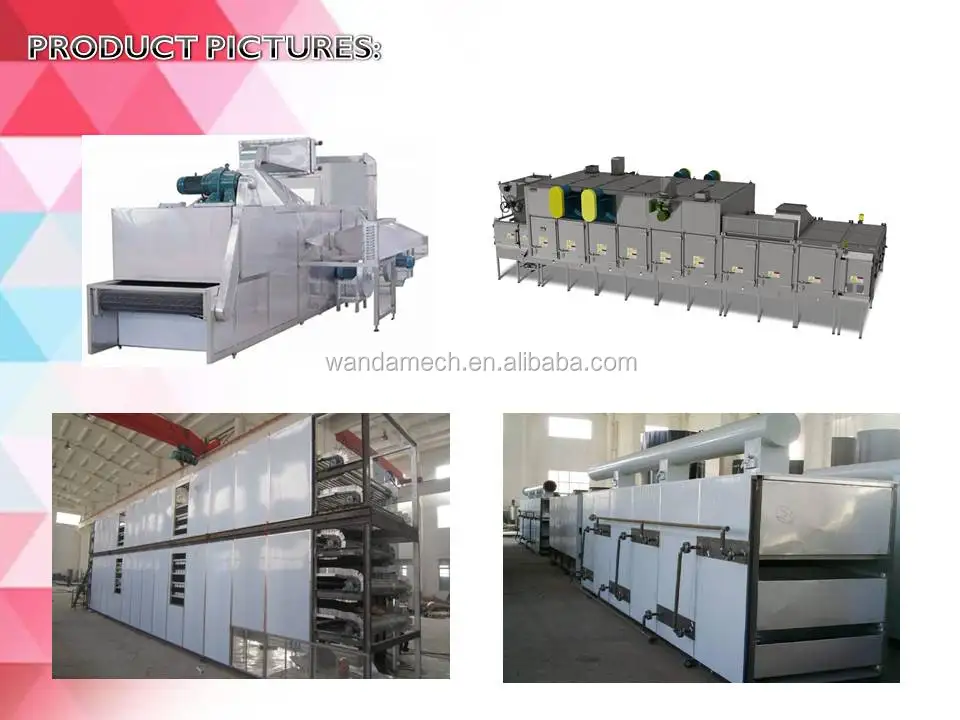

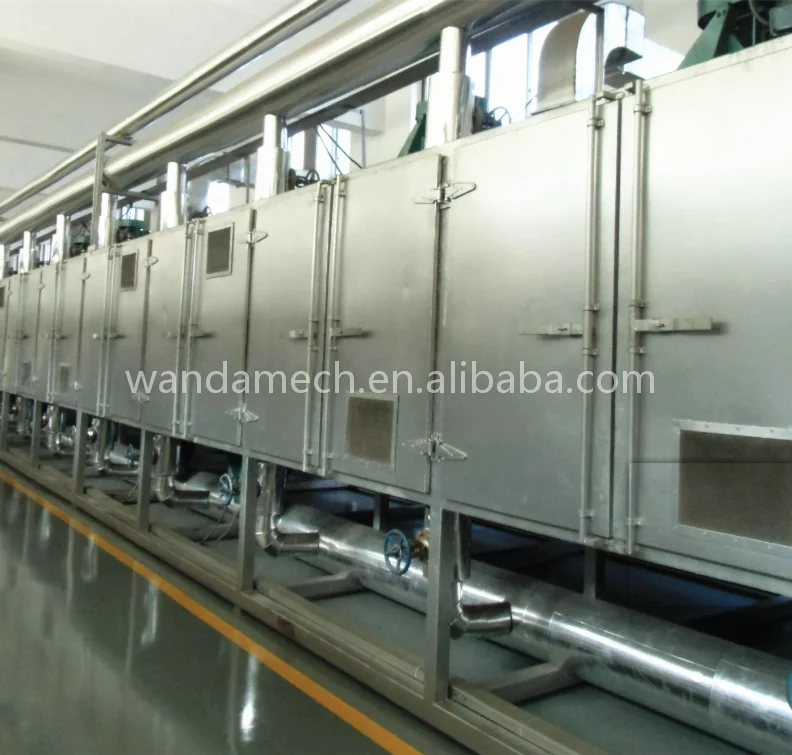

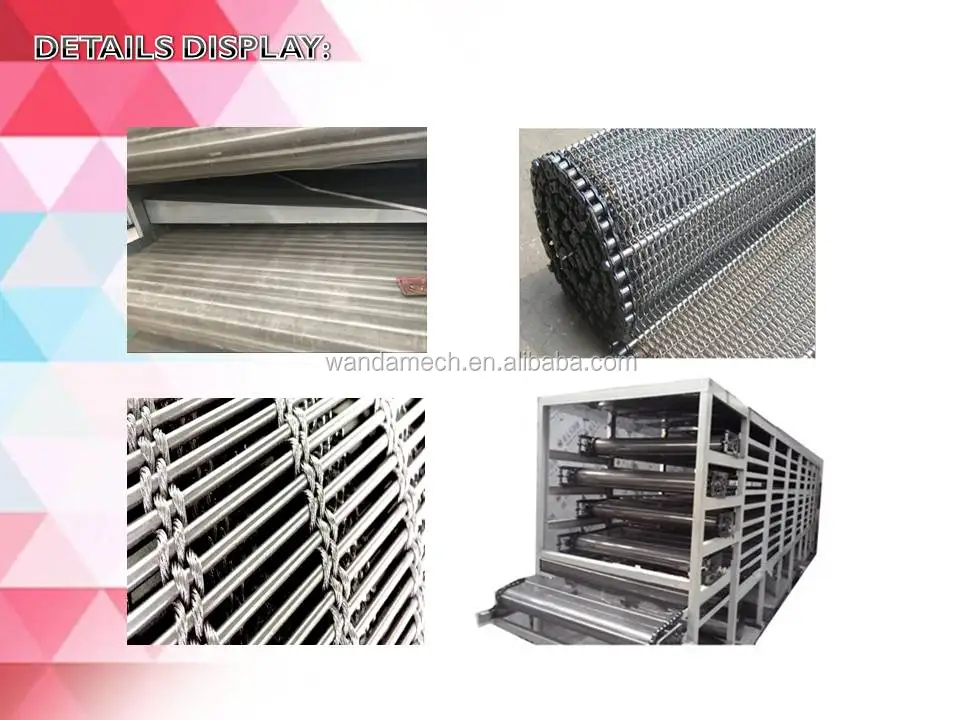

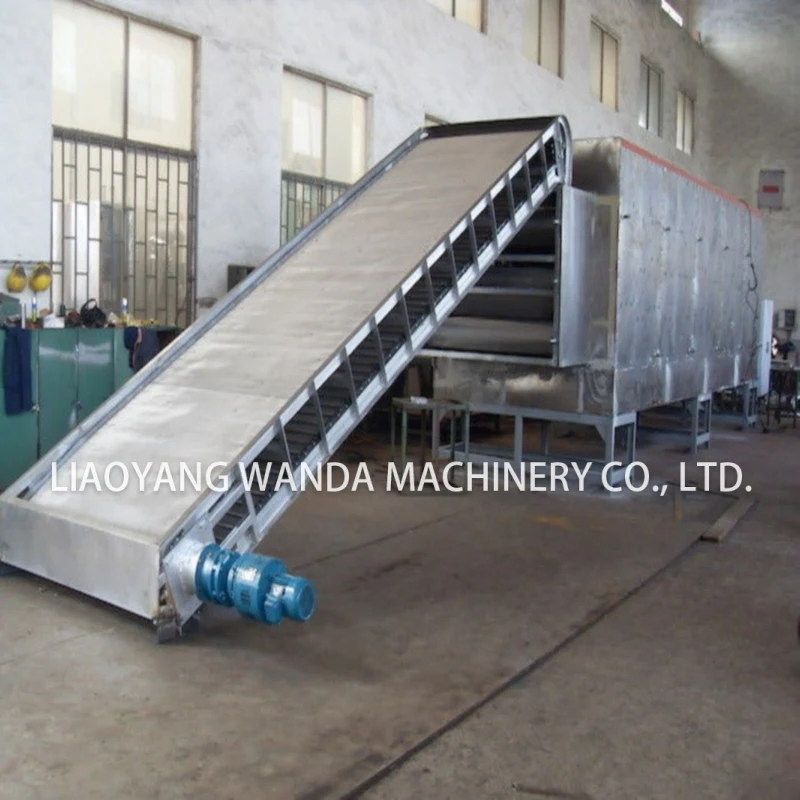

Product picture:

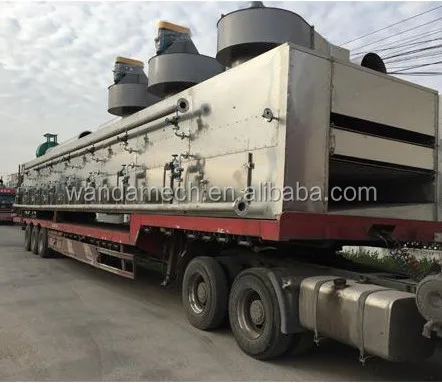

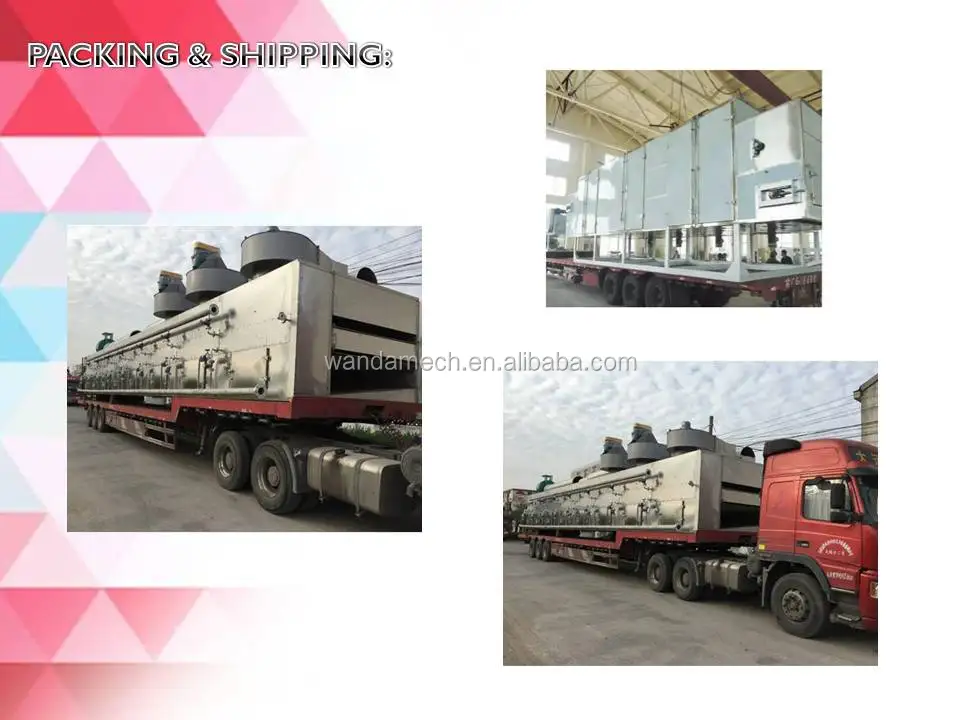

Packing&shipping:

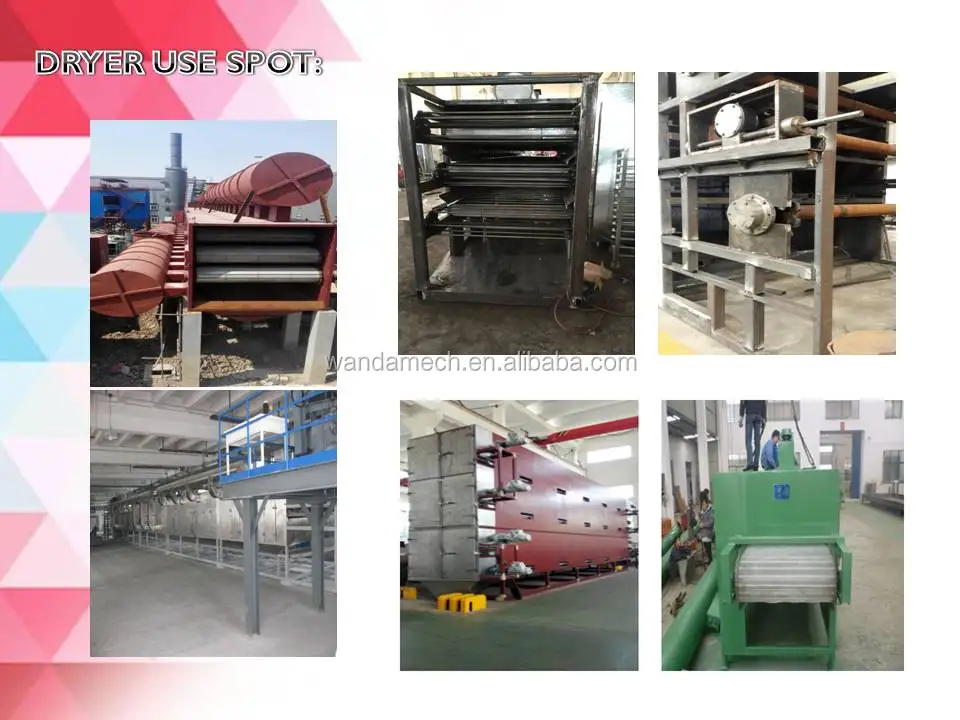

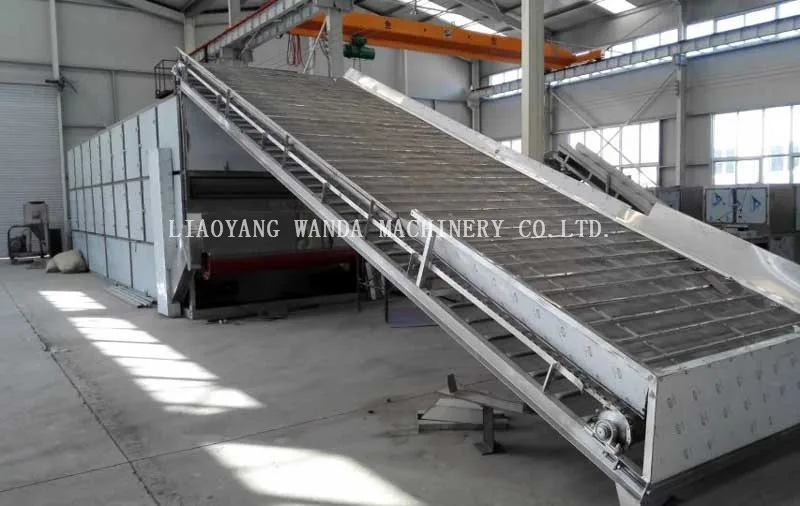

Field site:

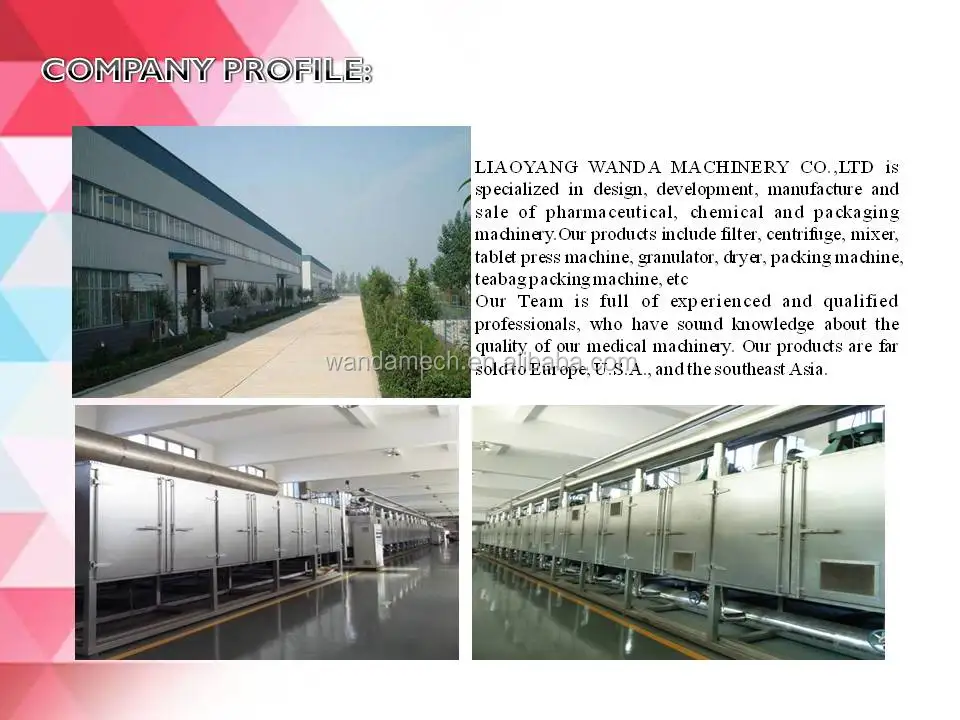

About us:

Wanda Machinery Co., Ltd. specializes in R&D, manufacturing, operation, export and related services of rotary flash dryers, centrifugal spray drying equipment, vibrating fluidized bed dryers, etc. The production base is located in Liaoyang City, Liaoning Province,China. Equipment designed over the years has been involved in the fields of medicine, chemicals, pesticides, electronics, mining, food, dyes, pigments and so on. The market is spread all over the country.

Wanda Machinery not only has a group of capable engineers and senior management personnel with more than ten years of work experience, but also has a group of excellent production personnel. They have excellent capabilities in research, design, service, etc. Over the years, they have devoted themselves to researching and summing up in practice. "Pragmatism, innovation, integrity, pursuit of excellence", a deep understanding is a strong guarantee for the quality of customers' products!

Why choose us?

1.We will provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
2. Consultant services for whole machine life, 24 hours technical support by email and telephone.
3.Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

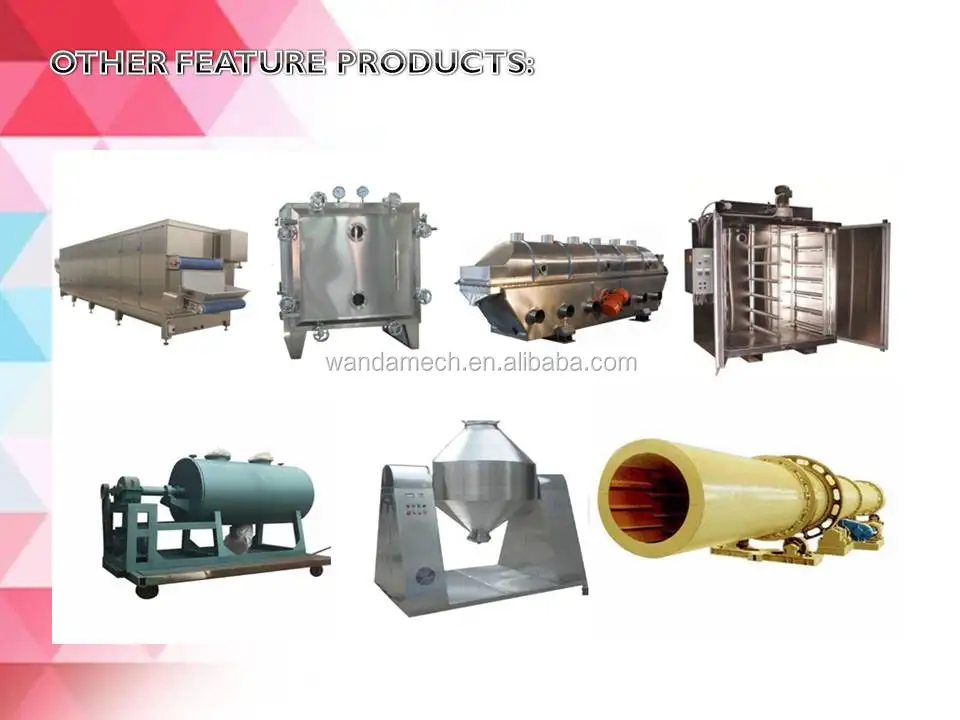

Other feature products:
