Машина для производства деревянных пластиковых композитных изделий/ПВХ, Pe, Pp, Wpc, дверной пол, декоративный профиль, панель, экструзионная производственная линия
- Category: >>>
- Supplier: Zhangjiagang,Fenghua,Mchinery,Co.,Ltd.
Share on:
Product Overview
Description
PVC ceiling panel pvc profile machine / PVC PE WPC profile extrusion line
Production line configuration reference( pvc door and window profile extrusion line )
| Item | component | quantity |
| 1. | double screw extruder | 1set |
| 2. | mould | whole 1set |
| 3. | vacuum calibration tank | 1set |
| 4. | hauling machine | 1set |
| 5. | cutter | 1set |
| 6. | stacker | 1set |
detail descriptions;
1.extruder specification
Model | YF180 | YF240 | YF300 | YF400 | YF500 | YF600 |
Max. width of product(mm) | 180 | 240 | 300 | 400 | 500 | 600 |
Extruder model | SJSZ55/110 | SJSZ65/132 | SJSZ65/132 | SJSZ65/132 | SJSZ80/156 | SJZ80/156 |
Max. extrusion capacity(kg/h) | 150 | 250 | 250 | 250 | 360 | 360 |
Extruder power(kw) | 22 | 30/37 | 30/37 | 30/37 | 55 | 55 |
Cooling water(M3/h) | 5 | 7 | 7 | 8 | 10 | 12 |
Compressed air(M3/min) | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 |
This conical twin screw extruder is qualified for upvc,pvc,wpc powder extrusion directly to produce various kinds of plastic profile.
2.full set of mould can safisfy different kinds of profile production(max profile width is 600mm)
3.high level vacuum extent
5.automatic length accounting device for precise cutting
5.saw cutting machine ,adopt advanced Germany technology
6.stainless steel and pneumatic controlled

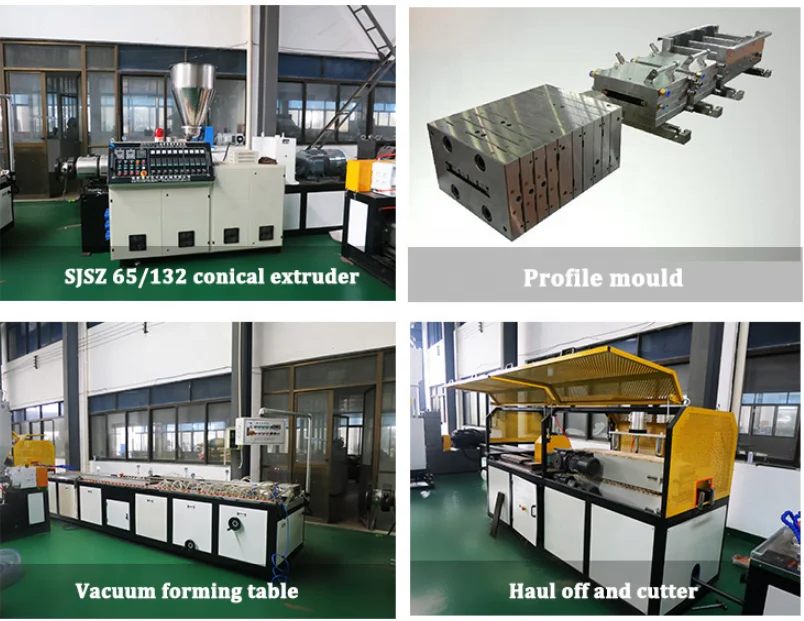

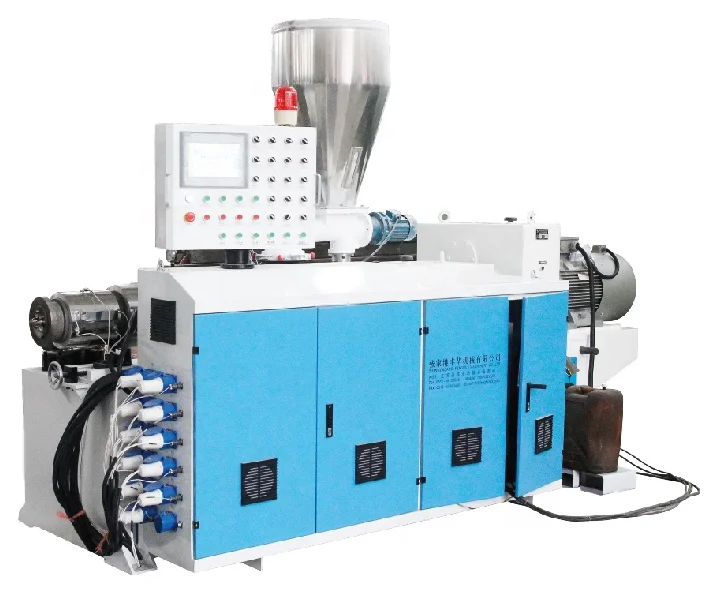

contical twin screw extruder for pvc door and window profile extrusion line

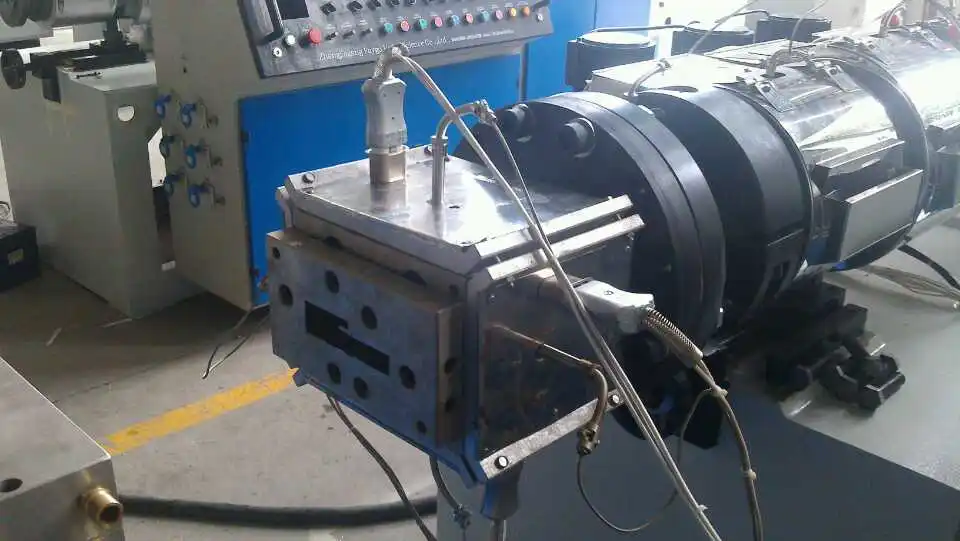

Mold part for pvc door and window profile extrusion line

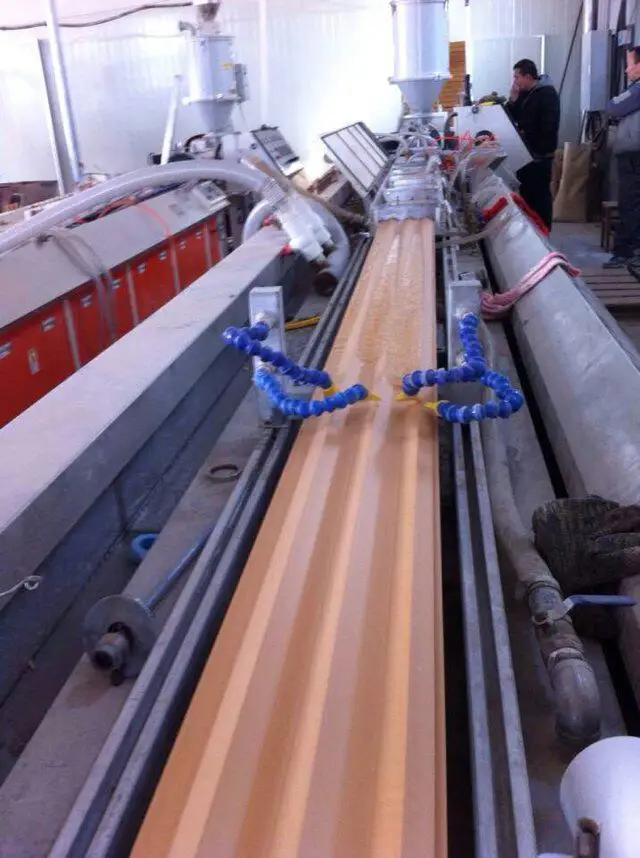

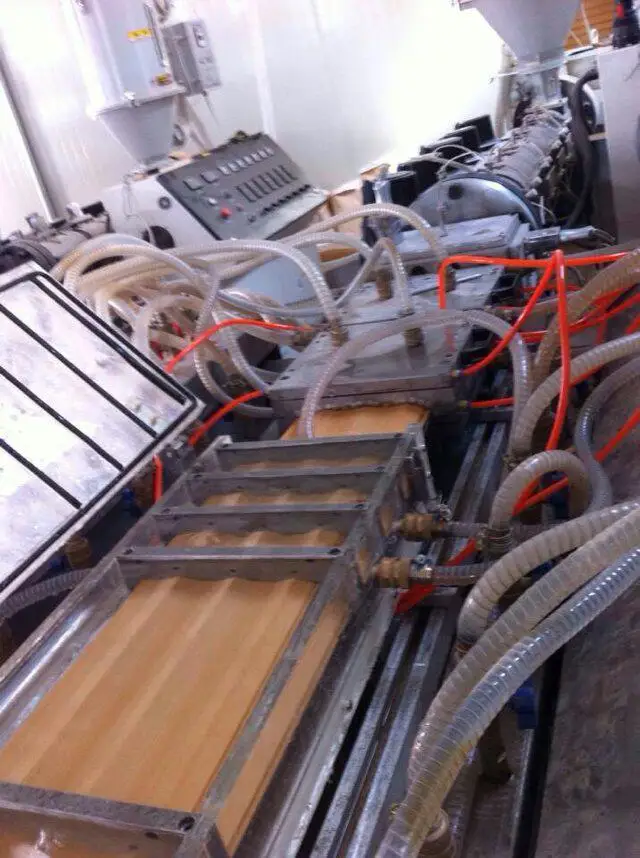

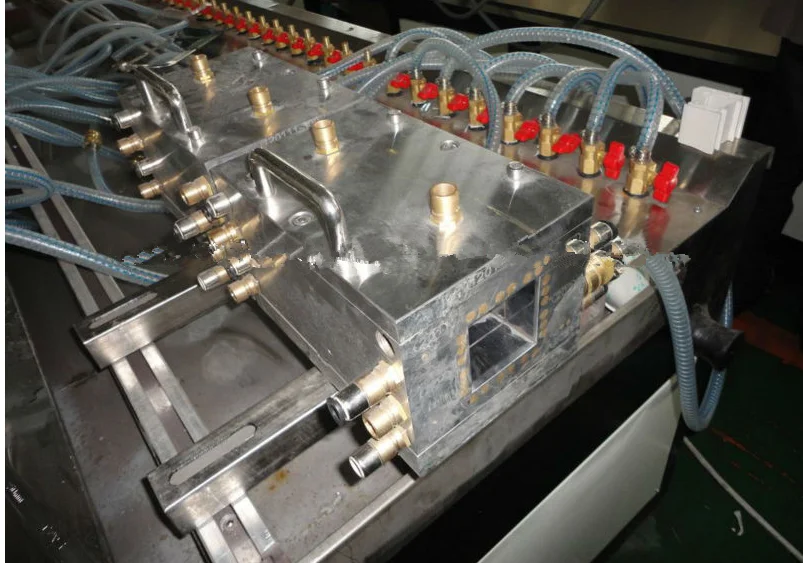

Vacuum calibration table for pvc door and window profile extrusion line
Hauling machine for pvc door and window profile extrusion line
Other auxiliary machine in pvc door and window profile extrusion line
Final product reference
Any question about pvc door and window profile production line / pvc door and window profile extrusion line ,please feel free to contact us ,
we are pleased to recommend suitable scheme and production configuration for you specially!
