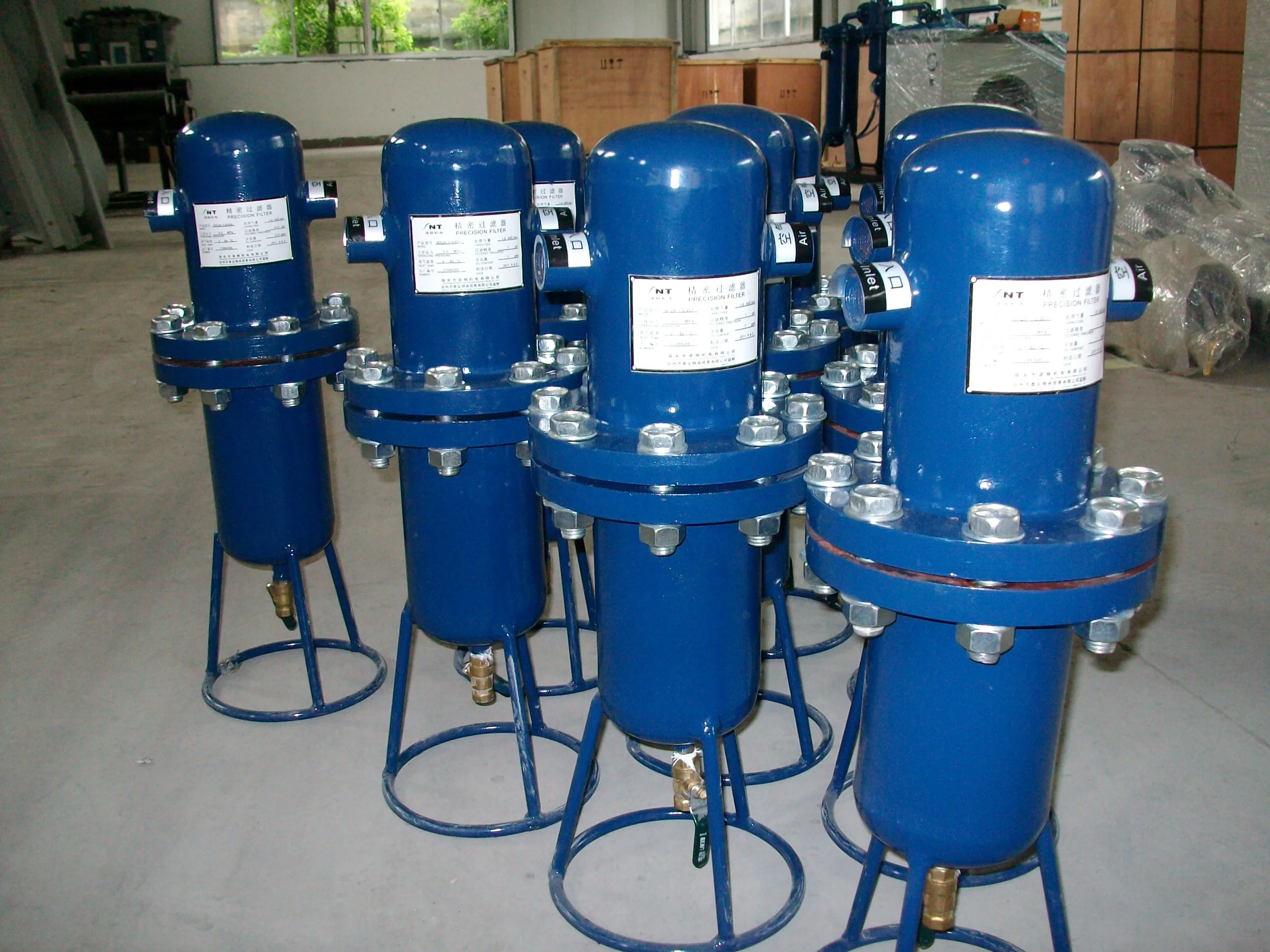

Unfiltered compressed air frequently contains dust, oil, rust, moisture and other harmful substances, and therefore requires filtration. In the first stage of filtration, the compressed air passes through a tube-shaped mesh filter, which creates a coalescence effect. Here bigger particles are adsorbed on the filter and the water will condense into larger droplets, which can then pass into the separation chamber. The compressed air is slowed down, which makes the particles condense on a honeycomb-like pad, allowing the water droplets to travel to the bottom of the drainage system and through an automatic or electric drain valve to the discharge. In the first filtration stage more than 95% of the water droplets, oil and large particles are removed. This practice is most common for removing water, but is also used for removing oil.In the second filtration stage the air is passed through fiber made of cotton, generating thousands of small vortices and accelerating the air.
Model
Capacity
Working Pressure
Inlet Temperature
Weight
Overall Dimension
NTLN-1.0/30
1.0
3.0Mpa
≤80
12
200×200×650
NTLN-2.0/30
2.0
15
250×250×650
NTLN-3.0/30
3.0
17
250×250×800
NTLN-4.0/30
4.0
18
250×250×800
NTLN-5.0/30
5.0
19
250×250×900
NTLN-6.0/30
6.0
19
250×250×900
NTLN-8.0/30
8.0
19
250×250×900
NTLN-10.0/30
10.0
19
250×250×900
NTLN-13.0/30
13.0
21
250×250×900
NTLN-15.0/30
15.0
21
250×250×900
Packing&Shipping
Company Introduction
Ouge company is located in the East China Sea coast, the famous "mould hometown"---- Huangyan Taizhou,Zhejiang. Specializes in the production of PET automatic and semi-automatic blowing machines, preform moulds and bottle moulds. It consists of many professional engineers with rich experience in the PET industry and high-quality staff. The main products include: PET automatic and semi-automatic blowing machines, all kinds of moulds for carbonated beverage bottles, juice bottles, alcohol drinks bottles, and cosmetic containers, PMMA lamps, PP infusion bottles, edible oil bottles, etc. Over the past several years, Ouge has always been devoting its utmost efforts to improving the technology, researching the market and developing new products to suit for all customer needs.
FAQ
1.Where is your factory? We are located at HunagyanTaizhou, Zhejiang Province, China mainland. 40 minutes from Luqiao Airport. 20 minutes from Taizhou Railway Station.
2.What's the lead time of one set of air filter? Generally speaking 15 working days ( not including Chinese official holidays ) after deposit received.
3.How about the quality control in factory?
Quality is the key point, we have professional team to inspect during machining,assembly and trial.
4.What about after service? We guarantee 1 year warranty,any spare parts in free change within warranty period.Then we have engineers can service oversea.
5. Can you help us with the shipment of this parts? Yes. with honor, we have our agent shipping company which already cooperate with us for a long time,they will give us the best price as they can.Also you can ask your own shipping forwarders to compare,Customer satisfaction is our pleasure.
OUGE specialized in providing complete blow molding strategy according to your requirement. We'd like to make more friends and crate win-win cooperation with you in the future. If you want more parameter about our machine, welcome to contact us immediately. Rita here will reply you in 12 hours.
