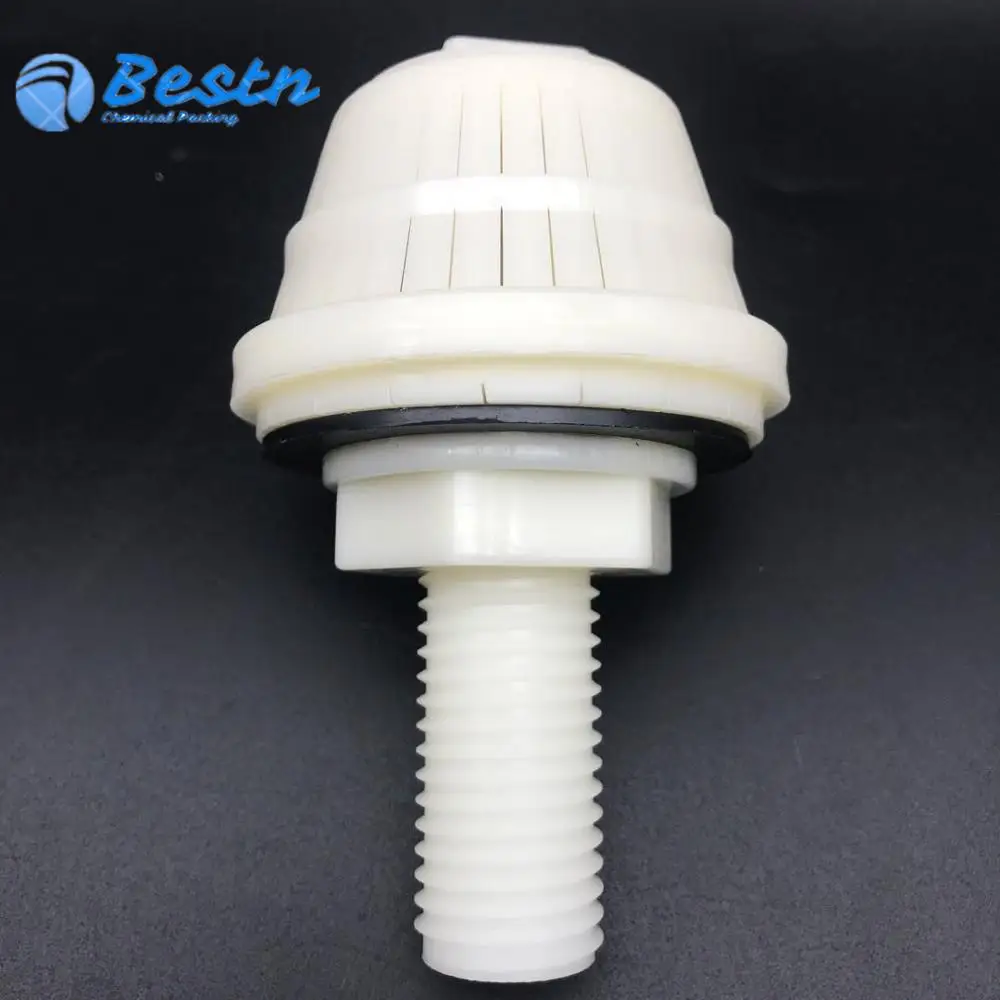

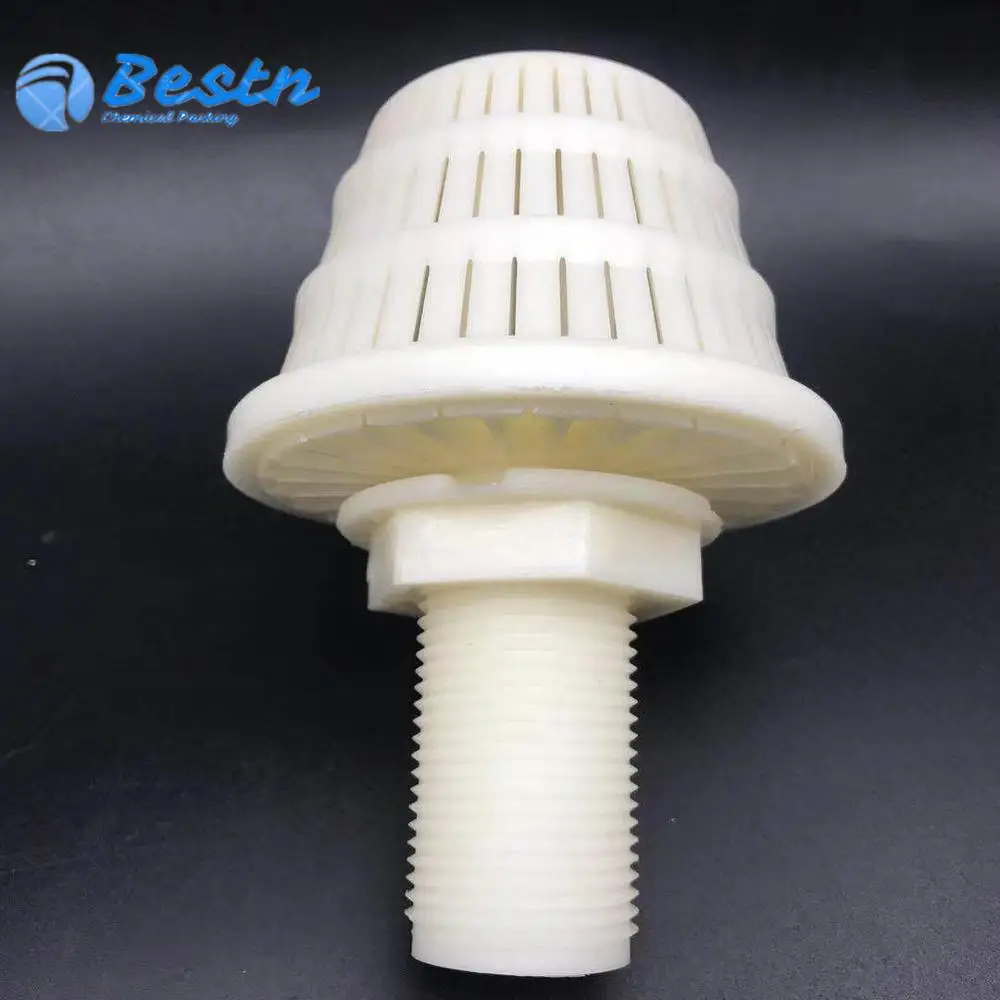

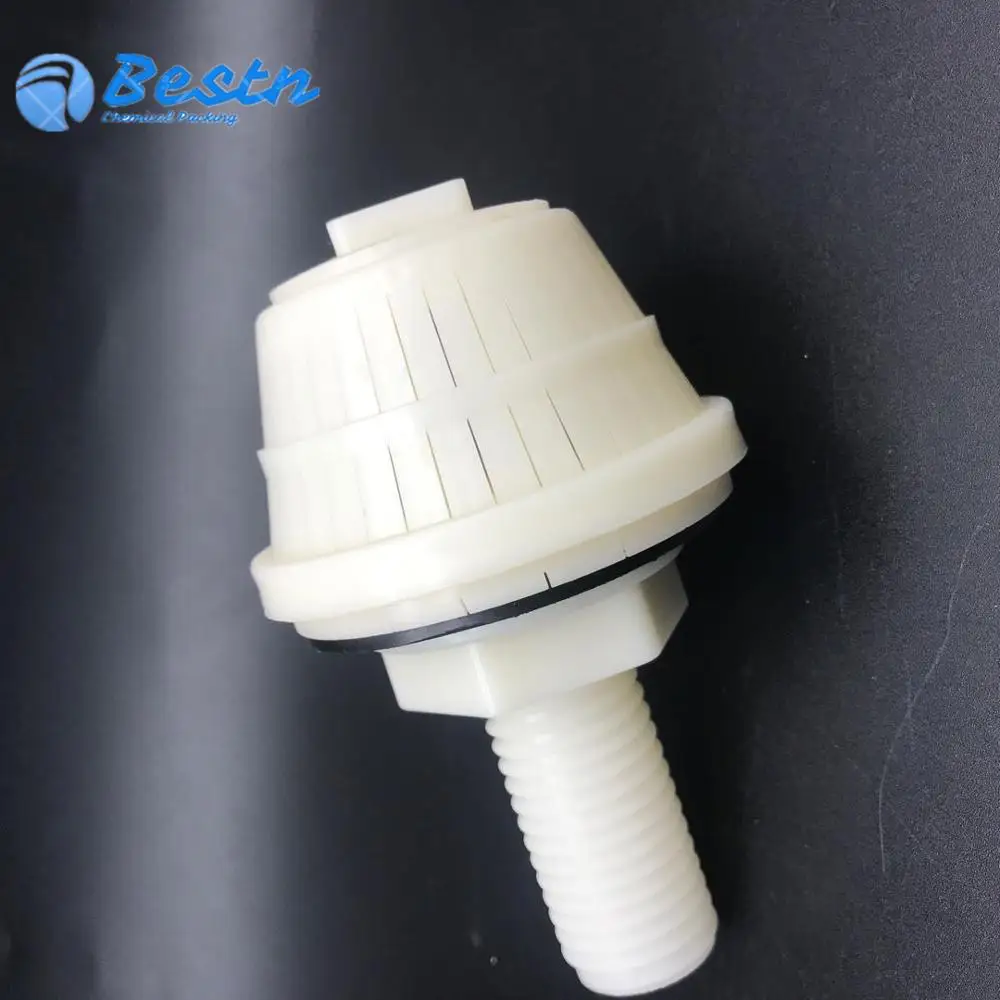

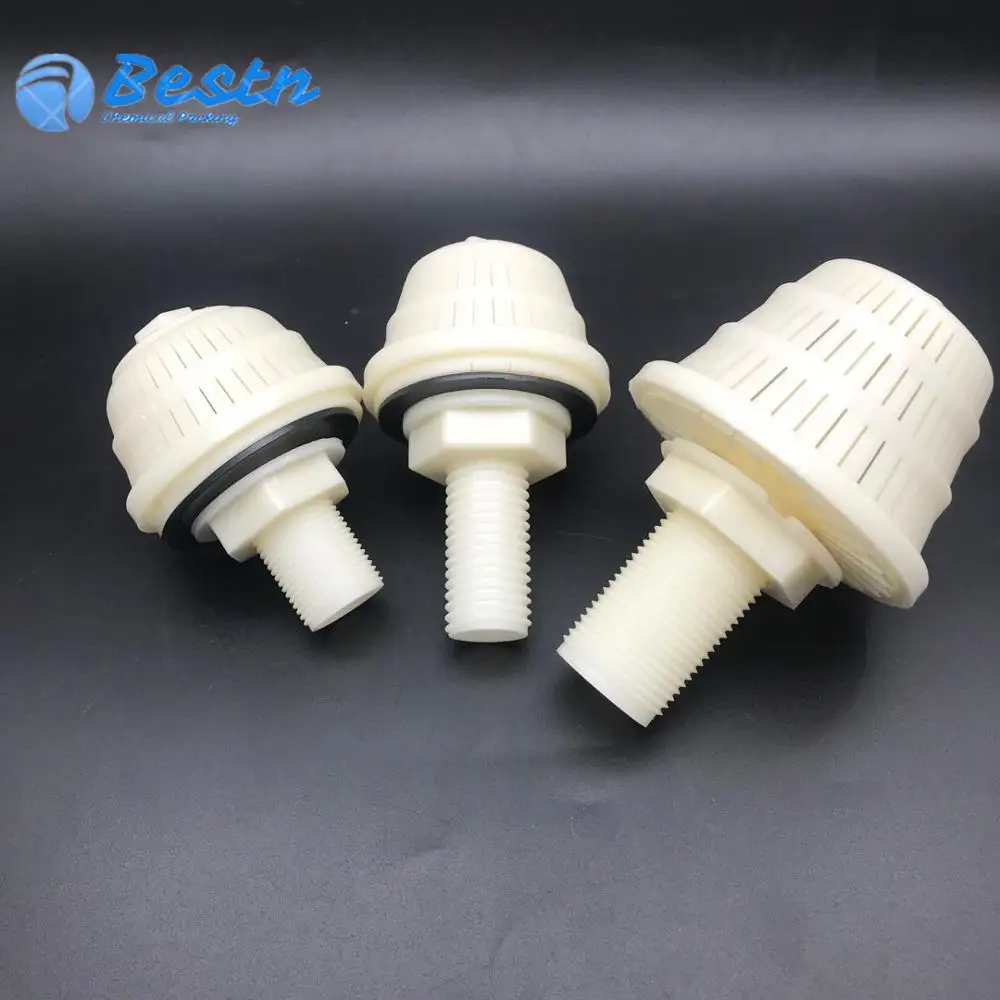

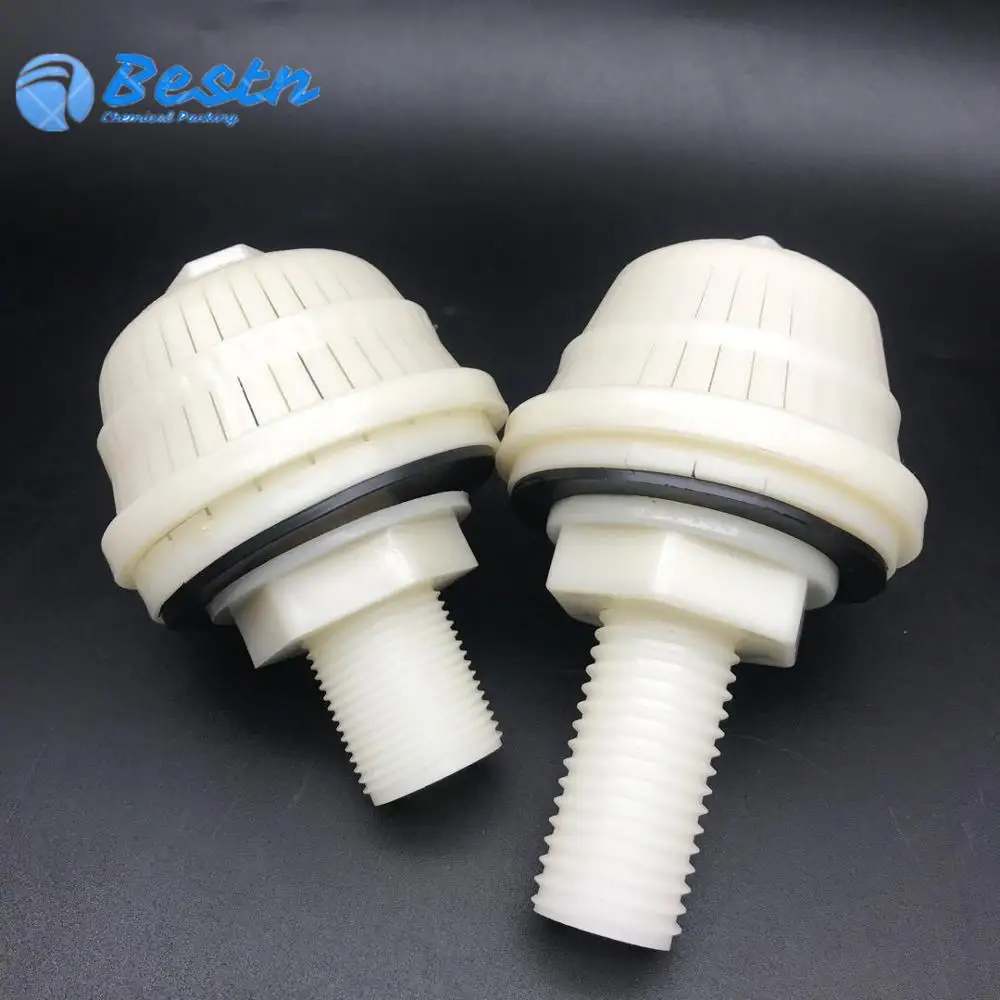

ABS,PP water filter nozzle for water treatment

Name

PP ABS Strainer Nozzle Plastic Water Filter Nozzle

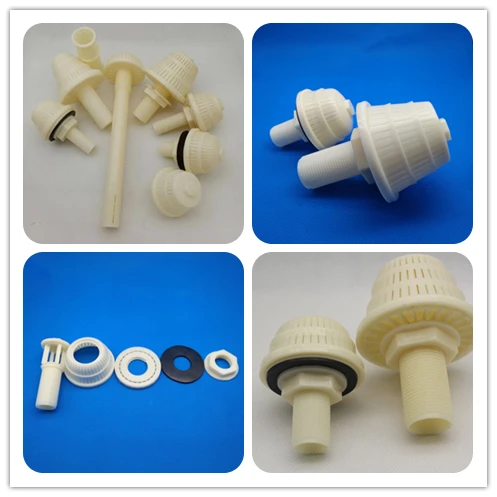

Components

Stem,Dome,Snap ring and Socket

Material

PP,PPFV,PPTB,PVDF,ABS,SS 316

Customized service

Available in variety of standard designs or can be custom to meet your demand

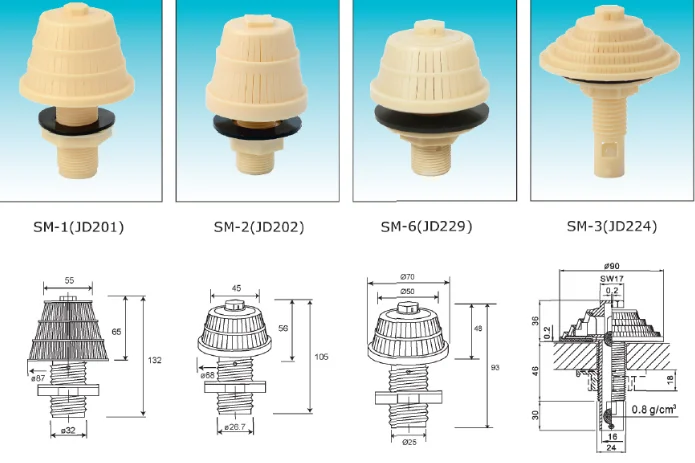

Type

Stem's diameter and height(not include in Domes)

Dome slot width

Snap ring's diameter

Stem thread

BSFN-1

29/240 mm

0.4 mm

No data

3 mm

BSFN-2

20/43 mm

0.3 mm

25 mm

1.5 mm

BSFN-3

32/50 mm

0.25 mm

60 mm

1.5 mm

BSFN-4

29/100 mm

0.4 mm

No data

3 mm

BSFN-5

25/48 mm

1 mm

45-46 mm

1.5 mm

BSFN-6

23/48 mm

0.25 mm

46 mm

2.5 mm

BSFN-7

25/48 mm

0.25 mm

45-46 mm

1.5 mm

BSFN-8

20/48 mm

0.25 mm

54-55 mm

1.5 mm

Application

Used in all filter and drainage systems and can be active in sand,anthracite,activated carbon,concrete and ion exchange resin treatment

Feature

1. Accurate dimensions 2.Corrosion-resistance 3.Sturdy design

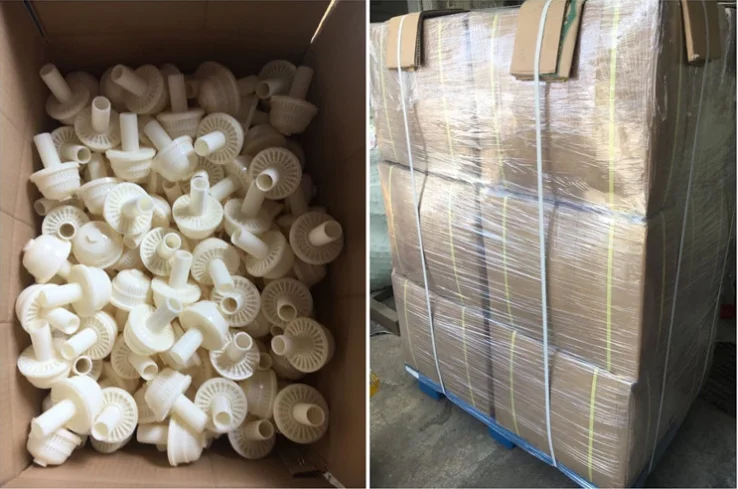

Package

1. Inner layer:plastic bag

2.Middle layer:Expand aple poly ethylene

3.Outer layer:carton/composite wooden case.

Components function description

1.Dome slots:provide the controlling head loss for good distribution

2.Snap ring:to fix connecting position between filter nozzle and laterial piple or in the suspend floo
