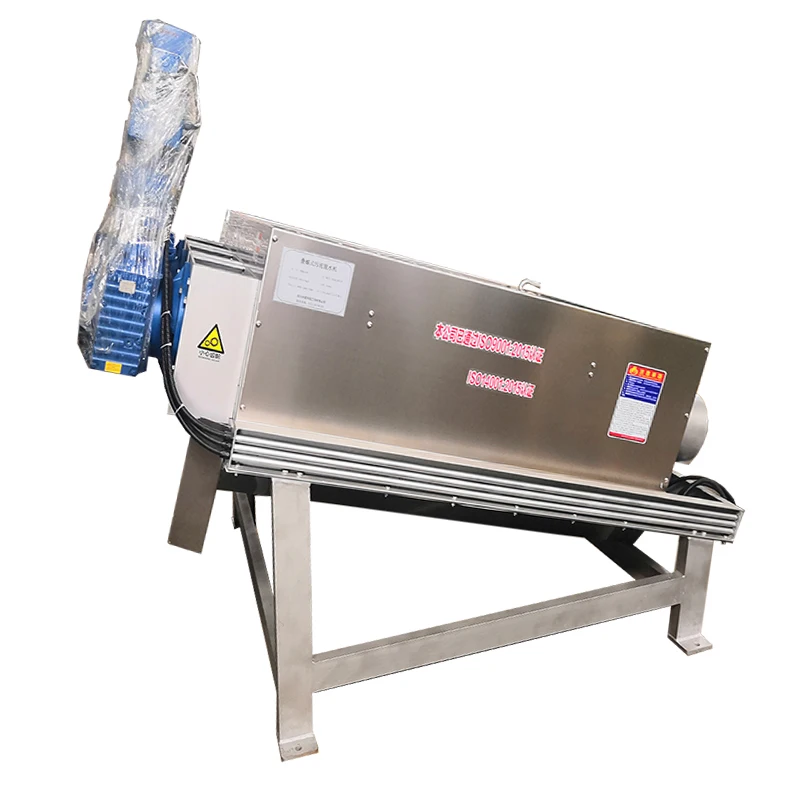

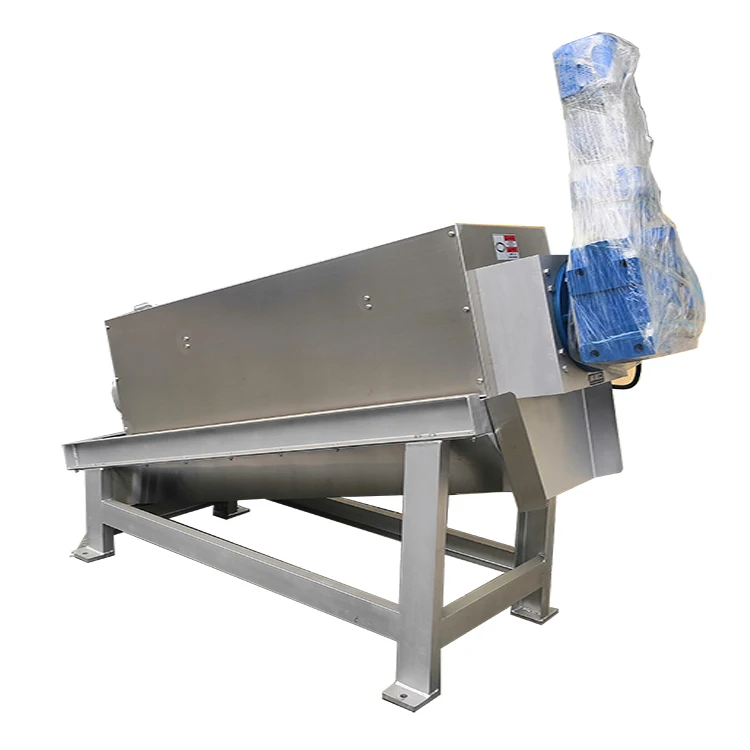

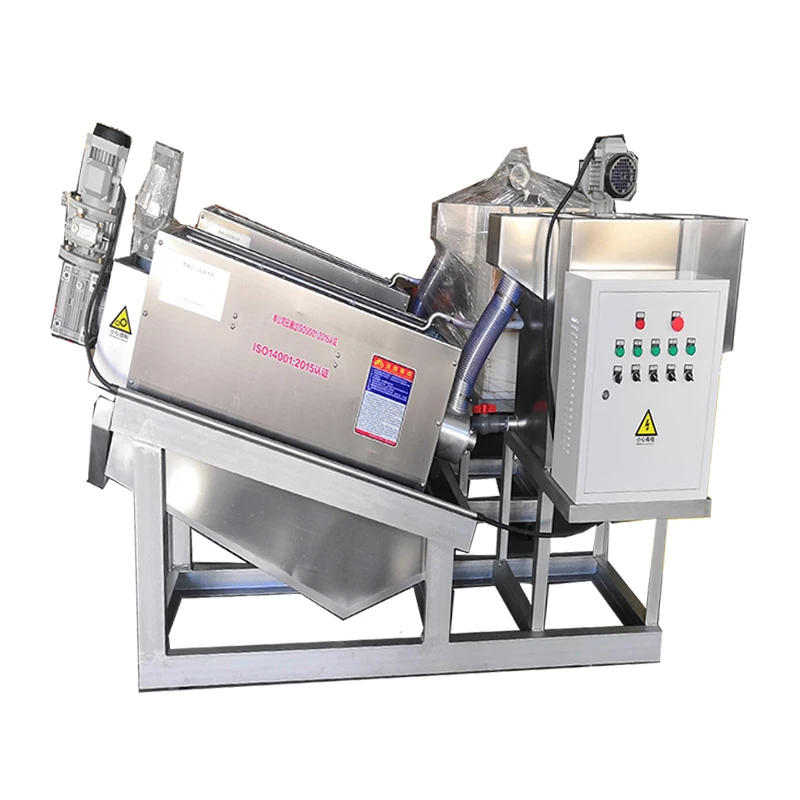

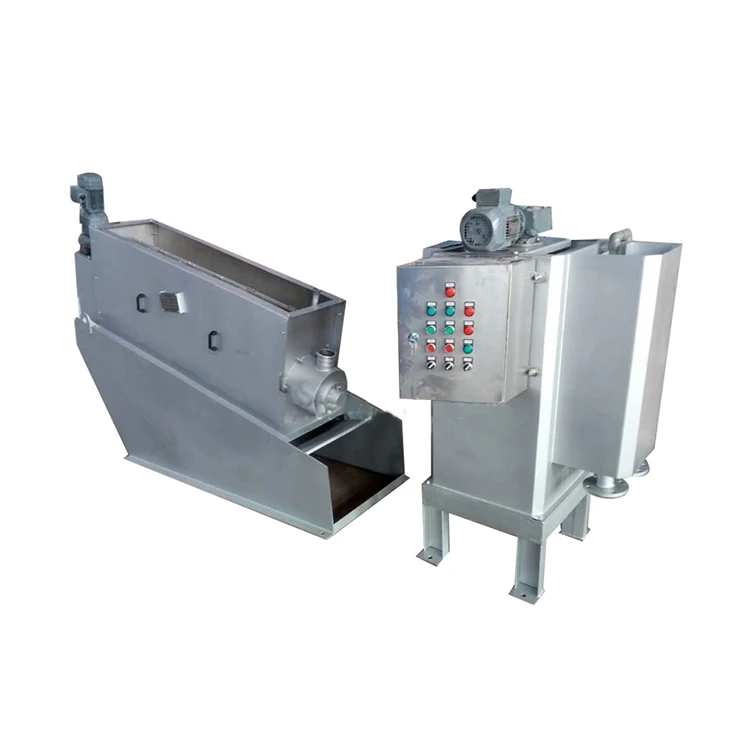

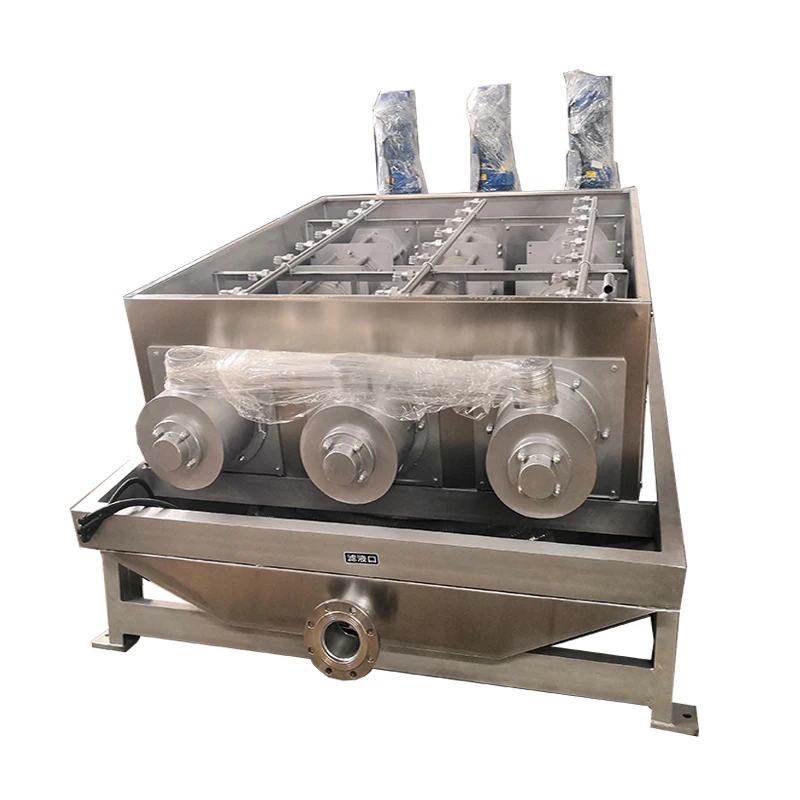

Waste water treatment machine with screw press sludge dehydrator
- Category: >>>
- Supplier: Qingdao Yimei Environment Project Co. Ltd.
Share on (62384760795):
Product Overview
Description
Product Description
Structural principle
Mulit-plate sludge dewatering machine is consisted of fixed ring,movable ring and screw filter parts.This machine is combined with filtration enrichment technology and press technology,sludge concentrate and squeeze can be complated in a cylinder.In concentrate process,the relatived movement of fixed ring and movable ring can squeeze out water quickly,never blocked.In the squeeze process,with the decrease of volume of screw cavity,the pressure will become larger,then the water in sludge will be squeezed out.
Our machine use particular filter model replace the traditional filter cloth and centrifugal filtration method,make the solid-liquid separator and self-cleaning technology more easy and advanced.
Working Principle
1. Concentration : When the screw drive shaft rotation, live in multiple solid drive shaft periphery laminated relative movement,under the force of gravity,Water from the relative motion of laminated filter out in the clearance,Achieve rapid concentrate.
2. Dehydration : After concentrate of sludge as the rotation of the screw axis moves forward constantly ,Follow the direction of the mud cake export , Screw axis of pitch became smaller , The gap between ring and ring also gradually become smaller , Spiral cavity volume shrinking ,Screw drive shaft Pushed by continuous operation in turn ,The water squeezed out of the sludge ,Filter cake solid content increase ,Finally realizes the continuous dehydration of sludge .3. self-cleaning : Screw axis rotation ,It pushes the float ring continuous rotation ,Equipment rely on the fixing ring and float ring to move between consecutive since the cleaning process ,Skillfully avoided Traditional dewatering machine common plugging problem .Our company are always focusing on independent technology innovation of themselves. Under the cooperation with Tongji University, we have successfully developed the new generation of sludge dewatering technology - multi-plate screw press, a screw type sludge dehydrator that is much more advanced in very aspects than belt presses, centrifues, plate-and-frame filter presses, etc. It features clogging-free, wide range of applications, low energy consumption, simple operation& maintenance.
2. Dehydration : After concentrate of sludge as the rotation of the screw axis moves forward constantly ,Follow the direction of the mud cake export , Screw axis of pitch became smaller , The gap between ring and ring also gradually become smaller , Spiral cavity volume shrinking ,Screw drive shaft Pushed by continuous operation in turn ,The water squeezed out of the sludge ,Filter cake solid content increase ,Finally realizes the continuous dehydration of sludge .3. self-cleaning : Screw axis rotation ,It pushes the float ring continuous rotation ,Equipment rely on the fixing ring and float ring to move between consecutive since the cleaning process ,Skillfully avoided Traditional dewatering machine common plugging problem .Our company are always focusing on independent technology innovation of themselves. Under the cooperation with Tongji University, we have successfully developed the new generation of sludge dewatering technology - multi-plate screw press, a screw type sludge dehydrator that is much more advanced in very aspects than belt presses, centrifues, plate-and-frame filter presses, etc. It features clogging-free, wide range of applications, low energy consumption, simple operation& maintenance.
Working process
1. Confirm which kind flocculant will be used and confirm the adding ratio.
2. Before take on dewatering,please infuse flocculant,dilution of PAM is 500-1000 times.Sludge will be taken to mixed flocculation tank by sludge pump and PAM liquid will be sent to this tank by chemical feed pump too.Then mixer will mix them together,until from alumen floc.Then sludge will taken on dewatering process, and filter liquid will be squeezed out and flow back to raw water tank.
3. After concentrate,sludge will be pushed forward at the force of screw axis,at the influence of all kinds of force,sludge will take on dewatering in squeeze process,the filter liquid have high soild content,so this liquid will flow back to mixed flocculation tank to taken on dewatering again.
4. After dewatering,mud cake will be discharged from outlet,they will be send to converyor and taken to tippers,then they will be sent to dry field.
2. Before take on dewatering,please infuse flocculant,dilution of PAM is 500-1000 times.Sludge will be taken to mixed flocculation tank by sludge pump and PAM liquid will be sent to this tank by chemical feed pump too.Then mixer will mix them together,until from alumen floc.Then sludge will taken on dewatering process, and filter liquid will be squeezed out and flow back to raw water tank.
3. After concentrate,sludge will be pushed forward at the force of screw axis,at the influence of all kinds of force,sludge will take on dewatering in squeeze process,the filter liquid have high soild content,so this liquid will flow back to mixed flocculation tank to taken on dewatering again.
4. After dewatering,mud cake will be discharged from outlet,they will be send to converyor and taken to tippers,then they will be sent to dry field.
Model list
Model | Size(mm) | Power(kw) | Dry Sludge | |
YM-101 | 2050*750*1350 | 0.92 | 6-10kg/h | |
YM-201 | 2760*850*1600 | 1.12 | 9-25kg/h | |
YM-301 | 4205*1000*2090 | 2.2 | 40-80kg/h |
Advantage
1. Wide renge of application
This machine can be used in municipal waste water,food industry, drinking inductry,slaughterhouse,fish breeding and poultry raising industry,dyeing and printing industry, petrochemical industry,paper industry,leather industry,pharmaceutical industry,etc.This machine can realize dewatering of high concentrate sludge,and they can dewater low concentrate sludge,the lowest concentrate is 2000mg/L.This machine use low speed mechanical squeeze method to realize dewatering.No filter cloth,no mud hole,don't need to rely on the defferent of gravity and centrifugal force,so they can dewatering all kinds of sludge (include oil-sludge )and no blocked.
2. No secondary pollution
The rotation speed is about 2-3 r/min,no shake,small noise,multi plate can self clean,only need little water to clean,no secondary pollution for water.No odor,odor will not spread to the environment.
3. Save running cost
This machine use mechanical squeeze to realize dewatering,no need rotary drum and other large body,so the whole design is compact and save the running cost.Use low speed screw squeeze technology,save power(unit power consumption is about 0.1kwh/kgDS).No block,only need little water to clean(unit water consumption is about 0.03t/h).24 hours running automatically, no need worker guard,labour cost will save a lot. 4. Automatic working
This machine can work automatically,from suck sludge,add medicien liquid to discharge mud take.No need operater,they can work 24hours.
This machine can be used in municipal waste water,food industry, drinking inductry,slaughterhouse,fish breeding and poultry raising industry,dyeing and printing industry, petrochemical industry,paper industry,leather industry,pharmaceutical industry,etc.This machine can realize dewatering of high concentrate sludge,and they can dewater low concentrate sludge,the lowest concentrate is 2000mg/L.This machine use low speed mechanical squeeze method to realize dewatering.No filter cloth,no mud hole,don't need to rely on the defferent of gravity and centrifugal force,so they can dewatering all kinds of sludge (include oil-sludge )and no blocked.
2. No secondary pollution
The rotation speed is about 2-3 r/min,no shake,small noise,multi plate can self clean,only need little water to clean,no secondary pollution for water.No odor,odor will not spread to the environment.
3. Save running cost
This machine use mechanical squeeze to realize dewatering,no need rotary drum and other large body,so the whole design is compact and save the running cost.Use low speed screw squeeze technology,save power(unit power consumption is about 0.1kwh/kgDS).No block,only need little water to clean(unit water consumption is about 0.03t/h).24 hours running automatically, no need worker guard,labour cost will save a lot. 4. Automatic working
This machine can work automatically,from suck sludge,add medicien liquid to discharge mud take.No need operater,they can work 24hours.
5. Self-cleaning,no block
The relative movement between fixed ring and movable ring can avoid block effectively.
The relative movement between fixed ring and movable ring can avoid block effectively.
6. Long working life
Whole design is very compact and light,almost all the material is stainless steel,only need to change screw axis and movable ring.
Whole design is very compact and light,almost all the material is stainless steel,only need to change screw axis and movable ring.
Packing&Shipping
After Sales Service
1.Professional design for you According to the actual needs of professionals will be free to design targeted programs and products to ensure efficient complete solution actual demand.
2.Strict product examination Professional advanced processing equipment and skilled workers, to build an advanced DAF equipment.
3.Professional after sale service For equipment installation, specialized personnel will provide overseas equipment installation guide, commissioning, operation, maintenance instructions.
4.Technical support In the process of use, if you encounter any problems, we will always provide technical support for you
2.Strict product examination Professional advanced processing equipment and skilled workers, to build an advanced DAF equipment.
3.Professional after sale service For equipment installation, specialized personnel will provide overseas equipment installation guide, commissioning, operation, maintenance instructions.
4.Technical support In the process of use, if you encounter any problems, we will always provide technical support for you
Company Introduction
Shenzhen onetouch trading company is a wholesale company that manufactures good & high quality knitting wear and woven wear, starting from 2006. The company provides the customized products and OEM service. Various new collections and design are coming out each month with the current styles and fabrics. The factory own the proficient skill and updated machine
Our Services & Strength
Qingdao Yimei environment project Ltd. Found in 1988, located in maxi Chinese military affairs harbour base Jiao Nan City. Occupy about 36,000 square meters, 15,000 square meters workshop building, have each kind of processing machine about 130 pcs, as one of Shandong Province environment protection industrial association trustee member unit, now have staff about 300 person, 72 engineers and technicians, mainly engaged in the environment project, environmental protection equipment design and manufacture, water treatment technological development, engineering construction, technical service and series of products of client customized.
We have the well experienced engineer, strong specialized production base, advanced manufacturing facilities, and can supply the first-rate product and special field consulting service.
In the long rang concentrates efforts on environment protection cause investing in construction, complete sets of equipment and project overall contracting.
