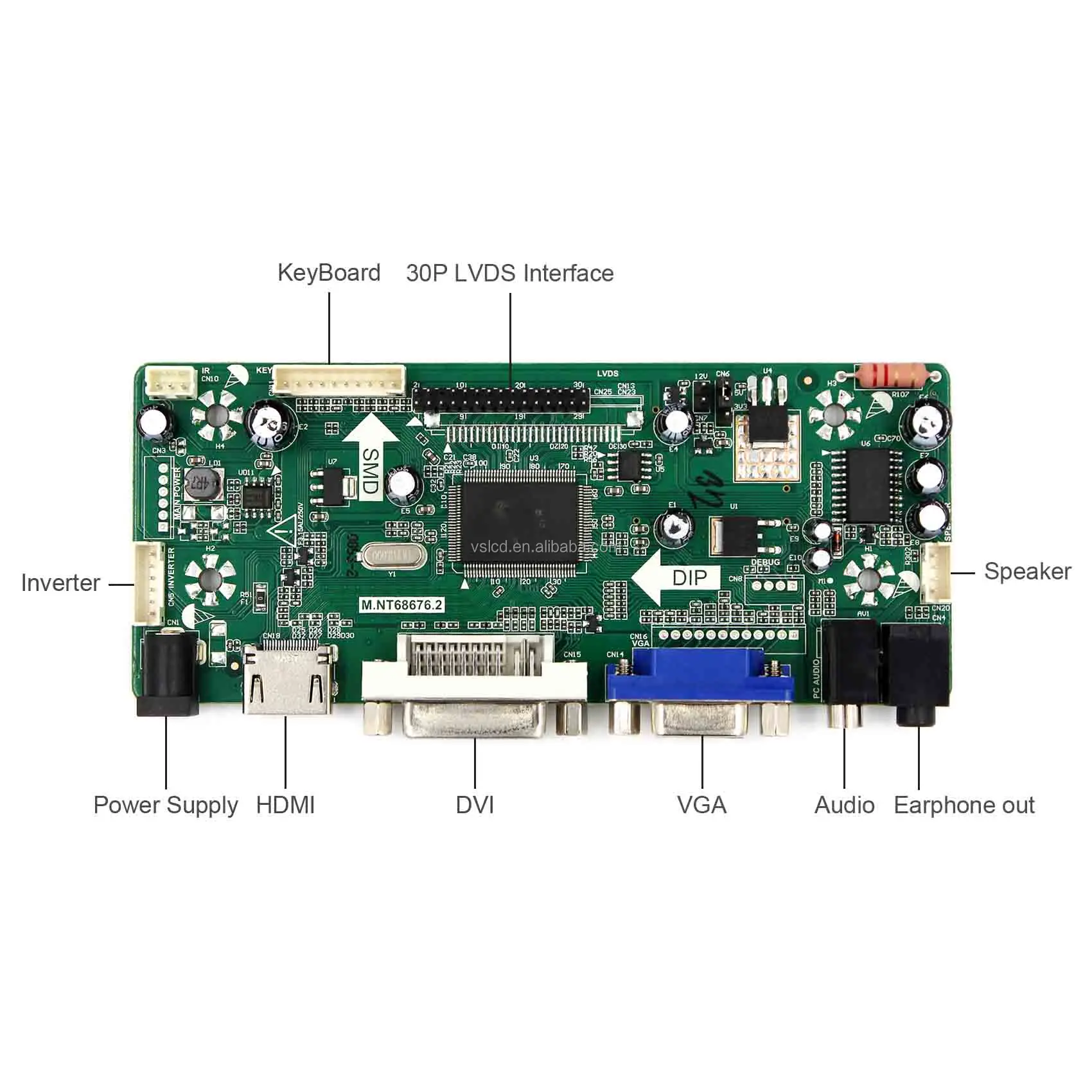

HDMI+VGA+DVI+Audio LCD Controller Board M.NT68676.2A
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
23.8" MV238FHM 1920X1080 LCD Screen:
Display Mode ADS, Normally Black, Transmissive
Outline Size 543 ×317.4×11.4 (H×V×D)
Display Area 527.04 × 296.46(H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface 30 pins LVDS (2 ch, 8-bit) , Connector
Input Voltage 5.0V (Typ.)
1× HDMI VGA DVI LCD Controller Board M.NT68676
1× 23.8inch MV238FHM-N10 1920X1080 IPS LCD Screen
1× Inverter Board
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q: After Service for the product ?
A: We can provide the wireless technology support in any time. If the goods broken during the shipping, pls contact us after received the goods, we will refund your payment or Replenishment deliver.
