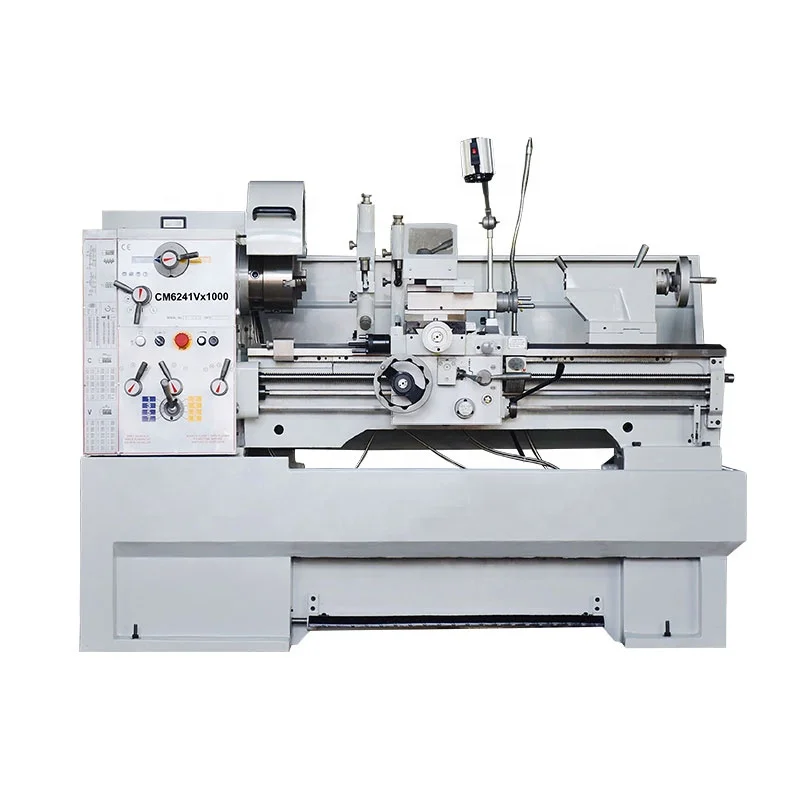

CM6241 Variable speed 52mm spindle bore manual lathe machine with CE for sale

52mm spindle bore CM6241 cheap heavy engine lathe machine with CE for sale.
Features:

Super voice frequency heated bedways cheap cnc lathe machine
Hardened and grounded gears in the headstock
With 2 precision D degree taper roller bearings on the spindle
Integrated deluxe cast iron floor stand
Tolerance test certificate, test flow chart included

Specification	CM6241V×1000 /1500mm
Swing over bed	410mm
Swing over cross slide	255mm
Swing in gap	580mm
Length of gap	19mm
Distance between centers	1000mm /1500mm
Center height	205mm
Width of bed	250mm
Spindle nose	D1-6
Spindle bore	52mm
Taper of spindle bore	MT6
Range of spindle speed	Variable speed 50-30000r/min

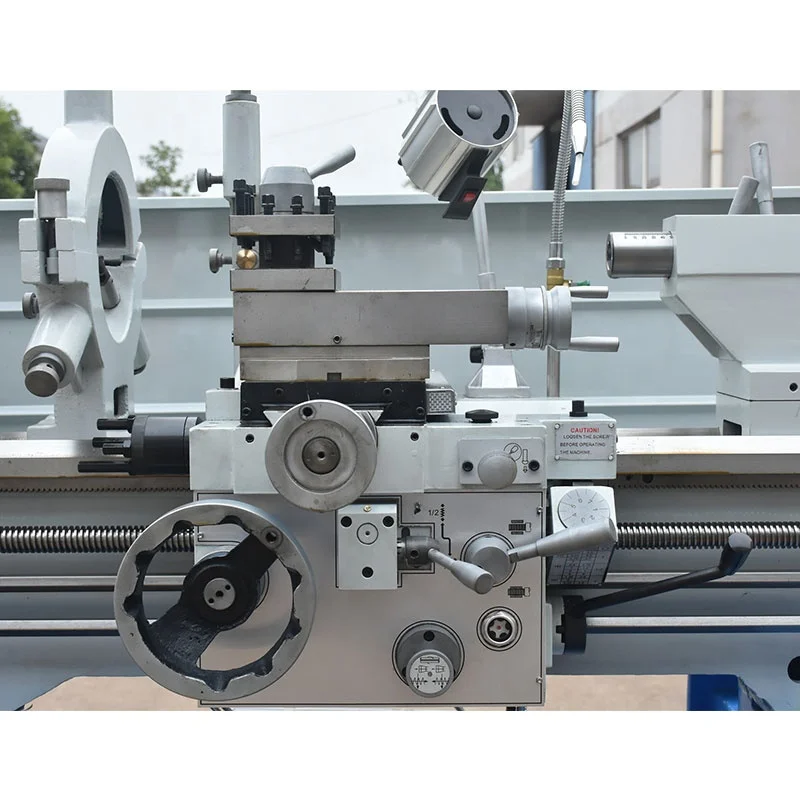

Travel of compound rest	102mm
Max.travel of cross slide	210mm
Leadscrew pitch	4T.P.I.
Max.Section of tool	20×20mm
Longitudinal feeds range	0.05-1.7mm/rev(0.002-0.067/rev)
Cross feeds range	0.025-0.85mm(0.001-0.0335/rev)
Cross feeds range	0.025-0.85mm(0.001-0.0336/rev)
Inch threads range	45kinds 2-72T.P.I
Diametrical pitches range	21kinds 8-44D.P.
Module pitches range	18kinds 0.3-3.5M.P.

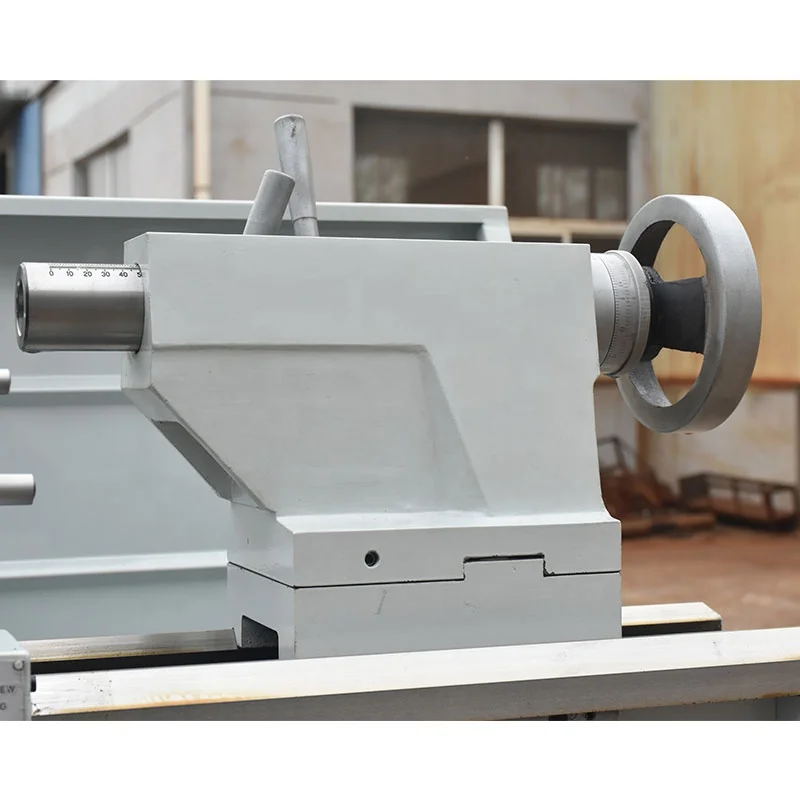

Dia.of tailstock sleeve	50mm
Travel of tailstock sleeve	120mm
Taper of tailstock sleeve	MT4
Power of main motor	2.2/3.3kw(optional 3.0/4.5kw)
Power of coolant pump	90w
Overall dimension	1940/2440×850×1300mm
Packing size	2060/2560×900×1640mm
N.W/G.W	1500/1750kgs 1550/1800kgs

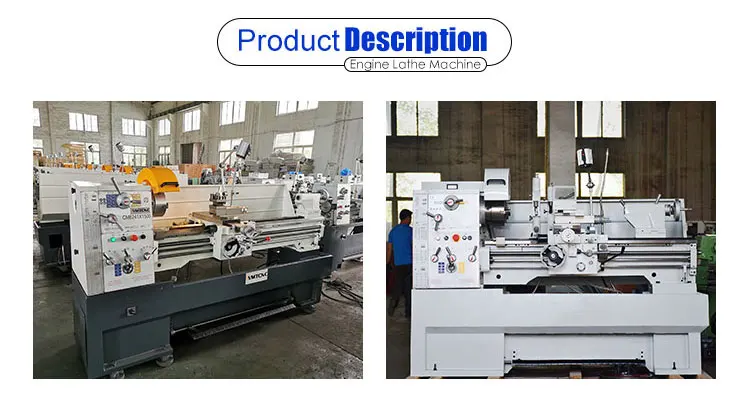

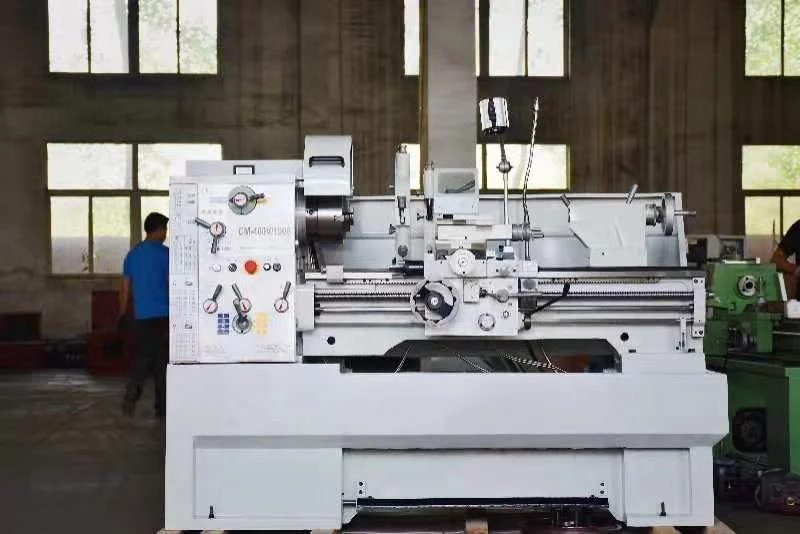

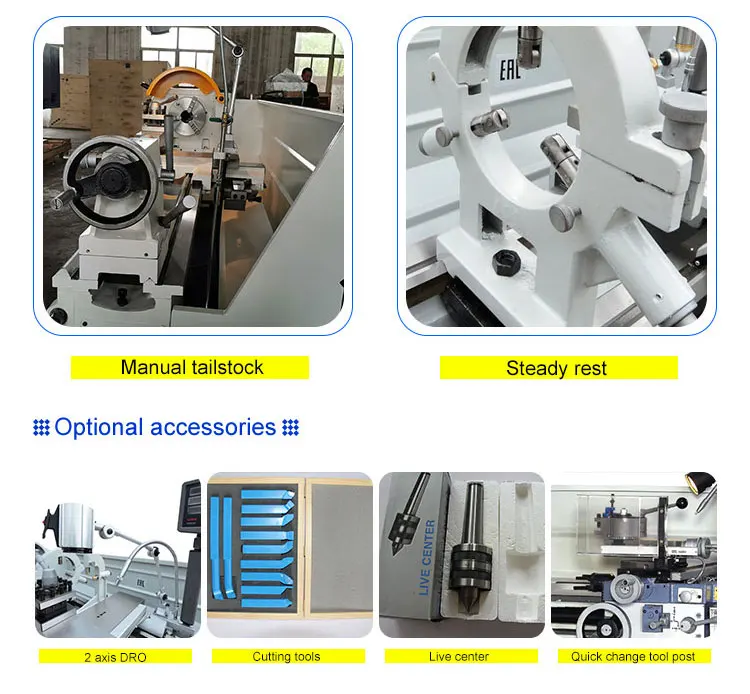

Products Show

Package&Shipping

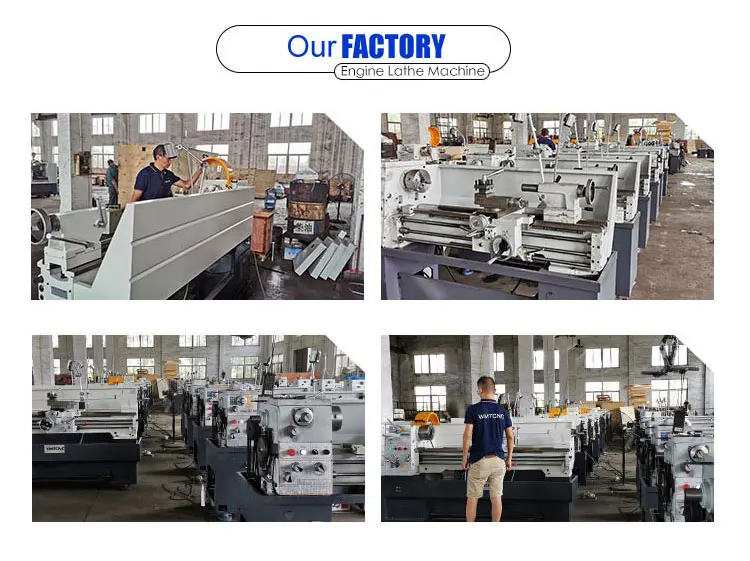

Our Company
