Whole Ste Combined 1t/H Rice Milling Machine Rice Mill Machinery

Product Description

Rice mill  main lincludes: 45a stone cleaning machine, MLGJ15 husker, MGCZ70×5 Gravity Paddy Separator, MNMF15 High-power Suction Type emery-roller Rice Mill.The produce can cleaner, destoner, huller, paddy separator, whitener( polisher) , grader all in one.

Paddy Cleaner → Destoner → Paddy husker → Paddy Separator → Rice Whitener → water polisher → Rice Grader → Color Sorter → Packing

Whole Ste Combined 1t/H Rice Milling Machine Rice Mill Machinery

Whole Ste Combined 1t/H Rice Milling Machine Rice Mill Machinery

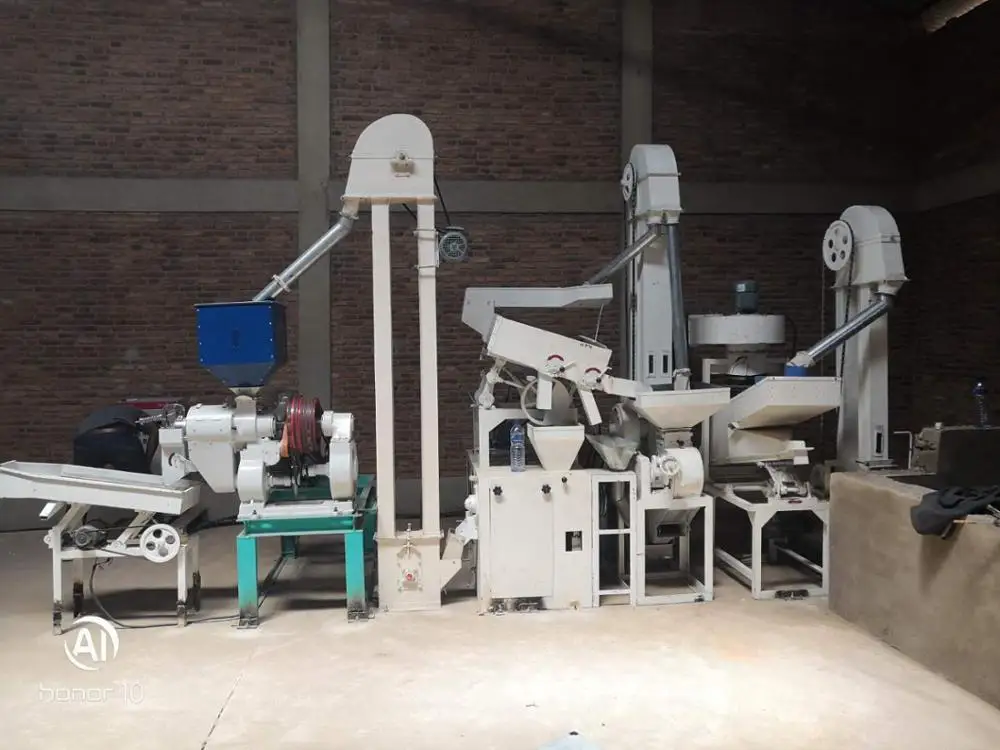

Structure

This kind of machine was one COMBINED TYPE. One set Rice Mill Plant include:2 sets Elevators,1 set De-stoner machine with Blower,1 set Paddy hulling machine,1 set Paddy Seperator and 1 set Rice Polishing machine. Also have pipe and Cyclone for the Rice Husk and Rice Bran. Also have Distribution Box to control these parts.

Working principle

The rice mill is a kind of comprehensive equipment for rice processing. Rice goes into machine through vibrating screen and magnet unit, and then forward under rubber-roller for hulling. Winnowing and air blowing to husk. The machine may complete all the processing works from cleaning grain, rice husking in hulling to rice husking in succession. As to husk, chaff, blighted grain as well ad polished rice, they are all pushed out of machine separately. This machine is comprehensive expression for all the good qualities of varied kinds of rice-processing machines. For instance, it is arranged with a comprehensive view of situation and is designed rationally.

Advantages

1. Compact structure and nice performance;

2. Modern design and high efficiency output;

3. Low noise and consumption;

4. Easy to operate and maintain;

5. High output and low broken rate;

6. Output rice with high quality;

7. Reasonable Price

Specification
Namepower(kw)output(t/h)
Single machinetotalSingle machinetotal
TF32A Centrifugal suction fan3.323.81.2-1.50.8-1
TQLQ50a Suction Stoning Machine1.2-1.5
Single Elevating Conveyor1-1.5
Rubber-Roller Husker4.751-1.2
Double Elevating Conveyor1-1.5
Gravity Paddy Separator0.751-1.2
Jet-air Emery Roll Rice Mill150.8-1

Rice Mill Plant Main Technical specifications:

1.Rice huller Rubber roller Φ254×254(mm)(diameter*length)

2.R.P.M of fast roller: 1200 r/min

3.R.P.M of slow roller: 890 r/min

4.R.P.M of husk blower: 1680 r/min

Rice polisher:

1.Iron cylinder: Φ138×340mm(outer diameter of protrudes*length)

2.Screw conveyor: Φ138*150mm(outer diameter*length)

3.Hexagonal screen: Φ148*335mm(diameter of inscribed circle*length)

4.Mesh of hexagonal screen: 0.95*15mm(width*length)

5.R.P.M of main shaft of rice polisher1000 r/min

6.R.P.M of high pressure blower: 3400 r/min

Whole Ste Combined 1t/H Rice Milling Machine Rice Mill Machinery

Whole Ste Combined 1t/H Rice Milling Machine Rice Mill Machinery

Whole Ste Combined 1t/H Rice Milling Machine Rice Mill Machinery

Whole Ste Combined 1t/H Rice Milling Machine Rice Mill Machinery

Whole Ste Combined 1t/H Rice Milling Machine Rice Mill Machinery

Whole Ste Combined 1t/H Rice Milling Machine Rice Mill MachineryWhole Ste Combined 1t/H Rice Milling Machine Rice Mill Machinery

Packaging & Shipping

Whole Ste Combined 1t/H Rice Milling Machine Rice Mill Machinery

Customers Visiting

Whole Ste Combined 1t/H Rice Milling Machine Rice Mill Machinery

Whole Ste Combined 1t/H Rice Milling Machine Rice Mill Machinery

Company Information

Whole Ste Combined 1t/H Rice Milling Machine Rice Mill Machinery

Whole Ste Combined 1t/H Rice Milling Machine Rice Mill Machinery

Henan Haokebang Machinery Equipment Co., Ltd has decade years of researching, designing and producing experience, as a professional manufacturer specialized in producing grain processing machineries.CHENGLI is engaged specially in project design on grain processing factory of wheat flour and corn/maize flour. Our superior products are complete set of 30T-200T/D maize flour processing machine and wheat flour processing machine.

We also start to develop the complete combined rice mill and installed successfully in Nigeria, Thailand, India, Sri Lanka, Indonesia and Qatar
