New Design Carbonated Soda Can Beverage Filling Machine
- Category: >>>
- Supplier: Zhangjiagang EQS Machinary Co. Ltd.
Share on (62385204047):
Product Overview
Description
Product Description
Automatic Linear type carbonated soda can filling machine
Product Application
This Linear type Soda Can Filling Machine can be used for Can Filling.
This Soda Can Filling Machine is used to fill sparkling water, carbonated drink, beer in PET can or aluminum can, all the main
material is high quality of SUS304 material, it adopts the special balanced pressure filling valves, has good filling precision
and filling stability. The machine speed is controlled by the electromagnetic speed-regulator; The machine is suitable for same
size can diameter and different can height, if with different can diameter, then it needs to set with extra can change parts to
share the machine.
General Information:
1. This Soda Can Filling Machine is for PE can or Aluminum can.
2. Its Capacity is from 1000-2000 Cans per hour.
3. This machine is used for purified water, mineral water, and gas beverage filling.
and filling stability. The machine speed is controlled by the electromagnetic speed-regulator; The machine is suitable for same
size can diameter and different can height, if with different can diameter, then it needs to set with extra can change parts to
share the machine.
General Information:
1. This Soda Can Filling Machine is for PE can or Aluminum can.
2. Its Capacity is from 1000-2000 Cans per hour.
3. This machine is used for purified water, mineral water, and gas beverage filling.
New Design Carbonated Soda Can Beverage Filling Machine
Filling
Capping
Structural Features:
Cans go through conveyor to filler, the dia plate will turn the cans to can stands, with the motor driven energy, the can stands
go up and forward along the principal axis; When the cans go through gas valve opening position, the trigger on liquid tank will
open the valve, at the mean time the bottle mouth will be pressed closely to filling valve head, and the CO2 gas will be put into
the bottles, when the pressure inside bottle is same as in liquid tank, the filling valve will be started to fill and filling finish when filling head apart from can mouth, and then can was sent out the machines. The speed control is by motor speed. Whole machine is made by SUS304.The filling head is spring type, no dead angel, no dripping.
go up and forward along the principal axis; When the cans go through gas valve opening position, the trigger on liquid tank will
open the valve, at the mean time the bottle mouth will be pressed closely to filling valve head, and the CO2 gas will be put into
the bottles, when the pressure inside bottle is same as in liquid tank, the filling valve will be started to fill and filling finish when filling head apart from can mouth, and then can was sent out the machines. The speed control is by motor speed. Whole machine is made by SUS304.The filling head is spring type, no dead angel, no dripping.
Construction: SUS frames+ liquid tank + filling heads + can transmission system+ conveyor rail
SPECIFICATIONS FOR DG-12 Soda Can Filling Machine | ||||||
Filling Valves | 12 | Bottle size | 200-2000ml, by order | |||
Filling pressure | Balanced pressure | Capacity | 1000-2000 Cans per hour | |||
Speed of belt | Controlled by motor, adjustable | Aseptic air consumption | 0.4m3/min(0.4～0.6Mpa) | |||
Power | 1.5 KW | Water pressure | 0.15 MPa | |||
Overall dimension (L×W×H） | 1100*1000*1800 mm3 | Weight | 500 Kg | |||

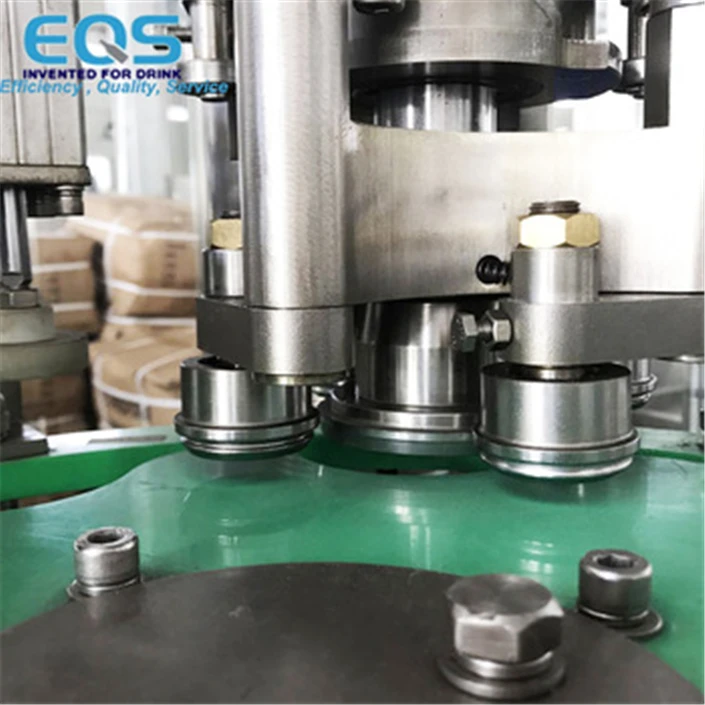

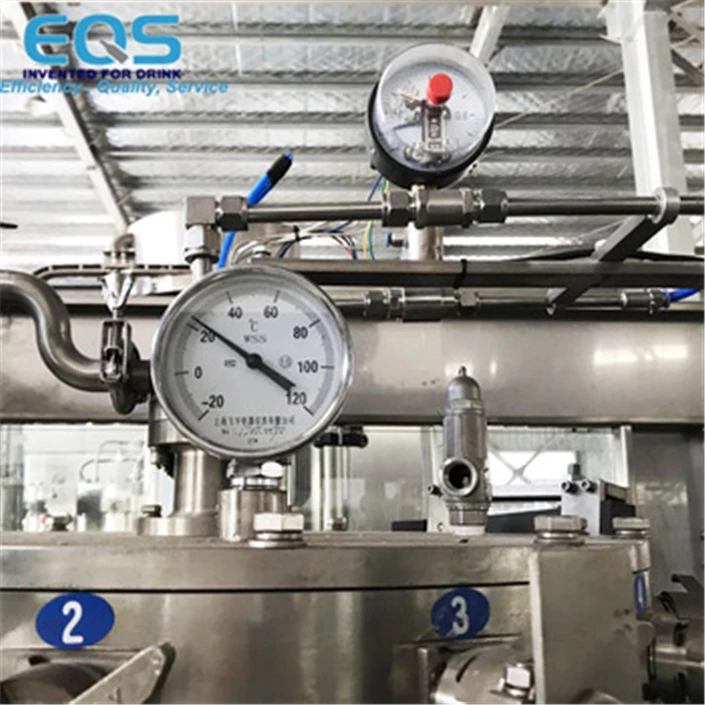

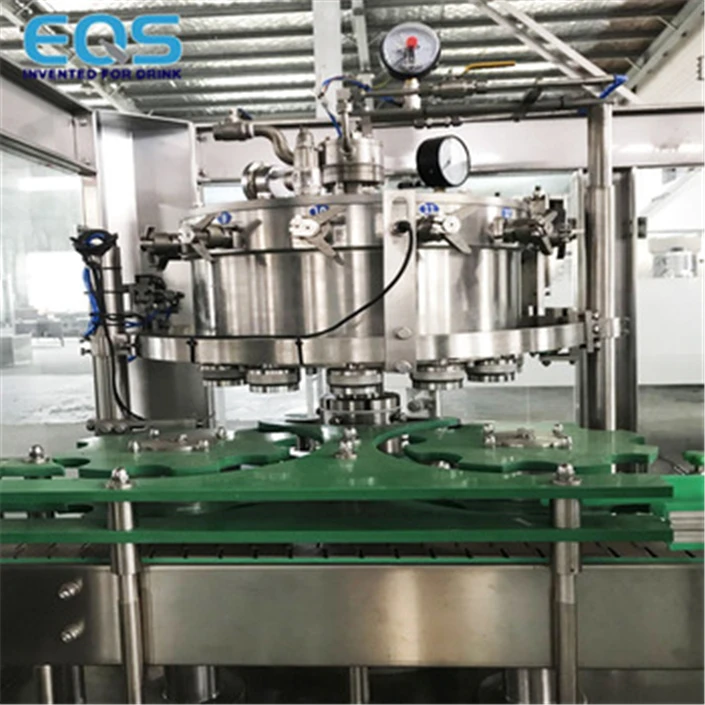

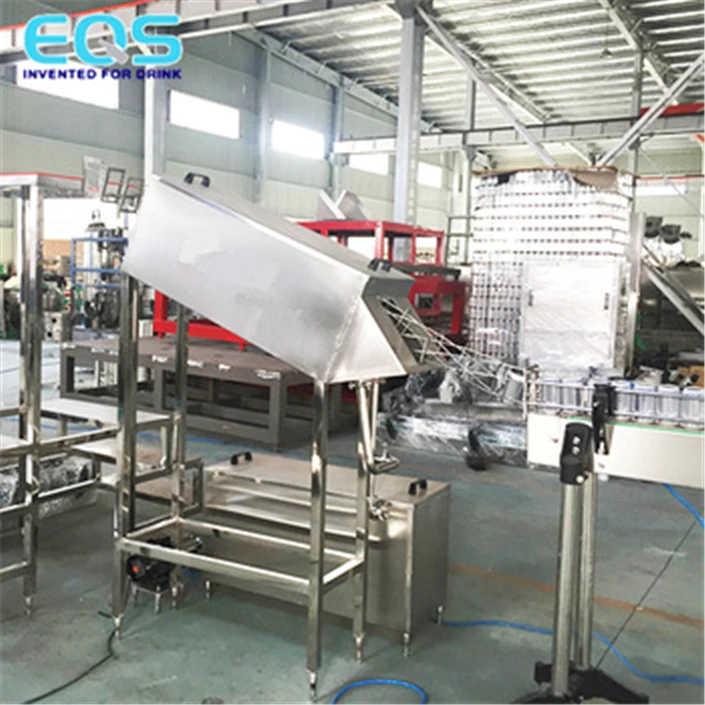

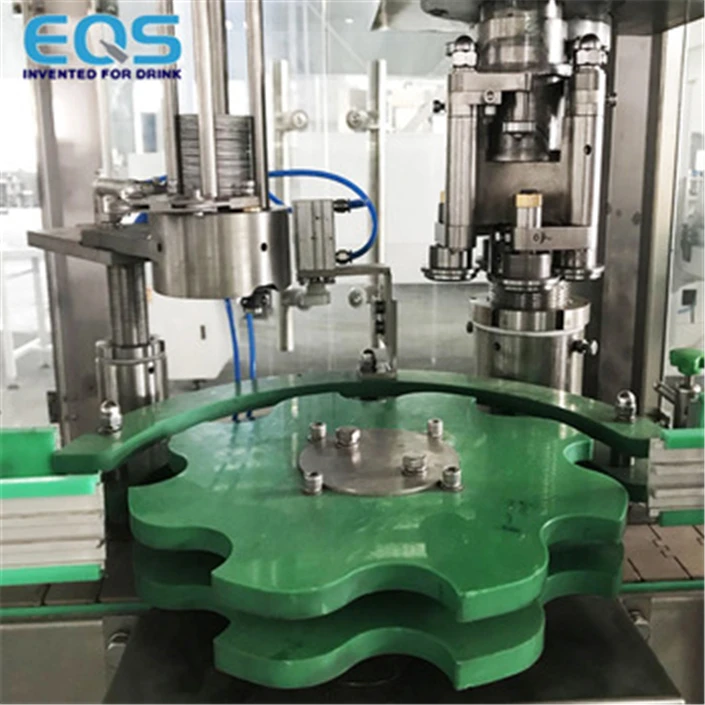

Detailed Images
Whole Line Products
The Flow Chart of Carbonated Drink Filling Machine Production Line
Company Introduction
Zhangjiagang EQS Machinery Co., Ltd is a professional manufacturer for Beer and Beverage Filling Machine. We're located in Zhangjiagang, north part of Suzhou, about 130 kilometers away from Shanghai.
With more than 10 years' experiences in R&D, we are able to design products for individual customer's request. As an ISO9001:2000 company, we have a set of quality control processes. It ensures we can deliver high standard qualified products to our customers. Moreover, our products have passed European CE Certification.
With more than 10 years' experiences in R&D, we are able to design products for individual customer's request. As an ISO9001:2000 company, we have a set of quality control processes. It ensures we can deliver high standard qualified products to our customers. Moreover, our products have passed European CE Certification.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to install and debug machinery overseas.
* 15 months quality guarantee.
* Engineers available to install and debug machinery overseas.
* 15 months quality guarantee.
We believe that Machine Quality and After-sale Service are the most important for long-term business.
Our company is an expert solution for complete bottling& can beverage filling &making production line for 17 years. Our star-product is beer and carbonated drink line. Before we ever sell to Swiss, UAE, Bolivia and etc. So we are plentiful experienced in production process engineer and over-seas installation technician.
Core Value Of EQS
1.Collaboration: Respect customers and partners, and together we create value
2.Cost-efficiency: Worth every penny spent
3.Accountability: Assume responsibility for our commitments
4.Agility: Our future depends on speed and flexibility
5.Quality: We do well in what we do
6.Integrity: Act with honesty and make no compromise
7.Passion: Be passionate in our brand and what we do
Our company is an expert solution for complete bottling& can beverage filling &making production line for 17 years. Our star-product is beer and carbonated drink line. Before we ever sell to Swiss, UAE, Bolivia and etc. So we are plentiful experienced in production process engineer and over-seas installation technician.
Core Value Of EQS
1.Collaboration: Respect customers and partners, and together we create value
2.Cost-efficiency: Worth every penny spent
3.Accountability: Assume responsibility for our commitments
4.Agility: Our future depends on speed and flexibility
5.Quality: We do well in what we do
6.Integrity: Act with honesty and make no compromise
7.Passion: Be passionate in our brand and what we do
Certificate
Certificate Introduction
Certificate Introduction
Certificate Introduction
Other Equipment Of Carbonated Soft Drinks Production Line (Option)
Water Treatment
RO( Reverse Osmosis)
Pure Water Tank
High Speed Carbonation Machine
Water Chiller
Semi-Automatic CIP
Bottle Dryer
Bottle Dryer
Shrink Sleeve Labeling Machine
Packing&Shipping
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality,our Engineer Team with over 20 year's experience, welcome to visit!
Q2.How can I know your machine has good quality?
A2:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples for a trial.
Q3: What's your guarantee or the warranty of the quality if we buy your machines?
A3: We offer you high quality machines with 15months guarantee and supply life-long technical support.
Q4: When can I get my machine after I paid?
A4: The delivery time is based on the exact machine you confirmed.
Q5: How can I install my machine when it arrives?
A5: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q6: How about the spare parts?
A6: After we deal down all the things , we will offer you a spare parts list for your reference.
A1: We are a manufacturer, we supply the factory price with good quality,our Engineer Team with over 20 year's experience, welcome to visit!
Q2.How can I know your machine has good quality?
A2:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples for a trial.
Q3: What's your guarantee or the warranty of the quality if we buy your machines?
A3: We offer you high quality machines with 15months guarantee and supply life-long technical support.
Q4: When can I get my machine after I paid?
A4: The delivery time is based on the exact machine you confirmed.
Q5: How can I install my machine when it arrives?
A5: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q6: How about the spare parts?
A6: After we deal down all the things , we will offer you a spare parts list for your reference.
