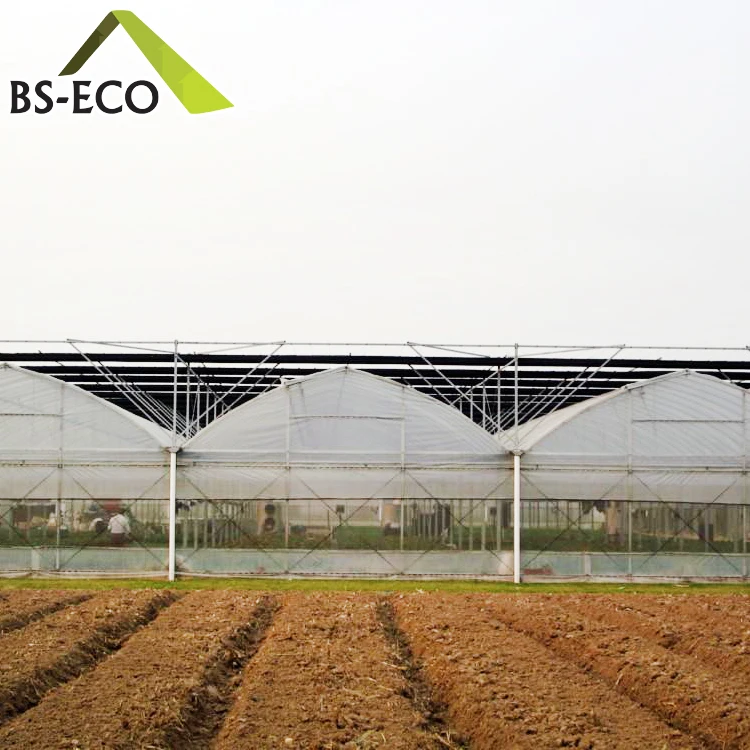

Hot sale agricultural cultivation equipment Steel Structure PO film greenhouse for Breeding/Exhibition/Research/Aquaculture

Specifications:

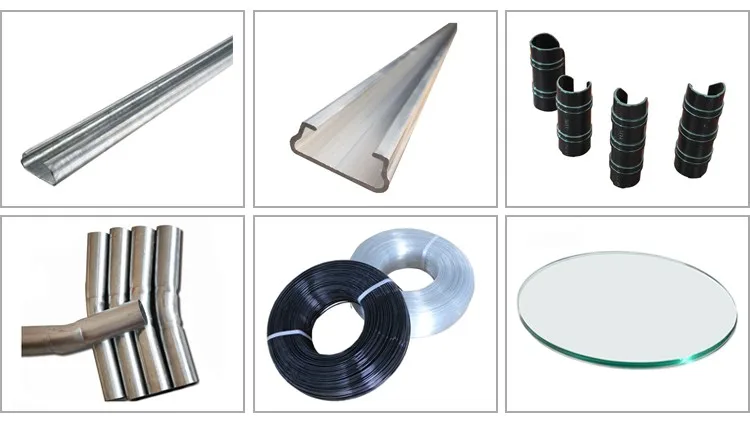

Frame

The greenhouse frame is made by the materials of hot dip galvanized steel pipes, connected by screws, bolts or suitable connectors. The roof can be pitched roof (supported by rectangular tubes) or arched roof (supported by circular tubes). The uprights of greenhouse is made by the rectangular tubes.The frame structure is anti-corrosion and high-temperature resistant.

The main body can be in service for more than 10 years.

Covering materials

The PO film has high light transmittance,the surface has dust-proof effect, light weight,good corrosion resistance, strong heat preservation performance,aging and high toughness.

The way of opening the top window includes one-side top window drove by rack and pinion, two-sides top window drove by rack and pinion, staggered top window drove by rack and pinion, electric roll top window, side window drove by rack and pinion, electrical roll side window, sliding window and etc.  This system can effectively improve the greenhouse ventilation area, reduce costs, applicable to all types of greenhouse. Ventilation rate is up to 27%.

Cooling system

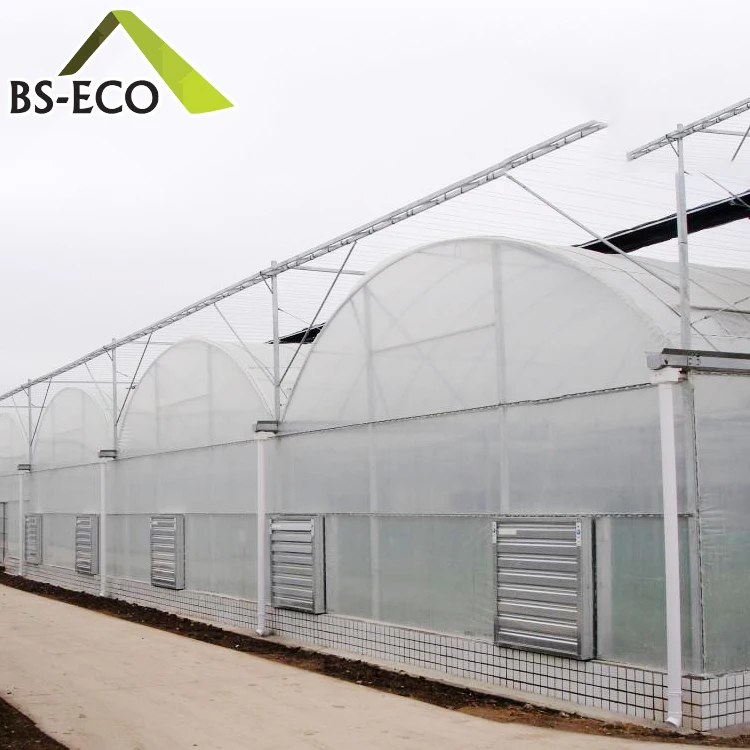

Cooling pad and exhauster cooling system is the most cost-effective cooling system for large-scale production facilities. The system has the advantages of simple equipment, low cost, low energy consumption, significant cooling capacity and reliable operation. When it is working, the negative pressure room caused by exhausters can force the hot air flow outside, water evaporation will absorb a significant amount of latent heat, to achieve reducing indoor temperature and increase the humidity.

Light Compensation System

Illumination is the critical factor in plant growth, so the greenhouse light compensation system has become an indispensable equipment. The use of artificial light source can compensate  for  intimate sunlight to crops, which can improve the yield and product efficient.

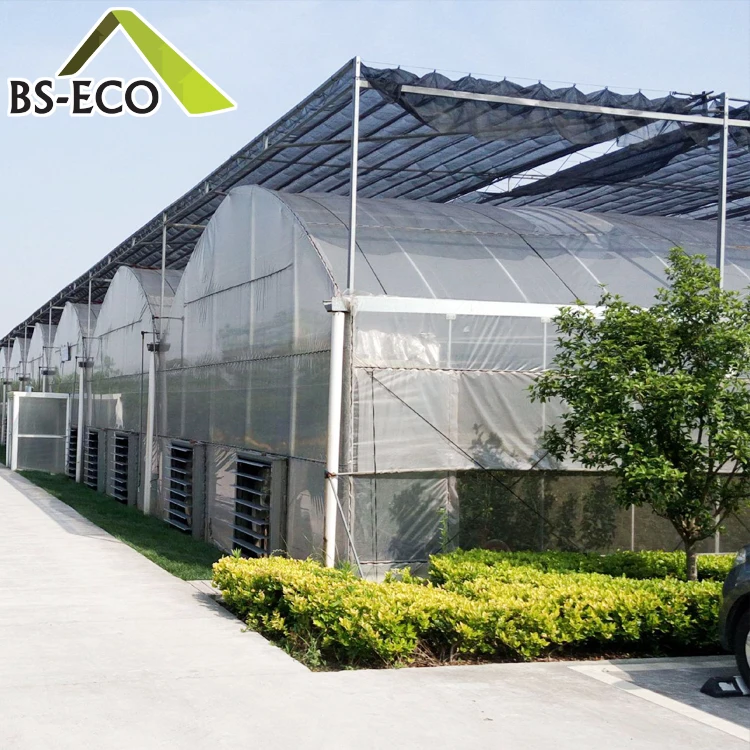

Outside shading system

The primary function of the system is to cool the heat in summer, the sun would diffuse into the greenhouse to ensure that crops from strong light burns. Due to blocking a significant amount of light into the room, it can effectively reduce the accumulation of heat in the greenhouse, drop 4°C to 6°C of room temperature. According to the different crops, use different shade curtains to meet the needs of various plants under the sunlight.

Internal Shading/Insulation System

Anti-fog and anti-drip: After close the inner shading system, it will form two separate lower and upper spaces in the greenhouse, this can effectively prevent the formation of the fog in the greenhouse and the dewdrops.

Energy saving and insulation: In winter and night, it can effectively prevent the heat inside the greenhouse through the radiation or heat exchange spill, thus reducing energy consumption and greenhouse operating costs.

Heating system

Our company developed a series of boilers with high-efficiency technology, which uses circular combustion technology to make combustion more thorough, while increasing the heating area of the boiler, produce much hot water in a short of time. The system can control water supply automatically by using microcomputer temperature control technology, free to adjust the water temperature. It will work even better with the plumbing air conditioning. (Energy saving, eco-friendly, healthy)

Distribution system

Greenhouse system configuration control box, according to the control object, press manual start and stop control respectively. Controlled by direct manipulation of the contactor via the panel switch.
