Environmentally friendly 240tph asphalt hot mix plant equipment price
- Category: Asphalt Mixers >>>
- Supplier: Henan ZOOMLINE Machinery Co. Ltd.
Share on (62385382309):
Product Overview
Description
Environmentally friendly 240tph asphalt batching machine
Product Description
ZOOMLINE Machinery is a professional supplier of asphalt mixing plants and support equipments that draws on years' experiences and technology developments.Our asphalt mixing plant have been used in highways, high-grade highways, urban roads and airport construction and got high reputation for their excellent performance. Nowadays, our asphalt plant products have been sold to Russia, Cambodia, Bangladesh, Uzbekistan, Kyrgyzstan, Egypt, Pakistan, Georgia, Indonesia, Belgium and Thailand etc.

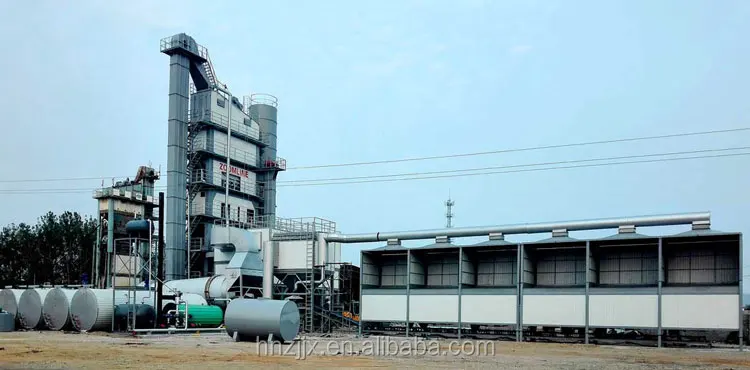

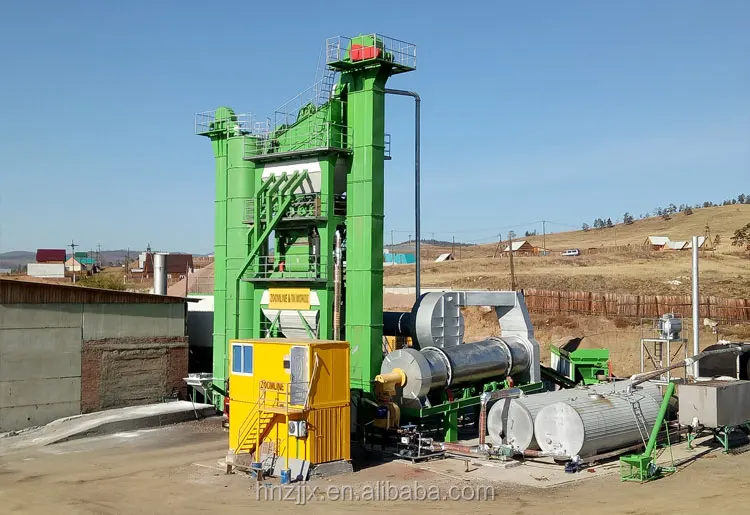

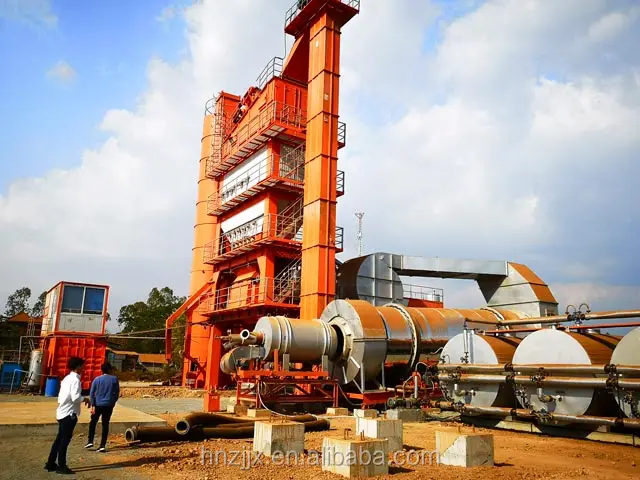

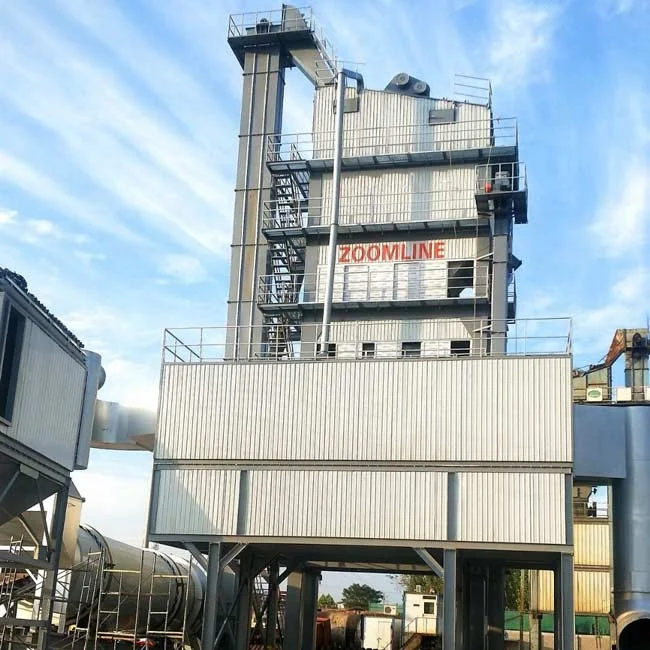

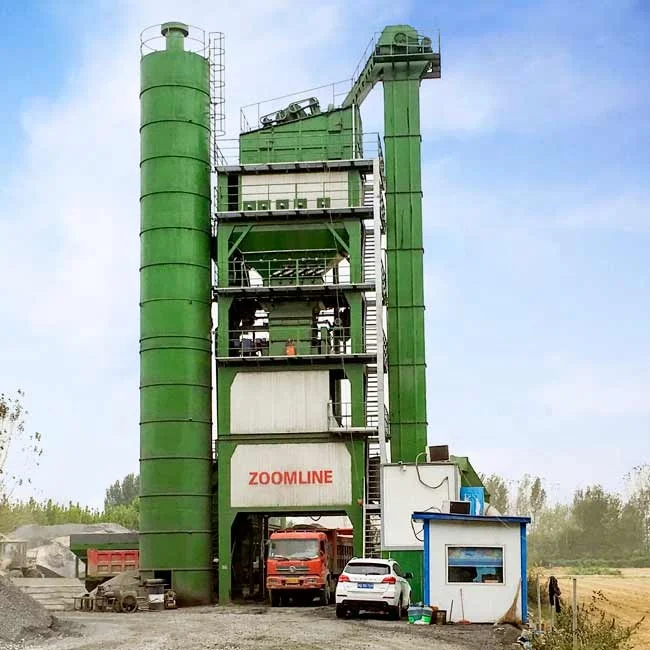

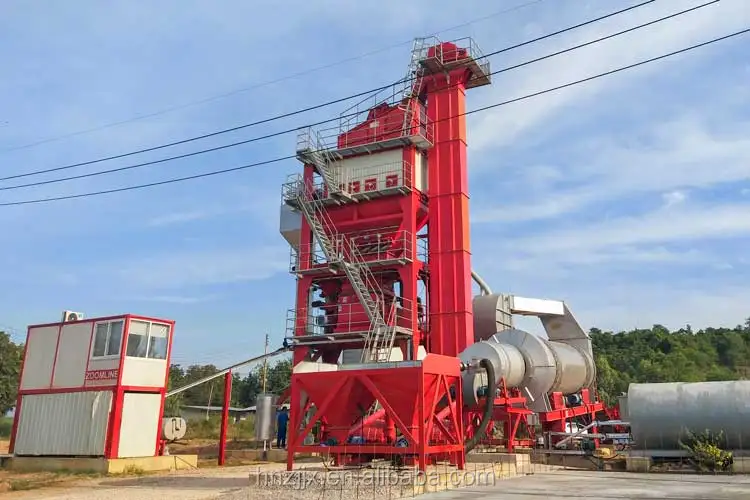

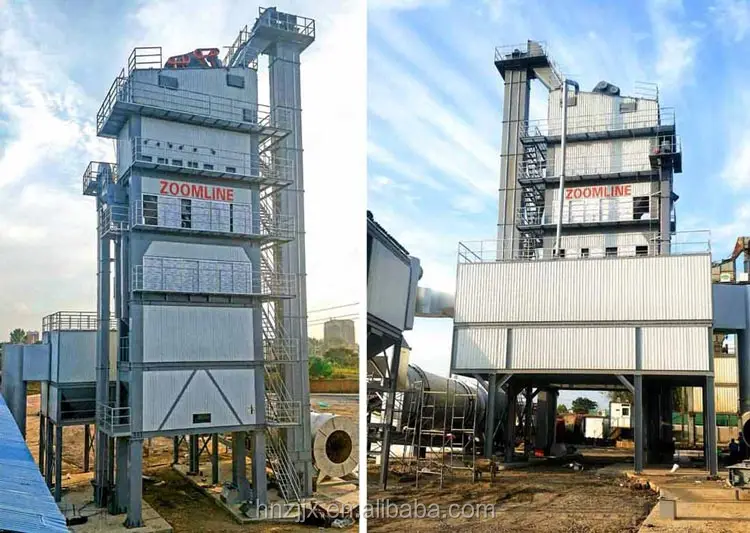

ZOOMLINE Asphalt mixing plant photos show
ZAP-S240 240T/H batch asphalt mixing plant in Thailand
ZAP-S240 240T/H batch asphalt mixing plant in Egypt
ZAP-S240 240T/H batch asphalt mixing plant in Russia
ZAP-S240 240T/H batch asphalt mixing plant in Georgia
Features of 240tph batch asphalt mixing plant:
1. ZAP-S240 series asphalt mixing plants combines with various advantages of western models, adopts modular design, compact structure, simple assembly and transport.
2. Components adopt international famous brand, keep pace with the international advanced technology, can guarantee high reliability and security of the equipment in long operating terms.
3. Strict trial assembly, test every equipment before delivery, can guarantee stable quality and high standard of our equipment.
4. Adopts human-computer interface and PLC control system, perfect human-machine exchange function makes it easy to operate; with manual, semi-auto, automatic control function; with remote fault detect and maintenance function, can solve the problem the first time.
5. Reasonable and multiple layout mode, can change the layout to adapt to the actual construction requirement better.
6. Excellent expansibility, ZAP-S asphalt batch mix plant can add RAP, wood fiber adding equipment etc, so it can satisfy more requirements.
7. Low consumption, high efficiency and environment friendly design is the ideal choice of different kinds of road construction.
Main components of ZAP-S240 asphalt mixing plant:
Asphalt mixing plant mainly including cold feed systems, drying system, burning system, hot material enhance, vibrating screen, hot material storage bins, weighing mixing system, bitumen supply system, powder supply system, dust removal system, finished product storage bin, control system and other parts.
Asphalt mixing plant mainly including cold feed systems, drying system, burning system, hot material enhance, vibrating screen, hot material storage bins, weighing mixing system, bitumen supply system, powder supply system, dust removal system, finished product storage bin, control system and other parts.
Technical parameters
Technical parameters of 40-320tph batch asphalt mixing plant
| Items | ZAP-S40 | ZAP-S60 | ZAP-S80 | ZAP-S100 | ZAP-S120 | ZAP-S160 | ZAP-S200 | ZAP-S240 | ZAP-S320 |
| Plant Capacity | 40t/h | 60t/h | 80t/h | 100t/h | 120t/h | 160t/h | 200t/h | 240t/h | 320t/h |
| Cold Aggregate Feeding System | |||||||||
| Hopper capacity | 4 x 4.5m3 | 4 x 4.5m3 | 4 x 6.5m3 | 4 x 6.5m3 | 4 x 8m3 | 5 x 8m3 | 5 x 15m3 | 5 x 15m3 | 6 x 15m3 |
| Belt capacity | 60t/h | 80t/h | 100t/h | 120t/h | 140t/h | 180t/h | 220t/h | 280t/h | 360t/h |
| Drying System | |||||||||
| Drying drum size(mm) | 1200x5200 | 1200x5500 | 1500x6600 | 1500x6600 | 1800x8000 | 1900x9000 | 2200x9000 | 2600x9500 | 2800x10200 |
| Drying capacity | 40-60t/h | 60-70t/h | 80-100t/h | 100-120t/h | 120-140t/h | 160-180t/h | 200-220t/h | 240-260t/h | 320-360t/h |
| Burner (oil) kg/h | 70-300 | 100-400 | 60-600 | 100-1000 | 100-1000 | 140-1400 | 180-1800 | 180-1800 | 250-2500 |
| Fuel consumption (oil) | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t |
| Mixing Tower | |||||||||
| Screen | 4 layer | 4 layer | 4 layer | 4 layer | 4 layer | 4/5 layer | 5 layer | 5 layer | 6 layer |
| Aggregate weighing | 3x500kg | 3x1000kg | 3x1000kg | 3x1500kg | 3x1500kg | 3x2000kg | 3x3000kg | 3x3000kg | 3x5000kg |
| Bitumen weighing | 3x100kg | 3x100kg | 3x100kg | 3x200kg | 3x200kg | 3x200kg | 3x500kg | 3x500kg | 3x500kg |
| Filler weighing | 3x100kg | 3x100kg | 3x100kg | 3x200kg | 3x200kg | 3x200kg | 3x500kg | 3x500kg | 3x500kg |
| Mixer capacity | 500kg | 800kg | 1000kg | 1300kg | 1500kg | 2000kg | 2500kg | 3000kg | 4000kg |
| Mixing cycle | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s |
| Dust Collecting System | |||||||||
| Bag house filtering | 200m2 | 300m2 | 430m2 | 480m2 | 550m2 | 650m2 | 700m2 | 1050m2 | 1350m2 |
| Exhaust Fan power | 18.5/22kw | 30/37kw | 45kw | 55kw | 2x45kw | 2x55kw | 2x75kw | 2 x 90kw | 2 x 110kw |
| Asphalt Temperature | 140-180 ℃ | 140-180℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ |
| Finished Asphalt Silo (Optional) | 30 ton | 30 ton | 30 ton | 60 ton | 100 ton | 100 ton | 100/200 ton | ||
| Total Power | -150kw | -180kw | -270kw | -300kw | -390kw | -500kw | -570kw | -640kw | -800kw |
Company Information
Henan ZOOMLINE Machinery CO., Ltd is based in Nanyang Longsheng Industrial Park of Henan.
Our main asphalt mixing plants include:
Stationary asphalt mixing plant 40-320TPH
Mobile asphalt mixing plant 40-160TPH
Continuous asphalt mixing plant 20-160TPH
Recycling asphalt mixing plant 60-120TPH
Customers visit
Since ZOOMLINE start-up, we have become one of the most reliable partners of construction projects at home thorough ongoing technical investment. Welcome to our factory to visit asphalt plant products
Certifications
After almost 20 years of development, we have won many honors. This proves the role of our company in the industry and our attitude towards products and customers. This years, our asphalt mixing plants have got CE,EAC,EMC and ISO9001 certificate.
Packaging & Shipping
1.The whole asphalt mixing plant is designed according to standard high cabinet container, suitable for the construction requirement in both home and abroad.
2.All the components of this asphalt plant can be put into the container, can greatly reduce transport cost.
After-Sales Service
Our professional after-sales services team could provide timely and reliable service for any of our customers who need support.
1. Professional technical team, to provide users with equipment selection, layout program design, construction programs and other consultation services.
2. Technical guidance during equipment operation, PLC with remote monitoring, large capacity recipe storage,special needs customization.
3. Equipment installation, commissioning, training technical support. Provide a full range of technical training on operation, maintenance for users and equipment manager, to provide multiple technical advice.
4. The equipment upgrades, relocation technical support in the future. To provide seamless equipment technology upgrades,perfect and efficient removal plan.
