Building Materials 610mm Metal Rib Lath
US $6.00-$10.00
Half Grout filled Sleeve Rebar Splicing Products
- Category: Metal Building Materials >>>
- Supplier: Ningbo Bozon Machinery Co. Ltd.
Share on (62385396199):
Product Overview
Description
Grout Sleeve is a mechanical splicing designed for the connection of precast elements.Each Grout sleeve features a threaded end (used for the connection to reinforcement at the precast factory) and a wide cavity to perform a grout connection at site.At the construction site, connection is made in a few seconds by injecting/pouring non-shrink grout into the cavity.
Performance:
- Upper bound breaking strength
- Mechanical Anchorage
- Low Cycle (large strains) fatigue performance
- Brittle Fracture resistance
- Upper bound breaking strength
- Mechanical Anchorage
- Low Cycle (large strains) fatigue performance
- Brittle Fracture resistance
OEM support.
| Product name | Grout Sleeve | ||||||||||||||||||
| Rebar size (mm) | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 32 | 40 | |||||||||
| Model of sleeve/mm (OEM is available) | 12-B | 12-A | 14-B | 14-A | 16-B | 16-A | 18-B | 18-A | 20-B | 20-A | 22-B | 22-A | 25-B | 25-A | 28-B | 28-A | 32-B | 32-A | 40-A |
| Unit weight/KG | 0.52 | 1.29 | 0.58 | 1.41 | 0.70 | 1.65 | 0.98 | 1.73 | 1.42 | 2.10 | 1.54 | 2.54 | 1.83 | 3.46 | 2.68 | 4.39 | 3.27 | 5.65 | 17.50 |
| Material | QT550-5 | ||||||||||||||||||
| Certificate | IATF-16949,SGS | ||||||||||||||||||
| Packaging | Carton &wooden boxes, nylon bags and as customer’s special requests | ||||||||||||||||||

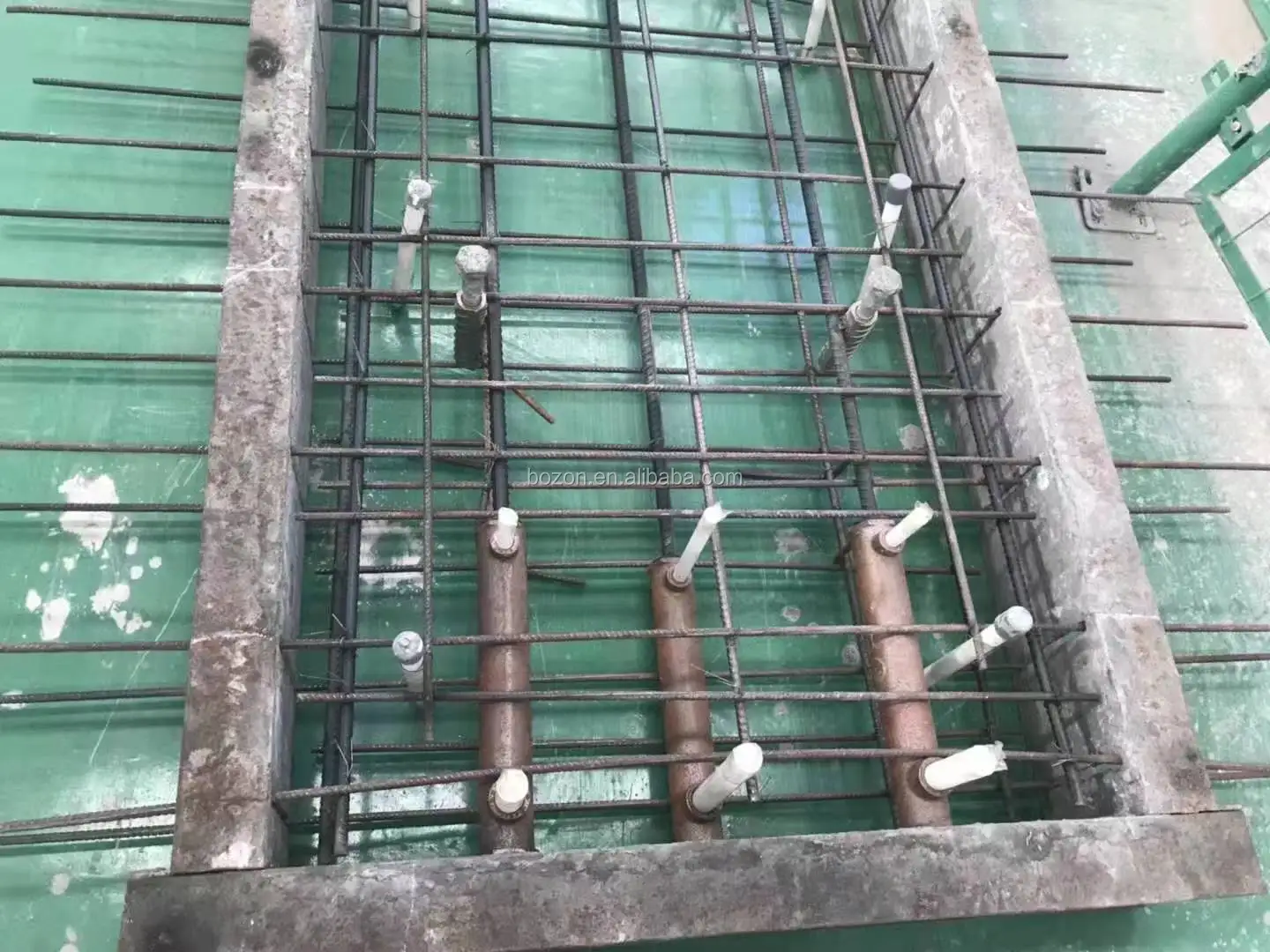

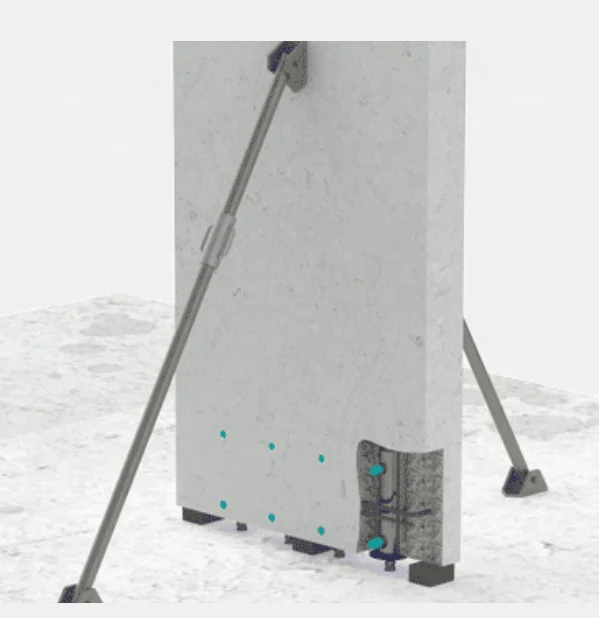

| Application | Grout sleeves are used in precast column or precast wall. | ||||||||||||||||||
Company Information
FAQ
Q:Are you trading company or manufacturer ?
A:We are factory.
Q:How long is your delivery time?
A:Generally sample and mould need 15-20 days and after sample approved, the mass production need 20-30 days.
Q:Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:What is your terms of payment ?
A:Mould cost need 100% prepaid and mass production need 30% deposite, and the balance before the shipment.
