H DMI+VGA+2AV LCD Controller Board with 12.1inch LQ121S1LG75 800X600 HD MI high brightness tft lcd display module lcd
- Category: LCD Boards & Accessories >>>
- Supplier: Vs,Display,Technology,(shenzhen),Ltd.
Share on:
Product Overview
Description
Products Show
Product Description

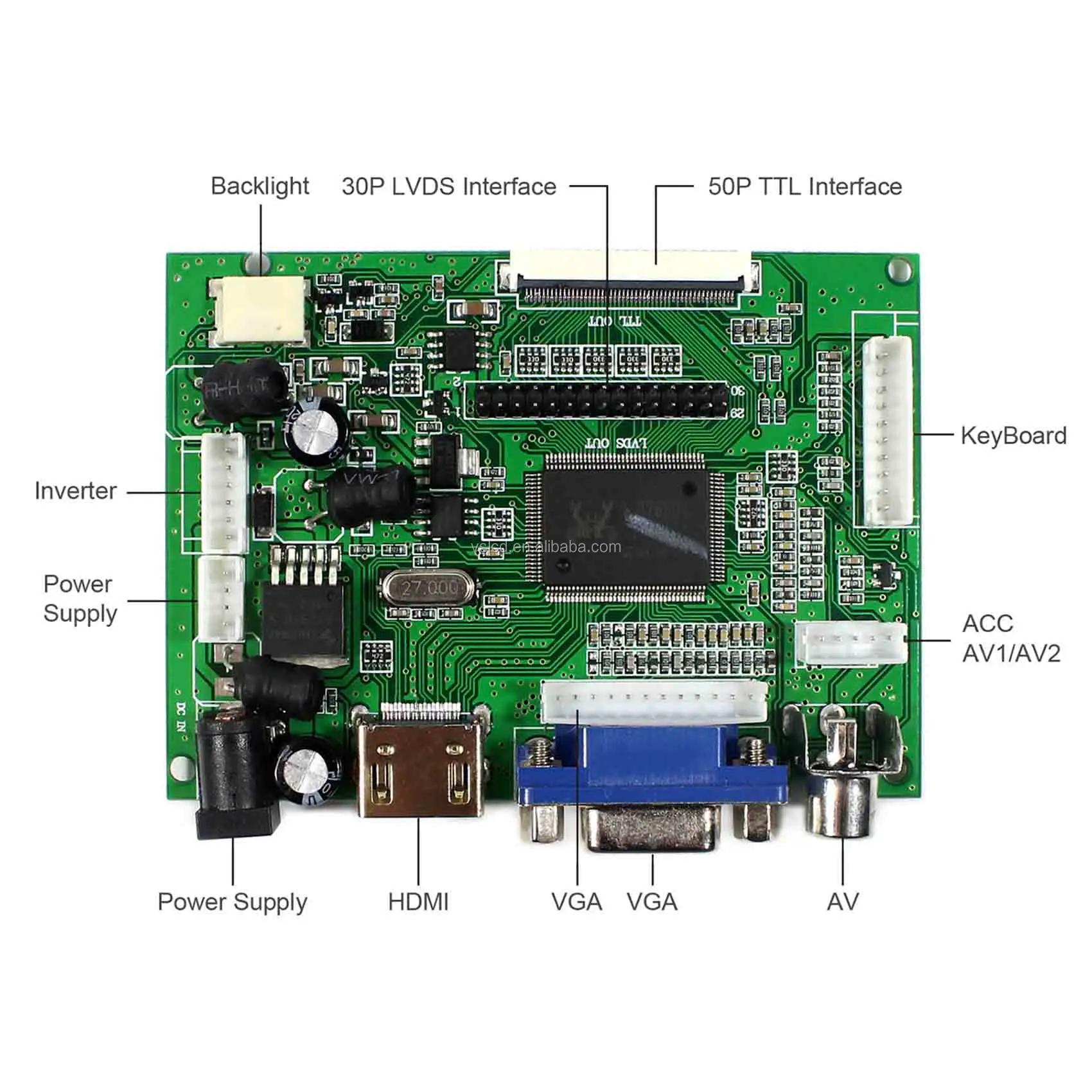

H DMI+VGA+2AV LCD Controller Board VS-TY2662-V1

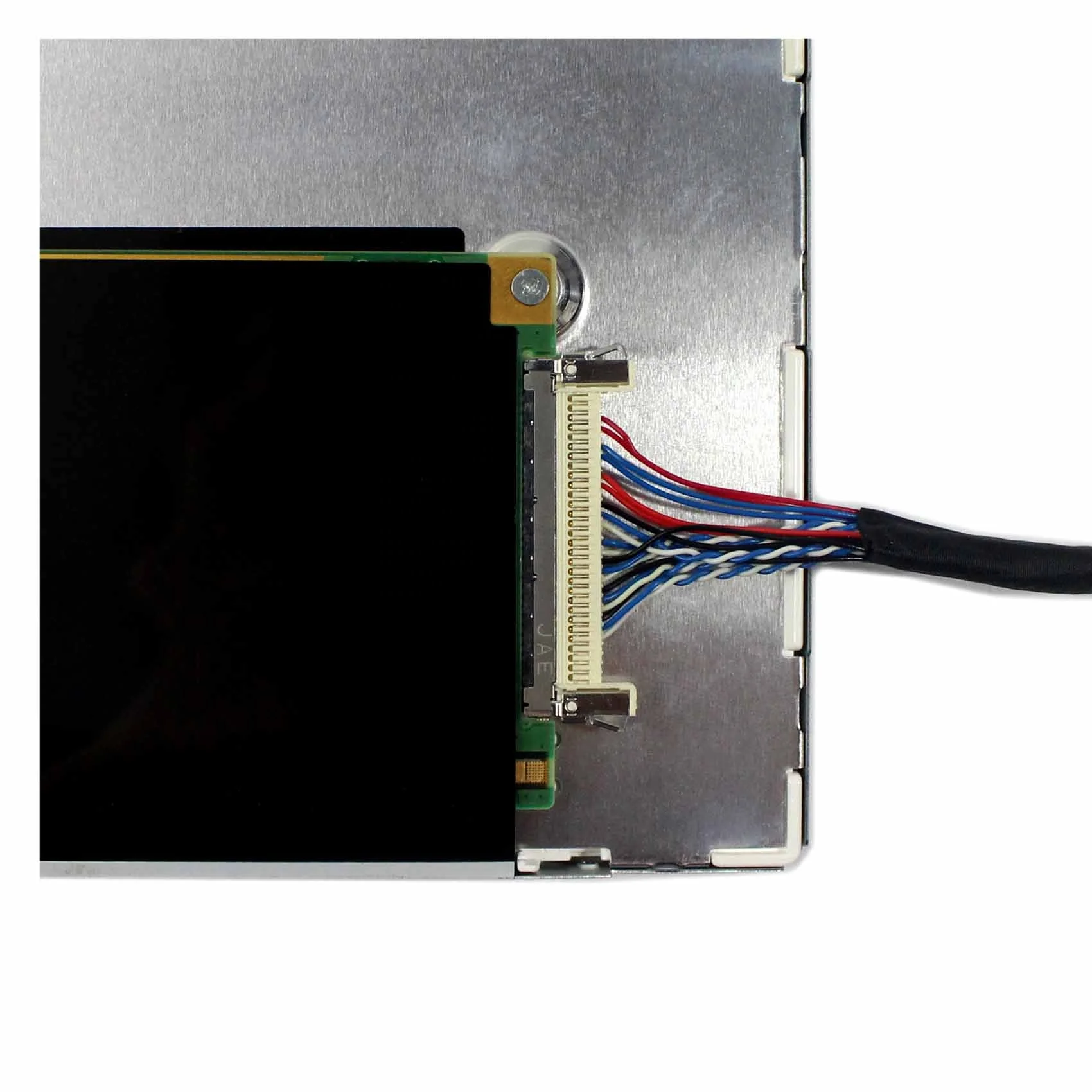

12.1inch LQ121S1LG75 800X600 LCD Screen
12.1inch LQ121S1LG75 800X600 LCD Screen
Product name: | HD MI+VGA+2AV LCD Controller Board VS-TY2662-V1 | ||||||
Details: | HD MI VGA 2AV LCD Board Work for LVDS Interface LCD Screen 50Pin TTL Connector for 7inch~10.1inch LCD Screen Input Power Adapter:12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: HD MI VGA AV1 AV2 Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size:91mm x 66mm x 12mm | ||||||
Product Name: | 12.1" LQ121S1L75 800X600 LCD Screen | ||||||
Details: | Display Mode TN, Normally White, Transmissive Resolution 800RGB)×600 Outline Size 265× 205×10 (H×V×D) Display Area 246 × 184.5 (H×V) Brightness 330 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (TM) Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface LVDS (1 ch, 8-bit) , 30 pins , Connector Backlight WLED Input Voltage 3.3V (Typ.) | ||||||

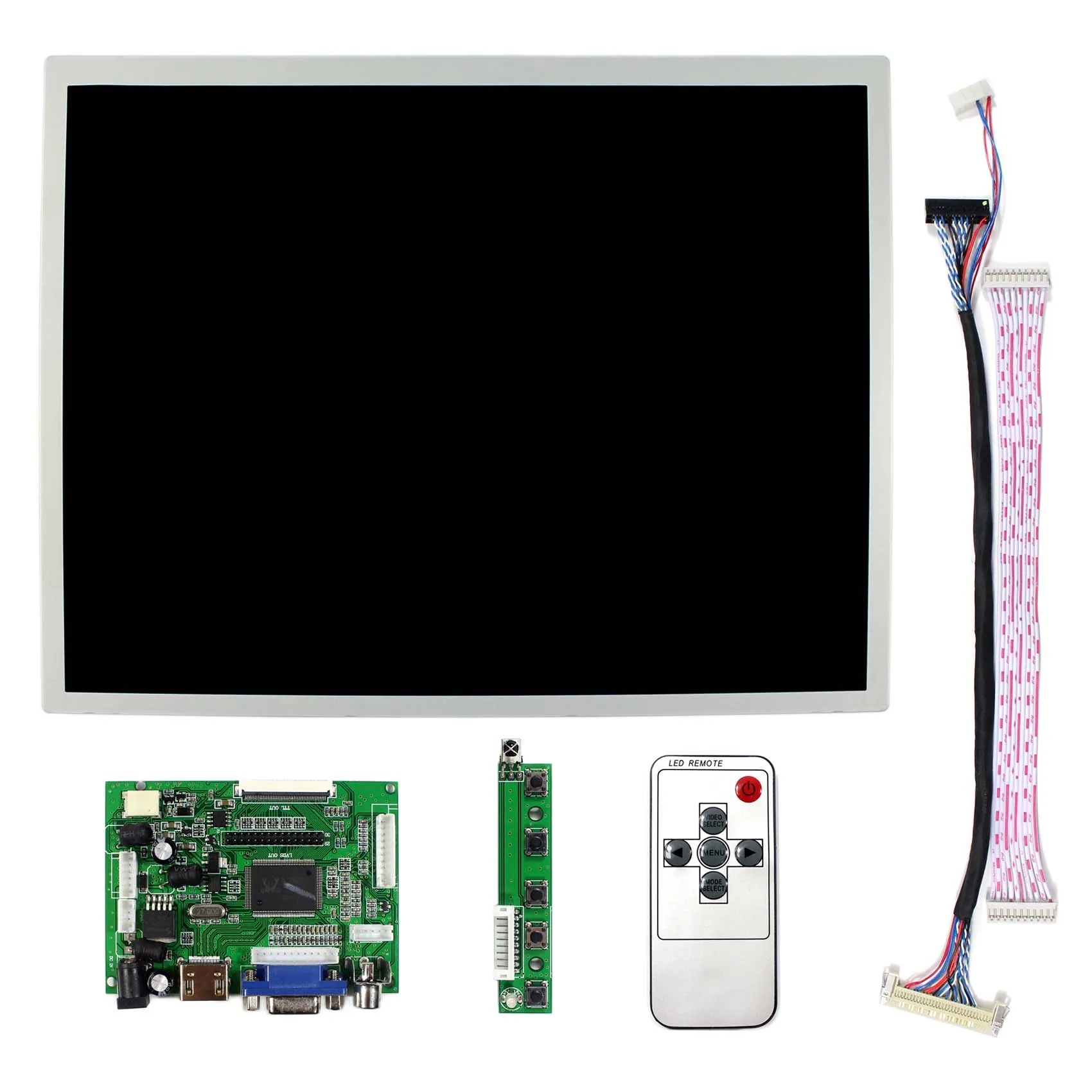

Packing list: | 1× HD MI+VGA+2AV LCD Controller Board VS-TY2662-V1 1× 12.1inch LQ121S1LG75 800X600 LCD Screen 1× LVDS Cable 1× Backlight Cable 1× Keyboard With Cable 1× Remote Control(Battery Not included) | ||||||
