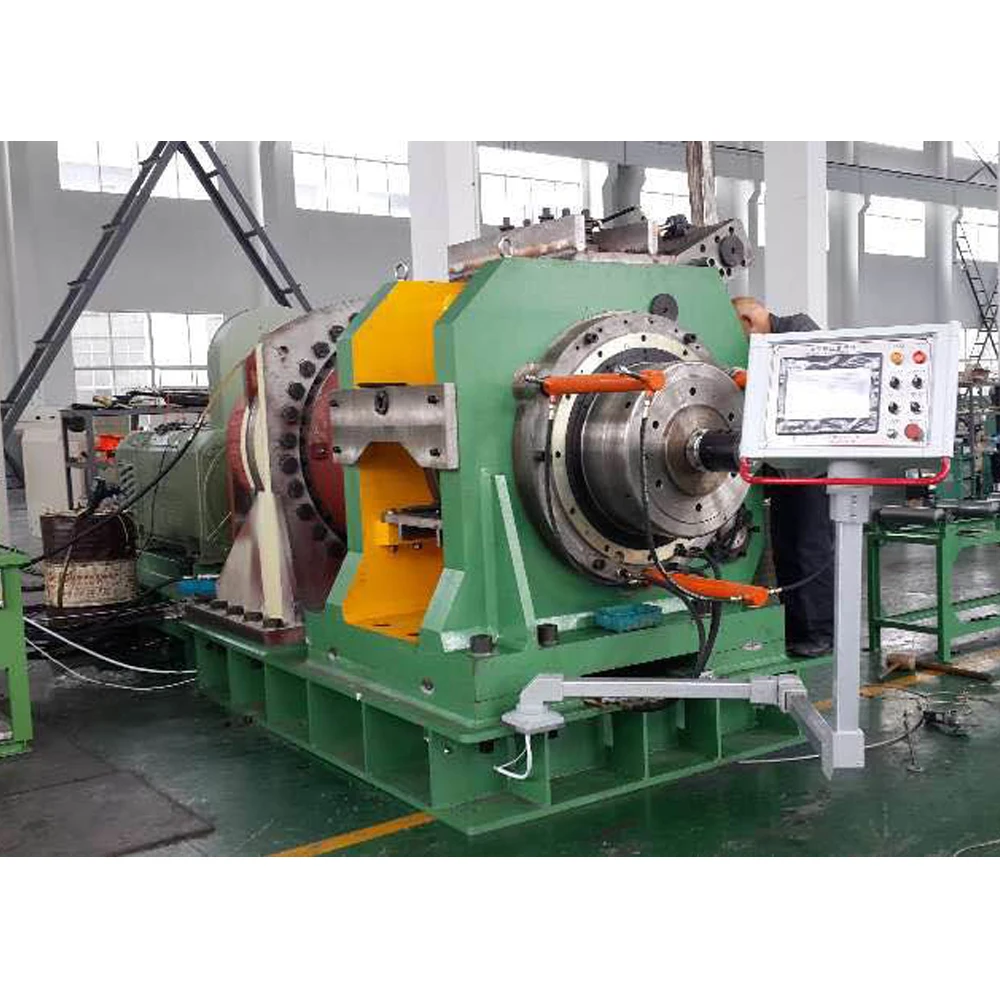

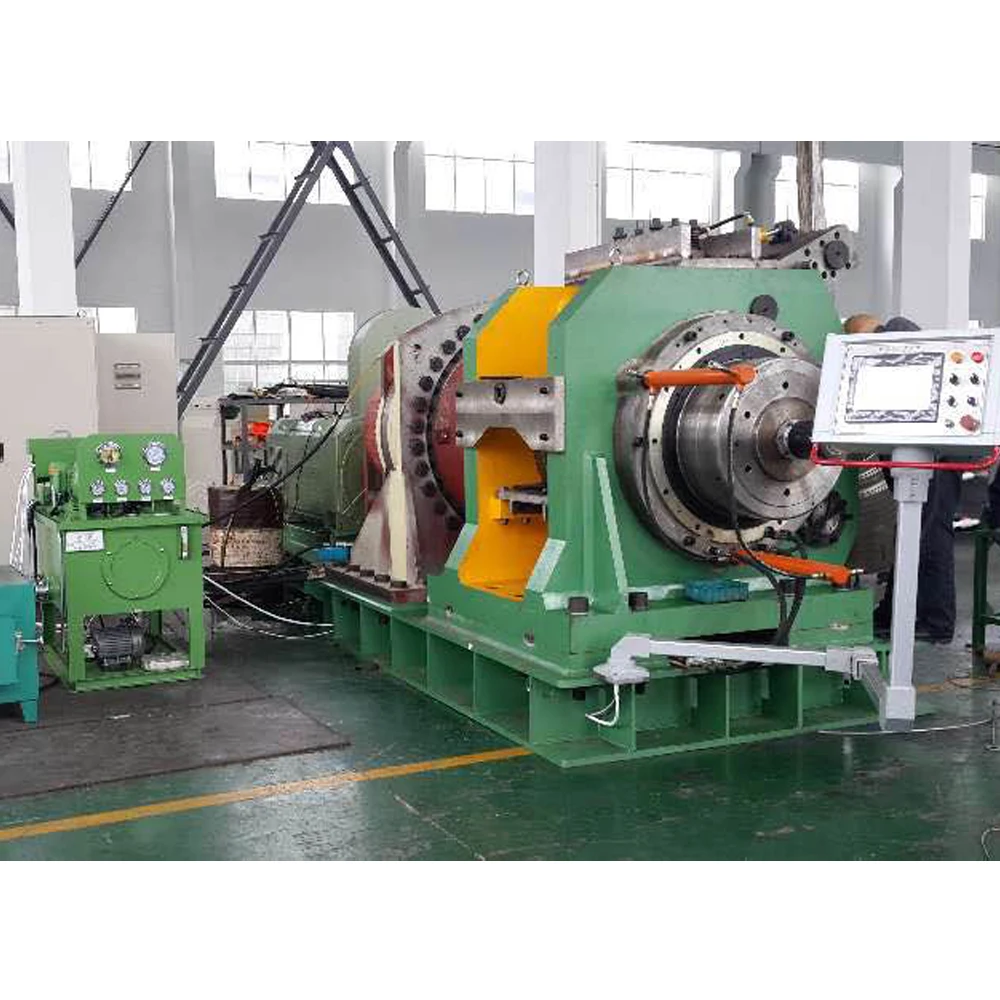

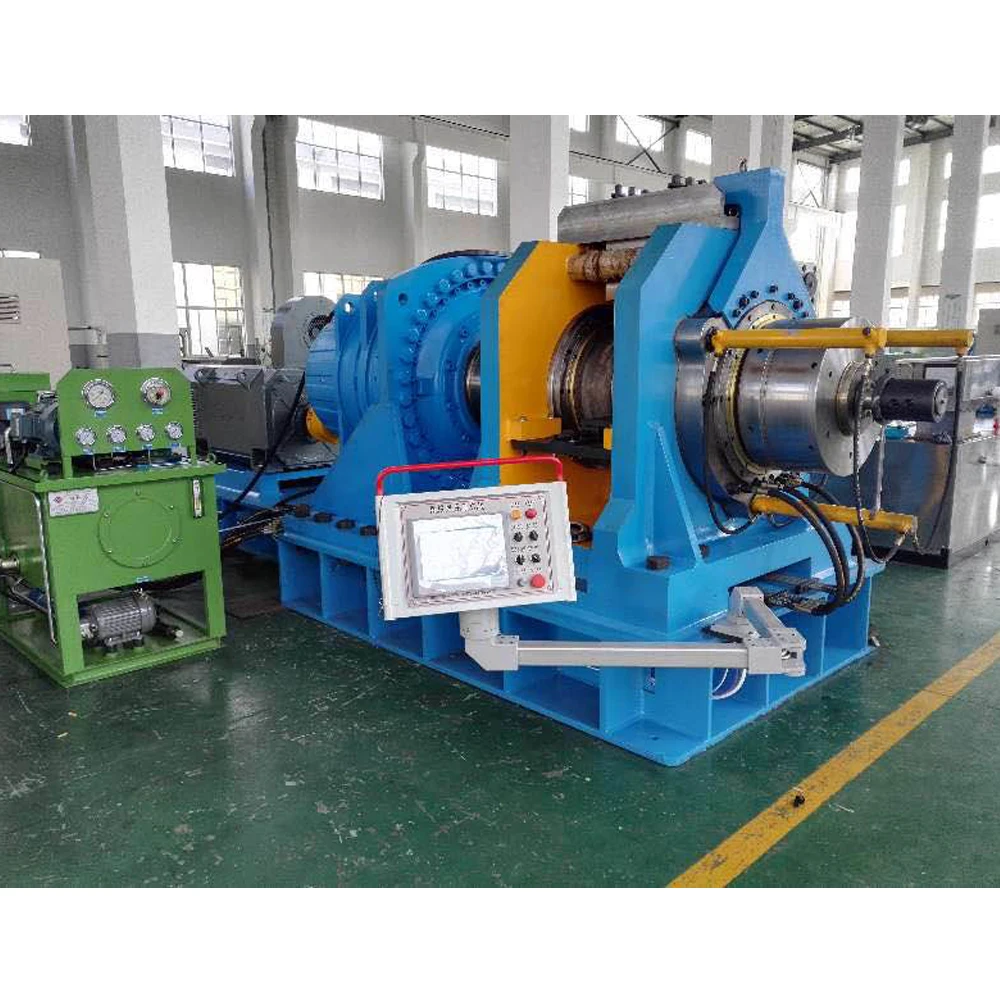

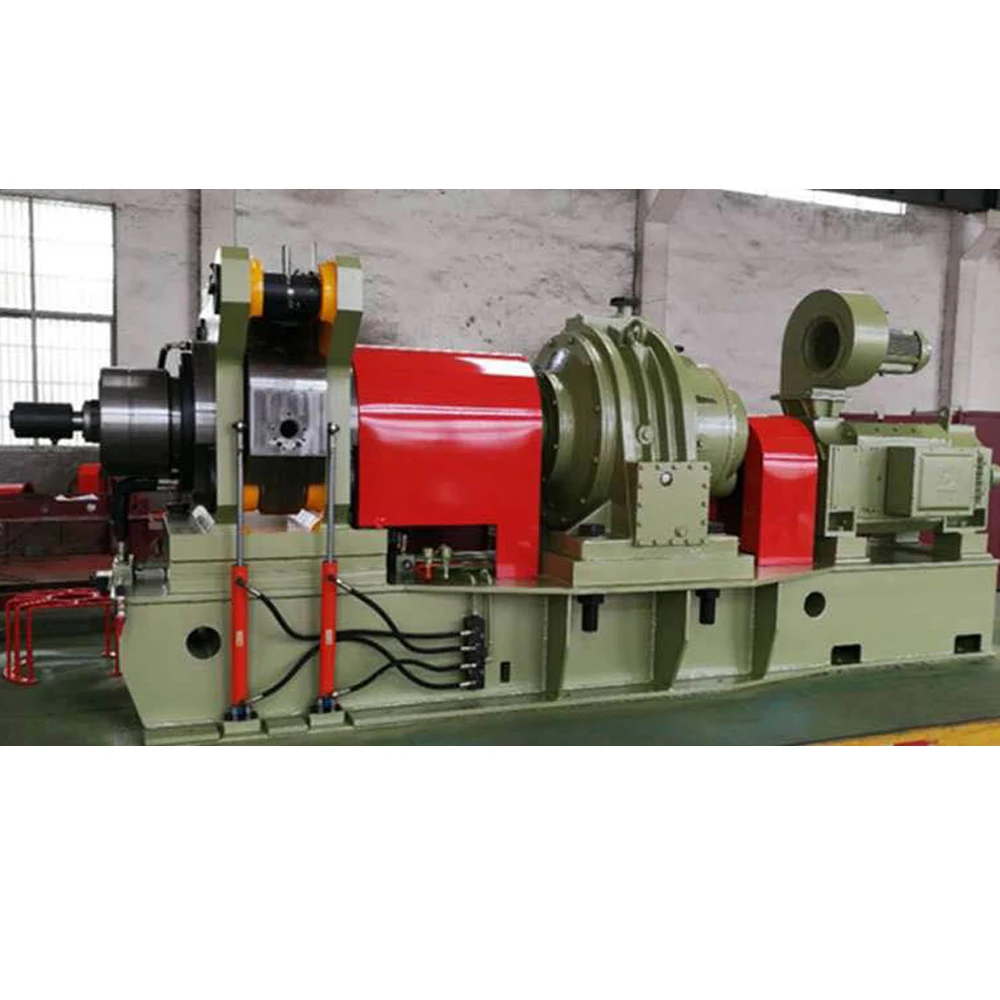

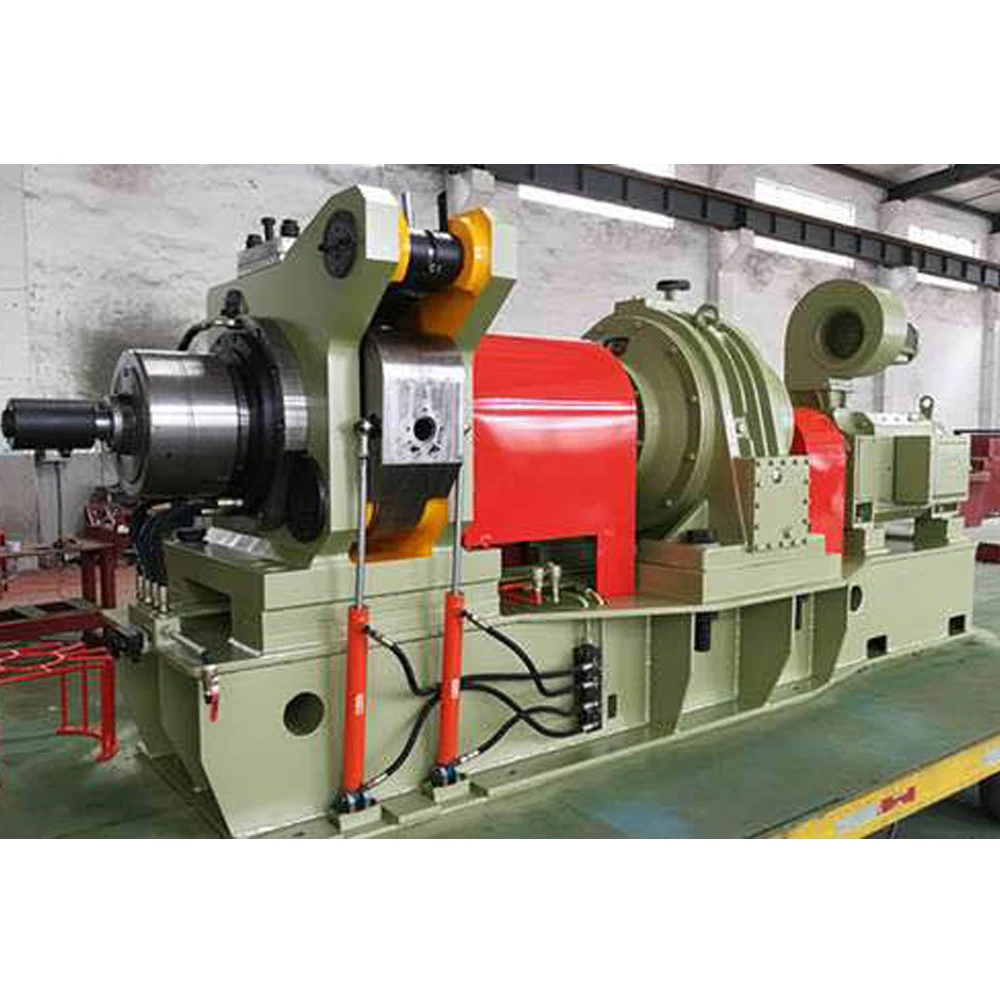

Conform copper extrusion machine

Product Overview

Description

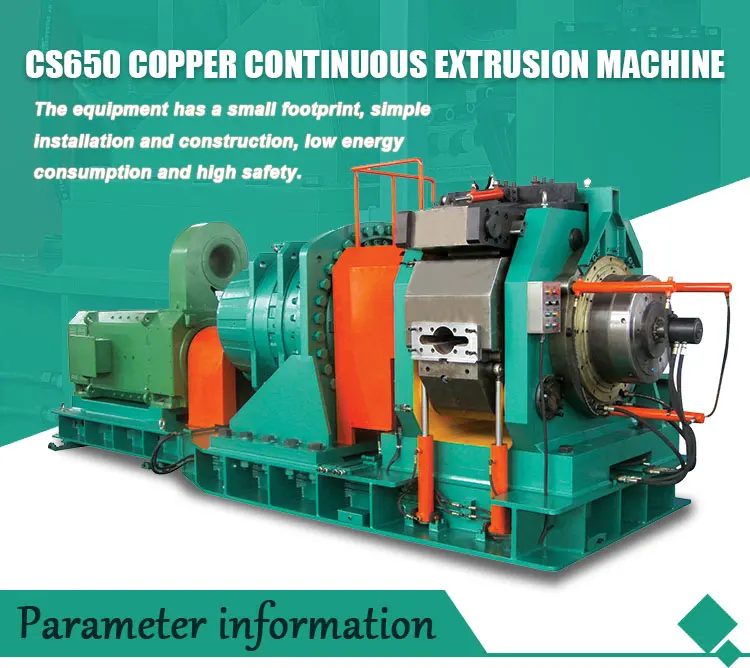

Copper Continuous Extrusion Machine
Main Functional Unit: Continuous Extrusion Machine	Model	650
	Nominal Diameter of Extrusion Wheel	650mm
	Power of Main Motor	600kW
Feed Stock	Copper Rod	Copper Rod
	Diameter Tolerance	±0.2mm
	Yield Strength	160MPa (Oxygen-free Copper Rod Produced by Upward Casting Process
		Copper Busbar
Finish Product : Flat Copper Wires	Sectional Area Range	400~10000mm 2
	Max. Width	340mm
	Standard	Conforms to GB5585.1-85 standard
Entire Production Line: Copper Wire Production Line	Average Output	3500 kg /h
	Flash Amount	≤5-8%





Main features

1, The continuous extrusion equipment is to extrude the copper rod to generate high pressure and high temperature. Through mold extrusion forming, it can adapt to small-batch production of various kinds, and can also adapt to large-batch production.

2, Through the high-pressure and high-temperature treatment, the influence of defects (cracks, burr and so on) existing in the raw material on the finished products can be eliminated.

3, To increase the density. The finished products are extruded at high temperature and high pressure, so that the surface is bright and clean, and the dimensional precision is high.

4, The product does not require annealing, and the hardness shall be uniform. The extrusion process can thoroughly eliminate the problem of raw material joint, and the length of the required product is not subject to the restriction of the length of the raw material.

5,  The floor area of the extrusion equipment is small, the installation and construction are simple, the energy consumption is low, and the labor intensity is low. The safety during the production process is high, and the production environment is clean, which completely meets the environmental protection requirements.

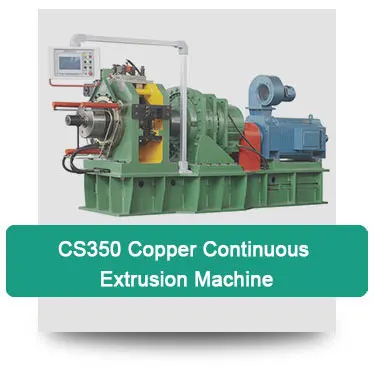

Copper continuous extruder hot models: cs650 copper continuous extruder, cs300 copper continuous extruder, cs350 copper continuous extruder, cs400 copper continuous extruder, cs550 copper continuous extruder





 Continuous extruder has a variety of models, divided into copper extruder and aluminum extruder and brass extruder, at the same time, we sell a variety of extruder parts









Q1:Do you provide overseas installation and training ?
A: It's optonal .When we deliver the equipment, we will provide user's manual and videos to guide the
equipment operation. If you need ,we can also delegate engineers to your site for installation and
commissioning

Q2: Do you only supply standard machines ?
A:No, Our many machines are customized as per customers' requirement. We can design most suitable
manufacturing equipment according to your products specification of core , coil and oil tank etc. Of
course, you can also select machines from our standard models, which may be easy for you



Q3:How long is the warranty time ?
A:Our warranty period is 12 months from the commissioning, or 14 months from the date of shipment,
which is due first. Anyhow, our service will up to full life time of the equipment. We commit to respond
your feedback within 24 hours



Q4:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.
