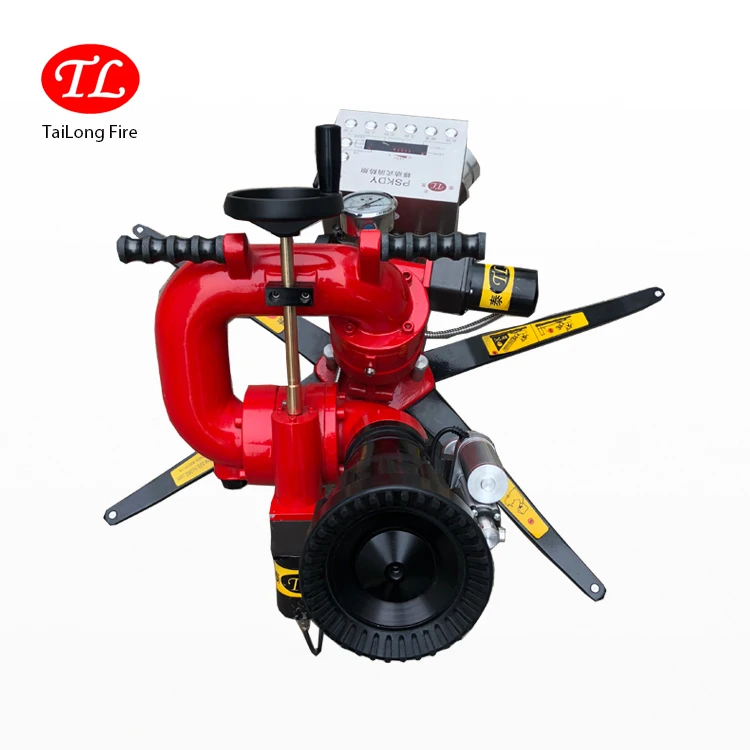

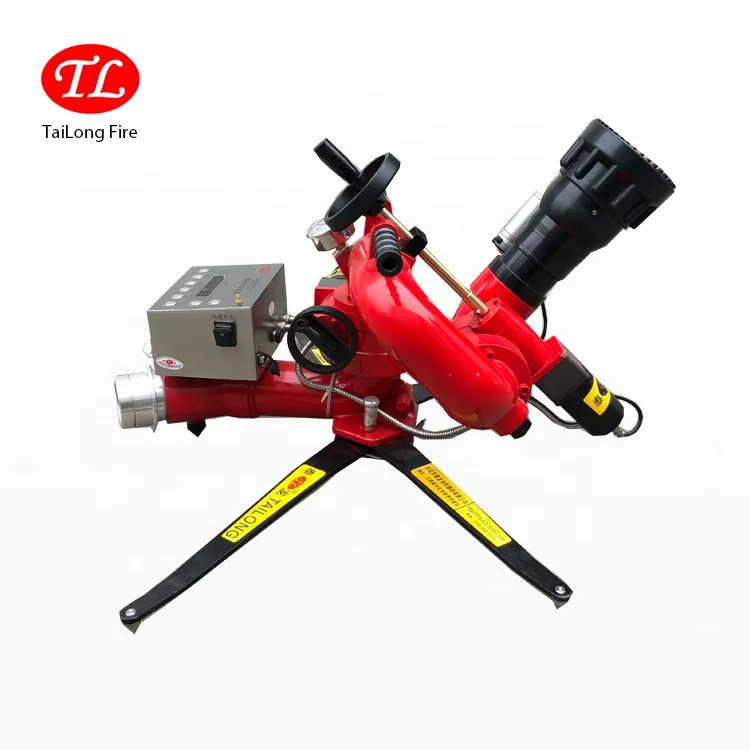

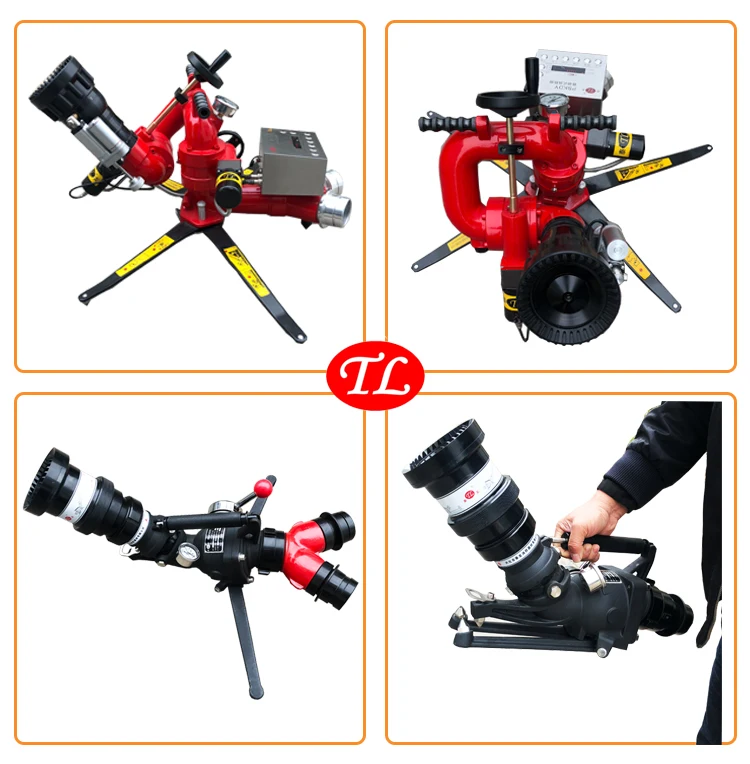

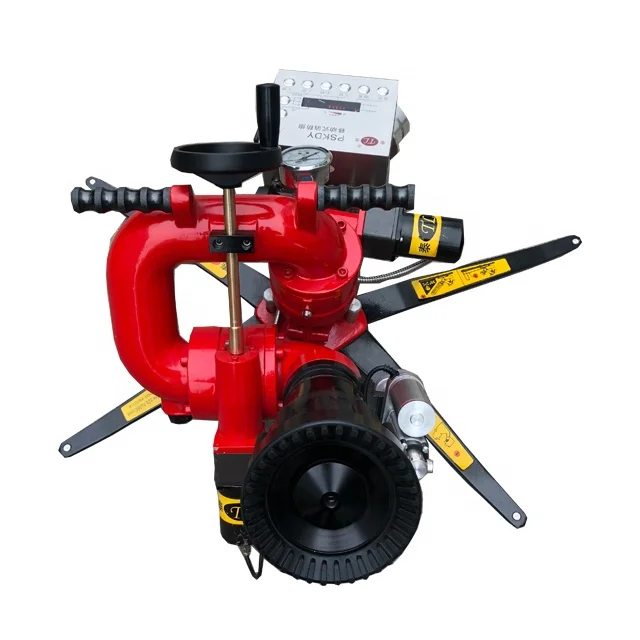

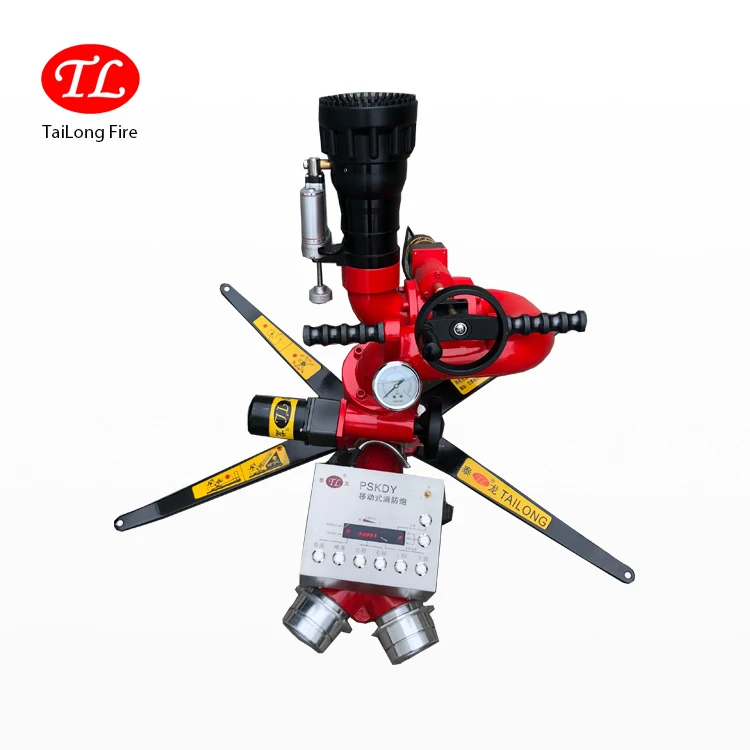

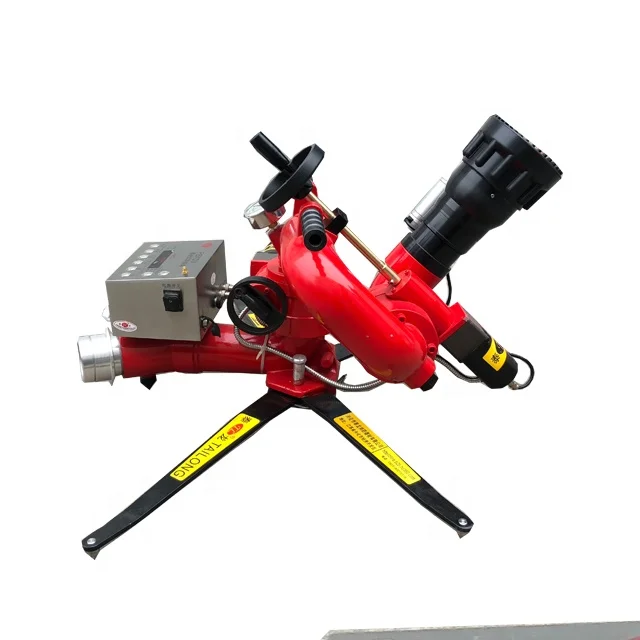

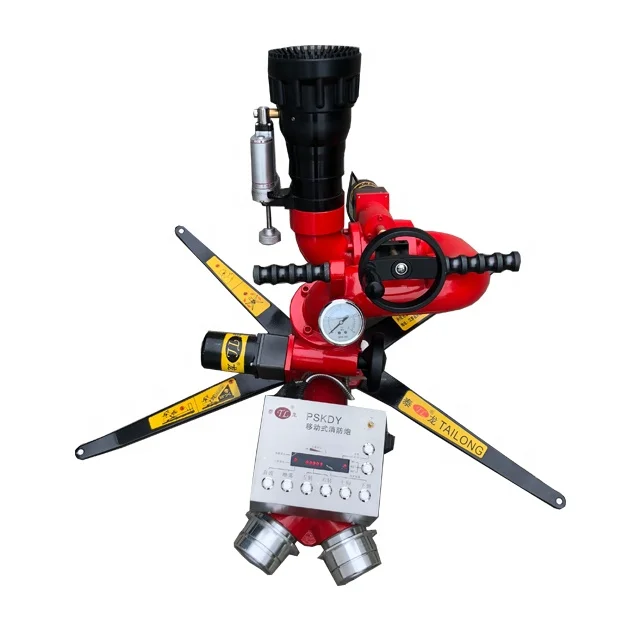

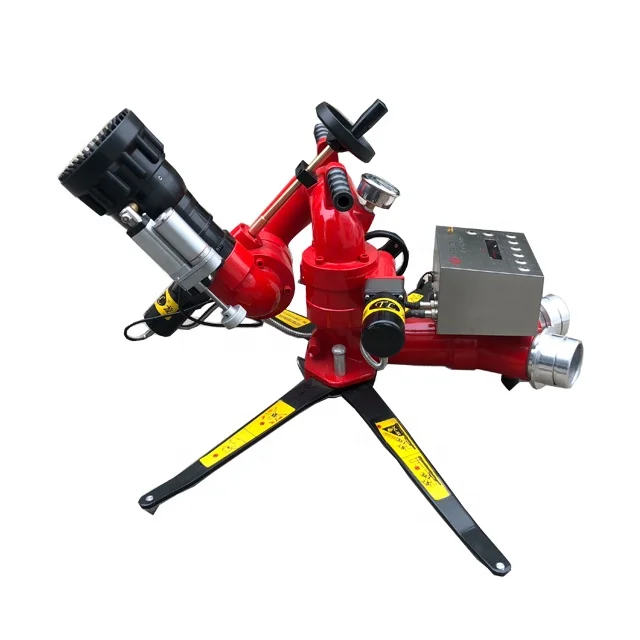

TaiLong Factory Mobile Water Cannon Fire Fighting Electric Water Cannon

Fire Fighting Water /Foam Fire Monitor /Cannon

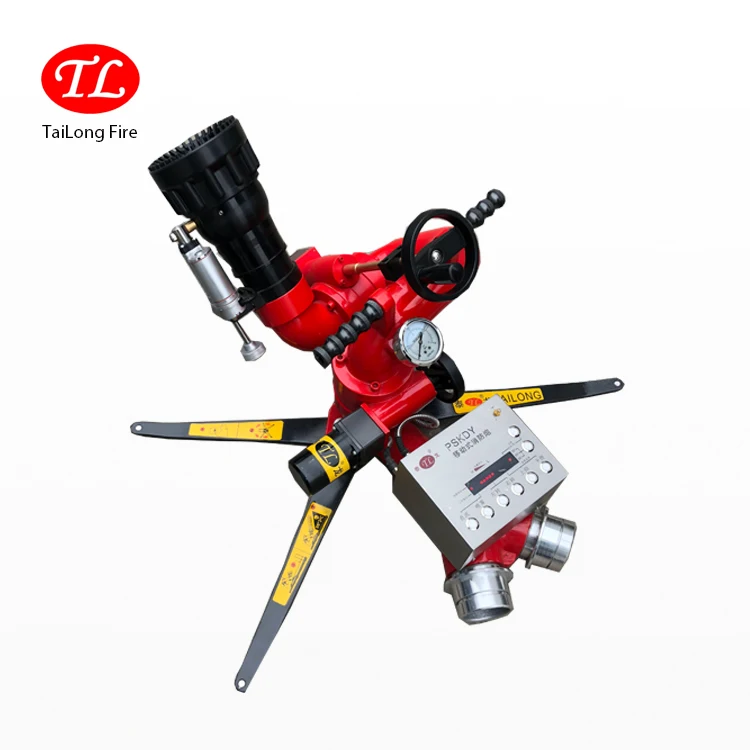

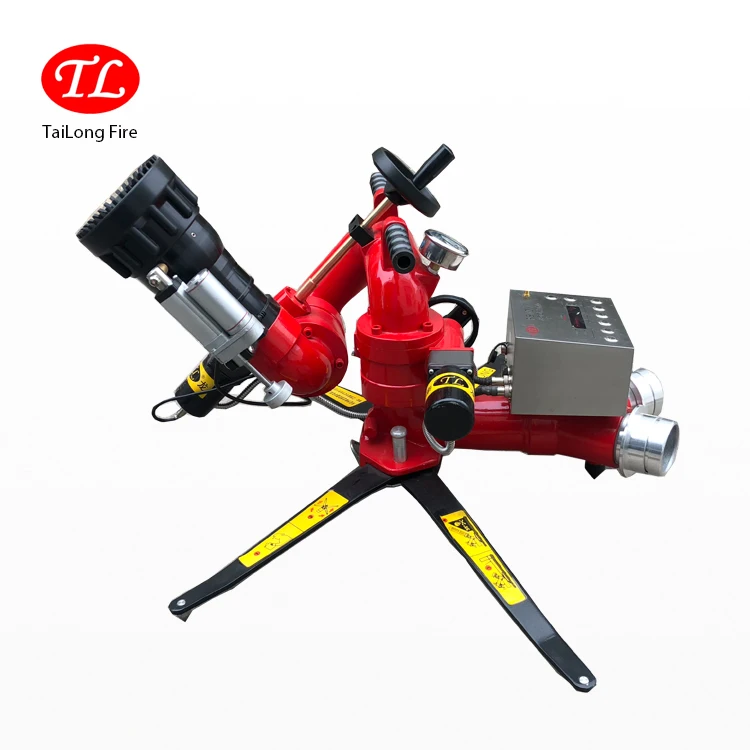

Part I:Introduction of Mobile electronic controlled fire water cannon

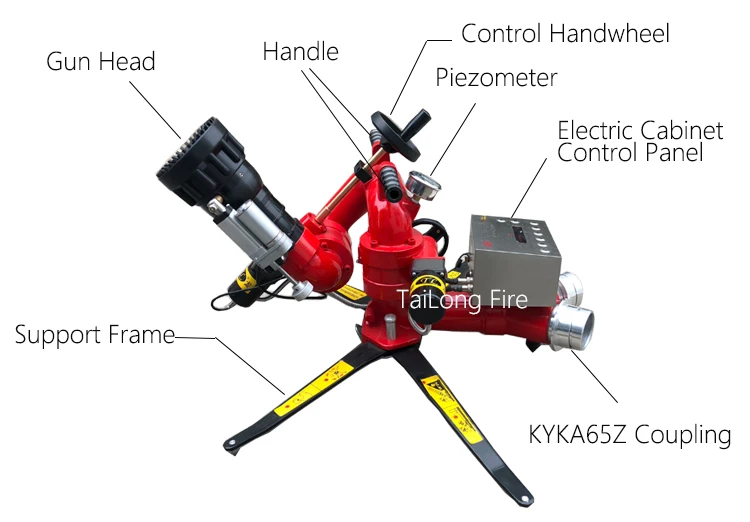

Mobile water cannon is suitable for the space far from the water source and the fire truck can not enter; it is used to extinguish the general solid material fire and oil fire, and also to cool the oil tank. The cannon has the characteristics of adjustable flow, long range, multi-function, small volume and good performance, and it is the site management of conventional fire trucks, oil tankers, wharfs, etc. The mobile fire-fighting gun is mainly composed of mobile site, mop, intake pipe, rotary body and gun head, and has two 65-diameter intakes. Under the same pressure, the flow of the water-gun can be adjusted, and the infinite adjustment of the direct current to 90 degree water mist jet can be implemented, which has better fire-fighting and cooling effect. It has good fire extinguishing performance. The gun is suitable for petrochemical enterprises, storage tanks, hangars, warehouses, port terminals and other places, and it is also an ideal vehicle-mounted fire gun for fire trucks.

Part II :Function introduction

1. Direct current, spray: rotating gun head, water flow from spray to dc.

2.The rise and fall: rotary swing handle, barrels from 30 ° ~ 70 ° rises and falls.

3. Left and right: manual swing in the desired direction.

4.Control distance:0~150m

5.Three forms:Remote control,gun position control and manual operation.

Part III :Installation,debugging and operation

1.open the support foot of the base and support it flat on the ground.

2. connect the safety chain to the fixed object of the gun body. If there is no fixed object, a wooden rod can be fixed on the front of the gun.

3. connecting the hose.

4. open the water source valve and pressurize the water supply to the gun body.

5.according to actual combat needs, remotely adjust the Angle of the gun head's inclination, elevation, left and right swinging Angle, flowering or dc state.

6. this gun has left and right self-pendulum function, and the self-pendulum Angle is 30°

7. after use, drain all the remaining water in the water cannon (this cannon has automatic drainage function), remove the boiled water with buckle, and collect the supporting feet.

 Xinghua TaiLong Fire Fighting Equipment CO.,LTD Established in 2002,Xinghua TaiLong Fire Fighting Equipment CO.,LTD is a professional manufacturer engaged in the research, development, production, sale and service of fire fighting equipment . We are located in Xinghua city of Jiangsu,and have convenient transportation access.

     Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment. In addition, we have attained CCCF and ISO9001 certificates.Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as USA,Russia,Indonesia. We also welcome OEM and ODM orders.

      Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 4-7 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below:

Q: How does your factory do regarding quality control?
A: Quality is priority.We always attach great importance to quality controlling from the very beginning to the very end. Each product will be tested to ensure its quality.
