NP LM05B 40X 1000X Plan Infinity Kohler Medical and Veterinary Binocular Compound Biological Microscope

Product Overview

Description

>A new generation of microscopes feature High Contrast (HC) infinity corrected plan optics.

professional-grade medical and veterinary microscope that was designed with comfort and ease of use in mind.

*For starters, NP-LM05B microscopes are equipped with a high-eyepoint WF10X/22eyepiece that reduces strain on your eyes, even while you're wearing glasses and More clearer and bigger size image of the objects than the normal biological model .

*The eye tube itself has an independent diopter adjustment, so you'll be straining less to see your subjects.

> For a high powered, extremely comfortable microscope that has the precision and strength to conduct all your experiments



Key Features:

Optical System	infinite Optical System
Eyepieces tube	Binocular Head 30° Inclined Tube Rotatable 360° Interpupillary 48mm-75mm

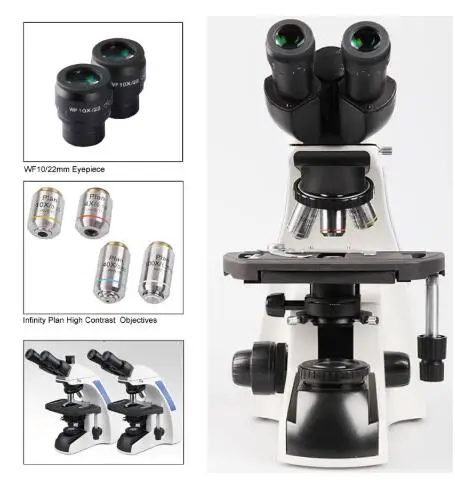

Eyepieces	WF10X/F.N 22MM
Objective	Infinite High Contrast Chromatic-free Full Plan Objective:4X,10X,40X(S),100X(S, Oil)
Total Magnification	10x~1000x

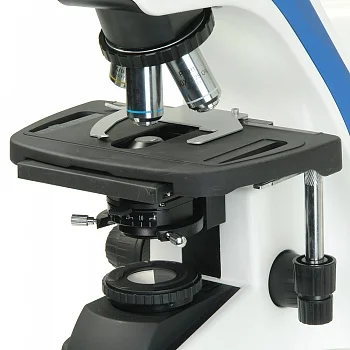

Stage	Double Layer Mechanical Stage,Size 216x150mm ,X-Y moving range : 75x55mm
Focusing	Coaxial Coarse And Fine Adjustment,Fine Division 0.001mm, Coarse Stroke37.7mm/Rotation, Fine Stroke 0.1mm/Rotation, Moving range 24mm

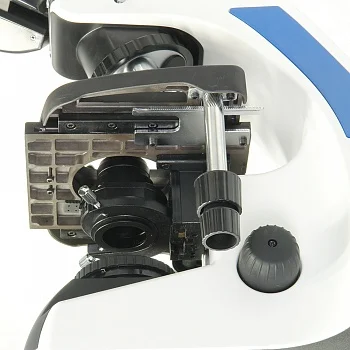

Condenser	Abbe NA=1.25 with lris Diaphragm&Filter
Illumination	Kohler LED 3W Lamp
Power	100V-250V









Packing List :

One Binocular Compensation-Free Head

One Microscope Body with Frame, Base, and Kohler Illumination System

Four High Quality DIN Plan Achromatic Objectives: 4X, 10X, 40X and 100X

One Dust Cover

Immersion Oil

User's Manual Download



Package

1pcs/carton                        Carton Size :370x320x510mm                 Weight :8.5kg
