High Quality CO2 Laser Marking Machine 600 x 600mm Marking Engraving Logo Or Text On Nonmetal Material
- Category: >>>
- Supplier: Shanghai Leiquan Laser Technology Co. Ltd.
Share on (62385831102):
Product Overview
Description
Product Description

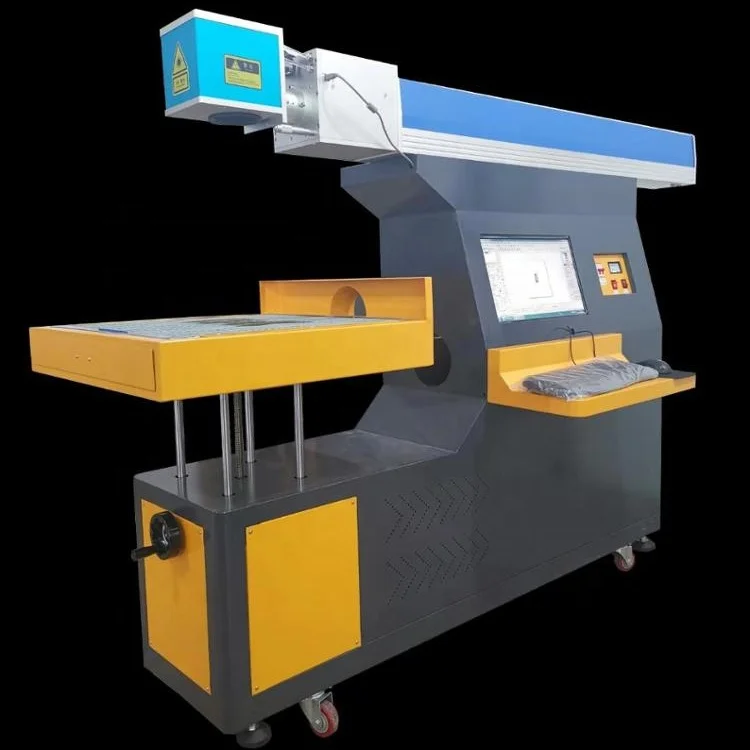

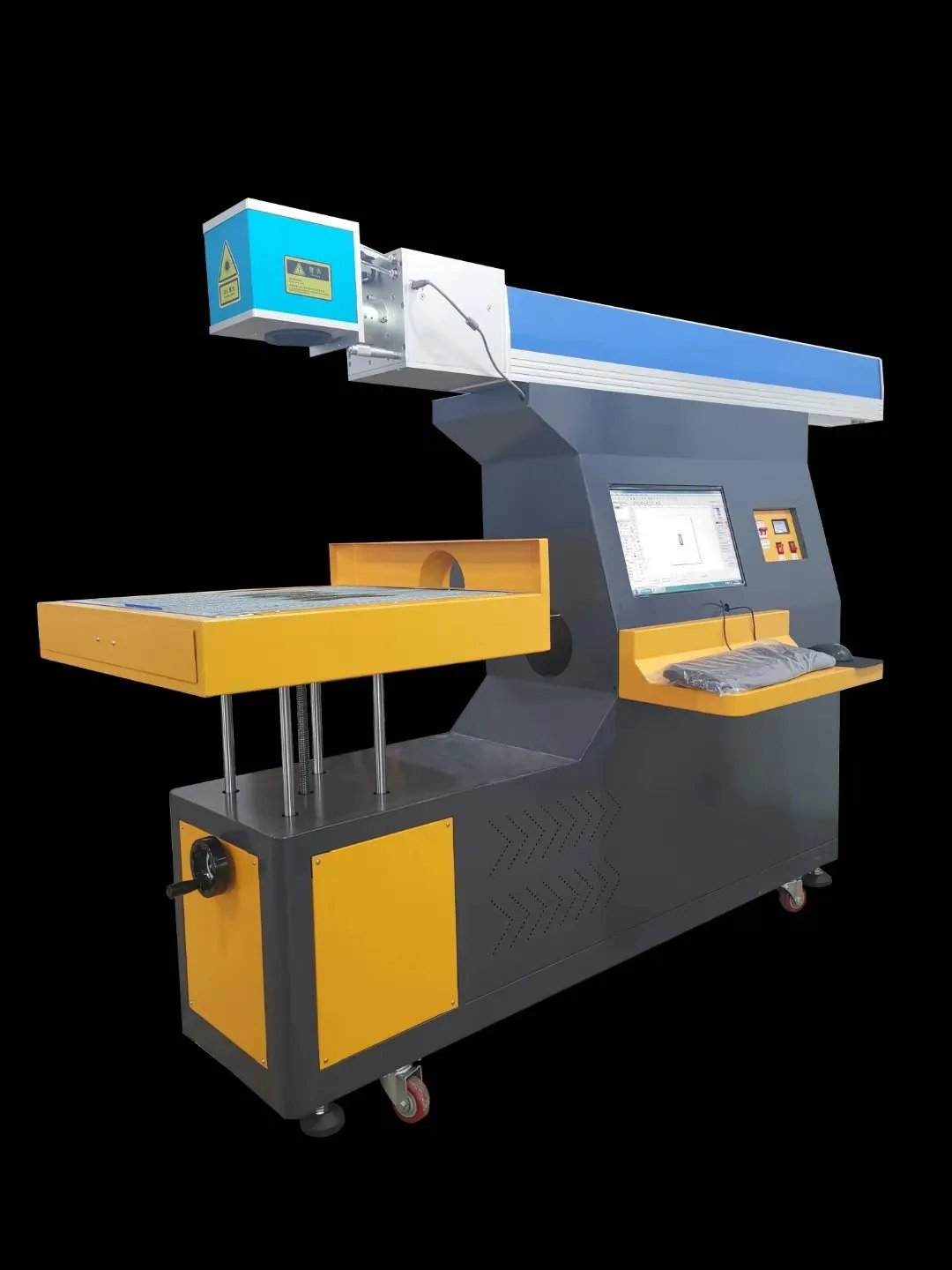

CO2 Laser Marking Machine
| Laser Power | 30W/50W/100W |
| Working Size | 600 x 600mm |
| Machine Type | Desktop type; Portable type |
| Optional Equipment | Two-dimension working table; Rotary clamp |
| Machine Weight | 100kg |
| Min Line Width | 0.02mm |
| Indication Light | Red Light |
| Rotary Clamp | Optional |
| Cooling Method | Water cooling |
| Laser Type | Fiber for metal and nonmetal; CO2 laser for nonmetal |
1. Working table: Both aluminum blade table and honeycomb table are available.Our sales will suggest suitable table depending on your cutting materials.
2. Steady chassis: Stability and precision during high speed work.
3. Moving system adopts Taiwan HIWIN or CSK linear guide and precision gear, matched up with advanced 3-phase stepper motor to ensure the working accuracy.
4. High efficiency tube with stable laser path, life time around 10000 hours.
5.64 DSP high speed processo highly improved the data processing speed and stability.
6.Easy operation: Control panel in multi language such as Chinese, English, Portuguese, Franch...
Quality assurance:
1. All the machine parts are famous brand such as Omron, CSK, Leadshine...
2. QC will inspect each laser machine with 25 items to ensure good quality.
2. 72 hours reliability test will be done for each machines before shipment.
CO2 Laser Marking Machine
Packaging & Shipping
PACKAGE:
Free-fumigation wooden box for export.
DELIVERY TIME:
3-15 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
<3sets: 3 days;
20GP container: 7 days;
40HQ container: 15 days
Payment
Company Information
Certificate
Our Service
1. Short Lead Time: 2 Days for <3 sets, 1~2 week for whole 40ft container!
2. We are pleased to support you on your company/ expo / exhibitions!
3. Your requirements and complaints are highly respected!
4. We can provide sample for your test!
5. OEM service is welcome!
6. Warranty: One year!
FAQ
Related Products
| Model | Working area | Available power [CO2 Laser Engraving and Cutting machine] |
| LQ3020 | 300*200mm | 40W |
| LQ4030 | 400*300mm | 40W |
| LQ5030 | 500*300mm | 40W,50W |
| LQ6040 | 600*400mm | 60W,80W |
| LQ9060 | 900*600mm | 60W,80W ,100W |
| LQ1280 | 1200*800mm | 60W,80W,100W,130W (150W) |
| LQ1280D | 1200*800mm | 60W,80W,100W |
| LQ1390 | 1300*900mm | 60W,80W,100W,130W (150W) |
| LQ1390D | 1300*900mm | 60W,80W,100W |
| LQ1490 | 1400*900mm | 80W,100W,130w,150W (180W) |
| LQ1490D | 1400*900mm | 80W,100W,130w |
| LQ1612 | 1600*1200mm | 80W,100W,130w,150W,180W |
| LQ1612D | 1600*1200mm | 80W,100W,130w,150W |
| LQ1325 | 1300*2500mm | 100W,130w,150W,180W |
| LQD1218 | 1200*1800mm | 350W. Die board, Metal and non-metal cutting |
| LQ1610/LQ1625 |
1600*1000mm 1600*2500mm | 60W,80W,100W,130w,150W Auto feeding function |
| LQ1280M/LQ1490M/ LQ1325M | 1200*800mm 1400*900mm 1300*2500mm | 150W,180W Metal and non-metal cutting(mixed) |
"D" stands for double heads and double lasers. Power in (): Laser tube box should be extended. | ||
| Model | Fiber power | Available working area [Fiber Laser Marking Machine] |
| LQF20W | 20W | 110*110mm/150*150mm/175*175mm |
| LQF30W | 30W | 110*110mm/150*150mm/175*175mm/ 200*200mm/300*300mm |
| 20W and 30W are most popular, 10W, 50W, 100W also available. Optional part: two-dimension working table, rotary clamp. Both desktop type and portable type are available | ||
| Laser tube | 40W 50W 60W 80W 100W 130W 150W 170W 180W | |
| Fiber Cutting Machine | 1500*3000mm | 350W, 500W, 750W, 1000W, 2000W, 3000W |
| OEM and customization for machines and laser tubes are both acceptable! | ||
