Fast Speed Double Photo Frame Cutter Machine / Photo Frame Cutting Machine / Picture Frame Angle Cutter
- Category: >>>
- Supplier: Zhengzhou Honest Machinery Co. Ltd.
Share on (62385912752):
Product Overview
Description
Fast Speed Double Photo Frame Cutter Machine / Photo Frame Cutting Machine / Picture Frame Angle Cutter
Product Description
Our company independently developed and improved the new angle cutting machine, imported pneumatic control system, the processing effect is good, the knife speed is stable, smooth. For Aluminum Alloy frame, edge banding, photo frame, aluminum doors and windows, 45 degrees open cutting, equipped with standard foot, foot control, accurate positioning; pressing positioning mechanism; automatic discharging mechanism, the use of simple, safe and fast. The working table is made of imported steel plate, the surface of the table is 140mm, the surface is smooth, the cutting precision and durability.
Configuration: (1)can be equipped with feeding rack
(2)can be equipped with jet cutting fluid device
(3)can be installed gas push oil device.
Technical Parameters
Model | HT-YD45 |
working form | Pneumatic, electric |
Operation form | Semi-automatic |
Blade speed | adjustable |
Air pressure required | 4~8kg |
maximum cutting stroke | 220mm |
maximum cutting thickness | 90mm |
The Angle of cut | 45 degree angle |
Voltage | 380V |
frequency | 50HZ |
motor power | 2.2KW |
electrical machine | Copper wire motor, secondary motor |
Saw blade rotation speed | 3000 revolutions per minute |
Weight | 270KG |
Install the saw blade axis diameter | 25.4mm |
Dimension | 850mm*610mm*1280mm |

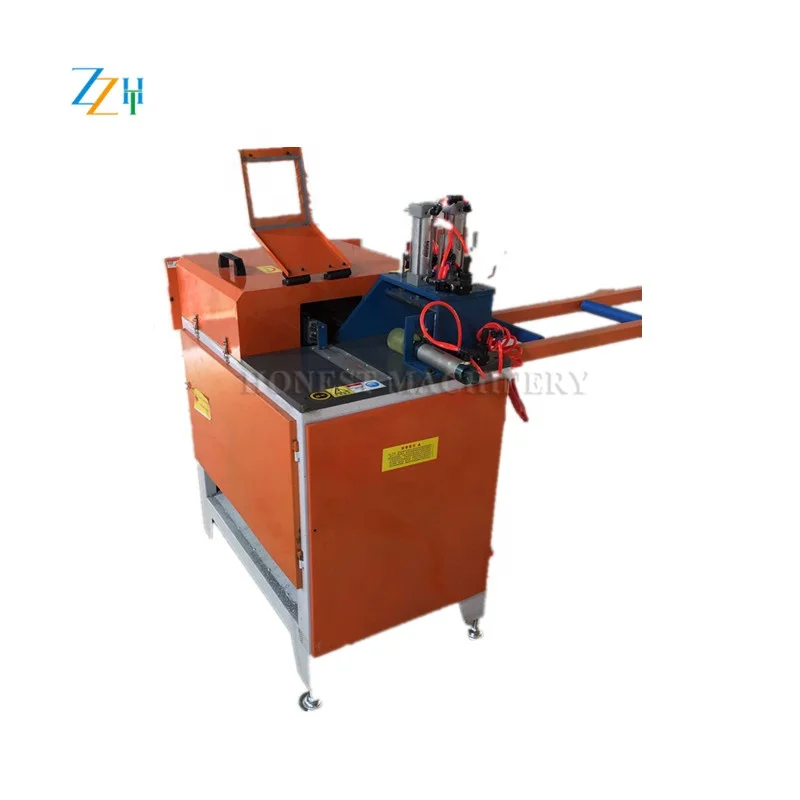

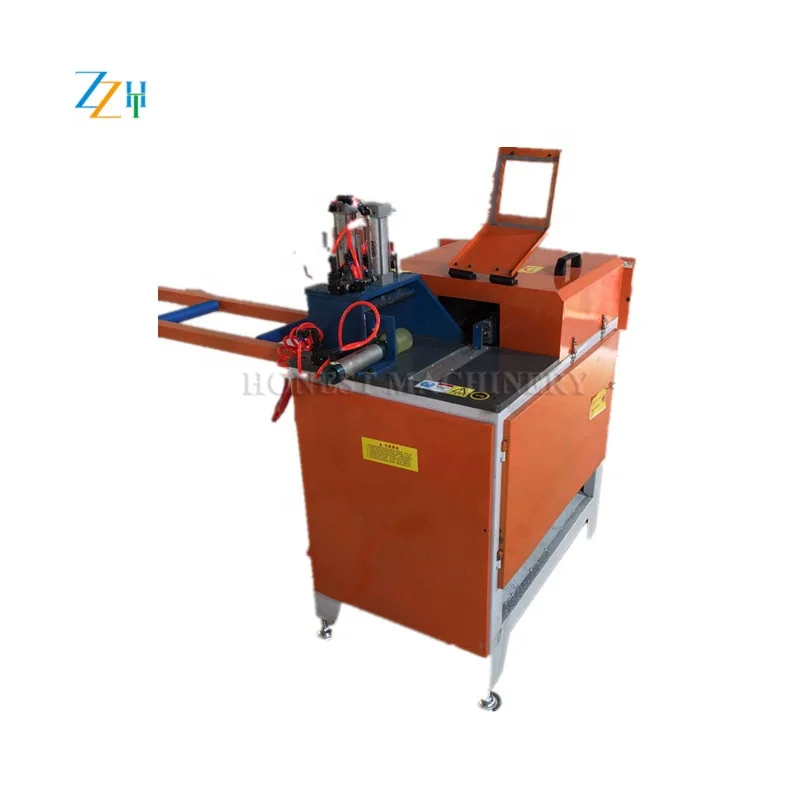

Pictures of Product
Packaging & Shipping
Company Certificates
Our Customer
Contact us
If you need further information, please contact us freely, we will do our best to cooperate with you.
