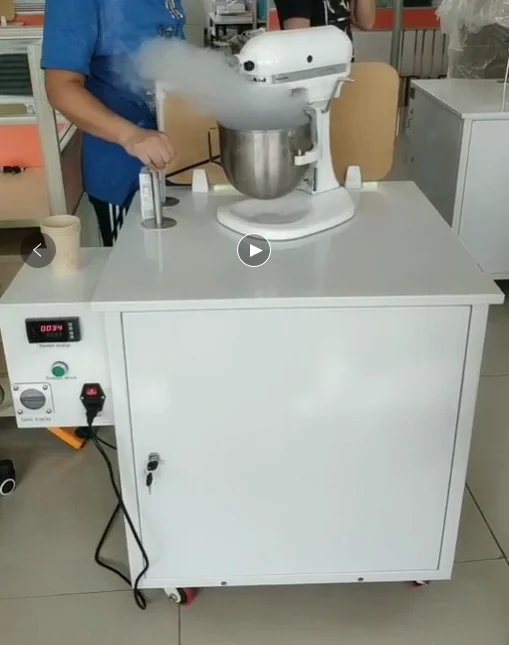

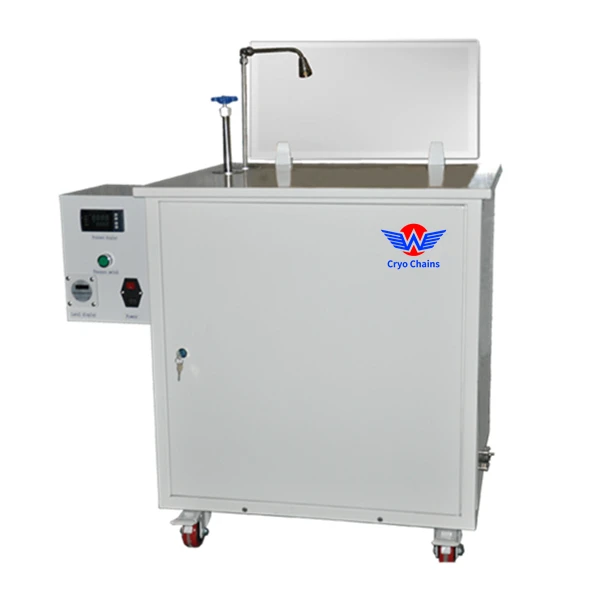

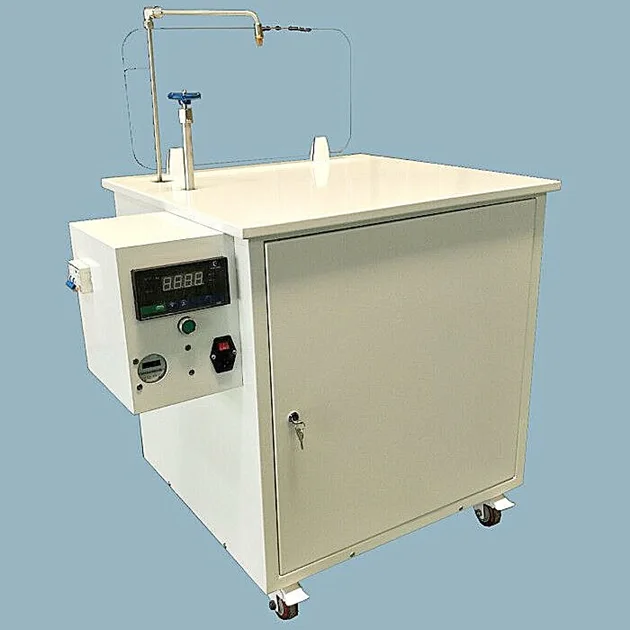

Ice Cream Parlor Equipment Dragon Breath Nitrogen Ice Cream Maker

Product Overview

Description

Ice Cream Parlor Equipment Dragon Breath Nitrogen Ice Cream Maker

Description

Electric booster system, by the control instrument to achieve boosting and pressure stabilization, control the internal pressure in the ultra-low pressure range, safe and reliable;
The liquid level display and alarm functions are complete, which is convenient for real-time monitoring of the liquid level;
High vacuum multi-layer insulation technology can reduce liquid nitrogen consumption, save energy and protect environment;
Foldable operation platform to reduce occupancy space;
The chassis is clean and beautiful with plastic spraying technology.

Delicious Entry, Healthy Nutrition
The instantly lowered temperature of liquid nitrogen can make the raw material crystallize quickly, the ice crystal is fine and uniform, and the taste is soft and delicate. At the same time, the raw material of ice cream is surrounded by nitrogen during freezing process, which reduces the contact with air, so it does not occur oxidative discoloration and fatty acid deterioration, and better maintains the original freshness, color, fragrance and nutritional value of ice cream.
Quality safety
Man-machine interface system can automatically pressurize and constant pressure to make ice cream high-quality and efficient; drainage switch, low liquid level alarm, liquid level pressure display, so that the operation is safer and more convenient.
Good moulding and high output
Ice cream produced by liquid nitrogen impregnation has a smooth and smooth surface due to the extremely low temperature of liquid nitrogen freezing. It does not produce melting, bonding, surface cracking, shedding and other phenomena. It tastes better. One liter of liquid nitrogen can produce 10 ice cream.
User friendly design
The whole machine has high cost performance, small floor area, convenient movement and strong wear resistance with high quality universal casters, foldable platform, integrated design, convenient reception and thorough removal of sanitary dead angle.

Parameters

1. L*W*H:940*690*1140mm(Fold size)

1550*690*1140mm(Unfold table size)

2.Packing Size: 1100*800*1400mm (Wooden Box)

3.Net Weight: 110Kg,  Gross Weight: 160Kg

4.Working Pressure:<0.1MPa

(Normal Control 0.025MPa)

5.Low level Alarm: lower 50mm

6.Liquid Nitrogen Container Materials:06Cr19Ni10

7.Box Material:Q235( High temperature spray treatment for inner and external surface)

8.Liquid Nitrogen Container Rehydration Port Thread Specification:  UNF3/4 External Thread

9.Power Source:AC 110V or 220V

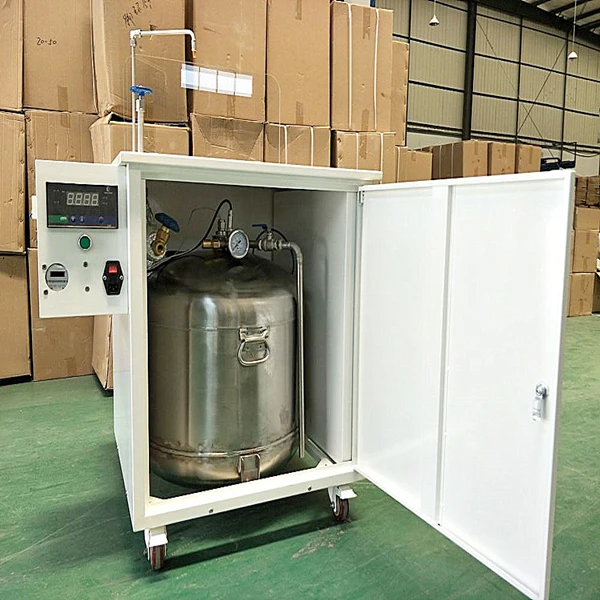

10.Stainless Steel Liquid Nitrogen Container:50 Liters Capacity

11.Liquid Nitrogen Container Insulation Form: High Vacuum Multilayer Insulation



Packaging & Shipping

Carton packaging. Mode of transport: by sea or by air or by train.



Our Services

OEM, ODM. We can provide a good after-sales service.



Company Information

We are focus on cryogenics for over 10 years, and can provide professional one-stop service for cryogenic vessels, equipment, and solutions.

We are good at non-standard customization service and developing new products on various cryogenic applications.



Cryo Chains is a high and new tech company, which is specialized in R&D, OEM and selling cryogenic container, cryogenic freezing equipment, and cryogenic solutions.



Cryo Chains has always been upholding the corporate concept that “the company should seek supreme quality, advanced technology, sincere service and innovative development”. We have a technical team of professional technical personnel with experience of about many years in R&D and manufacturing of various types of cryogenic liquid storage transportation, cryogenic freezing equipment.



We have accumulated rich experience in acquiring and keeping vacuum, multi-layer insulation, cryogenic freezing equipment and biological product cryopreservation, cryogenic intelligent electronic control system, and so forth. We have successful experience of several major cryogenic engineering implementations, we have established technical cooperation with various food plants, higher medical institutes and scientific research institutions.



Our business covers stem cell bank, blood bank, hospital, biological engineering, animal husbandry, higher institute, research institution, machinery, petrifaction, semi-conductor, aerospace, superconductor, industrial gas and liquid, metallurgy, frozen food preservation, and so on, and could provide mature project designs.



Our products have passed the test of national cryogenic liquid container testing center; meanwhile we get the CE certificate. The company strictly follows ISO 9001 quality control procedures to ensure its product quality and 100% qualified product rate. In the meanwhile, after-sale service system of quick response is established to make sure that users can safely use its products. Now our products have been sold to over 45 countries in the world and earn very good reputation.



FAQ

Q: Do you provide operating instructions?

A: Yes. We can also provide remote guidance.
