Q606 6 buttons double speed AC/DC 24V 48V wireless transmitter & receiver hoist crane remote controls
- Category: Remote Control >>>
- Supplier: Nanjing Xiading Electronic Technology Co. Ltd.
Share on (62386169421):
Product Overview
Description
Product description

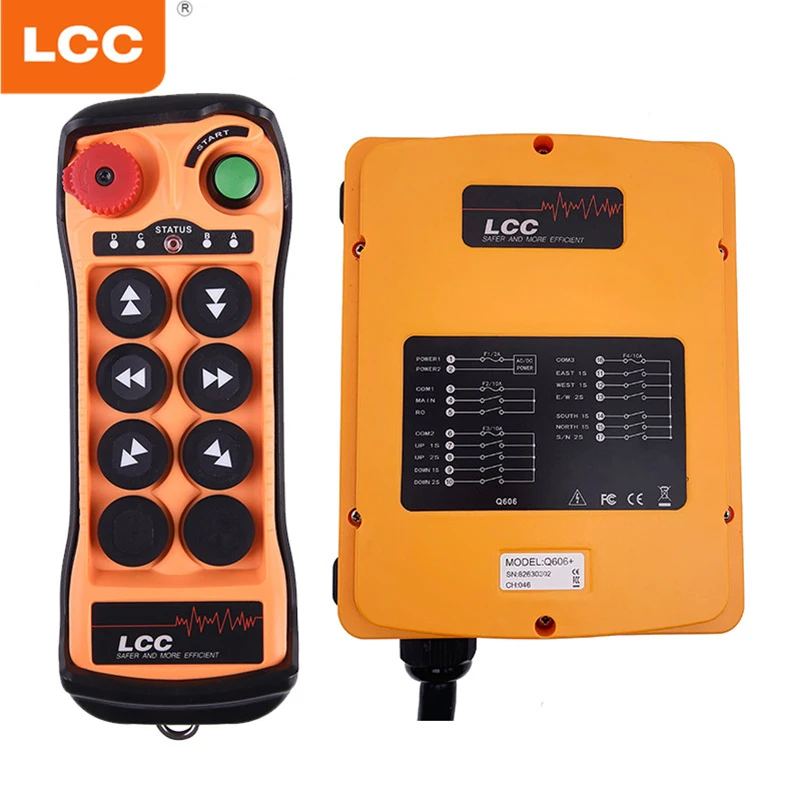

Q606 6 buttons double speed AC/DC 24V-48V wireless transmitter & receiver hoist crane remote controls
| TECHNICAL PARAMETERS OF BUTTON Q SERIES | |||||||||||||
| Type | Q200 | Q202 | Q400 | Q404 | Q600 | Q602 | Q606 | Q800 | Q808 | Q1000 | Q1010 | Q1200 | Q1212 |
| Transmitter Function | 2 single -speed buttons | 2 double -speed buttons | 4 single -speed buttons | 4 double -speed buttons | 6 single -speed buttons | 2 double 4 single
| 6 double -speed buttons | 8 single -speed buttons | 8 double -speed buttons | 10 single -speed buttons | 10 double -speed buttons | 12 single -speed buttons | 12 double -speed buttons |
| Transmitter Dimensions | 14.5x7.5x3.8cm | 19x7.2x3.9cm | 23.9x7.2x3.9cm | ||||||||||
| Transmitter Weight | 240g | 300g | 360g | ||||||||||
| Transmitter Antenna | Inside | ||||||||||||
| Receiver Antenna | Inside / optional external antenna | ||||||||||||
Start | Press the start button | ||||||||||||
Emergency | Mushroom conforms to EN3849-1 standard | ||||||||||||
Housing | Reinforced nylon plastic | ||||||||||||
IP class | IP65 | ||||||||||||
Distance | ≥ 100 meters / can be customized 300 meters / 500 meters | ||||||||||||
Frequency | 433/480MHZ | ||||||||||||
Temperature | -35°C— +75°C | ||||||||||||
Button life | ≥2,000,000 times | ||||||||||||
| Power supply | 2 pieces battery (1.5V) | ||||||||||||
| Continuous working time | 400 hours (at room temperature) | ||||||||||||
| Automatic shutdown | no shutdown / software can be set for 15 minutes, 30 minutes | ||||||||||||
Button Text | Arrow/English/Chinese/Others | ||||||||||||
| Receiver Output | Relay 5A@250v | ||||||||||||
| Receiver Voltage | AC/DC 12-24V,24-48V ,24-264V, AC/DC 110-480V | ||||||||||||
Transmitter parameter:
| Frequency | 433/480(MHZ) |
| Weight | 380g |
| Temperature range | -35℃~75℃ |
| Average power consumption | 8mA@DC3V(mA@DC) |
| Transmitter RF power | <10(mW) |
| Command response time | <100(ms) |
| Shell material | PA6(30%GF) |
| Control method | GFSK |
| Control distance | 100m |
| Protection level | IP65 |
| Power supply | LR6(AA)1.5V*2DC3V(DC) |
Frequency control | PLL |
| Stop command response time | <100(ms) |
Receiver parameter:
| Frequency | 433/480(MHZ) |
| Weight | 1700g |
| Shell material | PA6(30%GF) |
| Average power consumption | 15mA@AC220V |
| Power supply(AC/DC) | Low pressure24-48V high pressure110-460V |
| Operating temperature | -35℃~+70℃ |
| Receiving sensitivity | -112(dBm) |
| Receiving capacity | 5A@250W(A@AC) |
| Control distance | 100m |
| Frequency control | PLL |
| Distribution method | GFSK |
| Reaction time | 50-100(ms) |
| Protection level | IP65 |
Commodity Brands:
| Commodity | Country | Brand |
| Botton(single) | Germany | Marquardt |
| Botton(double) | Japan | Alps |
| Capacity | USA | VISHAY |
| Inductor | Korea | Samsung |
| Emergency stop | Japan | IDEC |
| Relay | USA | Tyco |
| Diode/transistor | USA | TEXAS |
| Crystal oscillator | TaiWai | Hongxing |
Our Services
Our service.
1. Any queries will be answered within 24 hours.
2. Professional manufacturer, strong R & D team support.
3.OEM / ODM available, we can customize according to customer requirements.
4. Due to transportation restrictions, the battery is not in the package. you should buy your own AA battery.
5. We are a factory from China. please don't worry about the quality and service of our products.
6. If you have any questions about products and logistics, you can email us and we will reply as soon as possible.
7. After-sales service:
1) all products are subject to strict factory quality inspection before packaging.
2) all the products have been packed in our factory, and the second package is delivered by express delivery before shipment.
3) if there are any problems during operation or installation, please contact us freely and we will solve them with professional guidance.
8. Thank you for your trust and cooperation!
FAQ
1. Q: what is your minimum order?
A: thank you for your question. We can accept sample orders for trial orders.
2. Q: is there a warranty? .
A: all our branded products have a 12-month warranty period. we provide 24-hour after-sales service and technical support. if you find any problems during installation, please feel free to contact us.
3. Q: what certificates are approved for your product?
A: we have CE,FCC,ISO9001.
4. Q: can you customize it to my needs?
A: you can send me inquiries according to your needs. we can customize them with technical engineers.
5. Q: is your price the lowest?
A: do you mind the quality? The quality of our supply is value for money, inferior products will waste and affect the work process, why not choose a medium price to work well?
6. Q: is the product 100% assembled?
A: yes, all the products are 100% assembled.
