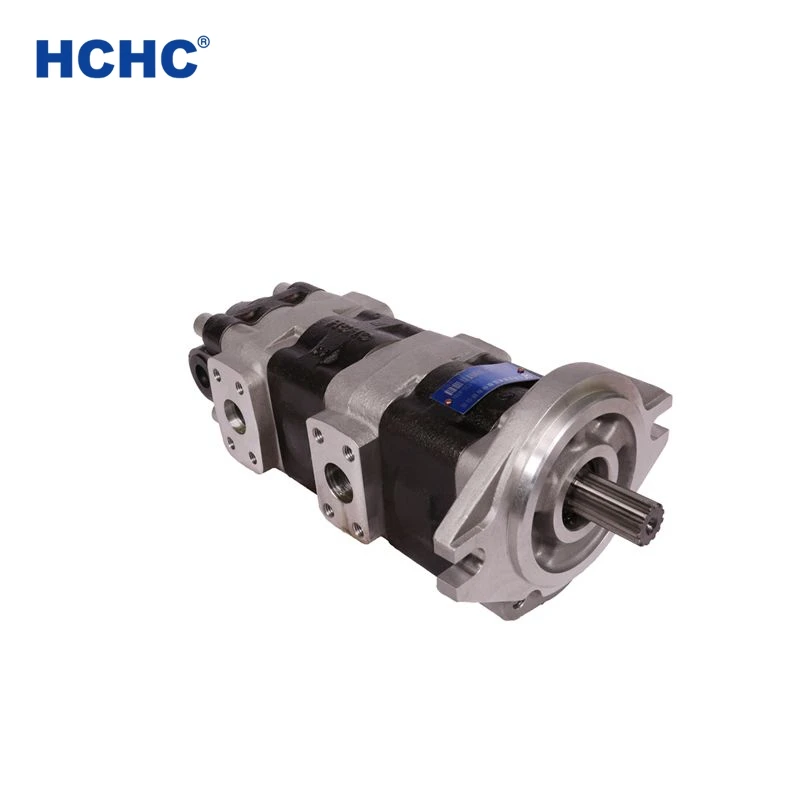

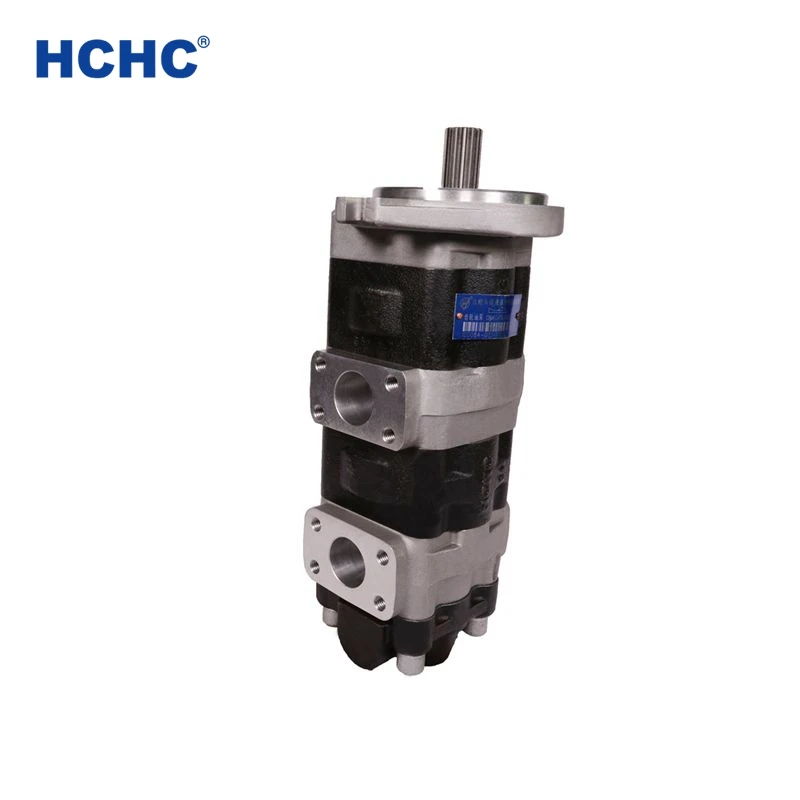

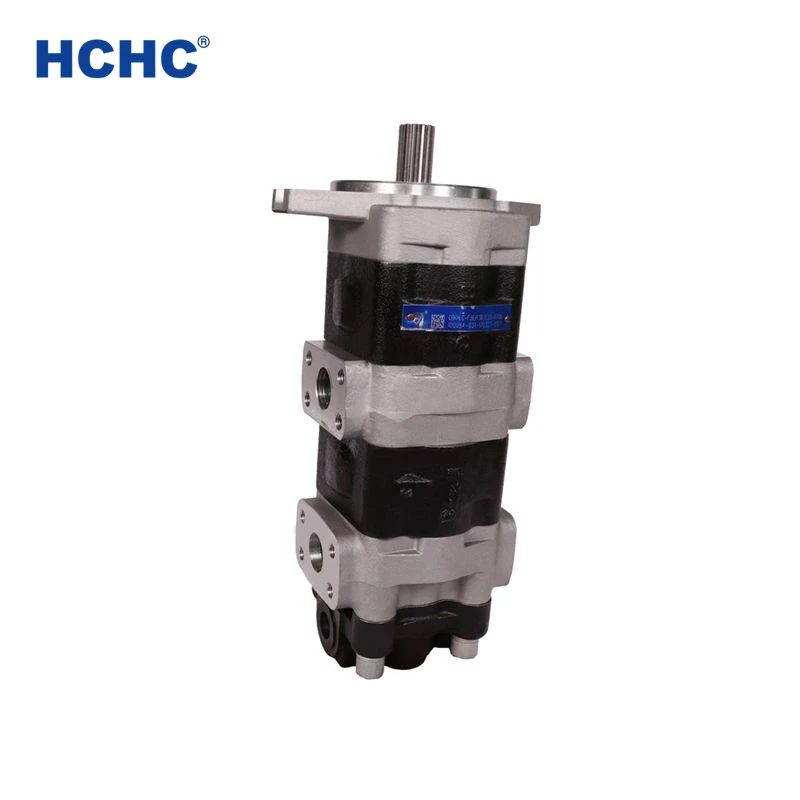

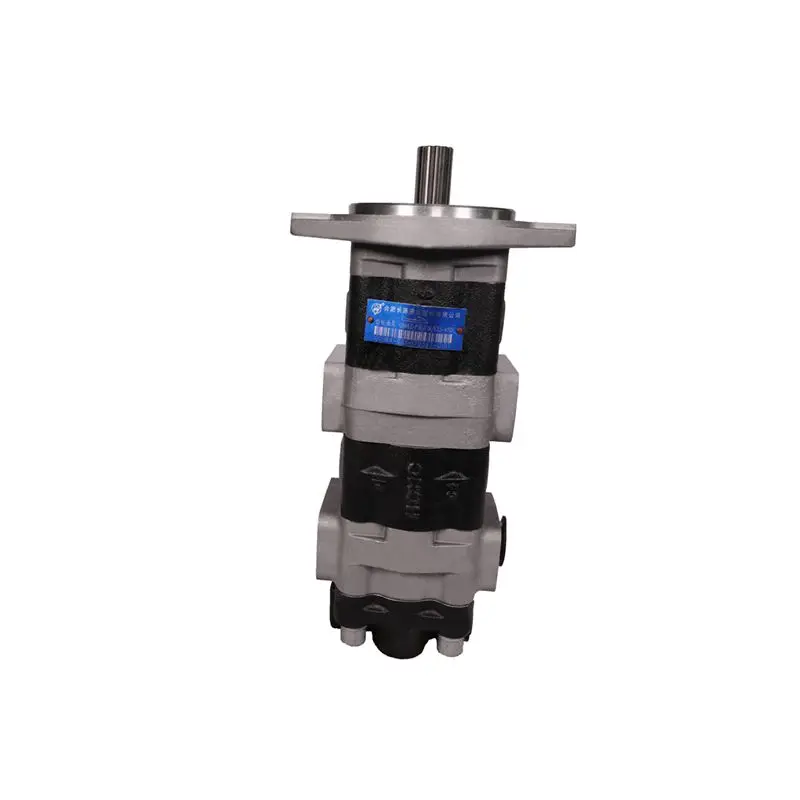

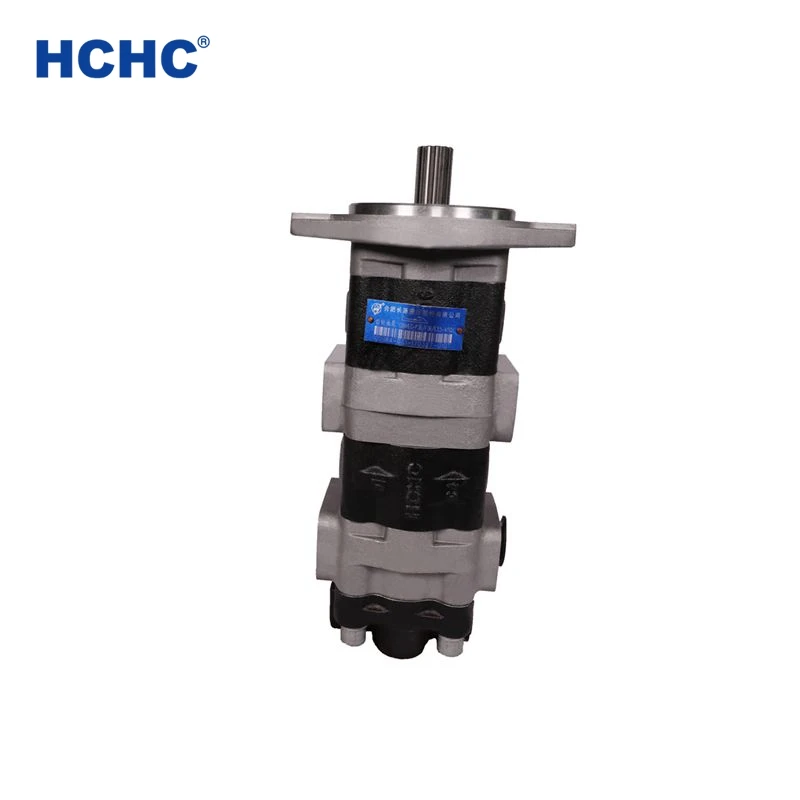

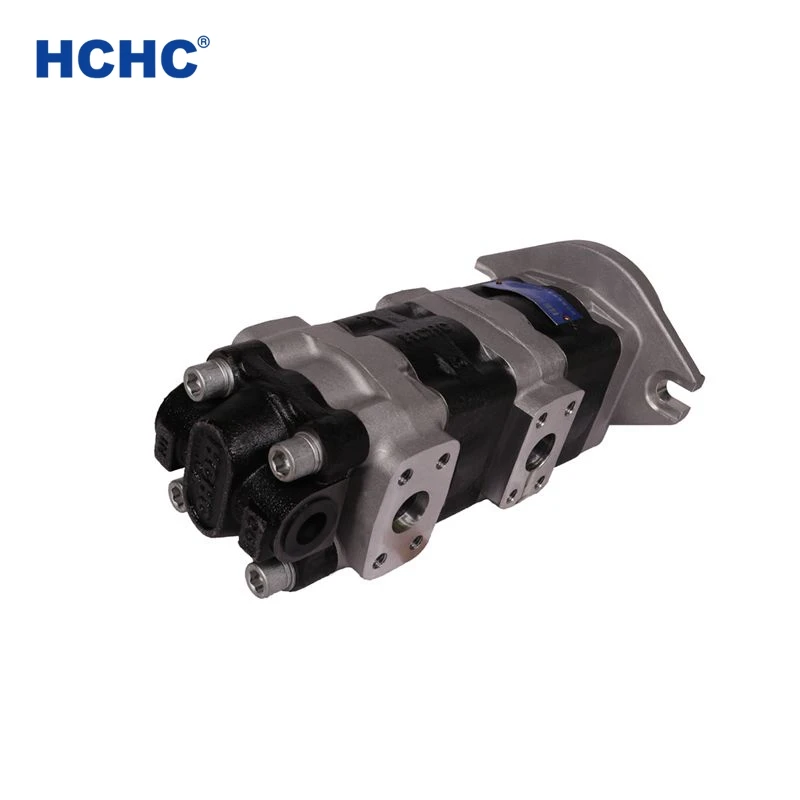

Chinese forklift hydraulic double gear pump Wholesale for crane excavator junk truck
- Category: >>>
- Supplier: Hefei Changyuan Hydraulic Co. Ltd.
Share on (62386322990):
Product Overview
Description
Product Description
Performance Characteristics:
Double modulus gear with non-symmetric tooth
Pump housing of higher strength wear-resisting iron-casting material makes stronger bearing capacity and longer service-life.
Keep higher volume efficiency when the speed is 600 rpm/min.
The type of shaft extension: plain key (P), rectangular spline (H), SAE spline and metric spline.
The joining type of inlet/outlet position is flange (F) or thread (L).
The combination type of inlet/outlet position,
BB: Back inlet and back outlet
BS: Back inlet and side outlet
The auto-compensation unit of axial clearance ensures the high volume efficiency.
It is widely applied to forklift.

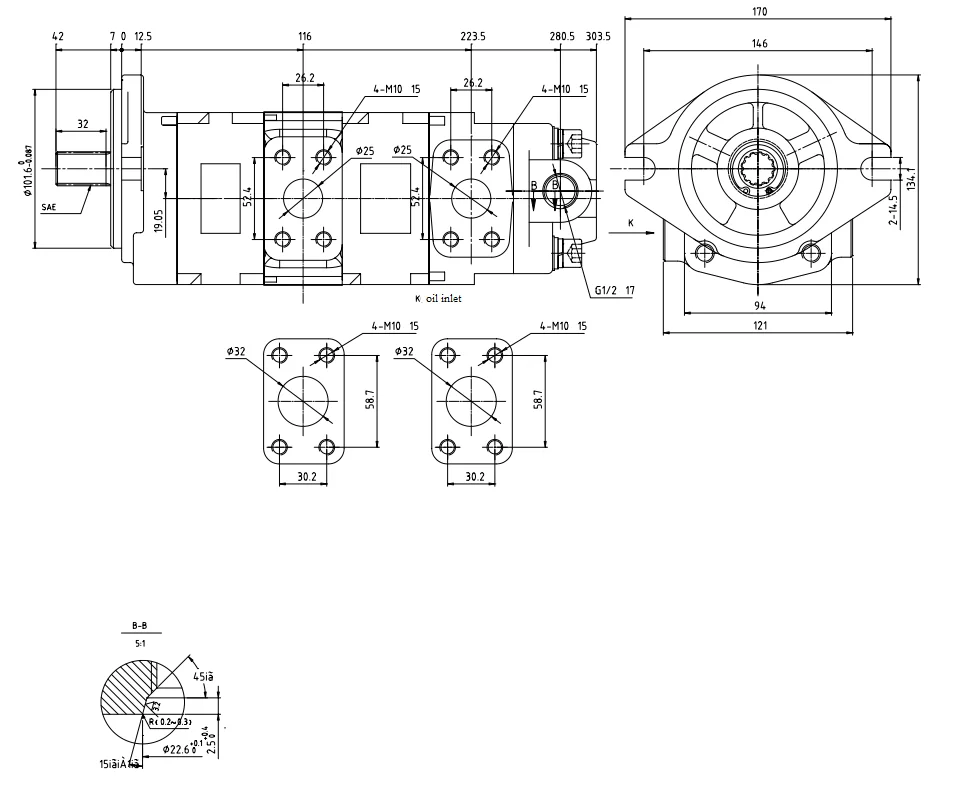

Specification
Model Code
CBKHLG-F36F36E3.5-A1TφL
① ② ③ ④ ⑤⑥⑦
① Product code
② Pressure grade: F=200bar
③ Nominal displacement(mL/r)
④ Mounting type: A=rhombic flange
⑤ Joining port type: L=thread
⑥ Shaft extension type: φ=SAE spline
⑦ Rotation direction: L=counterclockwise
② Pressure grade: F=200bar
③ Nominal displacement(mL/r)
④ Mounting type: A=rhombic flange
⑤ Joining port type: L=thread
⑥ Shaft extension type: φ=SAE spline
⑦ Rotation direction: L=counterclockwise
