Industrial Single Drum Spiral Freezer

Product Overview

Description

Product introduction

Spiral freezer is a high effiecient freezing system which can freeze large quantity of products in limited space. Freezng capacity is between 250kg/h~3000kg/h.

Main Features

♦ Stainless steel insulated panel filled with PU foam, 120mm thickness. The insulated floor, 225mm thickness, is welded seamlessly. No leaking and sinking.
♦ Conveyor belt is made up with special high strenghth SUS304 spiral mesh. High frequency induction heater is used for rod header forming. Running smoother and lasting longer.

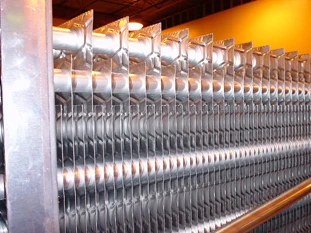

♦ Aluminium alloy evaporator. Aluminium pipes and fins are densely designed for good heat exchange.
♦ SUS304 electric control box. It can be controlled by relay, PLC or touch screen.
♦ Safety device: conveyor belt turn over inductor, belt induction regulator, emergency switch.



Application Field

Spiral freezer is widely used for fermenting and cooling bread, freezing seafood, pastry, meat, poultry, ice cream, etc.

Technical Specification



Notes:1.Freezing capacity refers to fried chicken.Refrigeration capacity is based on condensing temp.+35℃ and
evaporating temp.-42℃.
2.The standard models listed above are for your reference. It will be designed as per specific request.

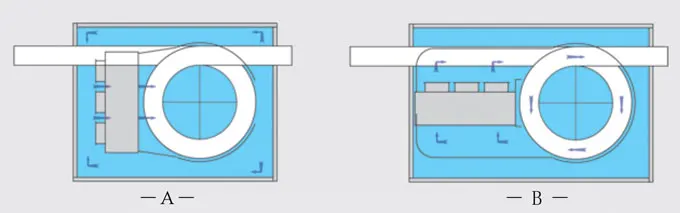

Air Cirluation Type

You can choose suitable air circulation according to different product requirement. Two types of air circulation for your option.

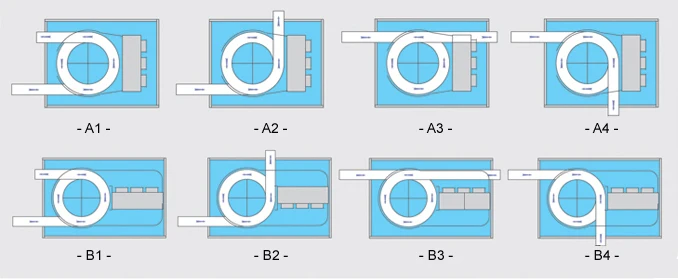

Inlet and Outlet Directions

Users can choose different inlet and outlet directions according to space and production needs



Main Dimensions

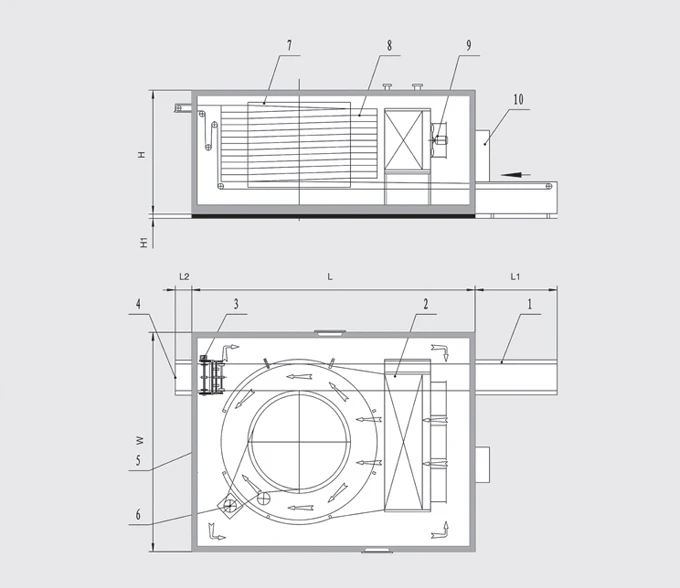

Structure Drawing

1.Inlet frame   2.Evaporator   3.Tension device   4.Outlet frame   5.Insulated panel

6.Main drive  7.Drum    8.Stainless steel mesh belt   9.Fan   10.Electric control box
