Product Description

  • Product performance description

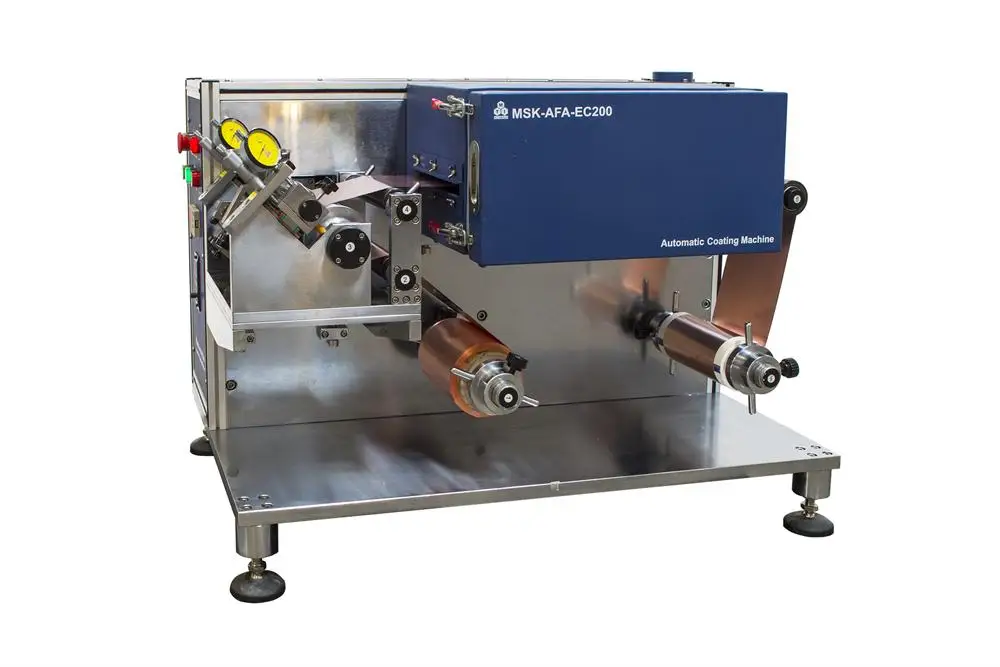

MSK-AFA-E200 is a compact Roll to Roll continuous coater for battery electrode sheets with a small footprint of 3.3'x2.1' for battery research labs. This system integrates the functions/ features of reeling in & out, slurry feeder, coating blade, baking oven, and final electrode winding (reeling in). It can coat electrode sheets up to 160mm in width and 500 meters in length automatically.

Details Images

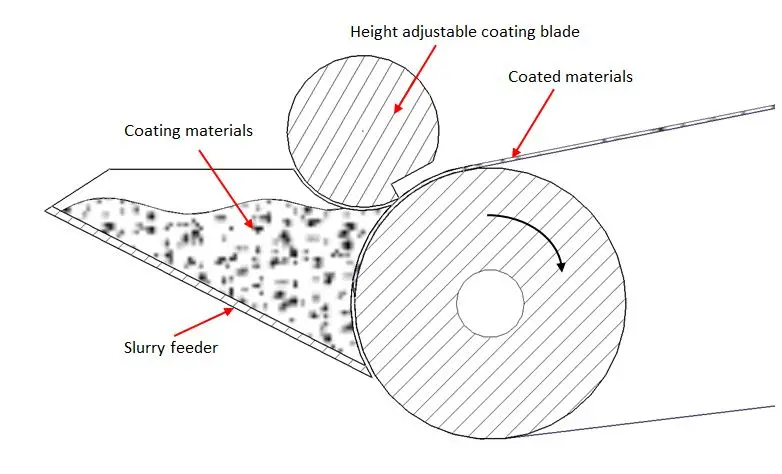

* Blade Coating technique （ Click bottom left picture below to see details )
* Coating Thickness Precison： +/- 0.006 mm

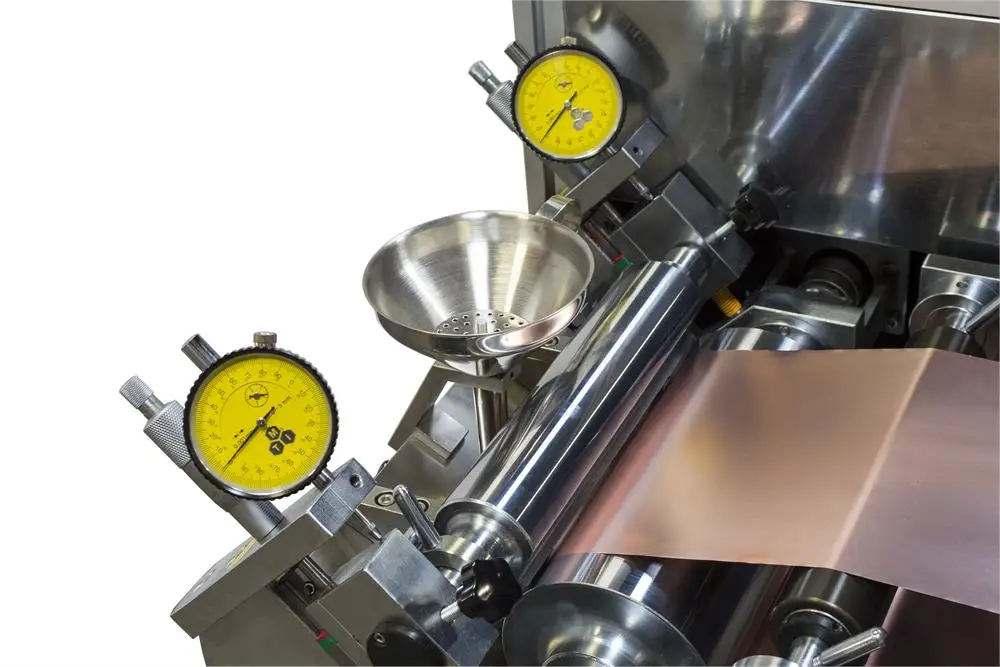

The compact micrometer is matched with a dial indicator to control the thickness of the coating in real time.
Special loading funnel, centralized feeding to reduce material waste
Product Usage

    • Product usage introduction

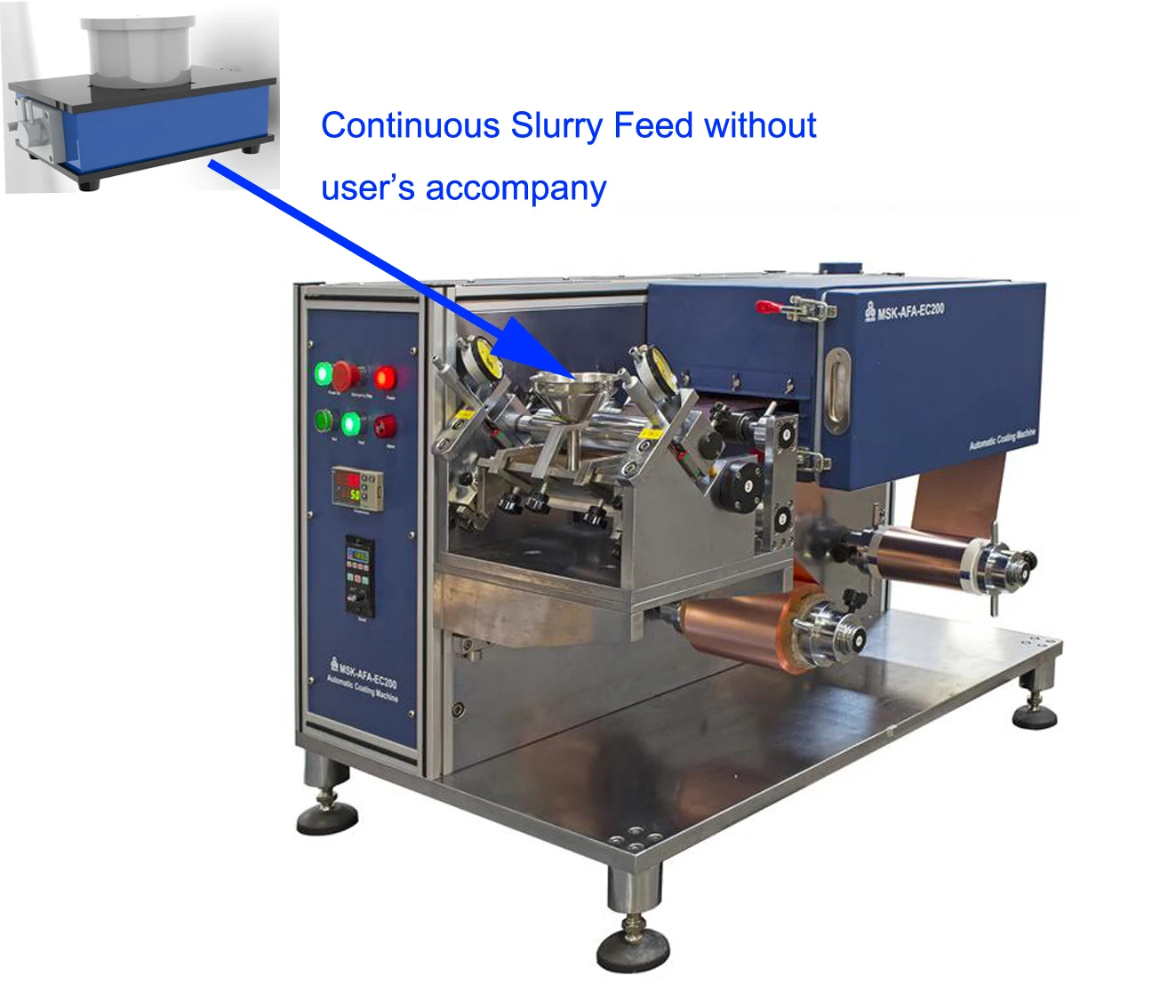

Optional with automatic loading system, no need for manual feeding.

  • Description of product use effect

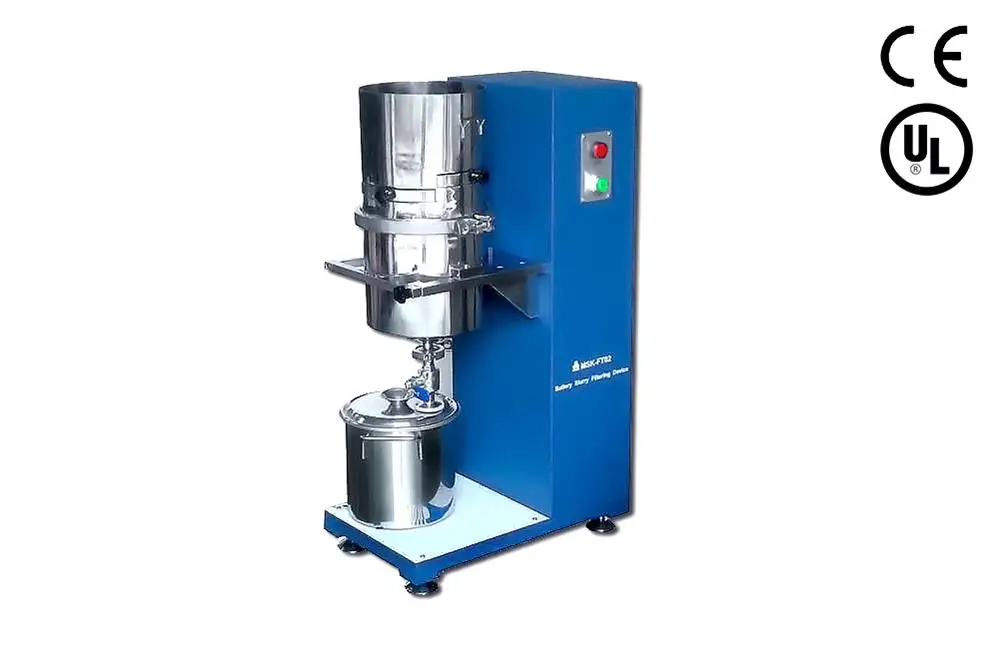

Optional with slurry removal iron filter to remove other impurities in the material and improve coating quality
