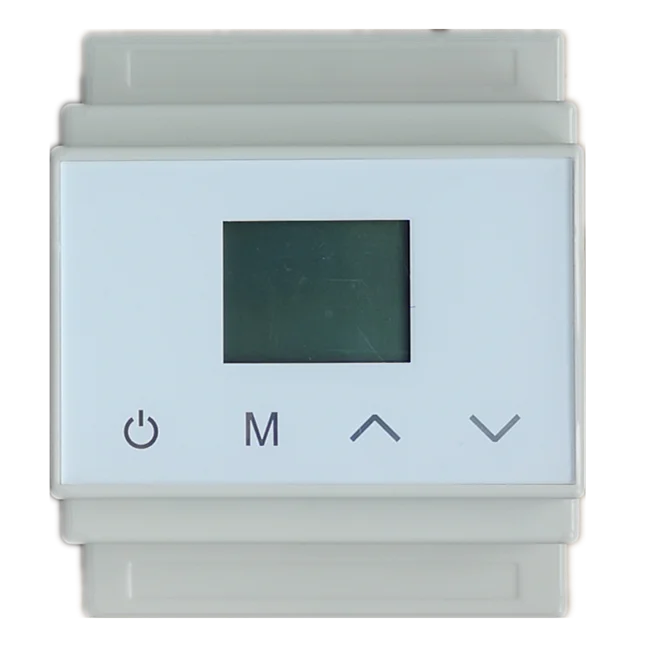

Din Rail Temperature regulator for floor heating
- Category: >>>
- Supplier: Nanjing Insbud Controls Company Limited
Share on (62386623137):
Product Overview
Description
Product Description

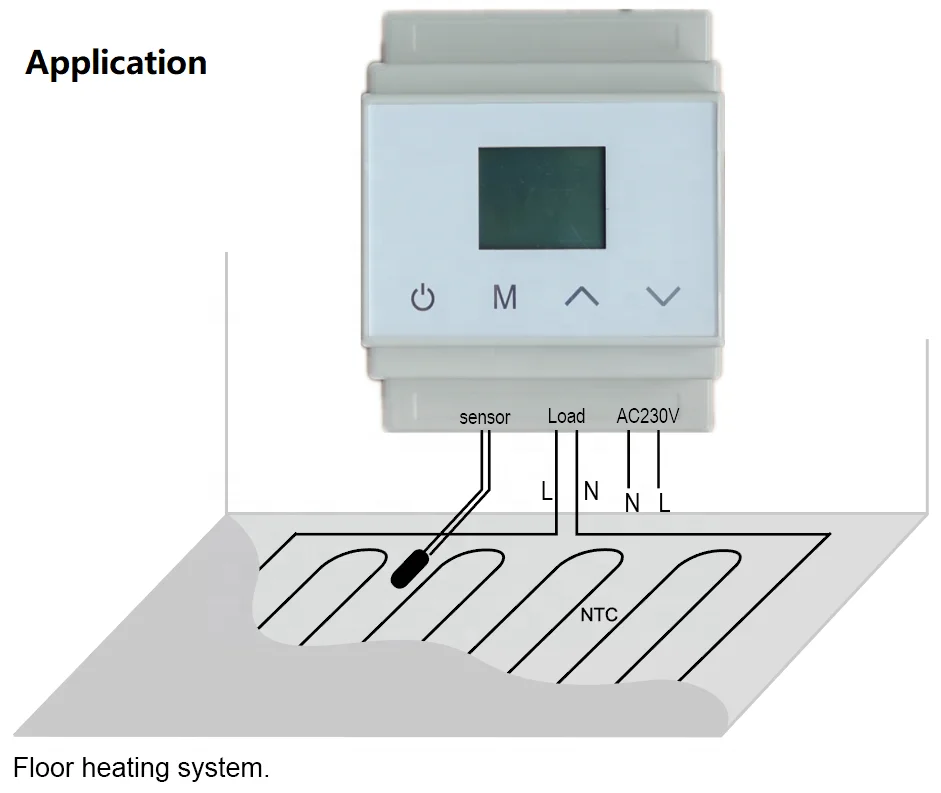

Temperature regulator for floor heating
| Power supply terminals: | Din Rail Temperature regulator for floor heating |
| Model | TR1908 |
| Color | off white |
| Power supply terminals: | L, N(1,2) |
| Input rated voltage: | 230VAC (120VAC optional) |
| Nominal frequency: | 50 / 60 Hz |
| Rated power consumption: | 1W |
| Load indicator: | LCD |
| NTC sensor terminals: | IN, IN(5,6) |
| Internal air sensor | Support |
| Temperature adjustment range | Default 5°C - +40°C (5°C-90°C adjustable) |
| Hysteresis: | 1°C -10°C (adjustable) |
| Relay terminals: | 3,4 |

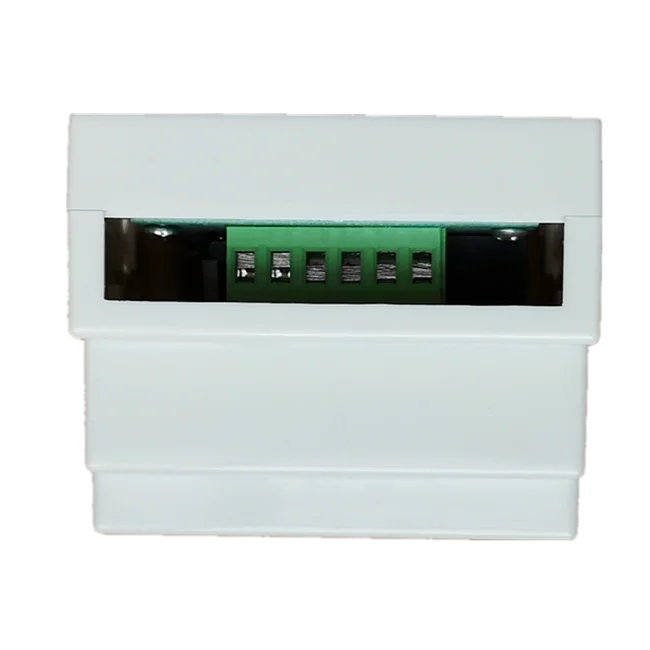

| Number of terminal clamps: | 6 |
| Section of connecting cables: | 2.50 mm2 |
| Ambient temperature range: | -10 - 60°C |
| Operating position: | free |
| Mounting: | TH 35 rail |
| Protection degree: | IP20 |

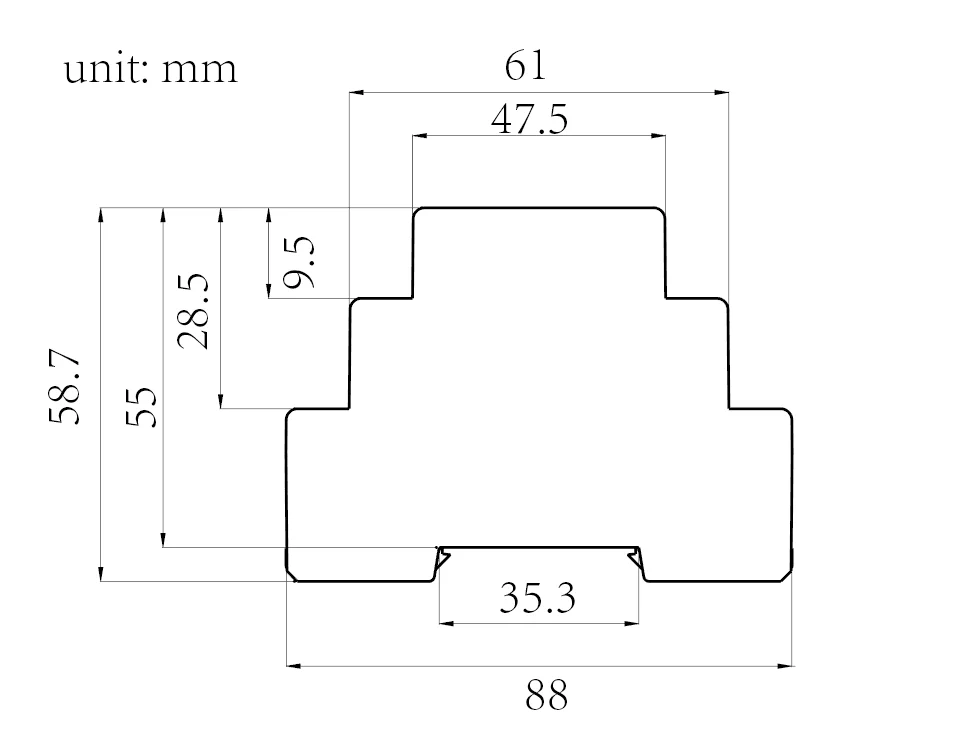

| Product Dimension(MM) | 88X72X59 MM |
| Display Size | 24X18mm |
