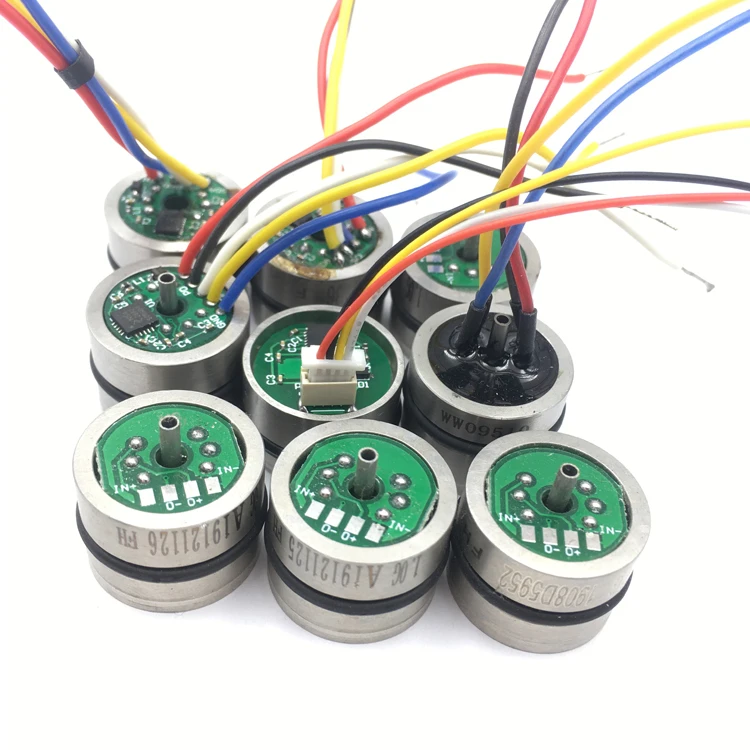

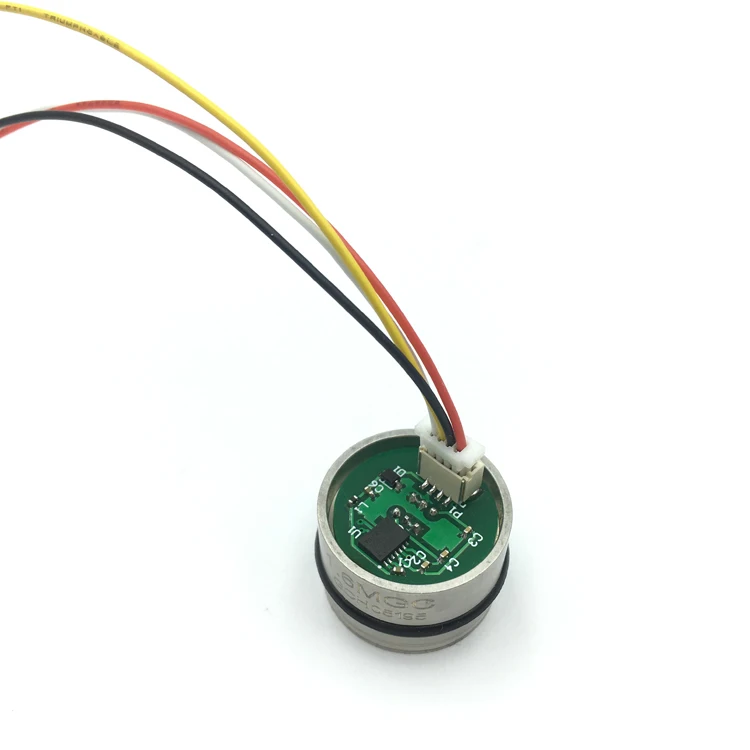

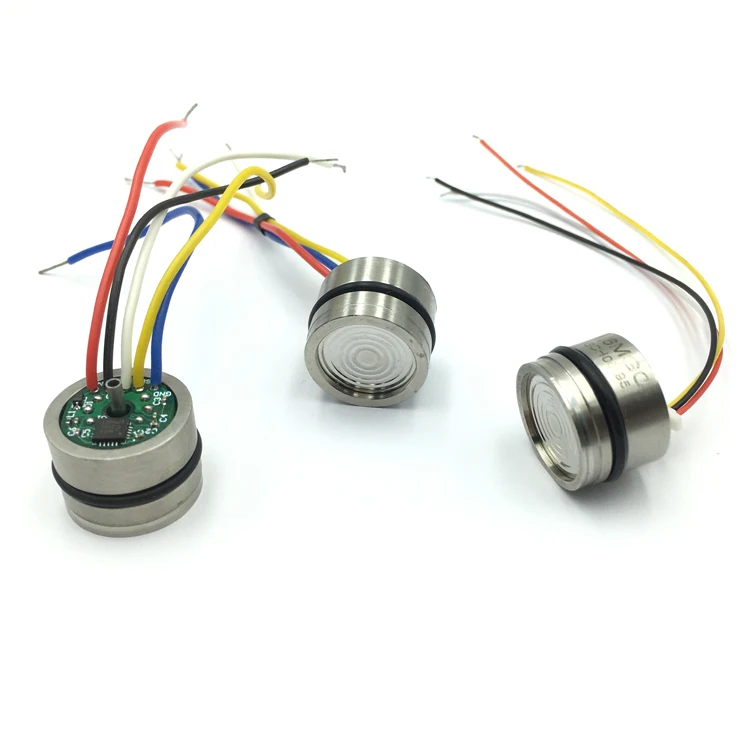

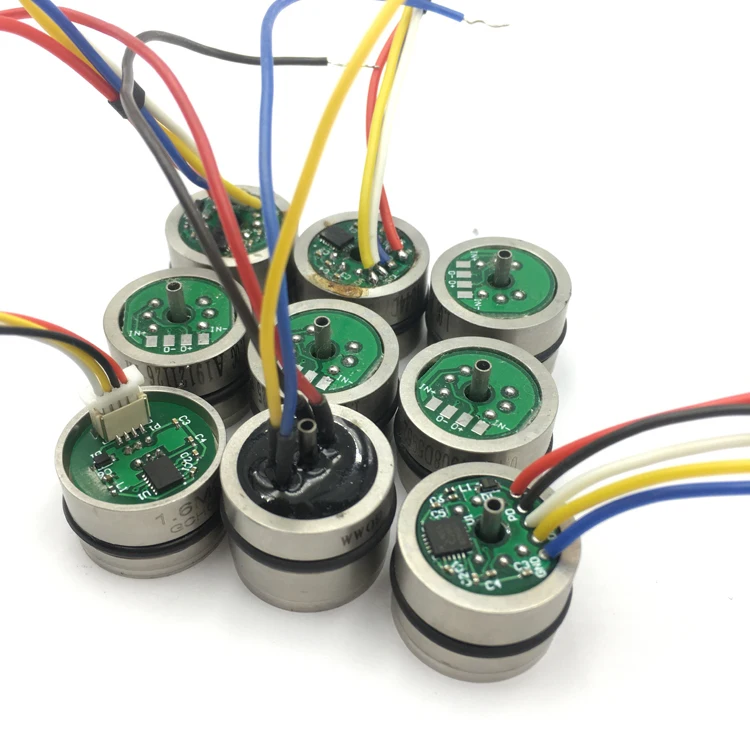

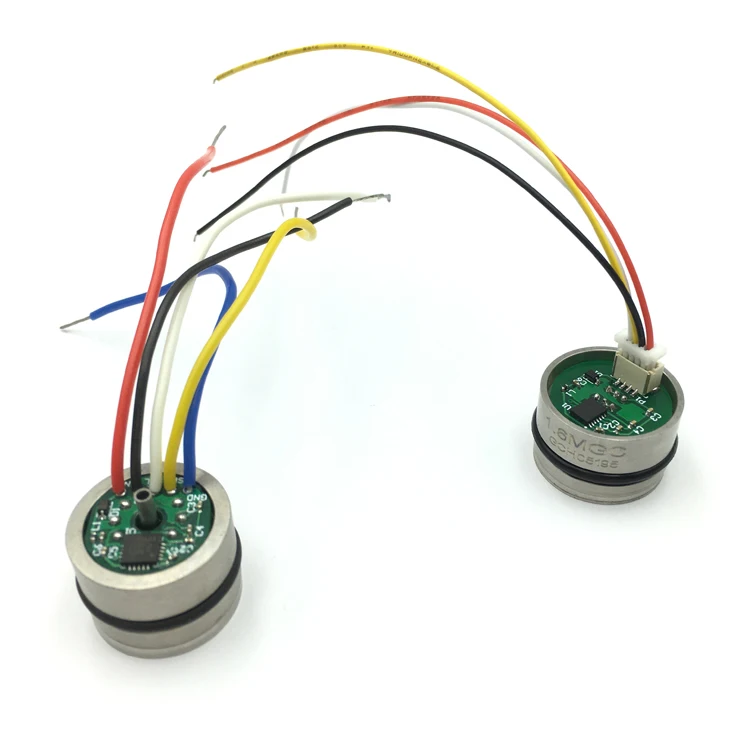

Diffused Silicon Pressure Sensor

The PM-10D pressure transfer module is special mini product designed by our company, it is widely used in variable frequency pump, complete water supply and air conditioning equipment, etc.

Professional waterproof hammer impact, high electrical performance and long-term stability make it the first choice for similar industries, and can directly replace similar products such as Atlas, MSI, HUBA. All the products can be customized according to your requirements, we can also accept OEM.

Features:

• High reliable diffused silicon sensor core
• Full 316L stainless steel φ19 standard OEM package
• Wide temperature compensation
• The signal adopts Germany high-precision, high-bandwidth, low-latency, low-power conditioning chip
• 16-bit ADC, output corrected by 6th order polynomial
• SPI/IIC output with CRC protection
• Frequency up to 400KHz
• Delay less than 0.1ms
• Rated current as low as 0.7mA

 Electrical Connection:

Shenzhen Ould Instrument Co., Ltd. is a leading manufacturer of pressure sensors / transmitters / transducers since 2002, head-quarter located in Shenzhen, and a sub-branch in Shanghai. We have approved ISO9001: 2008 certification, and gathered a core team of design engineers with rich experience in high-quality pressure transmitters, process control and similar products.

We design, engineer, and manufacture sensor, pressure transmitter, pressure module, temperature transmitter, etc. Our products are widely used in air compressors, electricity, Oil, Chemistry, Printing, Food, Pharmacy, Hydraulic, Metallurgical and Building Construction. In addition to our extensive offering of standard product, OEM/ODM pressure sensors / transmitters / transducers are also welcomed!
