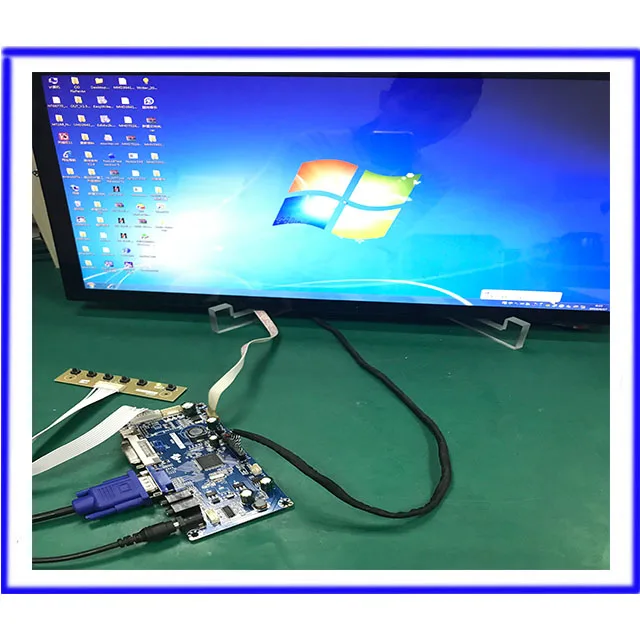

2K 2560x1440 60Hz 120Hz 144Hz lcd controller module board lvds edp for touch panel
- Category: >>>
- Supplier: CND Electronic Technology (shenzhen) Co. Ltd.
Share on (62386776451):
Product Overview
Description
Product Description
Product Name: 2K 2560x1440 60Hz 120Hz 144Hz lcd controller module board lvds edp for touch panel
Key Features
This product adopt single 2k solution chip ,can chose EDP or lvds connector. Max support 2560*1440 resolution screen,Main used QHD display ,monitor display and other commercial display and so on ,support DP,HDMI ,DVI,Freesync,OD and QHD165hz.
1:support Dual DVI input;
2:HDMI input support 1.4;
3:DP input supportV1.2;
4:support 1 earphone output;
5:support LED backlight,under 32inch panel led backlight.
Specification
| Feature | Description |
| inputs port | DVI, Support Dual-Link(2560*1440@60Hz) |
| DP, SupportV1.2 (2560*1440@60Hz) | |
| HDMI, Support1.4(2560*1440@60Hz) | |
| Output | eDP (can add) |
| 4-Lane-LVDS | |
| MAX(2560*1440@60Hz) Support FHD165Hz | |
| Control key | POWER,+,-,MENU,AUTO |
| OSD menu | Brightness, contrast , automatic , Function set ,reset |
| OSD language | Simplified Chinese, Traditional Chinese , English , French , German, Italian, Spanish , Portuguese , Dutch , Turkish, Korean, Japanese, Arabic, Persian, Russian, Thai, Vietnamese , Bahasa Indonesia |
| Power input | 12V DC |
| Audio output | 3Wx2 |
| Power operation | Normal work |
| Plug and play function | support |
| power management | standby consumption <0.2W |
| size | 128mm*70mm*19mm |
| 1 | CN9 | Osd key |
| 2 | P9 | DP input |
| 3 | P8 | DVI input |
| 4 | P7 | HDMI input |
| 5 | P10 | Audio earphone input |
| 6 | P6 | Power input |
| 7 | CN4 | Loudspeaker output |
| 8 | CN17 | Power and backlight |
| 9 | CN15 | Backlight voltage output |
| 10 | CN10/CN11 | 4Lane 10Bit LVDS |
| 11 | CN27 | eDP output |
Advantages
One Year Quality Warranty;
Provide 1‰ free spares with all goods;
Flexible Software to meet any custom request;
Small order welcomed
customized solution welcomed
After sale service 24*7
Company Information
Product Overviews
FAQ
Q: What's delivery time? what's the shipping way?
A: General sample order is in stock within 3 days; General order is about 15 days after get deposit; Flexible delivery time can be negotiable.
Q: What are our product applied in, and who is our Customer?
A: our AD board solutions have applied in:
1.Domestic rail,like subway, high-speed rail, train.. at least 80% market share in China.
2.Household &civil markets likeTV board, monitor board, QHD&UHD 4k*2k display board. Monitors of some Famous Chinese Brand, for example BOE, HKC, AOC, ViewSonic,Sony... etc.
3.Industrial monitor, The main board for POS and security monitor....
4. With strength of customizing board,like SONY PS4 Monitor board,Janpan Brother printer board....
5. Touch-Screen ATM Display of BOC (Bank of China), ICBC,CBC,ABC, etc
Q: What are our capability and advantages?
A: We've proud that:
1. Integrated Customization sevices from OSD/LOGO, PC OSD Menu, Uart extension, IR extension
2.Our products follow the standard of UL DI5501, ISO9001,RoHs & REACH
