OEM Waterproof embossing membrane switch soft silicone conductive silicone button switch
- Category: >>>
- Supplier: Shenzhen Higoal Technology Limited
Share on (62387006834):
Product Overview
Description
Product Description

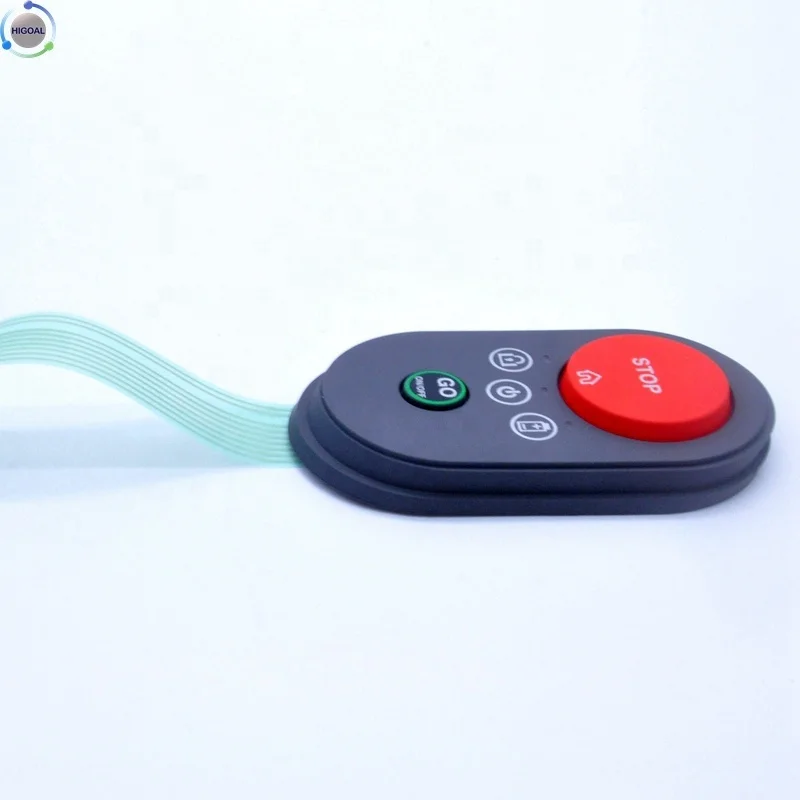

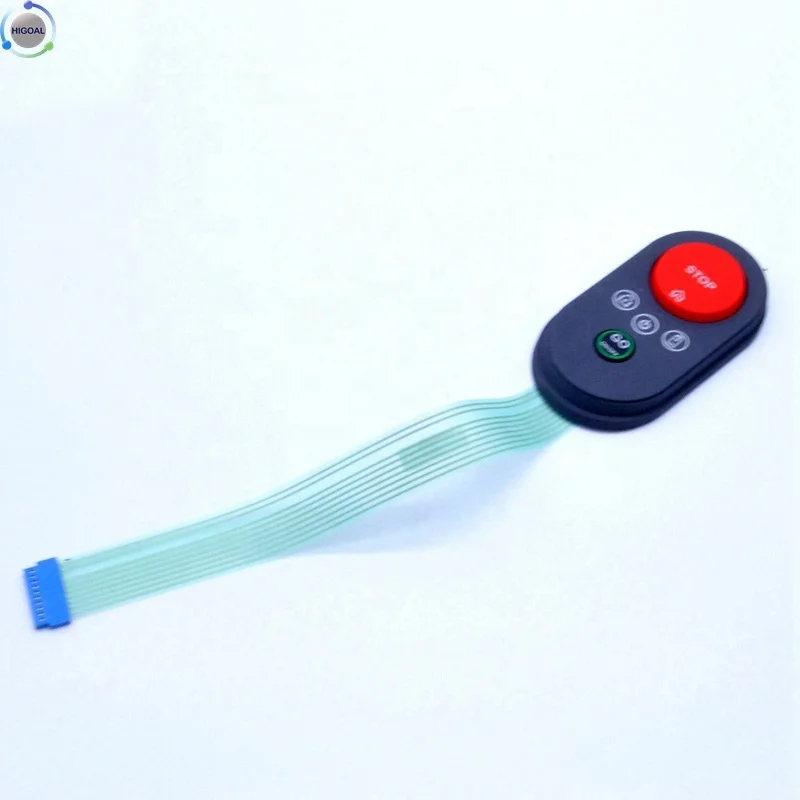

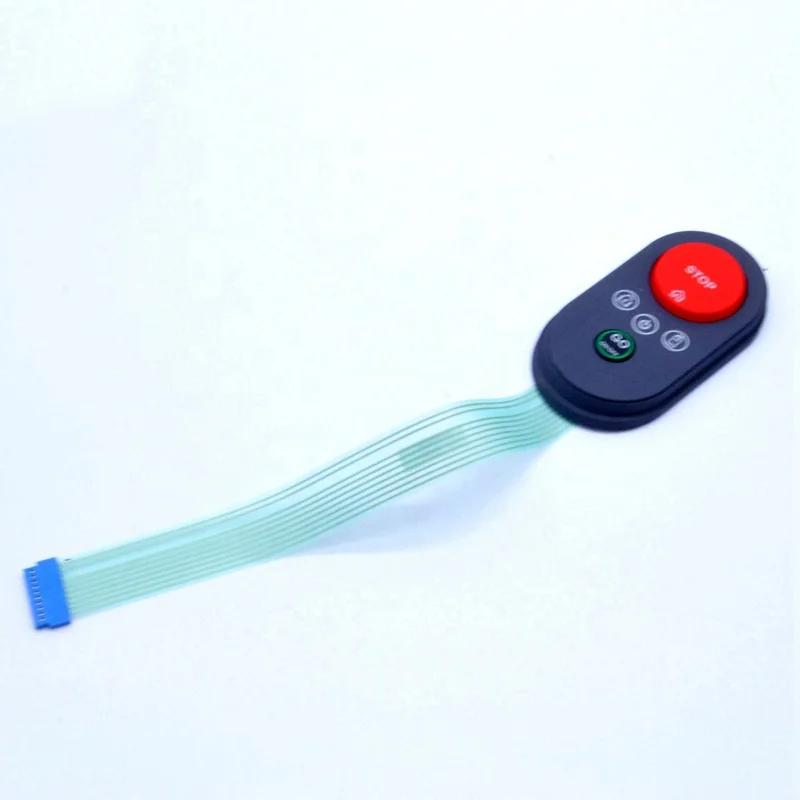

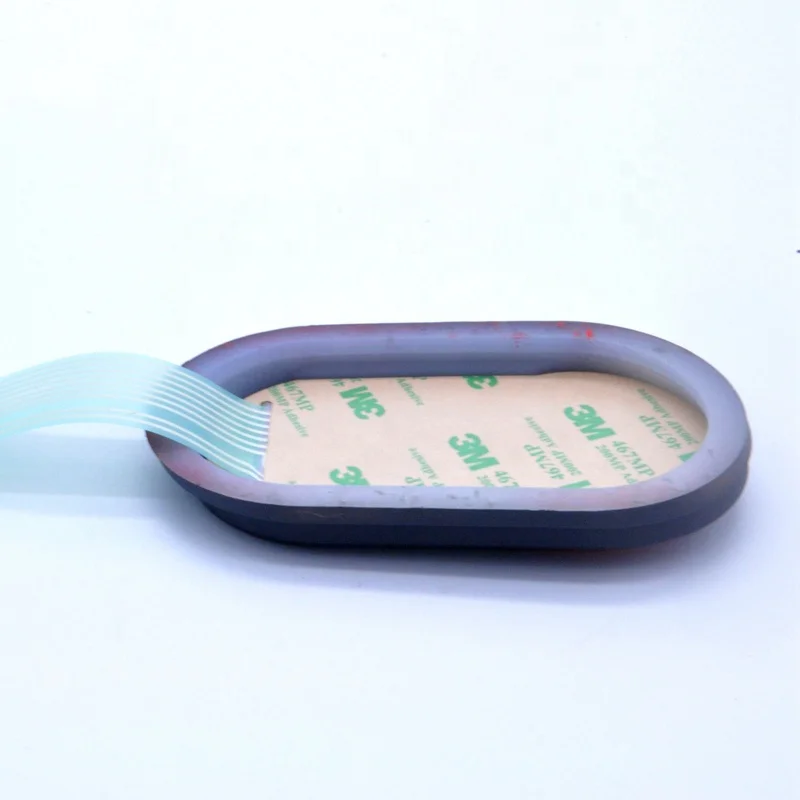

Embossed Push Button Silicon Membrane Keypad Switch
Specifications:
| Operating voltage : | 35V DC | Life expectancy: | Flat type≥5,000,000 times Tactile type≥1,000,000 times |
| Operating current: | 100mA 1W | Switch stroke: | 0.1 to 0.6mm |
| Contact resistance: | < 100 Ohms | Contact bounce: | 5 to 30ms |
| Open circuit resistance: | ≥ 10MΩ at 100V | Actuation force tolerance: | +/- 20 to 45g |
| Operating temperature: | Flat/Metal dome:-20°c to +80°c | Tactile ratio: | FC > 40% |
| Storage temperature: | Flat/Metal dome:-40°cto +80°c | Operating humidity: | up to 95% RH |
Main Properties:
1. PC /PET as overlay (control panel)
2. Flat keys or tactile type
3. Embossed button with good tactile feel
4. Pre-assemble with or without metal domes
5. Water-resistant, water-proof, dust-proof, gas-proof and scratch-resistant
6. Long life cycle.
7. Finish :Gloss(easy to clear); Textured (print and scratch resistant),Customized finish available.

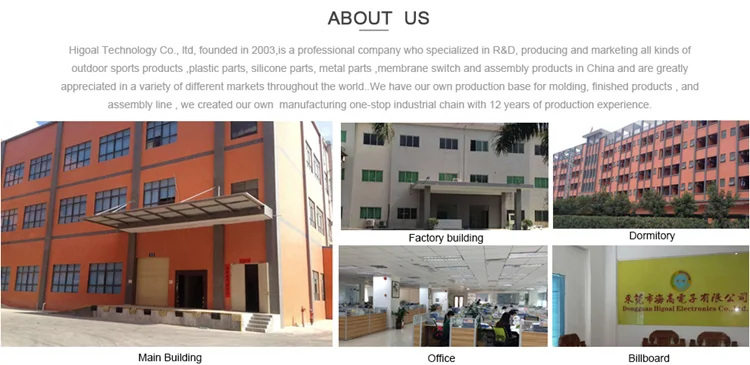

Company Information
Our Production Equipment:
Our Test Equipment:
Our certifications
Packaging & Shipping
Membrane Switch Packing and Delivery Details:
1.100pcs usually putted into a poloybag,seperated by carbboard,5 bags packed into a 5-layer carton.
2.According to customers' requirements.
Lead Time:
1.Lead time of samples:
- Inital samples: 3-5 working days for graphic overlay, 5-7 working days for membrane switch,7-15 working days for special membrane switch including special product.
- It takes 5-7 working days to recise initial sample.(depended on actural product.)
- Final lead time is for your reference only , for more information ,pls contact me. Lead time for mass production delivery:
2.Lead time of delivery:
- Mass production for reqular membrane switches 7-15 working days after receipt of PO.
- Repeat order ,graphic overlay needs 5-7 working days , membrane switches take 10-30 working days .It takes 15-45 working days for special material.
- We can ship partial shipments for big quantity orders.
- Final ship date will be subject to company confirmation
Our Services
·Why choose us?
1. over 10 years' producing history and exporting experience.
2. Stable and experienced working team.
3.Professional engineering team will offer technical support in development step
of new project.
4. Provide one-stop production and assembly service from custom membrane
switch to PCBA, enclosure, back plate etc.
5. Using high standard mould to assure the products with high quality and precise
dimensions.
6. In-house 100% functionally tested.
FAQ
1. How to order membrane keypads switch?
You could advise us the size,color,material,surface,rear adhesive, etc. requirements. And you'd better send us the drawing together with panton color or RAL color.
2. What is the delievery time?
Delivery time for samples is about 7-10days.The quantities order would take 2 weeks. For complicated products should take 2-3 weeks.
3. Is the prototype necessary?
Yes.Most of the items are customzied orders,so the prototype will be sent to customer for approval.
4. What's the terms of payment?
As the client need,we mainly receive trade assurance,TT,west union,PayPal etc.
Contact us immediately!
We are very good at producing and providing high quality products!!! Any inquiry, pls feel free to contact us.
