The eighth generation i3i5i7 core processor Intel Pentium processor Intel Celeron processor supporting Intel LGA 1151 pin
- Category: >>>
- Supplier: Guangzhou Xiyang Electronics Co. Ltd.
Share on (62387167904):
Product Overview
Description
Product Description

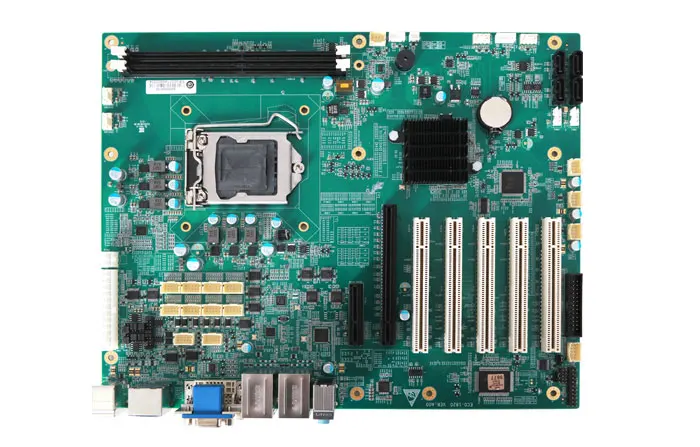

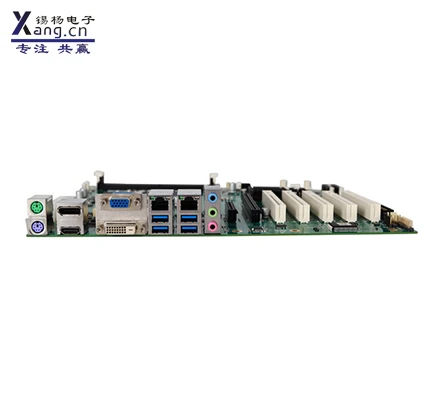

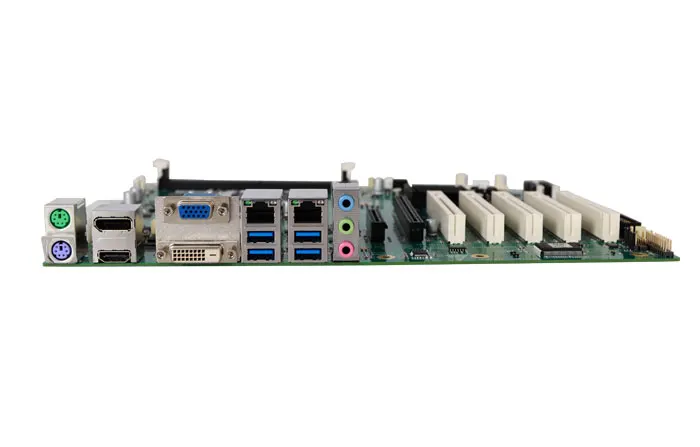

H310 chipset ATX motherboard.
EC0-1820
Characteristics
1. Support for Intel Core eighth Generation I3/I5/I7 Series CPU.
2. Supports 2 DDR4 memory slots, up to 32GB.
3. Multiple extensions, 1 PCI_EX16,1 PCI_EX4,2 PCI.
4. The product has been certified by the National Special extreme and Engineering Technology Research Center.
5. The product will be widely used in petrochemical industry, automatic control, automatic detection, safety monitoring, intelligent transportation, environmental protection, communications and other fields.
Product specification
| Processor | ΕINTEL LGA 1151± I3 / I5 / I7 CoreTM processor Intel ®Pentium ®processor ΣIntel ®Celeron ®processor (I / I / I5 / I7 CoreTM processor) |
| Chipset | H310 |
| System memory | 2 DDR4 2400/2666MHz DIMM memory slots, single 16GB, maximum 32GB support |
| Display interface | Any 2 display combinations of VGA, HDMI, DVI-D and DP, all on-board interfaces |
| Storage configuration | 4 SATA3.0 Interfac |
| USB interface | 10 USB interfaces (4 USB 3.0 interfaces, 6 USB 2.0 interfaces) |
| Network configuration | Standard configuration of 2 Gigabit network card interfaces, using Intel network card chip, supporting network wake-up, simplified configuration of single network port |
| Sound card configuration | 1 HDA audio interface to support MIC-IN/LINE-IN/LINE-OUT, external |
| SIO interface | Serial port: all 10 RS-232, pins. I2C interface: to provide access to external modules, mainly with the front of the chassis LCM module, pin interface, the need to make supporting wire; PS2:1 PS/2 interface; |
| Digital I/O | 8-way digital I/O:4 input, 4-way output |
| Bus extension | 1 PCI_EX16, 1 PCIEX4, 5 PCI |
| Power supply | The backplane ATX power supply is used to support S0, S4 and S5. |
| Environmental demand | The operating temperature of the motherboard is (- 10) ℃ ~ (60) ℃; The storage temperature of motherboard is (- 20) ℃ ~ (80) ℃; Constant humidity and heat: (40) ℃ (95)% RH without condensation |
| Operating system | Support: WIN10, Cent OS Linux, and other high kernel versions of LINUX systems. |
| Size | 305 mm (length) × 244 mm (width) |
Basic configuration
| EC0-1820 | ATX structure veneer / IntelH310 chipset / supports INTEL LGA 1151 pin eighth generation I3/I5/I7 Core Processor, Intel ®Pentium ®Processor, Intel ®Celeron ®Processor / 2 DDR4 DIMM memory slots. Maximum total support for 32GB non-ECC memory / DP, HDMI, VGA, DVI-D any four display / 4 SATA3.0 / 2 gigabit ports / 10 USB (of which 4 USB3.0, 6 USB2.0) / 10 RS-232 (of which COM1/COM2 supports RS-232/422/485) / 1 audio interface / 1 8 bit GPIO/1 PCI_EX16/1, PCI_EX4/5 PCI / standard ATX power supply |
Packaging & Shipping
Our Services
Company Information
Guangzhou Xiyang Electronics Co., Ltd. was founded in 2008, is a professional engaged in embedded industrial control motherboard and industrial control computer sales and development, focusing on customization-based high-tech company, with an independent production workshop. Since the establishment of the company, with efficient, standardized and scientific management, rapid and stable development has been achieved. The company's products and business involve financial ATM\\ VTM, intelligent transportation ETC, rail transit, electric power, wind power, visual optical intelligent detection, laser, petroleum, chemical, metallurgy, electromechanical, food, textile, military academies and other industries. And won the reputation of the industry users and the general commercial reputation.
Guangzhou Xiyang Electronics Co., Ltd. is located in Room 1008, Building C, Qihe Science and Technology Park, 28 Xintang Street, Tianhe District, Guangzhou, China. Our products include embedded industrial control motherboard, Yanxiang industrial control products, gigabyte motherboard and so on. Our products enjoy a high status among consumers, and the company has established a long-term and stable cooperative relationship with a number of retailers and agents.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: What payment method do you accept?
A: T/T, Western Union, PayPal.
4.Q: What is the lead time of your products?
A: 1-3 days for one sample, 15 working days for a large quantity.
