Ooitech Full Automatic oil heating 3600x2200mm size Solar Panel laminator
- Category: >>>
- Supplier: Wuhan Ooi Photoelectric Technology Co. Ltd.
Share on (62387176924):
Product Overview
Description
Product Description
-Solar Panel Laminator Machine Function
laminator chamber.
-Solar Panel Laminator Machine Function
The solar panel laminating machine is most important process in the solar panel production line.
it use to bond multiple layers of materials (EVA, Glass, Backsheet, Solar cell) together by heating vacuum in
laminator chamber.
-Solar Panel Laminating Machine Technical Specification
1. Operation controlling mode: manual/semi-automatic
2. Heating mode: oil-heating
3. Temperature control: PLC intelligent temperature control
4. Temperature uniformity in working area: ≤±1.5°C
5. Temperature control accuracy: ≤±1°C
6. Temperature control range: 30°C-180°C
7. Pumping speed: 30L/s
8. Laminating time: 6-8mins (excluding curing time)
9. Operating vacuum degree: 200-20Pa
10. Vacuum-pumping time: 4-6mins
Product Details

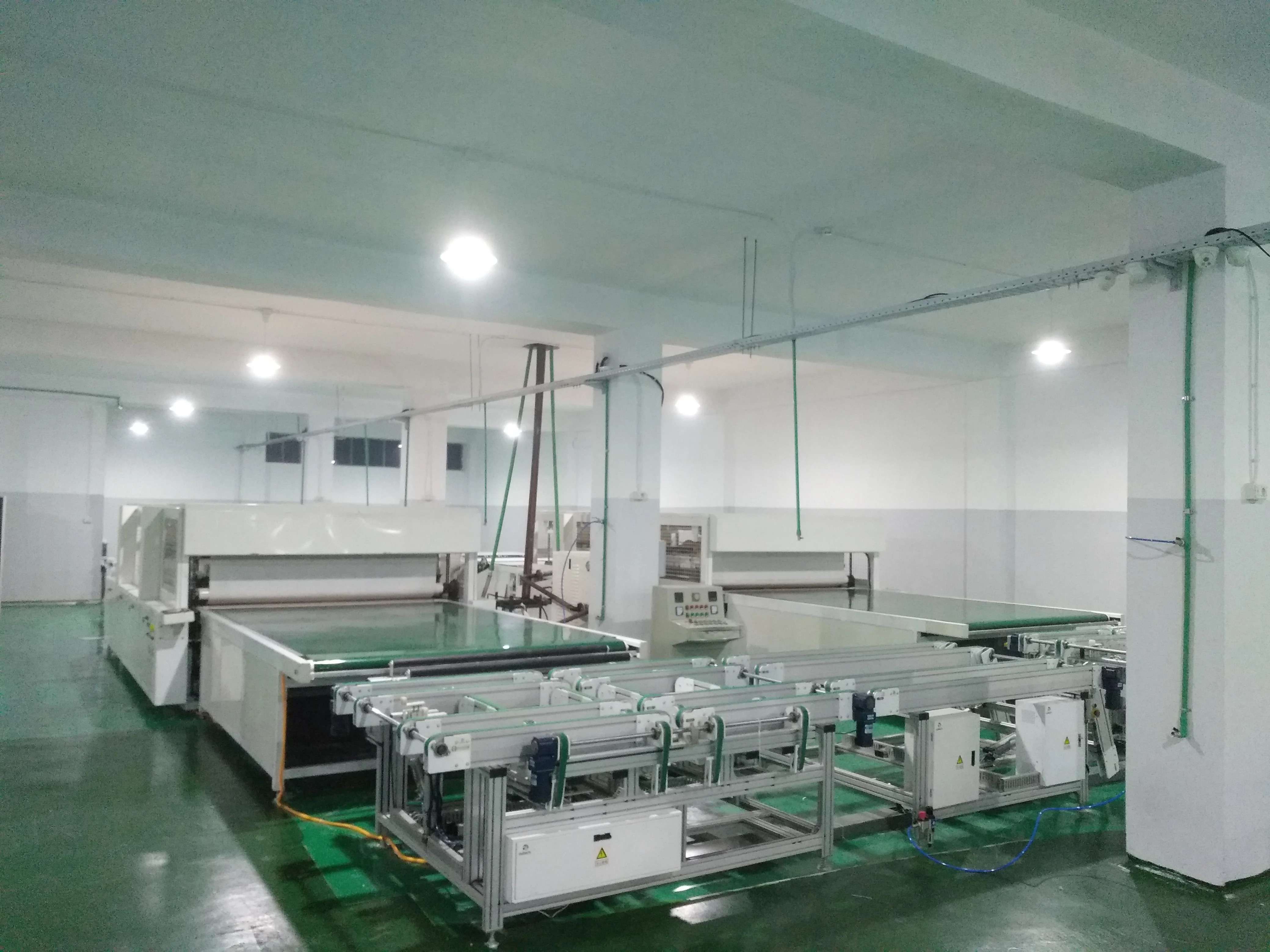

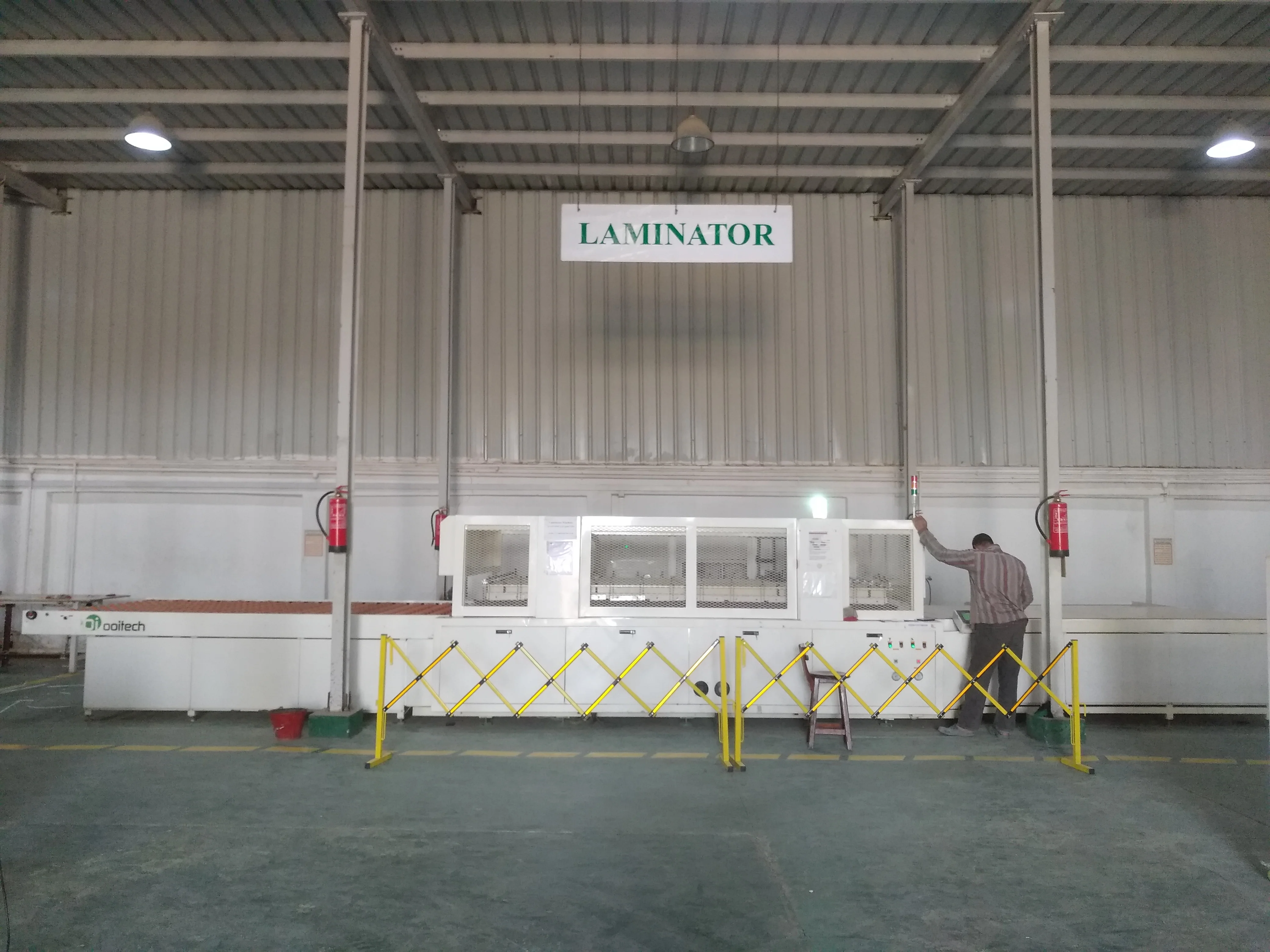

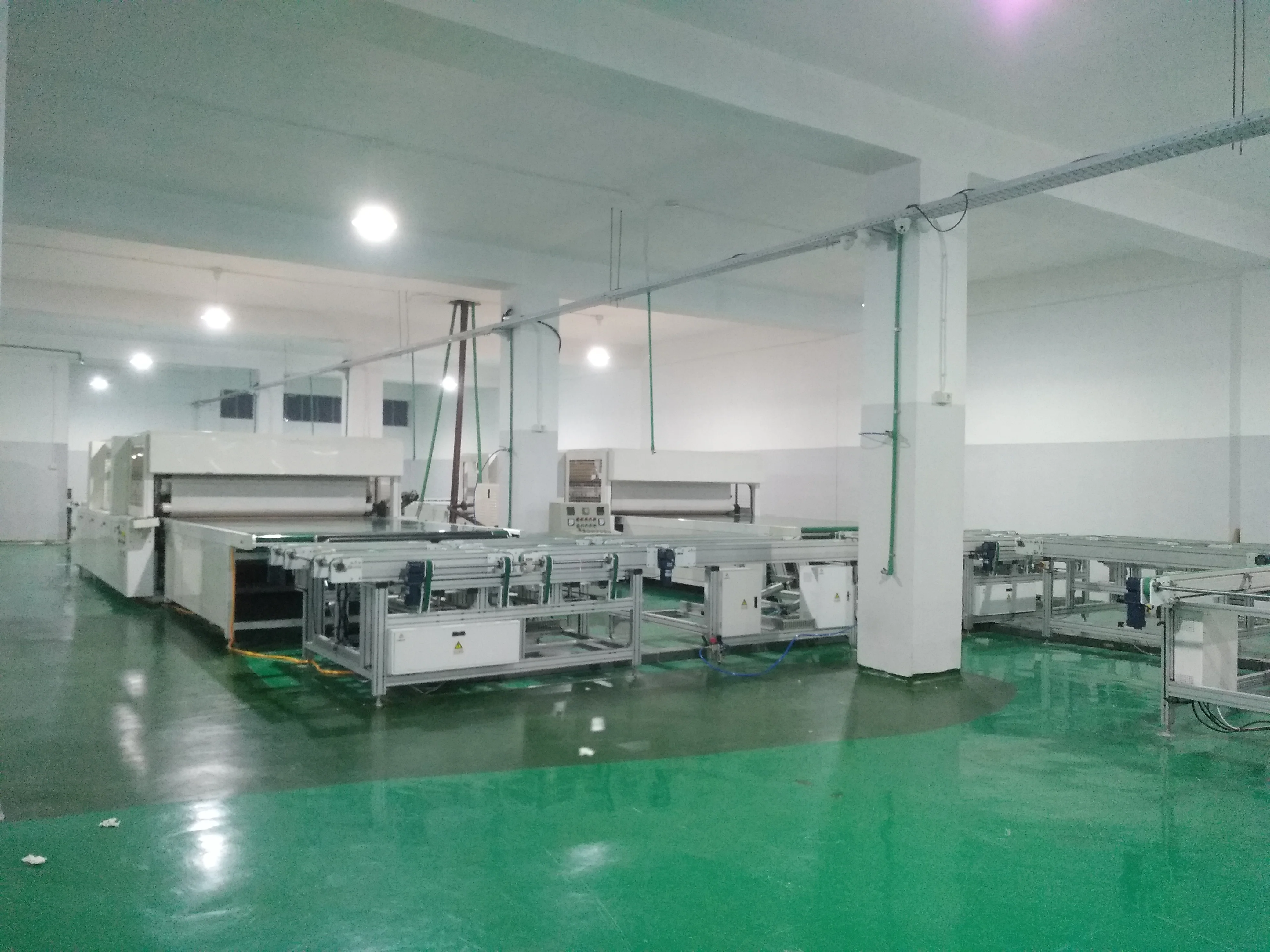

-Laminator in solar panel production line
Product Parameters
| Type | Laminating Area(mm) | Dimension(mm) | Weight(T) | Power(KW) |
| OCY2211 | 2200×1100 | 2560×1460×1270 | 3.2 | MAX 27 |
| OCY2222 | 2200×2200 | 2560×2830×1270 | 4.8 | MAX 35 |
Product Details Show-Performance features:
-Performance features:
1. Intelligent temperature control system makes the temperature more
homogeneous and easier to set and control.
2. Laminating pressure is adjustable and can be adjusted according to the
process, which makes the quality of modules better.
3. It could work continuously in high temperature for 24 hours.
4. The advanced touch screen operating platform makes it more intuitive to
operate, makes it respond more quickly, make the performance more stable
and the failure rate is further reduced.
5. Adopt a fully humanized operating procedure.
The equipment is equipped with many detection switches.
Safety Assurance
1. Setting hydraulic safety lock.
When the power is down suddenly or the cover is opened in place, the top cover will automatically
lock in the current position and not fall, which ensure the safety of operator.
2. Setting emergency button switches.
Press it when the accident happens.The laminator will cut off the main power supply and top cover.
Guarantee that the accident has been solved and treated.
3. Alarm system:
setting oil starvation alarm, over-temperature alarm, up-vacuum alarm, Uncaps the under voltage malfunction
alarm, the vacuum pump malfunction alarm, the heating malfunction alarm, the temperature measurement
module malfunction alarm, illegal operation malfunction alarm, totally eight sets of warning device to ensure the
accuracy and normal of working state and increase the rate of finished product.
4. Setting emergency opening device.
When power off suddenly, the top cover of laminator can be opened and the components can be taken out and
reprcessed, which solved the problem that the components could be
processed in time and become scrap because of power down for a long time.
5. Controlling circuit of equipment uses low-voltage control which can provide
convenience for maintenance personnel and increase the security factor.
Our Factory
Packing & Delivery
-Delievery Time
5~20 working days after receiving buyer’s payment.
