Product Overview

Description

high quality RSV5 rvg digital xray sensor dental with cheap price

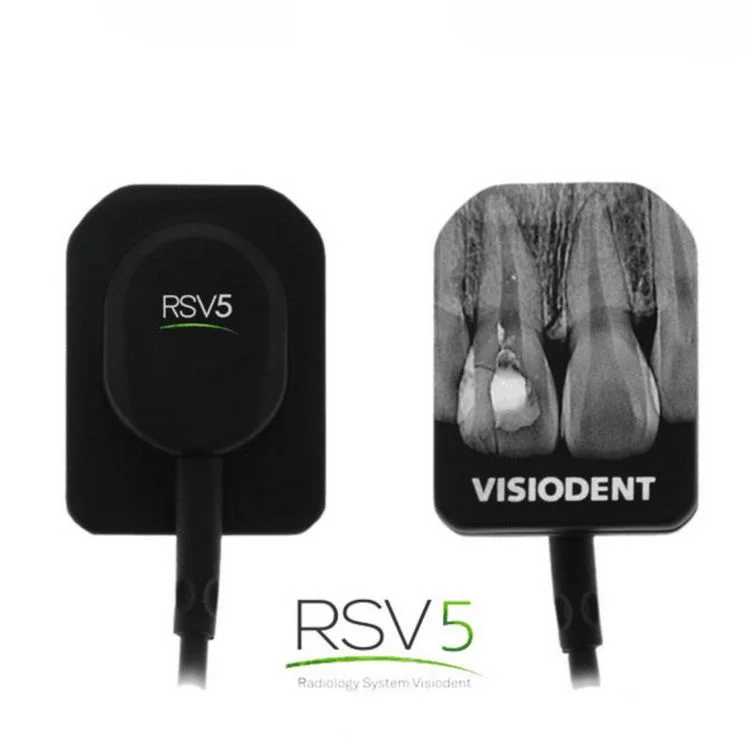

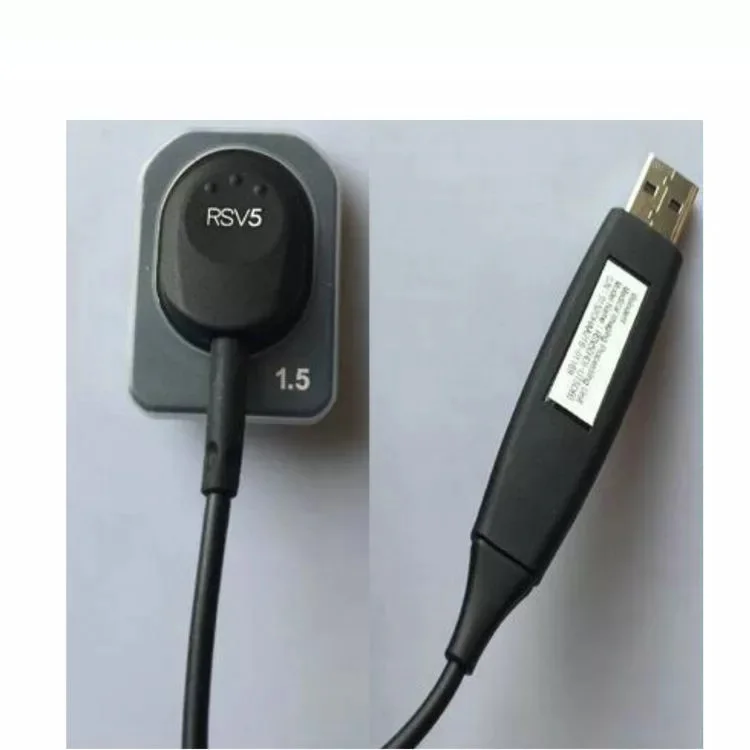

RSV5 is a modern digital imaging solution for intraoral dental radiography. Its advanced CMOS technology provides excellent image quality. For patient comfort, the ergonomic design is based on human intraoral anatomy.
RSV5 is a digital X-ray imaging system designed specifically for dental radiography within the oral cavity. The system captures X-ray images and makes them available for display and storage across your computer network.

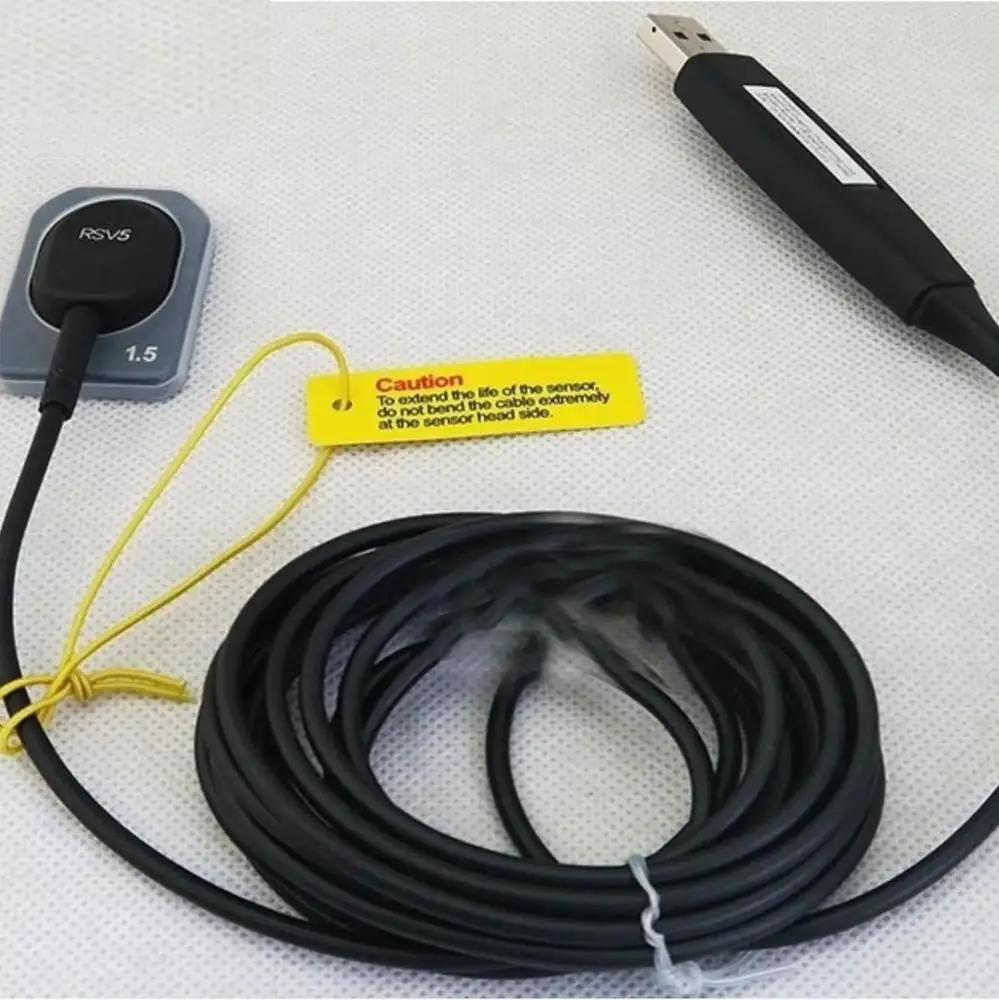

RSV5 is connected by a ‘USB A’ cable to a compatible Windows XP or Windows Vista or Windows 7 PC. RSV5 is provided the power from PC. Support for the RSV5 is provided by compatible software program: Visiodent Imaging.
The RSV5 includes a detachable holder that can be mounted on the wall or other stable surface.

Features:

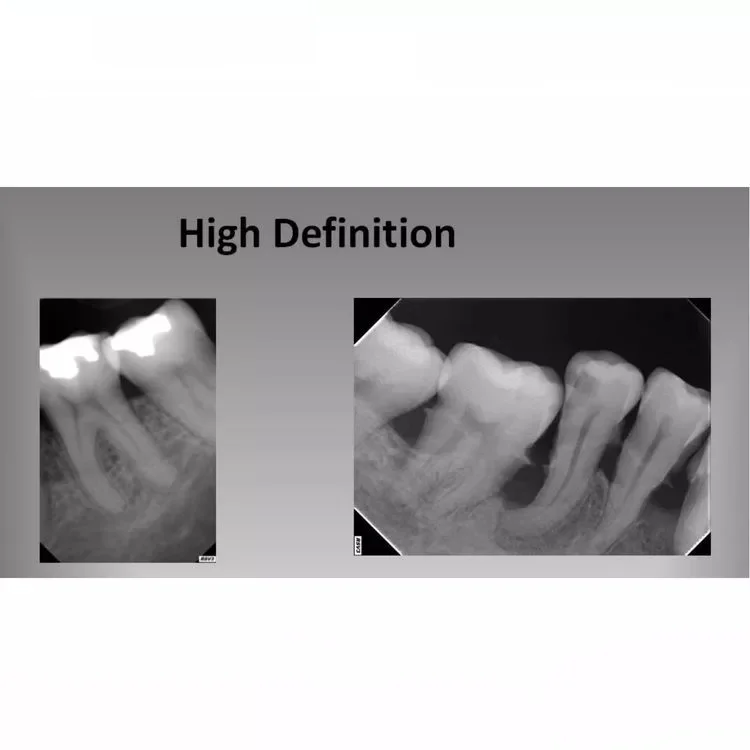

* Excellent image quality based on advanced CMOS technology
* More comfortable sensor ergonomic design for Human Morphology
* High sensitivity for lower X-ray
* Enhanced durability
* Easy-to-use USB interface

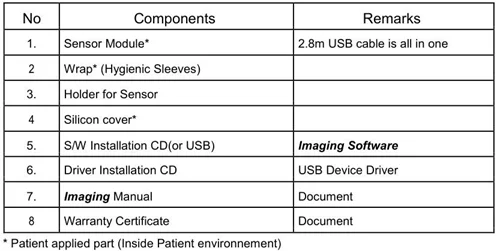

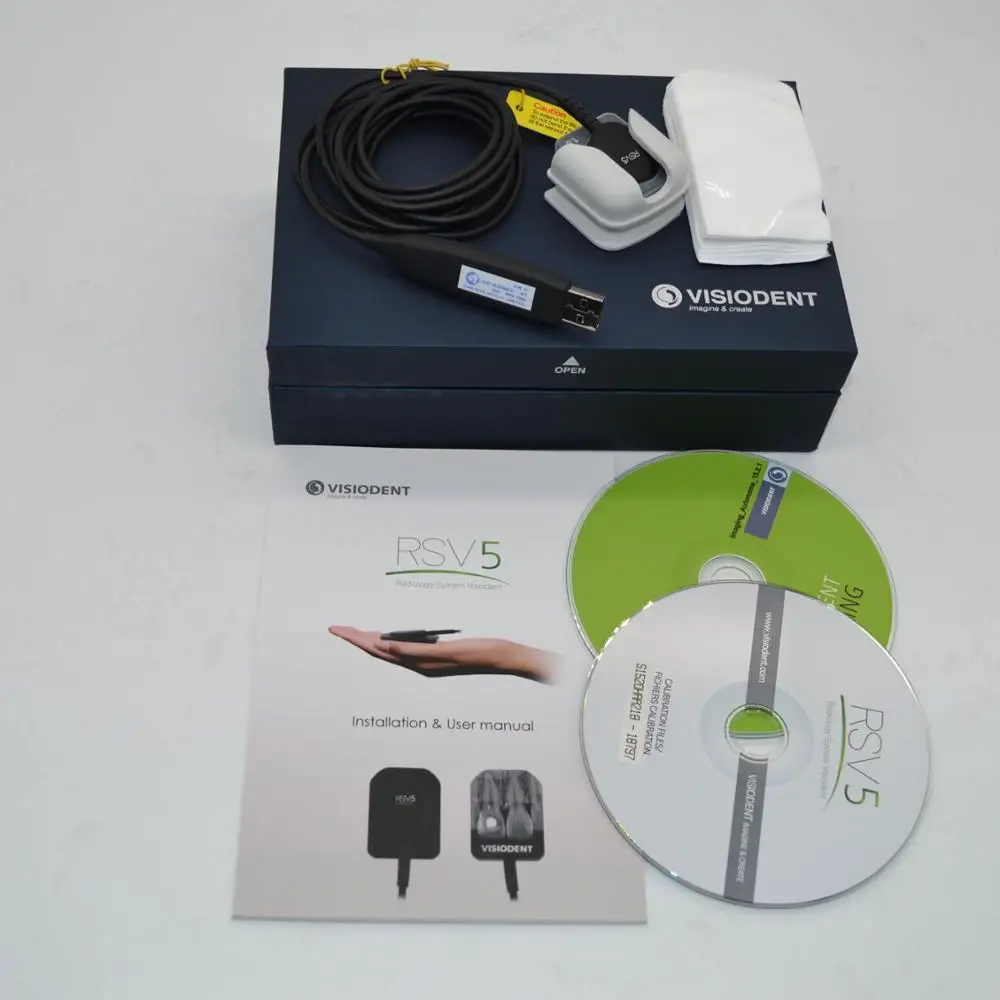

Components:

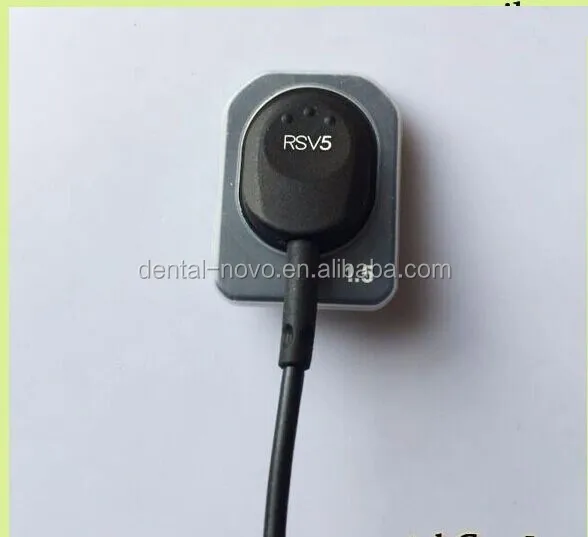

Sensor Module:
Consists of a special CMOS sensor specifically designed for use in radiography and enclosed in a hermetically sealed ergonomic capsule. The sensitive surface of the sensor is covered with a thin layer of scintillating phosphorous, through which X-ray radiation is converted into light and then into an electric charge.



Speicification:



Detector structure	CMOS Photodiode Array	Dimensions (WXLXTT)	Size1.5:1.55X1.15X0.19inch ,(39.5X29.2X4.8mm)
Pixel Pitch	0.0296mm	Active Pixel Array	Size 1.5:1115X810 pixels (33.00X23.98mm)
Grayscale	4096 gray levels	Resolution Normal Resolution Mode	16.89Ip/mm (theoretical) USB Cable Length between
controller and PC	2.7m	Operation mode	Global shutter
Air pressure	700 to 1060hpa	Ambient Temperature	10℃ to 30℃ (usage) -20℃ to 60℃(Transportation and Storage)
EU Classification	Medical Devices 93/42/EEC as a class IIa	Relative Humidity	30% to 95% (Usage) 10% to 95%(Transportation and Storage)
Protection against shock	Type B applied part	Protection against matter/water	IP 68



Caustion : The Product has to be installed, transported and stored in the permissible environmental conditions. Use the provided protective package for transporting or storage. Also, the Product should not operate in oxygen rich or explosive environments.
