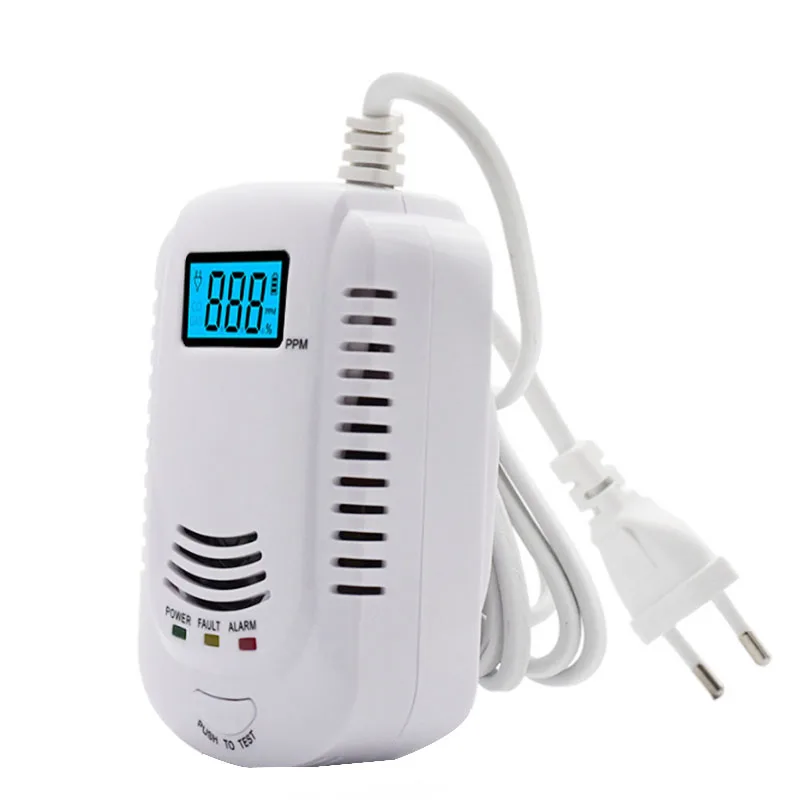

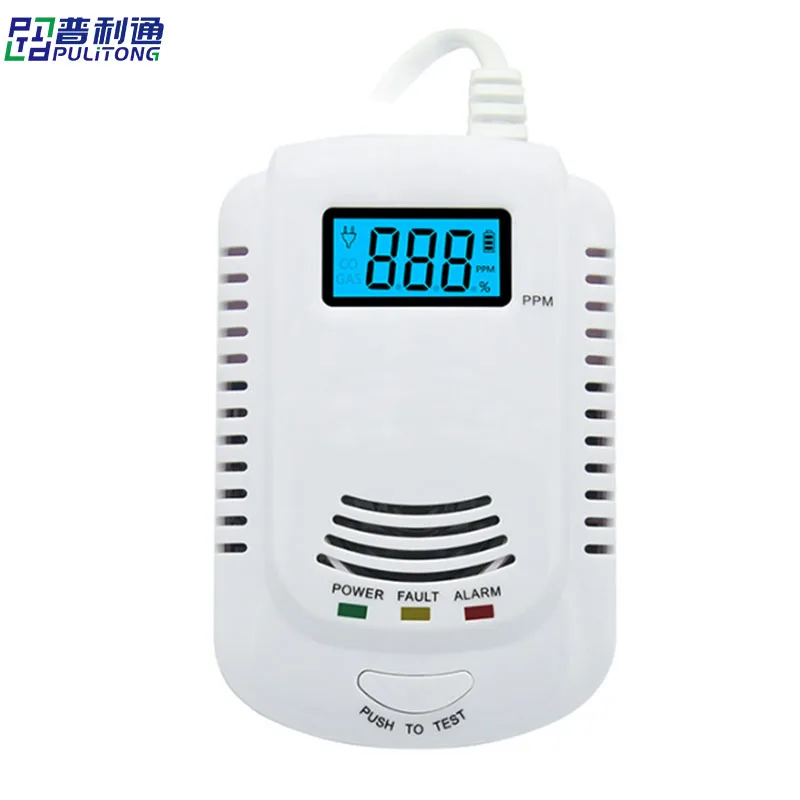

PLT-808COM is a carbon monoxide + natural gas detector made of high-quality electrochemical sensors, combined with advanced electronic technology and sophisticated technology, with the advantages of stable operation and long service life.It can be installed in a variety of ways, such as table placement, ceiling or wall hanging.Where carbon monoxide and smoke exist, once the concentration of carbon monoxide and smoke reaches the alarm set value, the detector will send out sound and light alarm signals to remind you to take effective measures quickly, so as to effectively avoid the occurrence of fire, explosion, suffocation, death and other malignant accidents.
The Harm of Carbon Monxide to Human Body
50PPM: The Maximum acceptable concentration for a healthy adult within 8 hours.
200PPM: After 2-3 hours,slight headache and fatigue.
400PPM: Headache within1-2 hours,Life-threatening after 3 hours.
800PPM: Within 45 minutes,headache,nausea,and loss of consciousness within 2 hours.
1600PPM: Headache and nausea within 20 minutes and death within 1 hour.
3200PPM: Headache and nausea within 5-10 minutes and death within 25-30 minutes.
6400PPM: Headache and nausea within 1-2 minutes,death within 10-15 minutes.
12800PPM: Death within 1-3 minutes.
Main Features

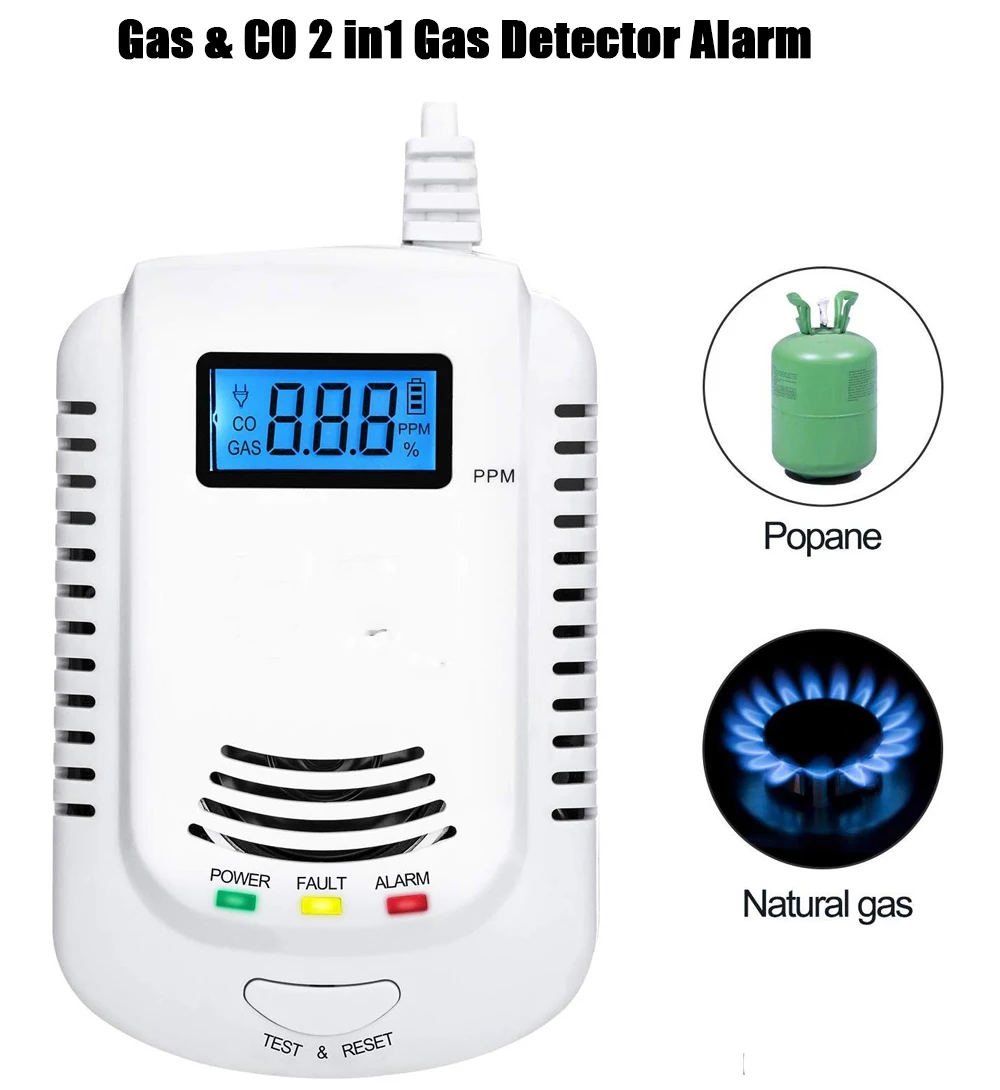

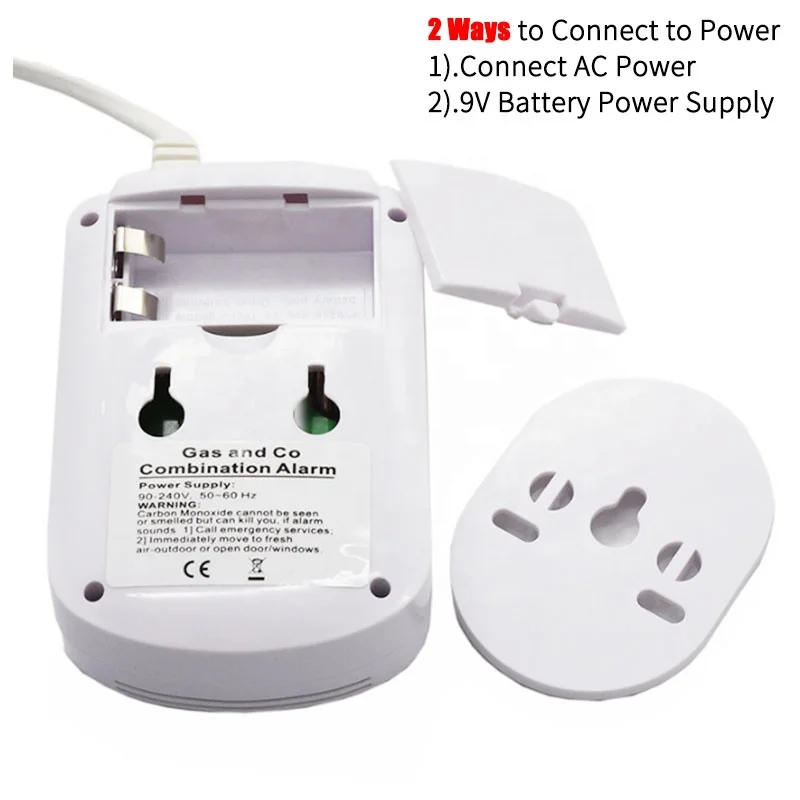

* 【High Sensitivity Dual Sensor Design】The 2-in-1 alarm detector contains a catalytic combustion method sensor and an electrochemical carbon monoxide sensor. When a dangerous concentration of carbon monoxide or explosive gas is detected, it will immediately sound an alarm, allowing you to quickly make a judgment and protect your family getting hurt. * 【Easy To Use】Push/test button - Connect to power 90V-240V or 9V rechargeable battery(not included), The detector will display 3 minutes counting. * 【LCD Digital Display】This display clearly shows levels of Gas that the unit has detected and stored-- from 0 to 3000 ppm--and it updates every 9 seconds to indicate any sudden changes. * 【Voice Alarm】When the concentration of Carbon Monoxide reaches 100PPM or the concentration of Combustible gas reaches 6%, the LCD screen begins to display the concentration value, and the red LED lights flash and emit a loud voice alarm mode -- 85 decibel alarm.
Danger always happens in every where in an instant, This Gas detector Alarm could be help you to reduce the risk of the dangers.

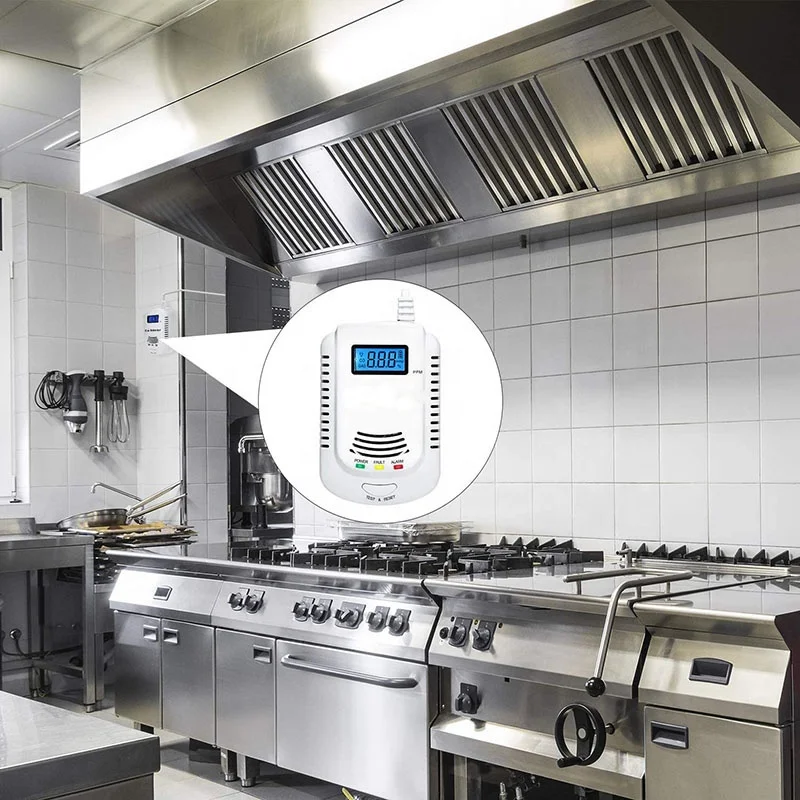

Suitable for indoor environments such as homes, restaurants,etc., to prevent Gas LEAK and CO poisoning
SELF QUESTION AND ANSWER
1.What can carbon monoxide alarm detect? Can detect: honeycomb coal stove, coal ball, coal, charcoal, combustible gas in the enclosed space oxygen is insufficient, combustion is not sufficient to produce carbon monoxide gas.
2.How to use the carbon monoxide alarm? * when the battery is installed, it will make "chirp" sound when the battery is energized, and the red light will flash for a moment. After the screen lights up (888/000), the black screen will immediately return to standby. * the green power indicator will flash for about 30 seconds when working. * press (reset test key) the alarm will beep.This function only tests whether the circuit is normal.

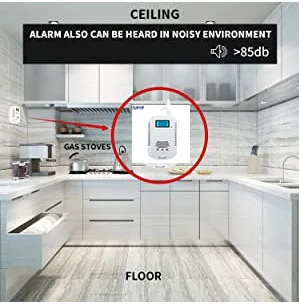

3. Where is the carbon monoxide alarm installed? Carbon monoxide should be installed near your living area or where you think carbon monoxide may leak. It is recommended to install carbon monoxide in each of the rooms. When selecting the location, make sure that you can hear the alarm sound in every resting and sleeping place.Because carbon monoxide specific gravity than air light so the installation position as far as possible to choose high.Recommended ceiling installation or wall hanging 2 meters above the ground!
4. How to test the alarm?(if invalid, please contact customer service immediately for return or replacement) * Put the burning coal on the ground and cover it with a large basin. After 20 minutes, put the alarm into the basin to simulate the production of carbon monoxide in the enclosed space. * the cigarette lighting and the alarm are placed together and covered with a large shoe box to simulate the production of carbon monoxide in the enclosed space.Take about 1 minute. * Put the alarm into a tight test after collecting the exhaust gas from the vehicle, and it will take effect in about 10 seconds.
5. Is the carbon monoxide detected at the same concentration? The alarm adopts electrochemical information technology and the value obtained is that the data absorbed by the carbon monoxide probe is converted into electrical energy and fed back to the screen.Therefore, the data are not the same when tested together,and it is normal that the numerical value deviation is occasionally high.
6. Can carbon monoxide gas be detected over the stove? Carbon oxide is produced when there is not enough oxygen in the air.So you can see carbon monoxide above the stove in some homes,and you can't see carbon monoxide above the stove in some homes and that's normal.
7. Why doesn't my smoke alarm go off all over the house? Carbon monoxide is a toxic gas produced by inadequate combustion of oxygen.Coal is divided into bituminous coal, and anthracite!Anthracite produces less smoke when burned.After the combustion of bituminous coal, there is much smoke, but after full combustion, there is carbon dioxide and a small amount of carbon monoxide smoke.But ventilation is important for safety reasons.
Detailed Images

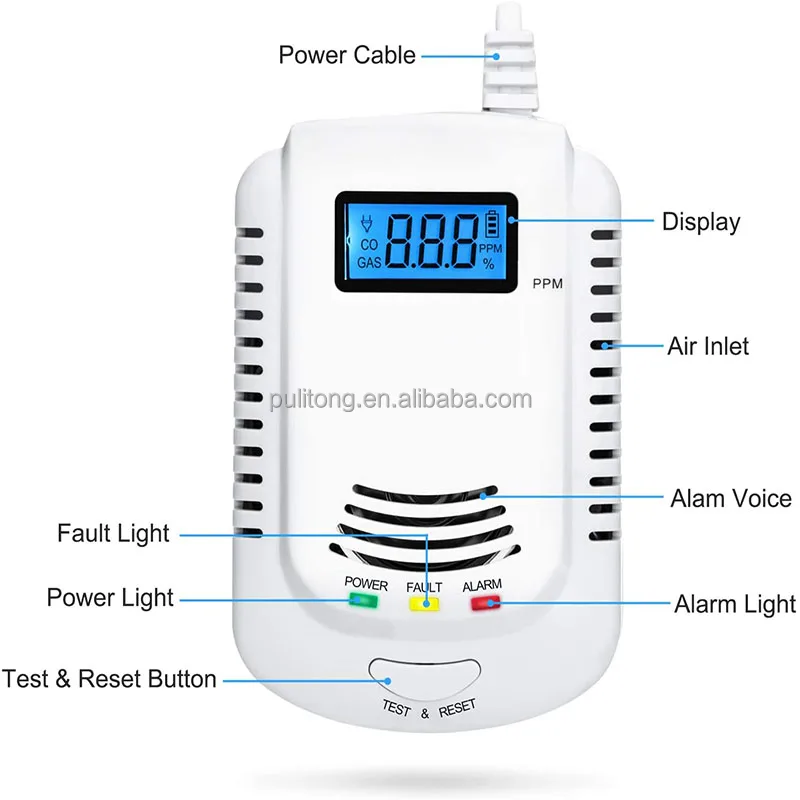

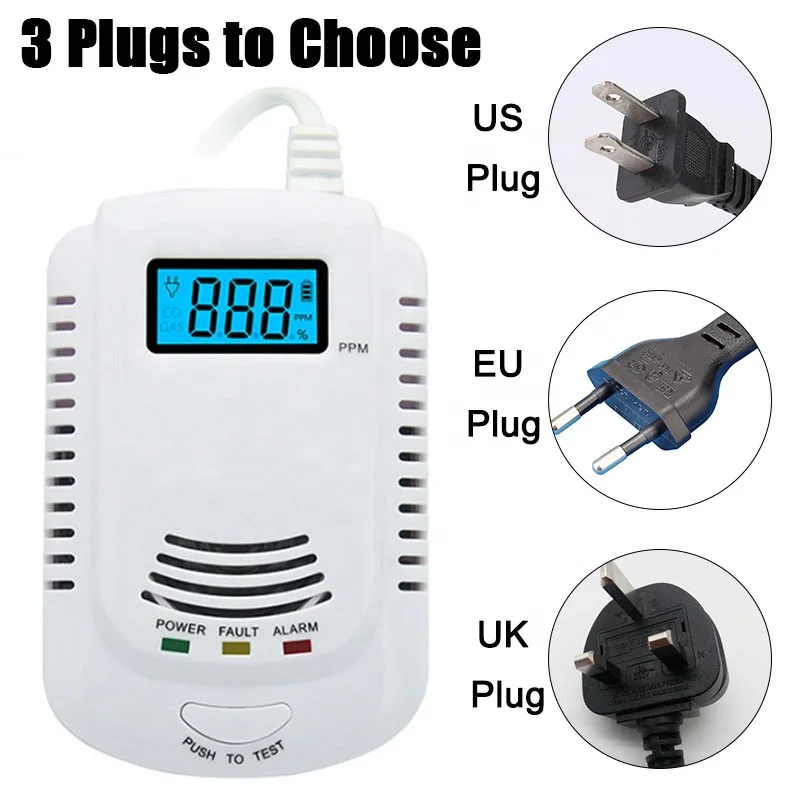

Big LCD Screen
This product uses LCD display, Accurately read the concentration of the gas, Sound & Flash Alarm &LED indicating Alarm.
Good ABS Material
Ultra-long standby time,low current consumption;Low battery warning;STM manufacture technology,reliable stability.
Technical Parameters
Where should install the gas detectors
1.Please confirm the induced gas in heavier than air or lighter than air,the gas is heavier than air:LPG etc. the gas is lighter than air: Natural gas, marsh gas etc. 2.Choosing the suitable position to install the Detector according to the gas specific gravity.Detecting the gas heavier thanair:Installation height from floor 12-40 in,semi-diameter to gas source<60 in. Detecting the gas lighter than air, Installation height from the celling 12-40 in,semi-diameter to gas source<60 in. 3.To avoid installing the detector close to the following sources of interference:Direct air flow from vents,fans,doors,windows,sources of steam,oil vapor etc.
Gas & CO Alarm
Sensor:
electrochemical sensor
Product power supply:
AC 9V-240V 50-60HZ(9V battery backup)
Range
CO:100PPM-999PPM(±5PPM)
Gas:0.25%-2%LEL(2500ppm-20000ppm)(±1500PPM)
Alarm current:
≤80mA
humidity:
≤95%RH
Alarm sound:
85dB
Product size:
112*73*42mm
Product weight:
180g
About Pulitong
Scope of Business
Pulitong was founded in 2014, specializing in the development and production of gas detectors, gas analyzers and rangefinder. At present, our research and development instruments have been spread all over the world.
R&D and Production
Pulitong has always strictly implemented the ISO9001 quality management system. We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.
Shenzhen Pulitong Electronic Technology Co., Ltd. is a high-tech enterprise specializing in the development, manufacture, installation and provision of professional solutions for combustible and toxic gas concentration detection alarm and linkage systems. For many years, the company has been committed to the market promotion, application integration, technology research and development of various gas concentration detection alarms and linkage systems and other related products. Products are widely used in household, gas, petroleum, chemical, coal, electric power, pharmaceutical, metallurgy, coking and other industries.
