Product Overview
Description
Products Description

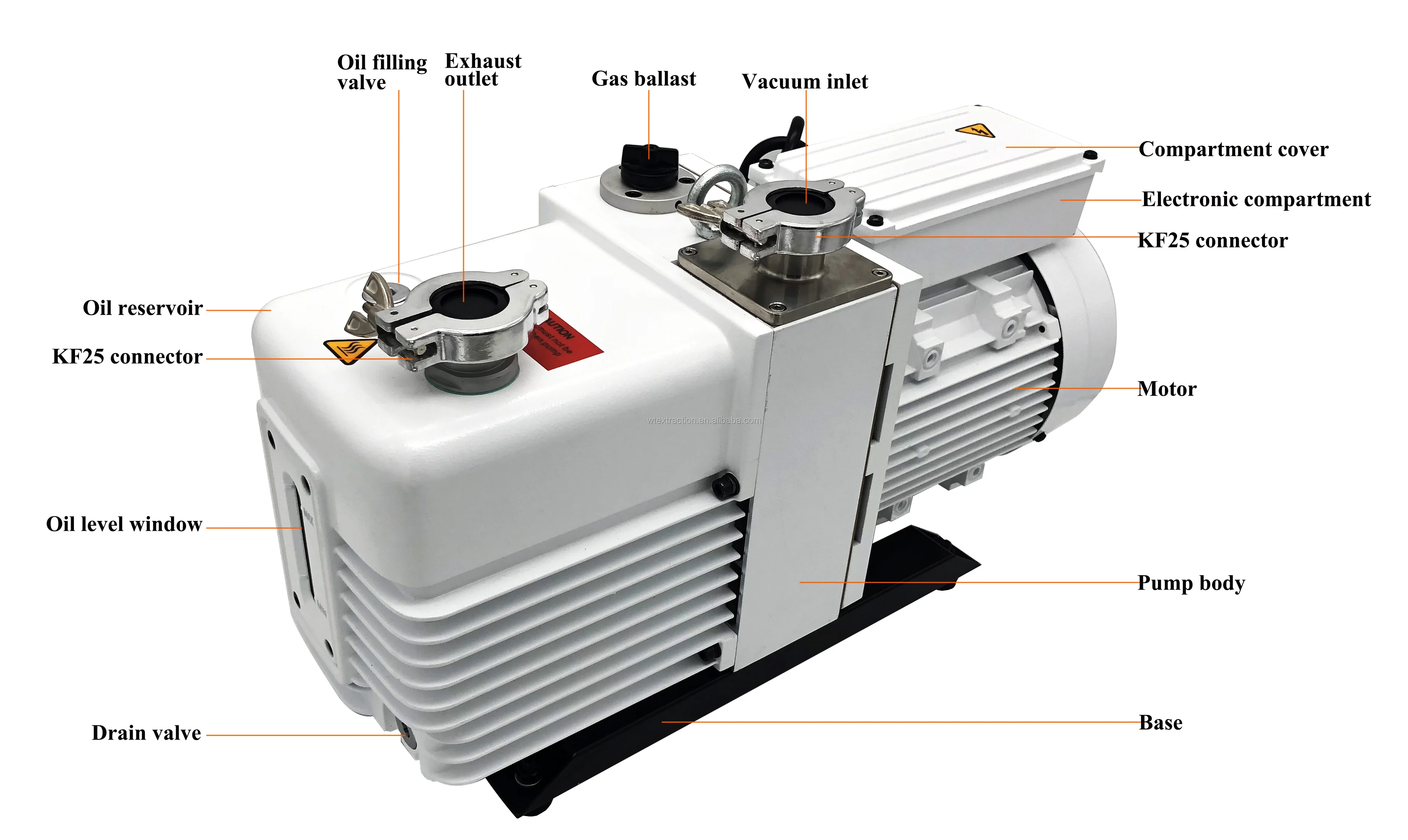

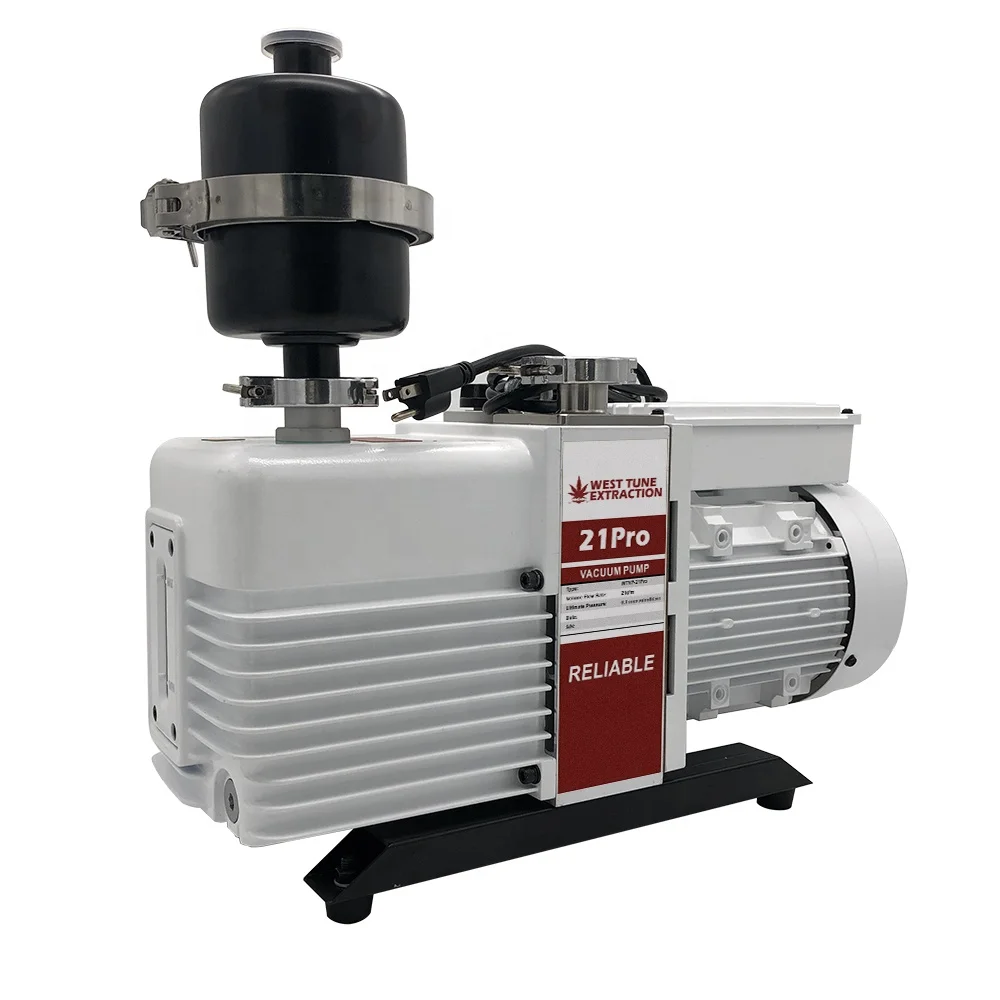

West Tune WTVP-21Pro it is a high speed, motor direct drive dual-stage oil sealed rotary vane pump, has a reasonable structure design for reliable long time continuous operation. It is an basic equipment to obtain vacuum and can be used to pump inactive gas within the scope of low vacuum and a small amount of non-condensable gas.
WTVP-21Pro could make your equipment's vacuum down to 0.3 micron in minutes.
WTVP-21Pro could make your equipment's vacuum down to 0.3 micron in minutes.
Feature:
1. Reasonable structure & corrosion resist design for long time operation.
2. Two-Shift adjustable gas ballast valve.
3. Dual protection of oil anti-sucking back ensures vacuum system from oil pollution when pump stops running and needs to be easily restarted.
4. Forced oil circulation system consisted of oil pump and constant pressure oil supply mechanism ensures stable running of the pump.
5. Less components are used, easy to maintain and repair.
6. Standard with all necessary parts and oil mist filter.
2. Two-Shift adjustable gas ballast valve.
3. Dual protection of oil anti-sucking back ensures vacuum system from oil pollution when pump stops running and needs to be easily restarted.
4. Forced oil circulation system consisted of oil pump and constant pressure oil supply mechanism ensures stable running of the pump.
5. Less components are used, easy to maintain and repair.
6. Standard with all necessary parts and oil mist filter.
Applications:
Extraction & distillation, coating, refrigeration, freeze drying, sterilization, instruments analysis, leak detection equipment, heat treatment metallurgy, etc.
Specifications
Electrical requirements | 110V 60Hz, single phase, 750W |
Pumping rate | 21.2 cfm |
Ultimate vacuum without gas ballast | 0.3 micron/millitorr |
Ultimate vacuum with gas ballast | 6 micron/millitorr |
Inlet/outlet connection | KF25 flange |
Oil volume | 2 liter / 2.1 quart |
Motor rate | 1720 rpm |
Working temperature | 5 to 40°C |
Unit/shipping dimensions (LxWxH) | 21x7.5x12 / 29.5x9.5x16.5 |
Unit/shipping weight | 95 Lb / 105 Lb |
Recommended oil | Ultra-grade 19 |
Noise level | < 58 dB |
CE compliance | Yes |
Warranty | Two years |
