Smart home security motion sensor wireless ir beam sensor
- Category: >>>
- Supplier: Shenzhen Eker Electronic Co. Ltd.
Share on (62387623979):
Product Overview
Description
Brief introduction
Smart home security motion sensor wireless ir beam sensor

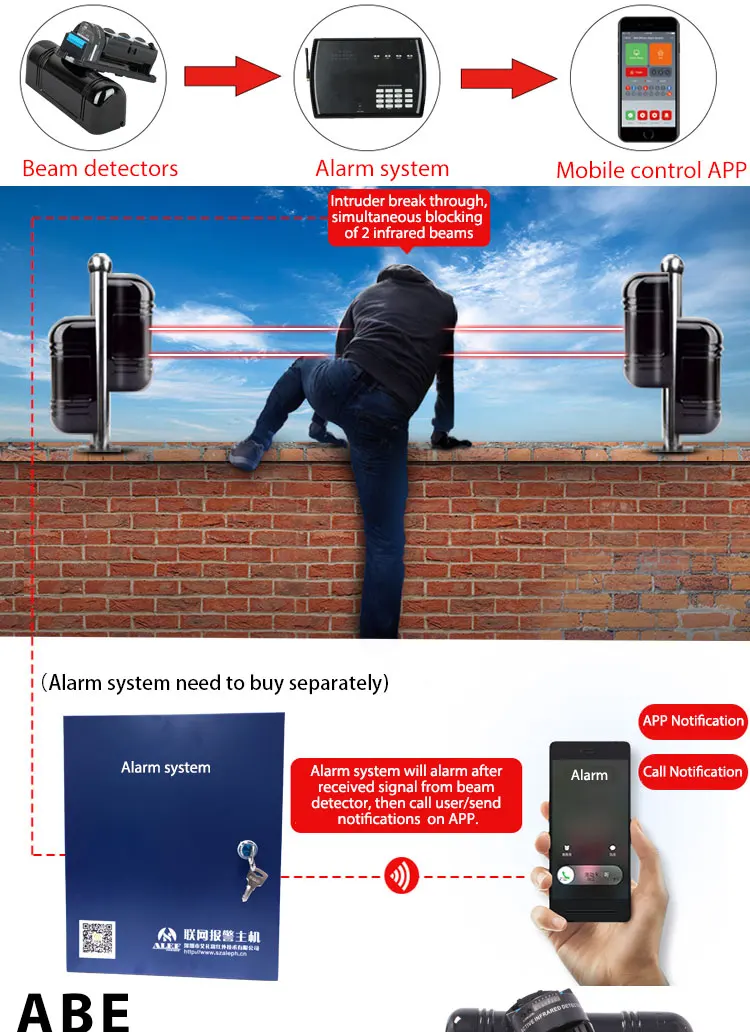

1.The Active Infrared Beam Detectors utilize invisible Infrared barriers to detect the intrusion. It has long detection/guarding range, low-cost, high-quality, and installation-friendly features.

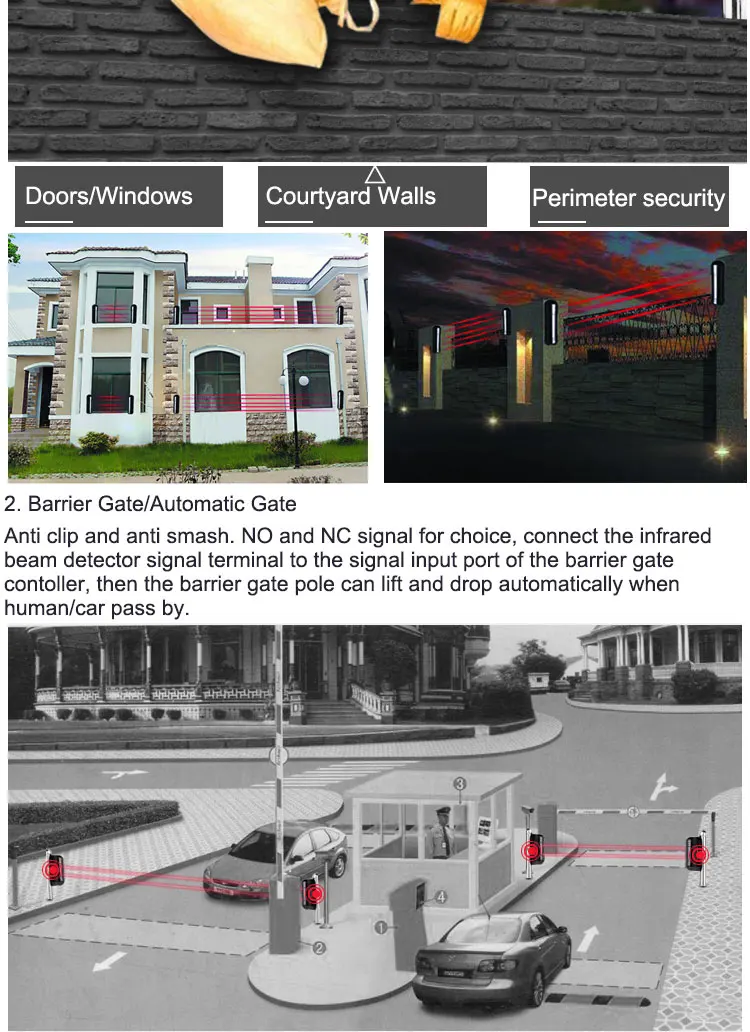

2.These photoelectric beam detectors have N.O. and N.C. alarm output, can work with difference systems through reliable wired connection. It's the ideal security detectors for your intrusion alarm system, access control system, IP surveillance system and home automation system.

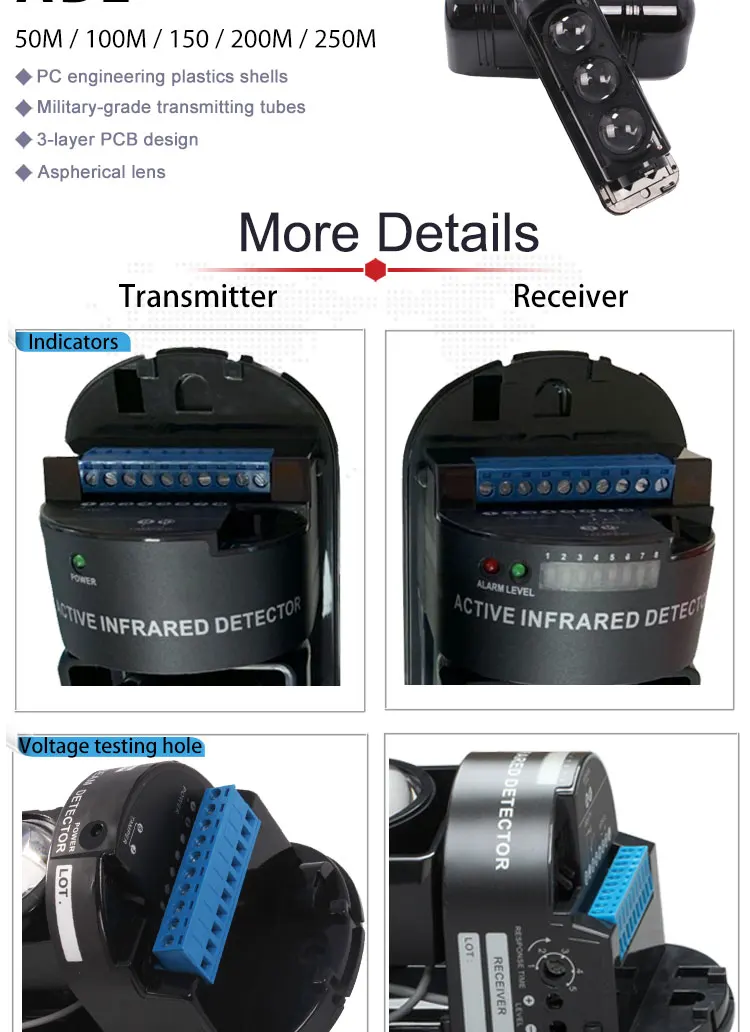

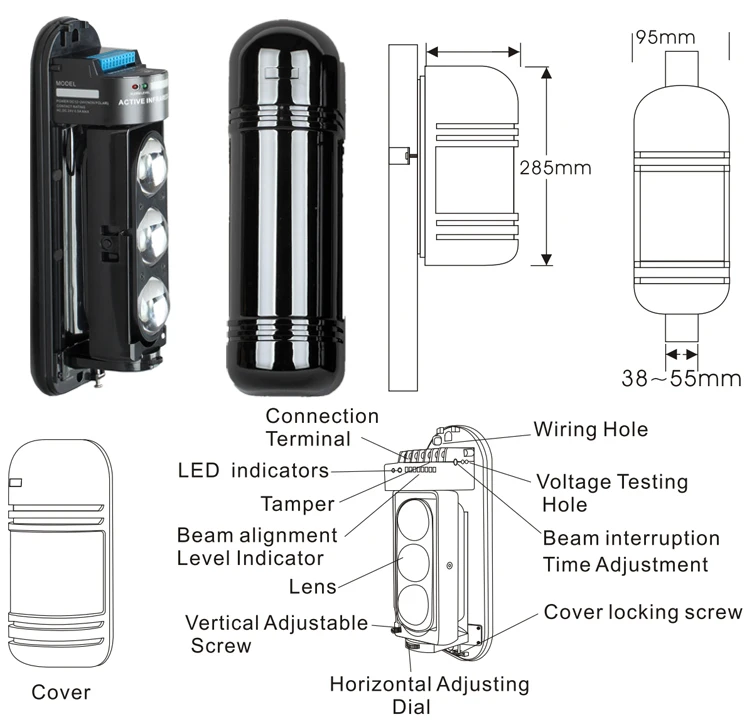

Structure
Features
1. 3 beams active infrared detector: can reduce the false alarms that are caused by bird, pet leaf...etc.
2. Adopt digital DIP technology, frequency, sensitivity, indicator and operation power can be adjusted through DIP switches.
3. Special-purpose DSP chip, patent multidimensional fault-tolerant, true detection alarm technology.
4. NC/NO relay outputs, compatible with other brand alarm systems like Honeywell, Bosch, Paradox, DSC, GE Alef, HONEYWELL etc.
5. Anti-glare up to 50,000 LUX, built-in automatic adjustment strong light filtering system.
6. AGC circuit: when faced with fog or inclement weather,t he detector sensitivity will increase automatically.
7. Fully seal structure, with rain cover design, C relay output.
8. External Protection: Protection from rain, dust & insects.
9. Sniper viewfinder with x2 magnification

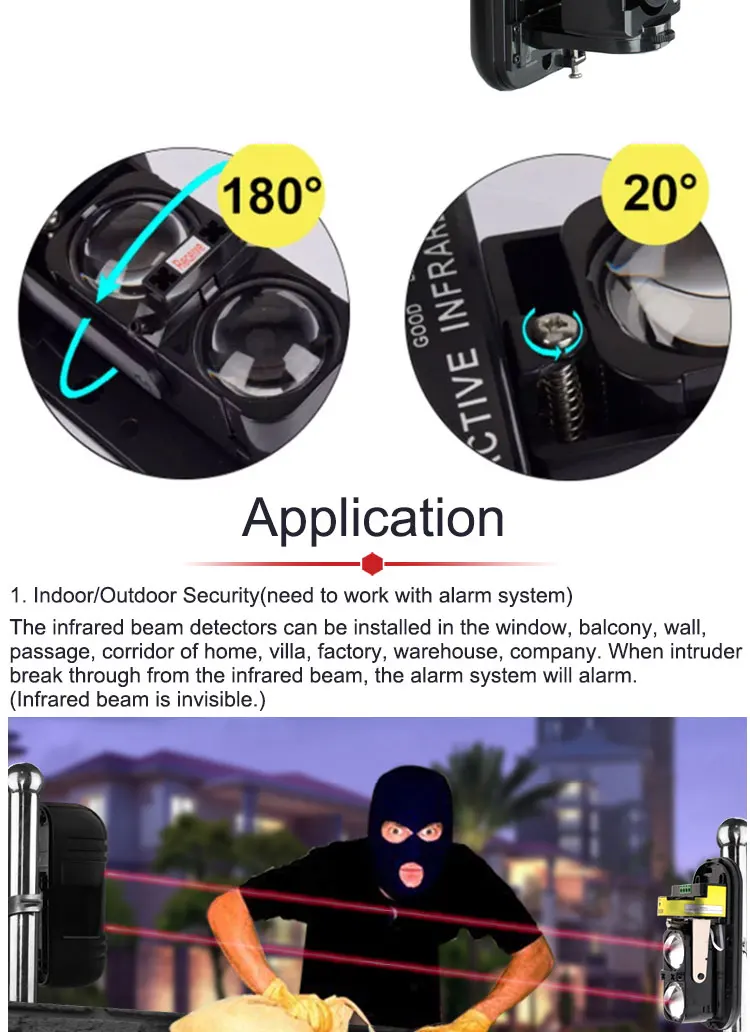

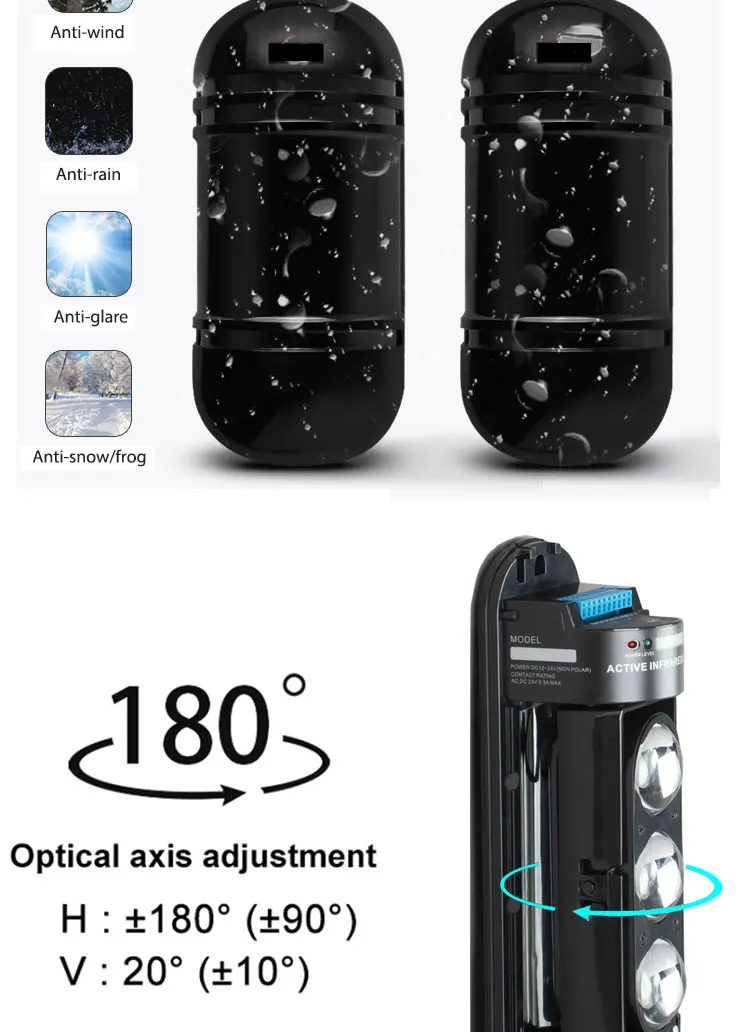

10. Horizontal ±90° / vertical ±10° optical angle can be easy to adjust.
Parameters
Model | ABE-50L | ABE-100L | ABE-150L | ABE-200L | ABE-250L | |
Detection Range | Outdoor | 50m | 100m | 150m | 200m | 250m |
Indoor | 150m | 300m | 450m | 600m | 750m | |
Number of beams | 3 beams | |||||
Detection Method | Simultaneous blocking of 3 infrared beams | |||||
Interruption Time | 50msec, 80msec,306msec, 408msec, 700msec (selectable) | |||||
Alarm period | 2 sec(±1) nominal | |||||
Power Supply | DC10~24V; AC10~18V | |||||
Current Consumption | 40mA max
| |||||
Alarm Output | NO. NC reply (AC / DC30V, 0.5A max) | |||||
Tamper Switch | N.C.(DC 24V, 0.5A max) | |||||
Operating Temperature | -25℃ to +55℃ | |||||
Environment Humidity | 95% max | |||||
Alignment Angle | Horizontal 180°(±90°), Vertical 20°(±10°) | |||||

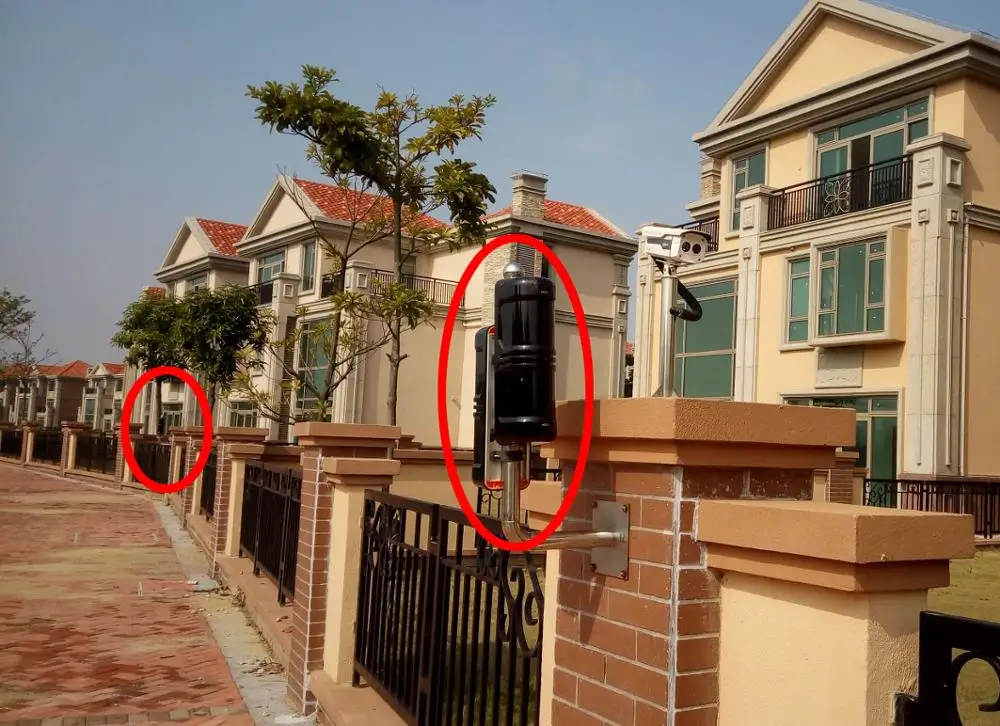

Mounting | Wall or Pole | |||||
Protection Degree | IP65 | |||||
Material | PC engineering plastic | |||||
Weight (Transimtter and Receiver) | 1400g | |||||
Attachments | U bracket | 2pcs, 70.4*37.5*21.5mm, δ=1.5mm, stainless steel | ||||
| Pole mounting srew | Pole mounting screws: 4pcs, PM4*30mm Wall mounting screws: 4pcs, PM4*25mm | |||||
| Installation manual | 1 | |||||
| Spiral Terminal Dedew and Defrost Method | Heaters(need to purchase separately) | |||||
| Note: When environment termperature lower than -20℃, please use heaters to ensure normal working. Heater is non-polarized. | ||||||
