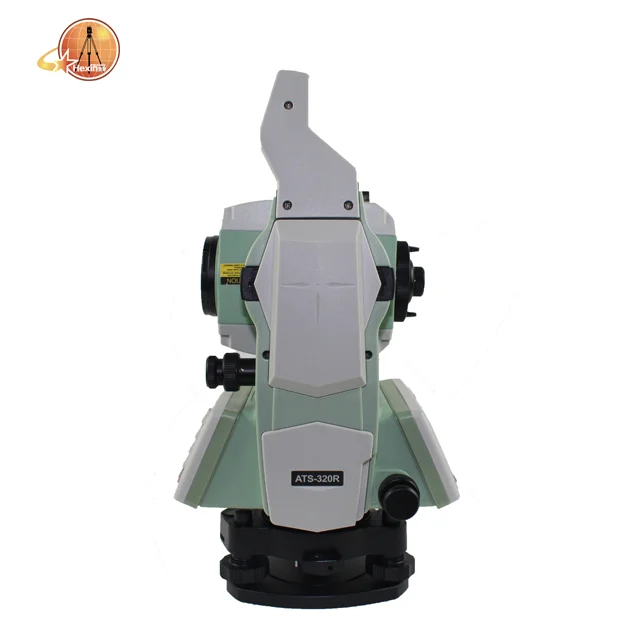

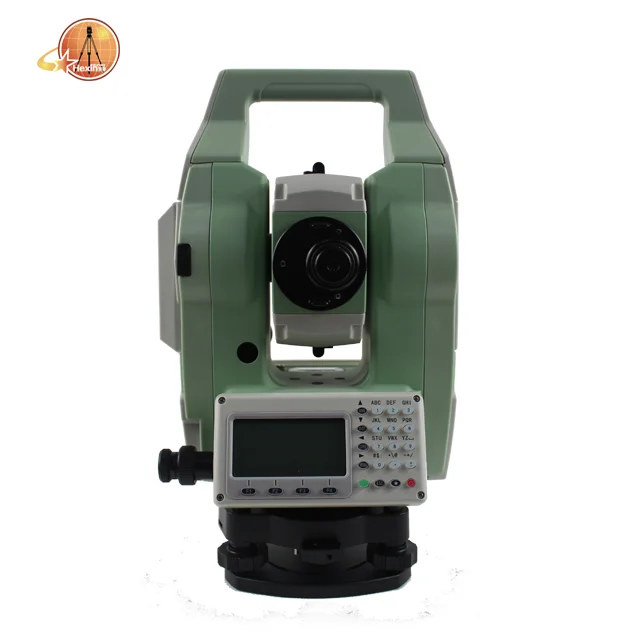

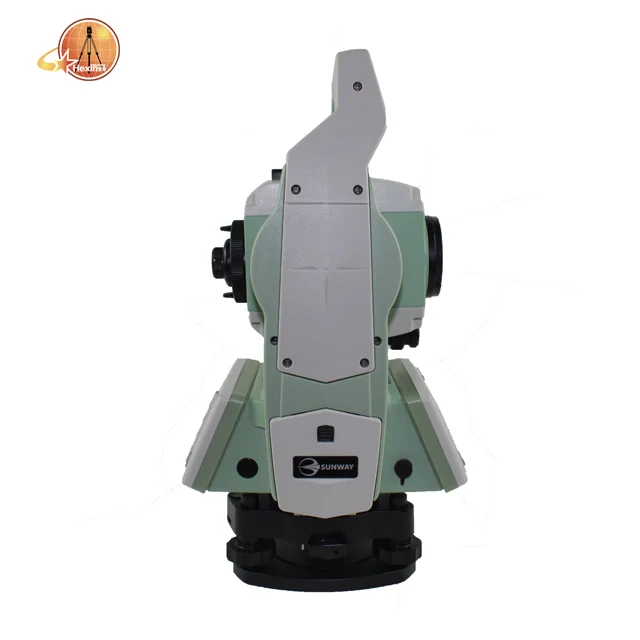

Лидер продаж, лидер продаж, лучшие инструменты для измерения общего количества Sunway ATS320R, точность 2 дюйма с Двойной Осью компенсатора, 400 м, безотражательная общая станция 1

Share on (62387671820):


Price:1 100,00 $ - 1 200,00 $

Quantity:


Product Overview

Description


best total station surveying instruments Sunway ATS320R 2" accuracy with Dual-axis Compensator 400m reflectorless total station

























STM32 Architecture



Powerful and Fast EDM Capabillity



Intelligent Callibration Software



Absolute Encoder Angle Measurement



Stable Dual-axis Compensation



Rich Communication and Transmission








ATS320R

















Powerful and Fast EDM Capabillity






ATS-120R Total Station's no prism measurement range can up to 800 meters. No prism measurement accuracy 3mm+2ppm. Accurate measurement 0.8S,Track measurement 0.3S.














STM32 Architecture






The STM32 MCU based on ARM CortexTM-M processor enables the total station has extra high processing speed and low-power consumption.












Intelligent Callibration Software



Accessible for reaHime diagnosis to ensure troublefree operation.The software can determine 90 percent of the Problem.










Absolute Encoder Angle Measurement



1023 pairs of absolutely coded disc.All Series' angle measurement accuracy is two seconds. Starting without initialization.The data will save automatically when the power failure










Stable Dual-axis Compensation




Stable Dual-axis Compensation. Compensation range 3'.Operation can be visualized and High accuracy of angle measurement.










Rich Communication and Transmission



With RS232C,SD,USB and MiniUSB communication interface. Using Bluetooth for data transmission, make data transmission more convenient.







Product Details

























































Model



ATS320R



Telescope




Magnification



30X




Other



Field of view: 1°30' (26m/1,000m),

Minimum focus: 1.3m,

Reticle:Illuminated







Angle measurement




Measurement Method



Absolute Encoding




Accuracy (ISO 17123-3:2001)



2''




Minimun Readout



1"




 Distance Measurement( with Reflector)









































































































































 Single Prism (Under general/good conditions) 5000m
Communication

Internal Data MemoryApprox.20000 Points/SD Card
InterfaceStandard RS232,Mini-B,USB pen drive
Wireless CommunicationBuletooth
Data FormatASCII

Operation

SystemReal-time Operating System
DisplyHigh resolution backlight black and white display with contrast adjustment/Graphics 192x96 pixels
Keyboard2 sides Alphanumeric backlit crystal keyboard

Laser Plummet

TypeLaer point,4 brightness levels adjustment/Optical plummet(optional)
Centering Accuracy1mm at 1.5m insturument height

Environmental

Operating Temperature-20°C- +50°C(-4Fto +122F)
Storage Temperature-40°C- +70°C(-40F to +158F)
Temperature&PressureManual input
DuSt&Water Proof (IEC60529 Standard )IP55

Power Supply

Battery TypeLi-ion battery
Voltage/CapacityZBA-400:7.4V(DC)/3000mAh
Operating Time With ZBA-400Optimal 16 hours(Continuous angle measurement every 30 seconds)/10 hours(Typical)
Measuring TimesApprox.12000 times

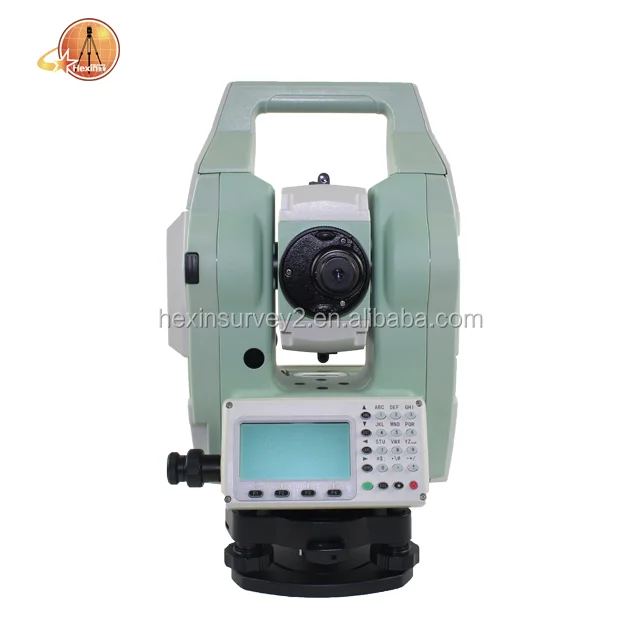

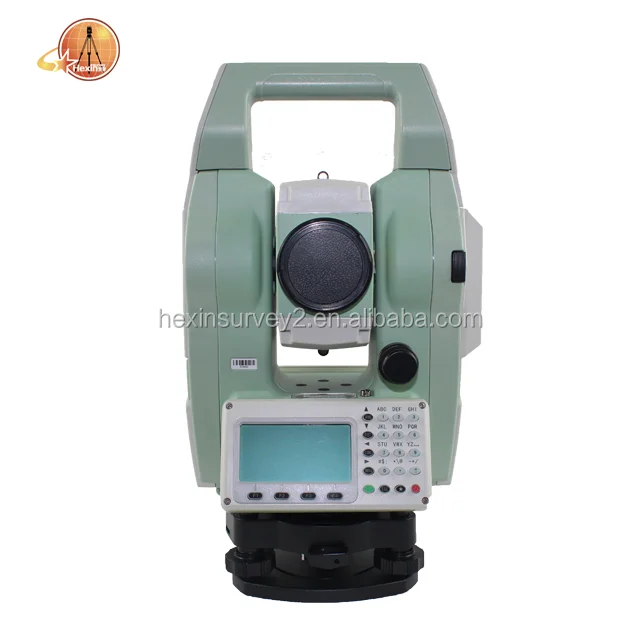

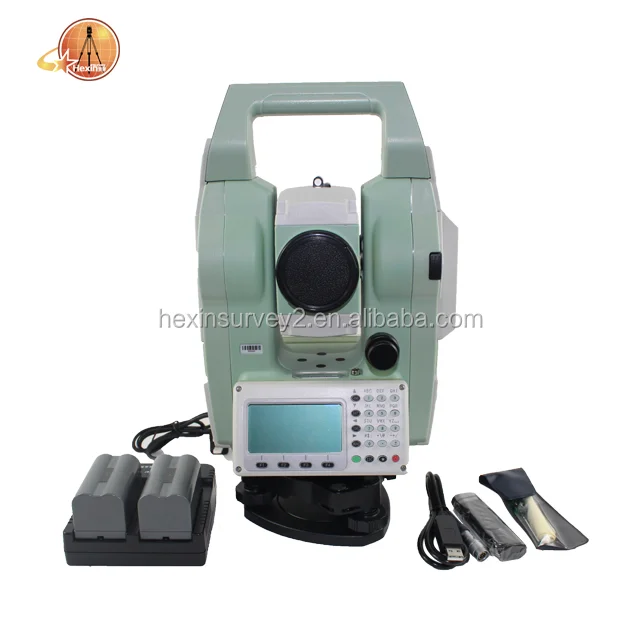

Product Display










FAQ




1. So for technical support where can I ask?


A: Please just send your questions to me and I will forward your requirement to the right person since all our technicians or factory engineers are speak Chinese only.





2. We want to import it, but we have not any import/export license, so, please let us know how it will be materialized, so that we can get that instrument without any problem.


A: As we will ship the product through express company like DHL/TNT, you don’t necessarily have any import/export license. The carrier/express will deliver the product to your office or your place and they will finish the custom clearance on behalf of you however you will have to provide supporting information or document, usually the PI, when necessary. You will also pay the fee or tax to the carrier. There are 2 typical fee may occur. One is custom duty upon your cargo value and category. The other is VAT/GST which is Value Added Tax upon on the cargo value and your local VAT rate.

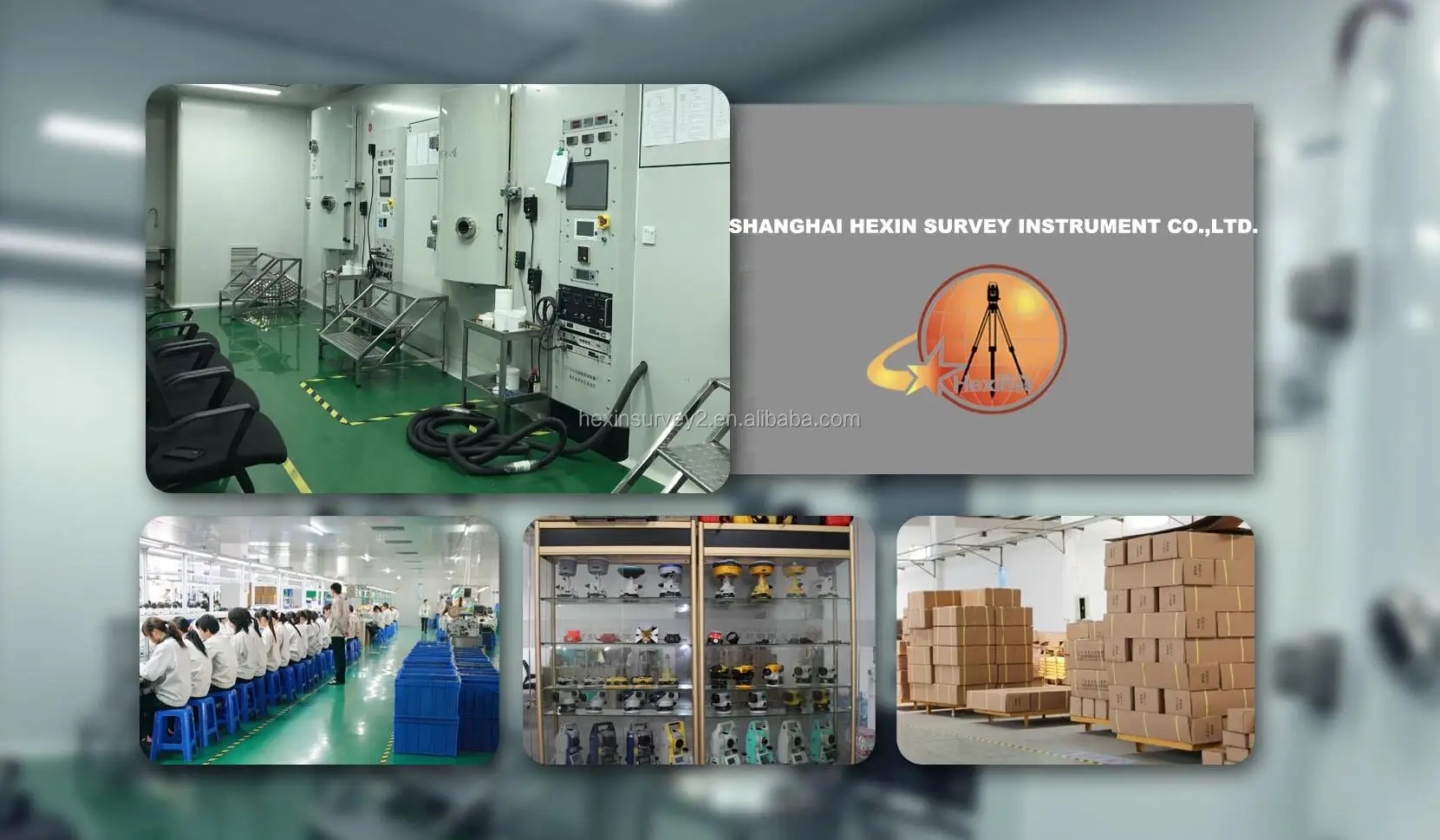

Company Information







With 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in Mainland China. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.
The marketing model advocated by us is not a simple sense of "selling products", instead, presales service, services during operation and aftersales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!QQ20191011144221









shipping and payment




  • We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS,China Air Post.


    Warm tip: if it is convenient, we can have a good communication about packaging and logistics.Because of the special products,it is difficult for us to send them by regular express



  • Generally, we accept  Advance T/T  ,Paypal and West  union.If you prefer other payment terms, please let us know.
