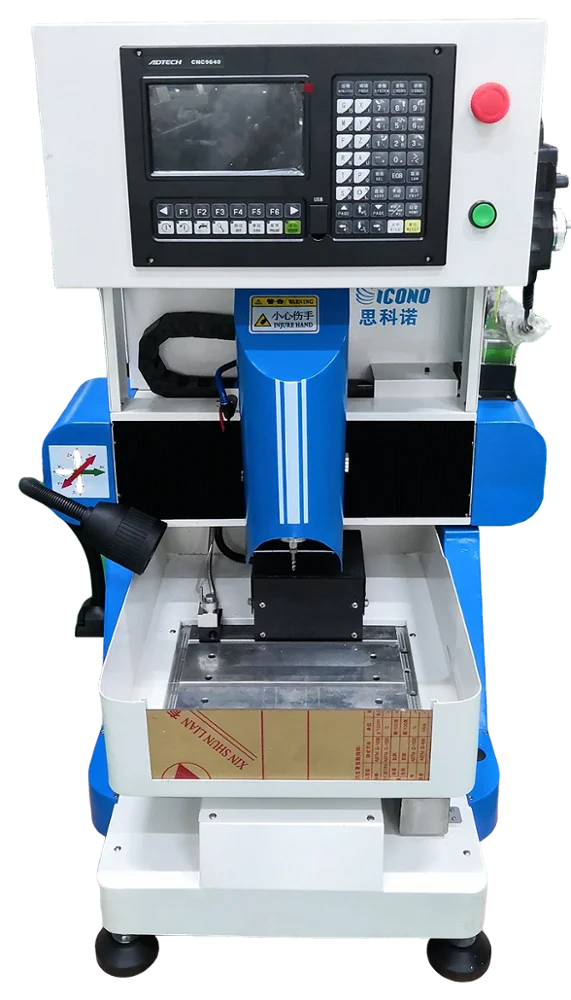

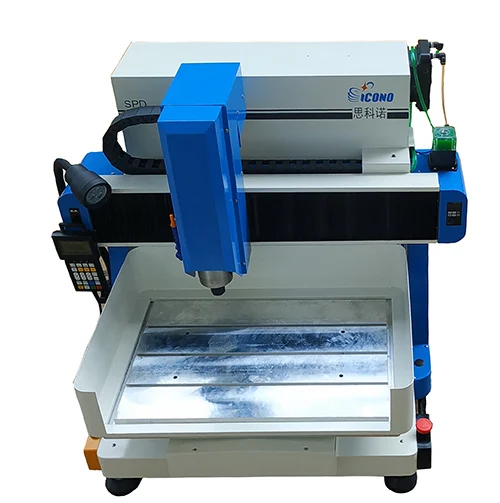

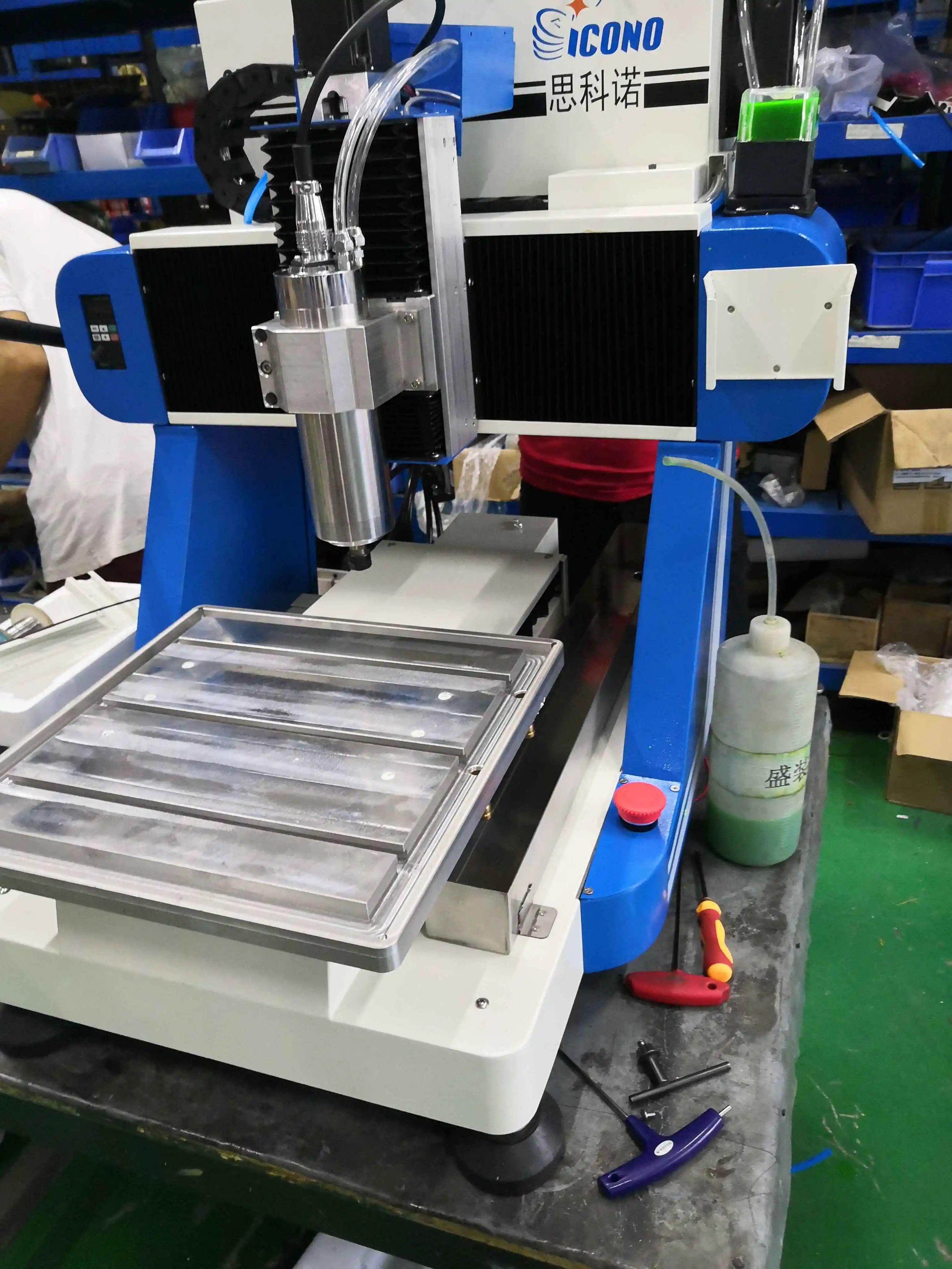

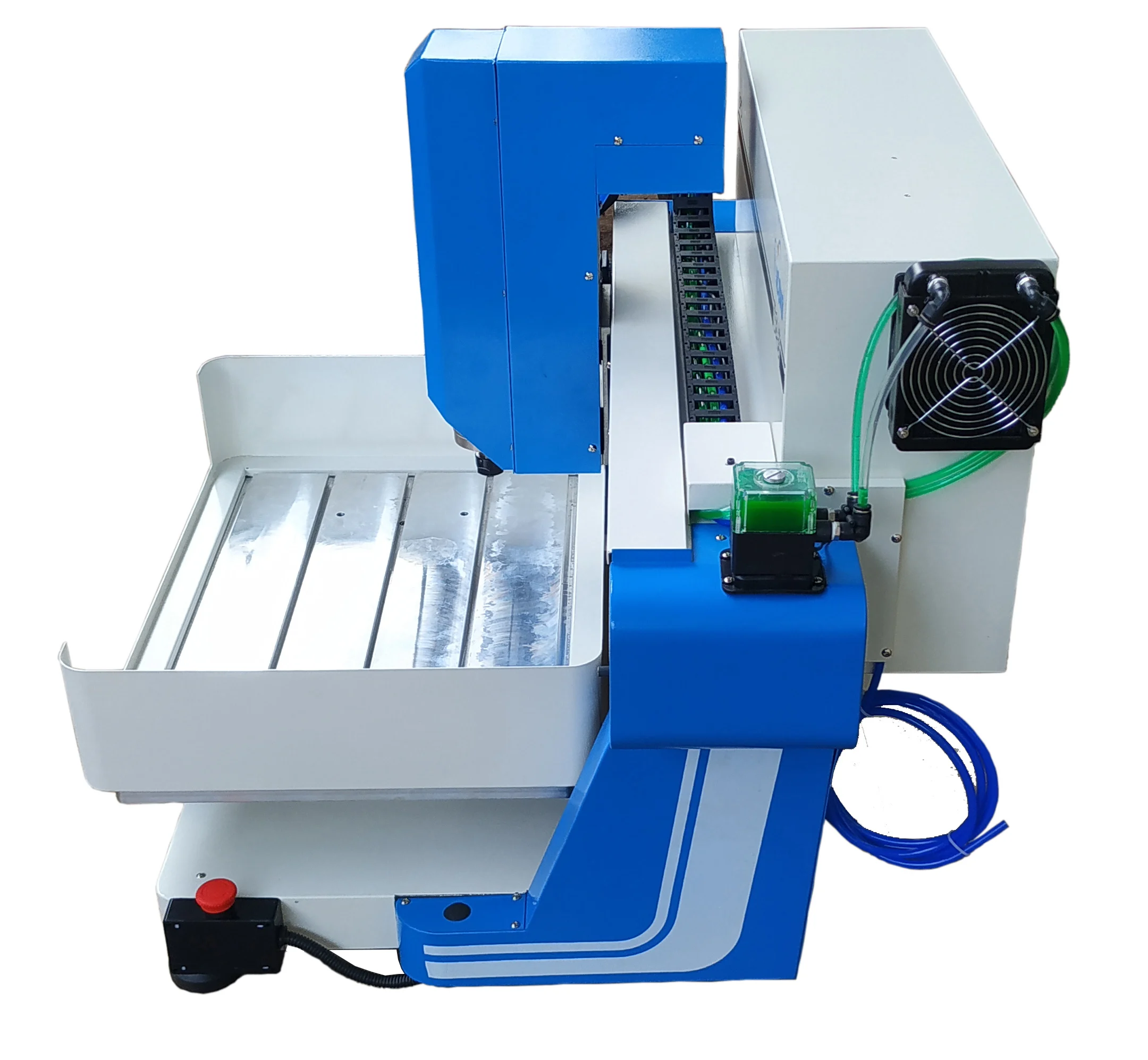

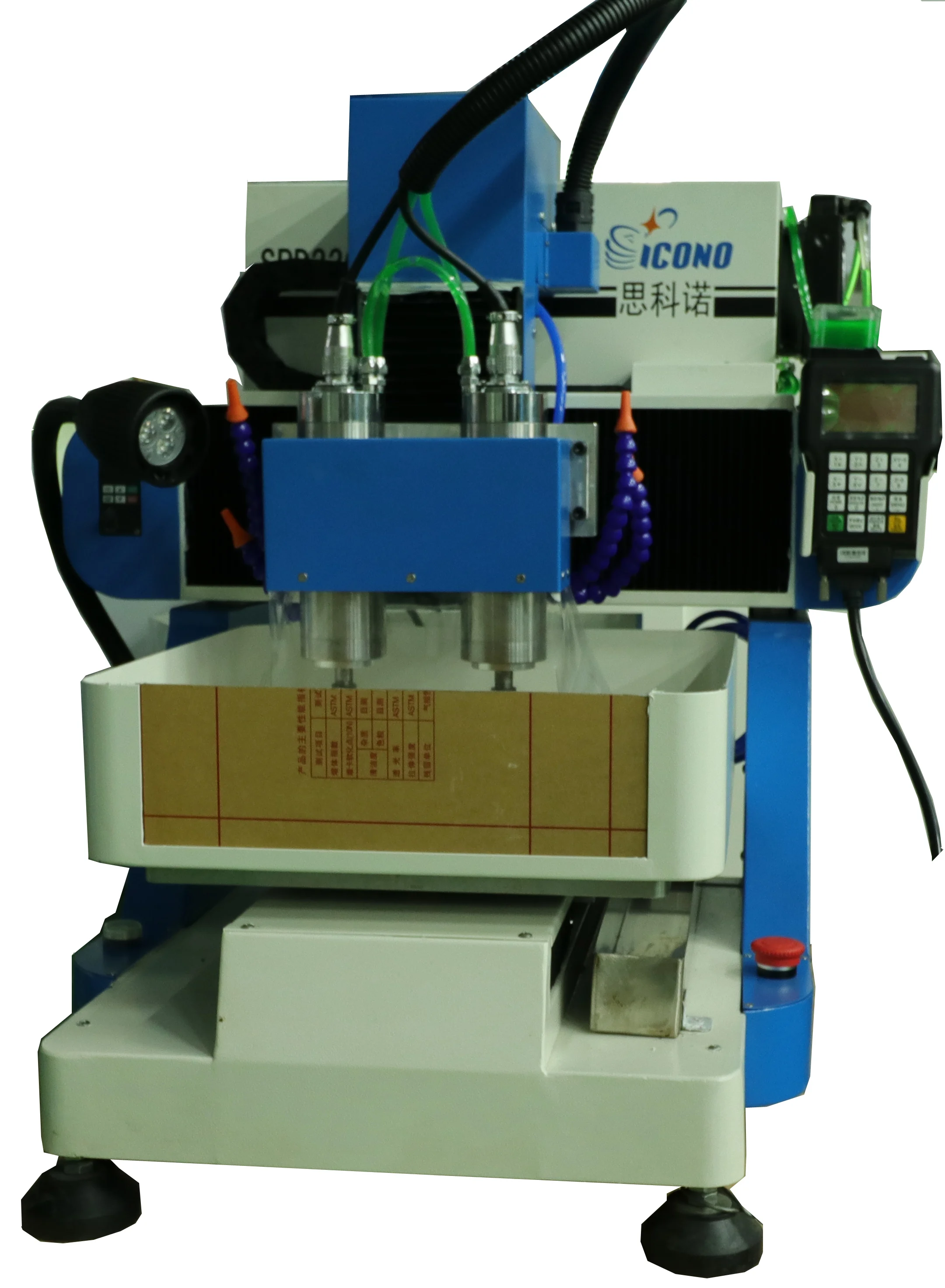

mini SIC 6040 cnc milling and engraving machine
- Category: Metal Engraving Machinery >>>
- Supplier: CCFT Shenzhen Limited
Share on (62387748136):
Product Overview
Description
Product Description
Model | SIC-6040 |
X Y Z Working size | 600X 400 X150 MM |
Table size | 630x 400mm |
Max. Capacity of table | 50kgs |
Max. Moving speed | 10m/min |
CNC System precision | 0.00125mm |
Positional precision | 0.01mm |
Repeat Positional precision | 0.008mm |
Total Power | 2000W |
Size | 1000x800x1100mm |
Tool Sensor | Auto Sensor |
Net Weight | 160kgs |
CNC Controller | DSP or Ncstudio |
Spindle | 800W or 1500W Water cooling spindle |
Inverter | 1500W |
Max speed of Spindle | 24000rpm |
Diameter of Tool | D3.175, D4, D6 |
Motor | Stepper motor or Servo motor |
Power supply | 110V / 220V |
Sample show
Packaging & Shipping
- Single package size:
- 100X10X130 cm
- Single gross weight:
- 260.0 kg
- Package Type:
- 1. Outer packaging: standard seaborne export plywood box. 2. Inner packaging: waterproof stretch film and plastic film
- Picture Example:
- Lead Time :
-
Quantity(Set) 1 - 20 <25 days Est. Time(days) 40 To be negotiated
