XS163J 16 Ton Single Drum Roller Compactor Road Rollers
- Category: Road Roller >>>
- Supplier: Sinomada,Heavy,Industry,(Changsha),Co.,Ltd.
Share on:
Product Overview
Description

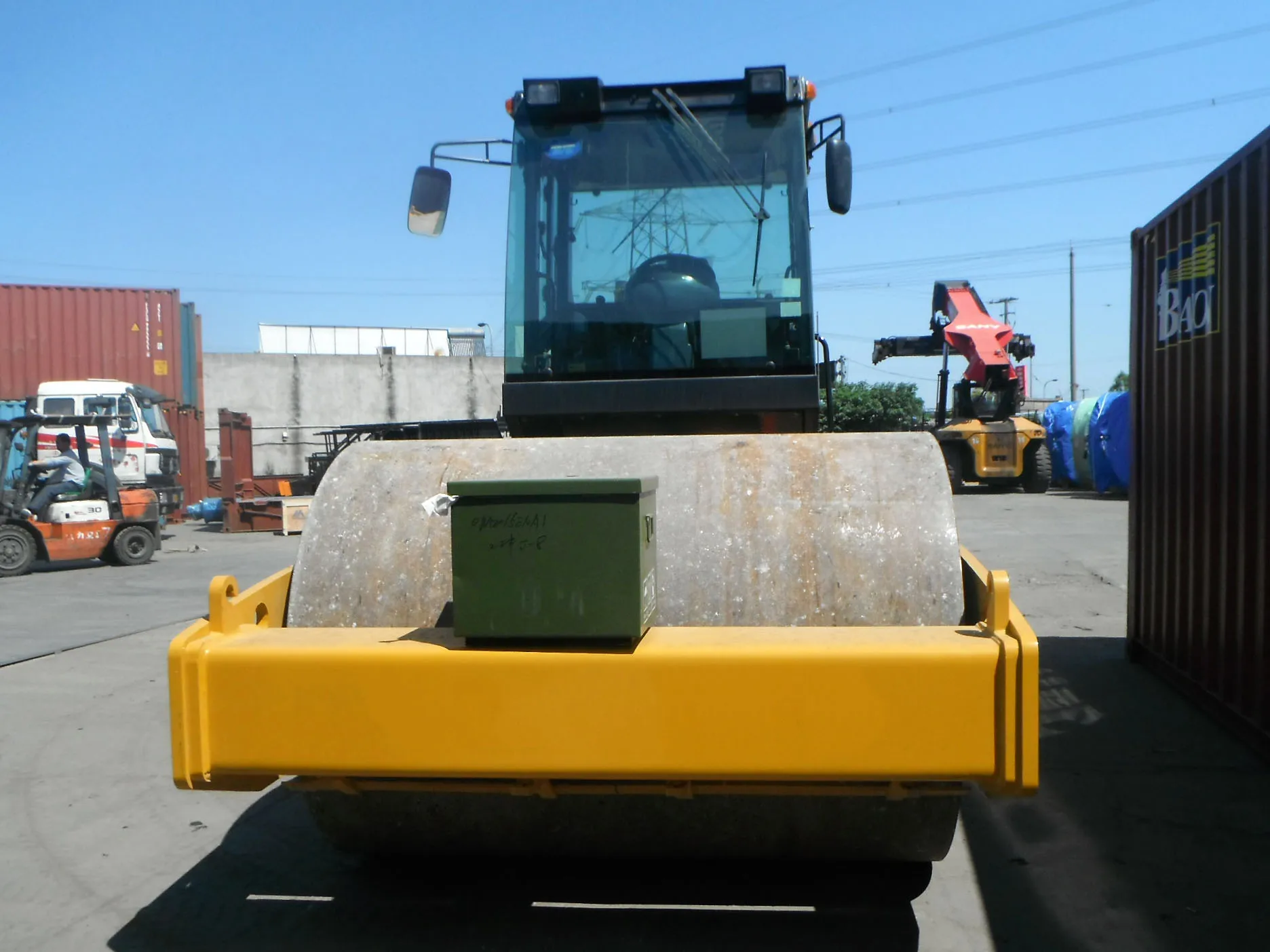

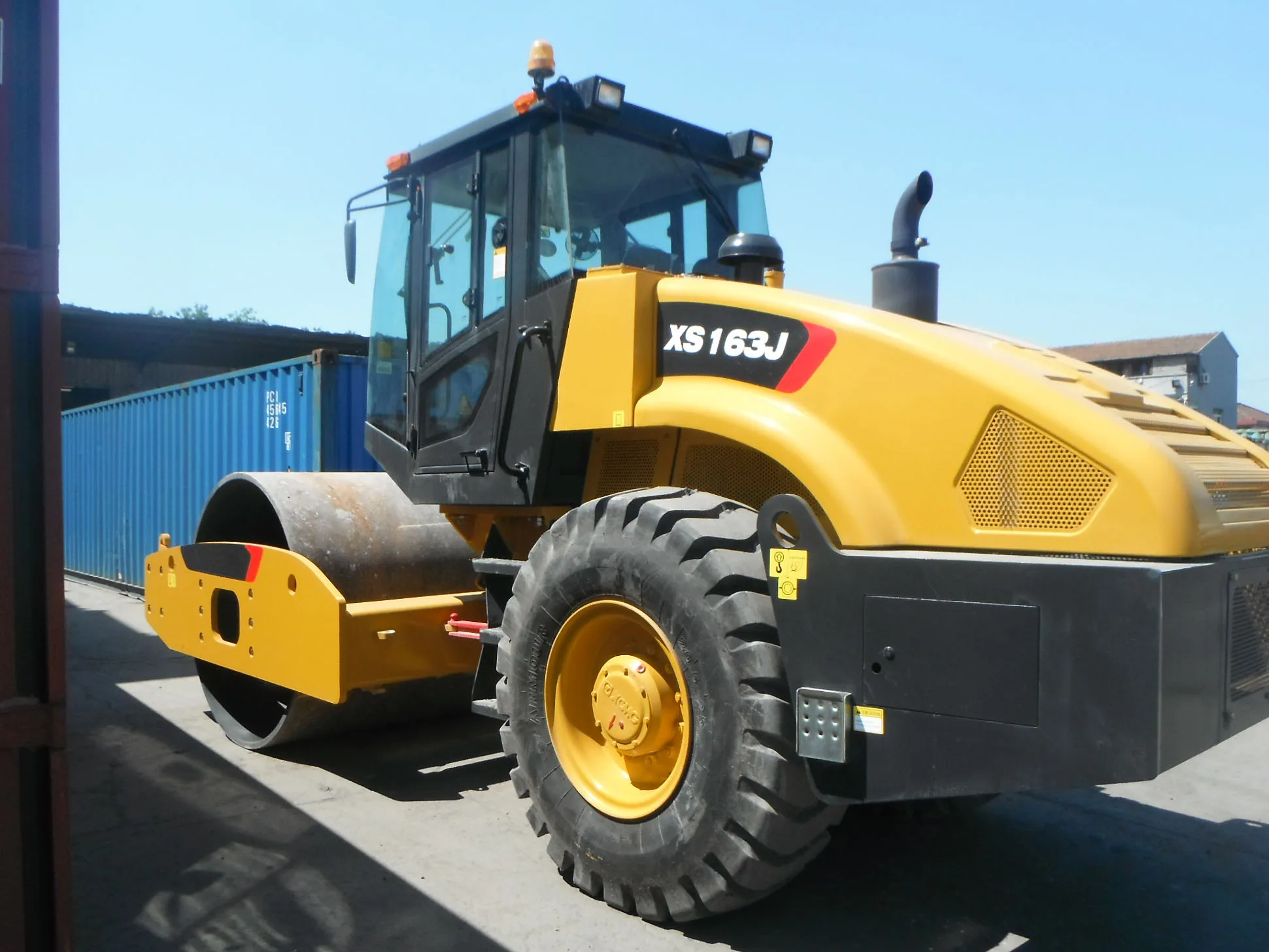

XS163J 16 Ton Single Drum Roller Compactor Road Rollers With Diesel Generators
XS163J vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines and more.
Model | Unit | XS163J |
Operating weight | kg | 16000 |
Load applied on front drum | kg | 7700 |
Static linear load | N/cm | 362 |
Speed range | km/h | F/R |
Gear I | km/h | 2.85/2.88 |
Gear II | km/h | 5.08/5.02 |
Gear III | km/h | 11.17/- |
Theoretical gradeability | % | 30 |
Min. outer turning radius | mm | 6500 |
Steering angle | ° | ±30 |
Swing angle | ° | ±11 |
Vibration frequency | Hz | 28 |
Nominal amplitude (high/low) | mm | 1.9/0.95 |
Exiting force (high/low amplitude) | kN | 290/145 |
Engine model | Shanghai Diesel Engine SC4H140.192 | |
Type | / | |
Max. power | kW | 103 |
Hydraulic tank capacity | L | 170 |
Fuel tank capacity | L | 310 |
