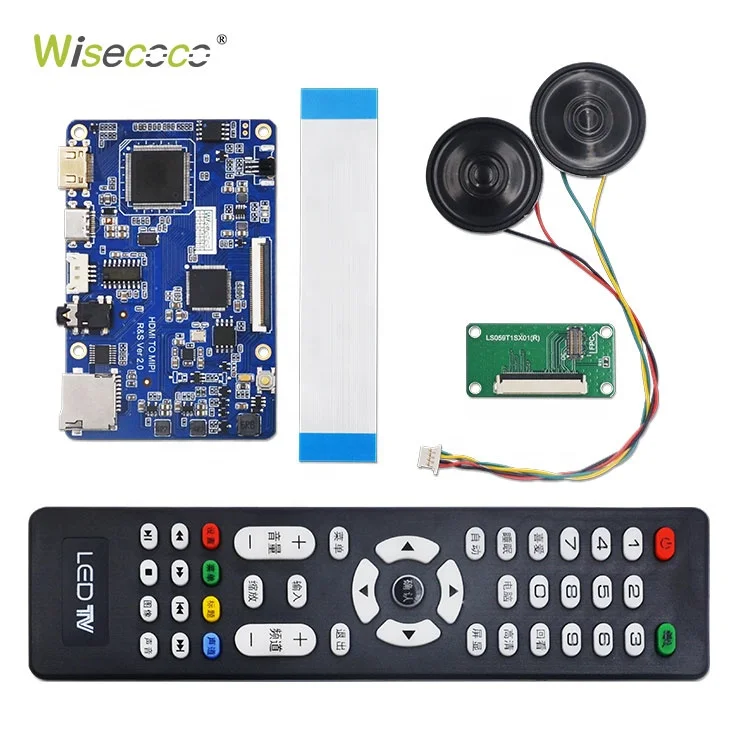

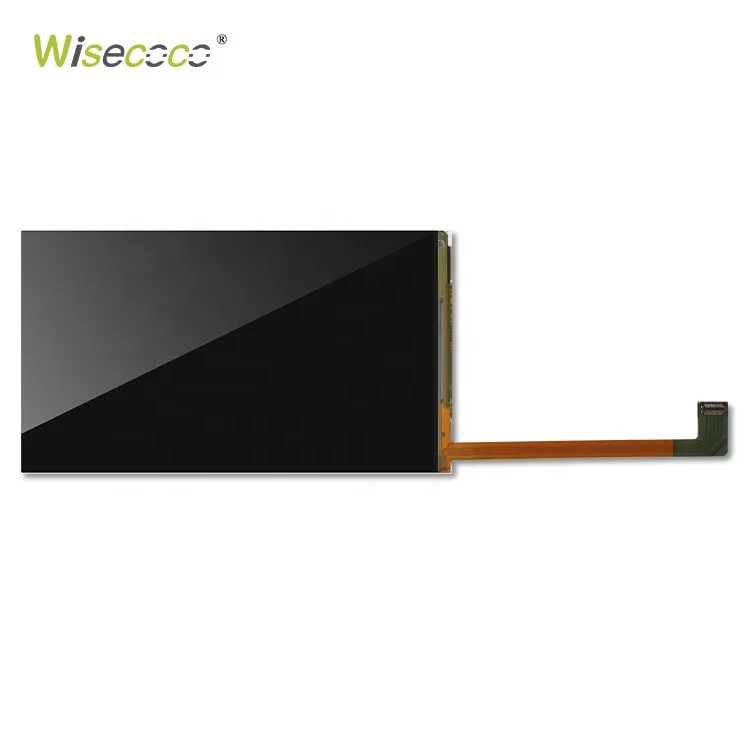

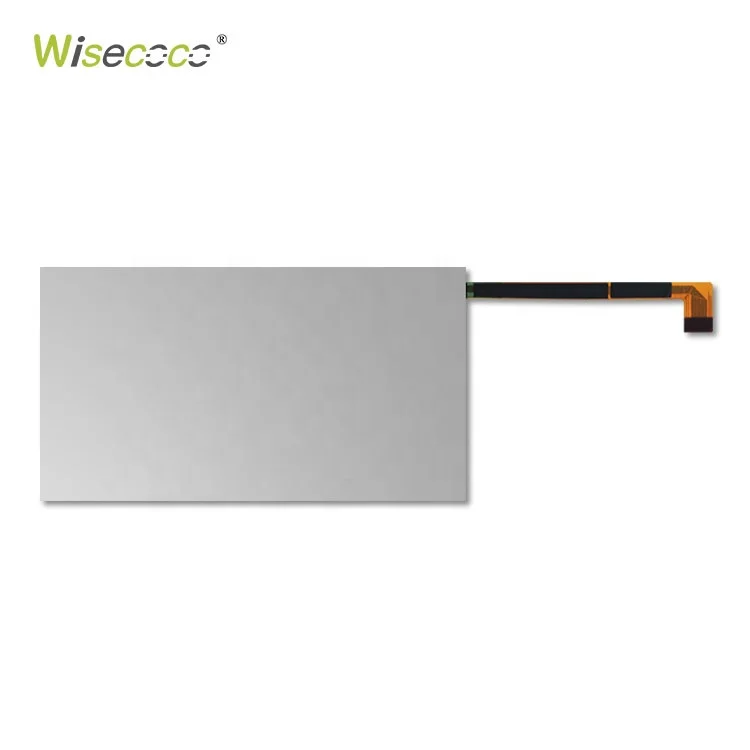

digital camera 1920x1080 5.9 inch ips lcd display screen panel module fhd 1080p 30 pin mipi 4 lane interface type c connector

General Features

Diagonal Size

5.9 inch

Response Time

TBD

Resolution

1920(RGB)×1080 , FHD

Panel Type

CG-Silicon , LCM

Display Area

129.6 × 72.9 (H×V)

Pixel Format

RGB Vertical Stripe

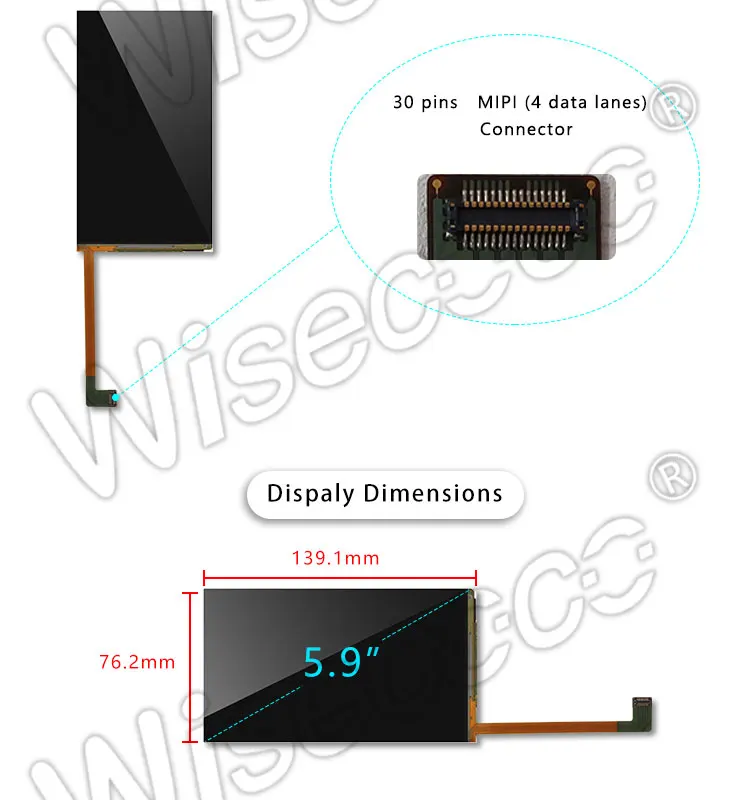

Outline Size

139.1(W)×76.2(H) mm

Bezel Opening

130.6(W)×73.9(H) mm

Brightness

400 cd/m² (Typ.)

Surface

Clear

Viewing Angle

80/80/80/80 (Typ.)(CR≥10)

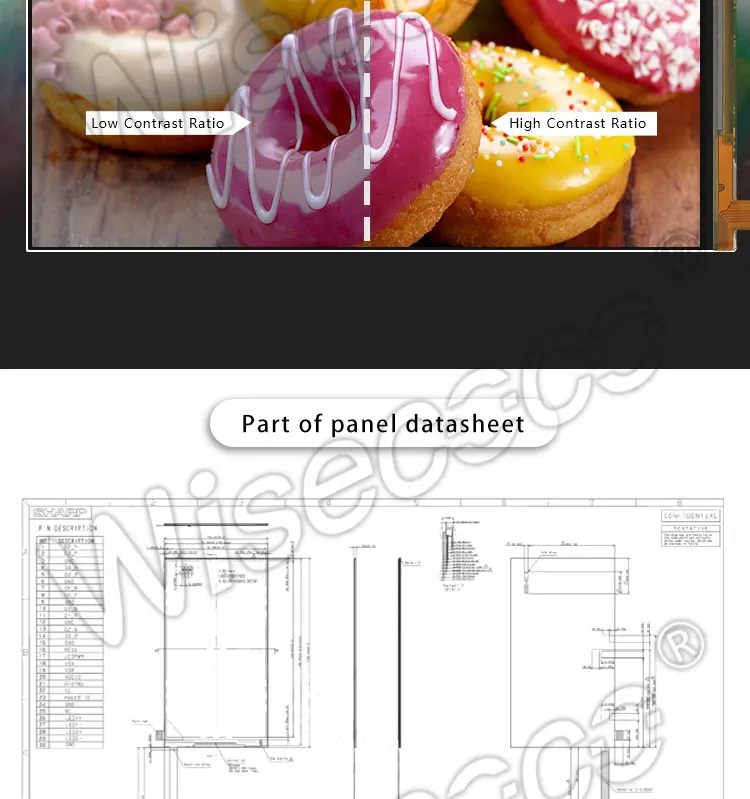

Contrast Ratio

1000:1 (Typ.) (TM)

Best View on

Symmetry

Weight

33.0g

Display Colors

16.7M   70% (CIE1931)

Touch Screen

Without

Frame Rate

60 Hz

Lamp Type

7S2P WLED

Display Mode

New Mode2, Normally Black, Transmissive

Signal Interface

MIPI (4 data lanes) , 30 pins , Connector

Input Voltage

1.8/5.6/-5.4V (Typ.)(VDDIO/VSP/VSN)

Environment

Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C
