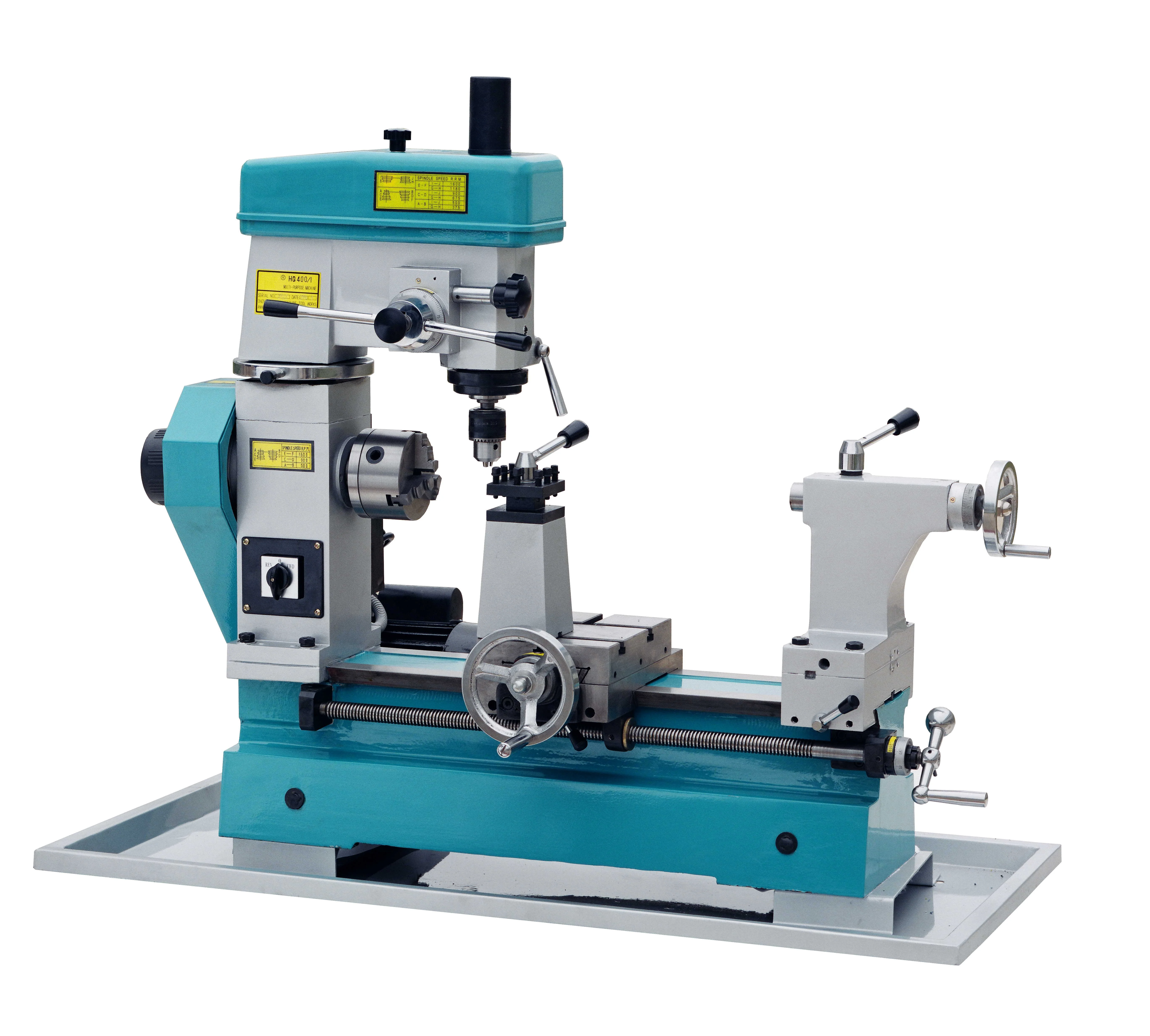

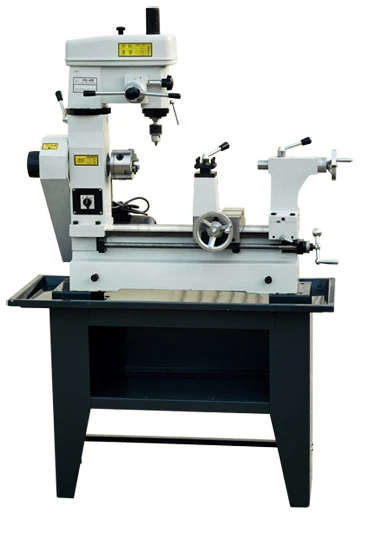

HQ400 multi purpose combo lathe drill mill machine

HQ400 multi purpose combo lathe drill mill machine

Category: Manual Lathe >>>
Supplier: Chizhou Syntop CNC Industrial Co. Ltd.

Price:$1,100.00 - $1,200.00

Quantity:

Product Overview

Description

Product Description

Features

● A kind of combination machines with turning, miling, drilling and threading.
● Metric or imperical thread cutting
● Suitable for processing metal, wood and other materials.
● Exceilent advantage of various functions, small occupation and economlization.
● Widely used in job-shops,car-shops technical school,factories and family for machine parts repairing and making, education training, household utensil

Specificatons
	HQ400/3A	HQ400/3B	HQ400/3L
Swing Over Bed	420mm	420mm	420mm
Distance Between Centers	400mm	400mm	500mm
Max. Longitudinal Travel	380mm	380mm	480mm
Max. Cross Travel	120mm
Taper Of Spindle	MT3
Spindle Hole	20mm
Step Of Spindle Speed	7
Range Of Spindle Speed	160-1360rpm
Barrel Travel	70mm
Barrel Taper	MT3
Metric Thread Range	0.2-3mm
nch Thread Range	8-120 T.P.I
Longitudinal Range Of Automatic Feeding:	0.05-0.0175mm (0.002 "-0.007 ")
Max Driiling Capacity	∅15mm
Worktable Size(L×W)	200×150mm
Max. End Milling Capacity	∅20mm
Max. Face Mill Capacity	∅63mm
Spindle Travel	85mm
Headstock Travel Of Up And Down	80mm	-	80mm
Spindle Taper	MT3
Step Of Spindle Speed	14
Range Of Spindle Speed	117-1300 rpm
Swivel Angel Of Headstock	±360º
Motor Power	550W
Packing Size	1030×580×1070mm			1132×580×1070mm
N.W/G.W	180kgs/215kgs	180kgs/215kgs	185kgs/226kgs
