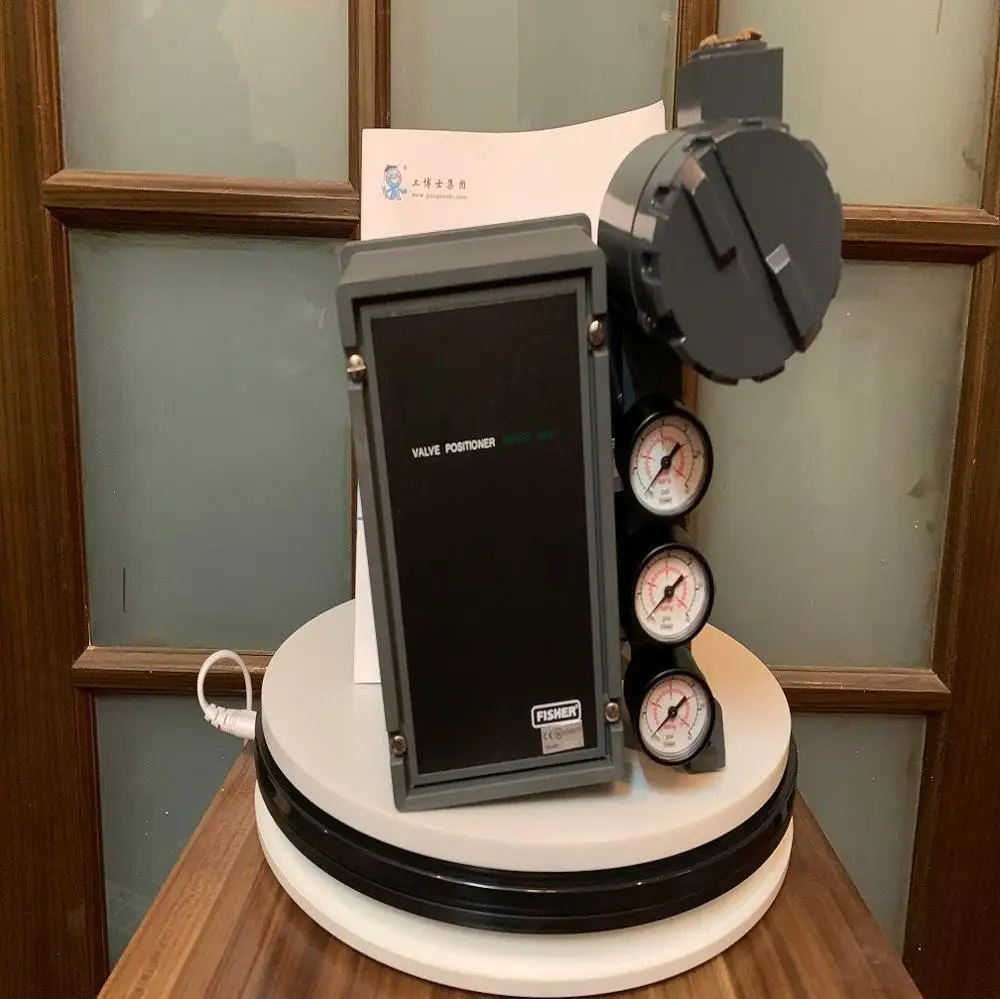

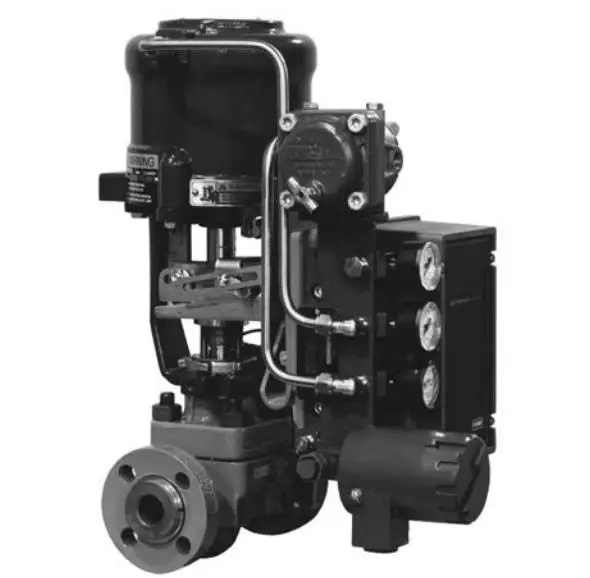

Fisher 3620J electro-pneumatic, single-acting positioners are used with rotary actuators to accurately position control valves used in throttling applications. These rugged positioners provide a valve position proportional to a pneumatic input signal and mounts integrally to the actuator housing.
Specifications
Pressure Range
145psig
Certifications
PED, CUTR, ATEX
Inlet Pressure Rating
210 psi (1.5 MPa, 15 bar) maximum
Operating Temperature
Standard/High Temperature
Communication Protocol
FOUNDATION Fieldbus
Application
Gas& Oil industry
Special features

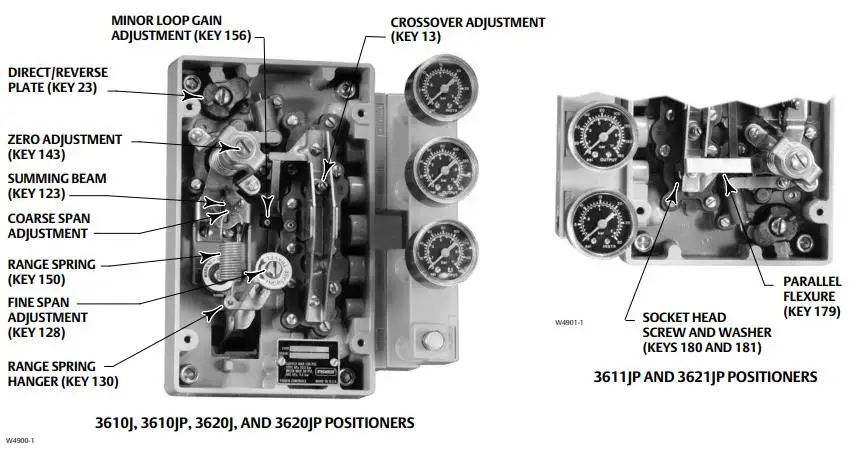

The Fisher 3600 series of positioners include the models listed below. The following descriptions provide specific information on the different positioner constructions. If the type number is not known, refer to the nameplate on the positioner. For the nameplate location, refer to key 157, figure 25. 3610J: A single‐acting pneumatic rotary valve positioner for use with Fisher 1051, 1052, and 2052 actuators. 3610JP: A double‐acting pneumatic rotary valve positioner for use with Fisher 1061 and 1069 actuators. 3611JP: A double‐acting pneumatic sliding stem valve positioner for use with 585, 585R, 585C, and 585CR actuators. 3620J: A single‐acting electro‐pneumatic rotary valve positioner for use with 1051, 1052, and 2052 actuators.
Detailed Images
Packing & Delivery
We can delivery the cargo to transport company within 7 days upon receiving of the cargos from the plant
Our Service
1.Swift delivery For common parts, we can deliver the goods within 3 days
2.Original products All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce Our staffs will keep 24h online and answer your question very quickly.
Xiangjing (Shanghai) Mechanical Electrical Tech Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conservancy and hydropower, thermal power generation and other mechanical and electrical equipment products; Well-known brand fluid control valves; instrumentation; hydraulic pipe fittings; industrial automation and other high-tech enterprises.
