Product Overview
Description
Product Description

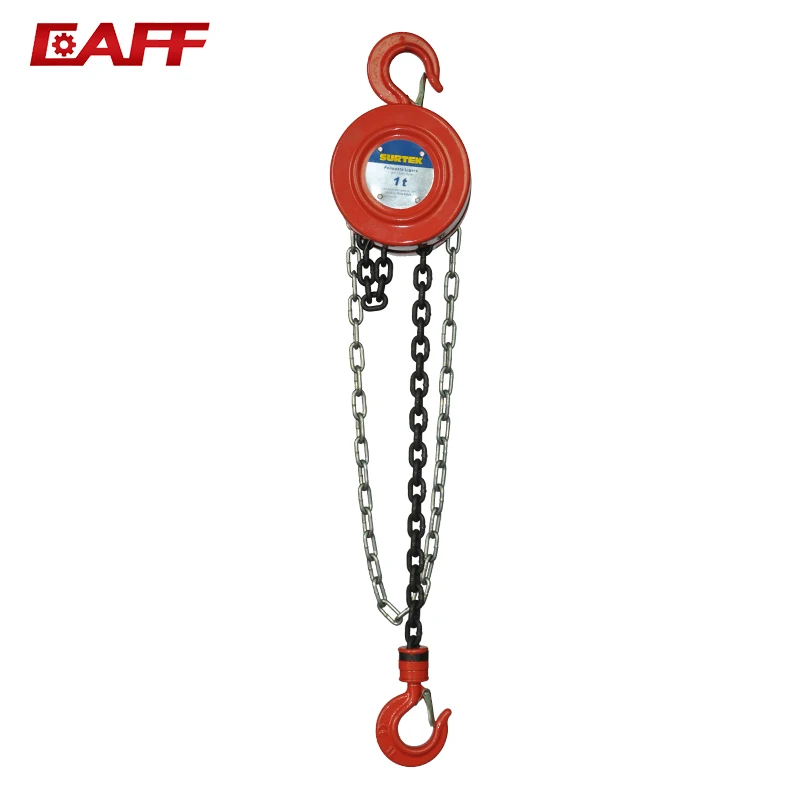

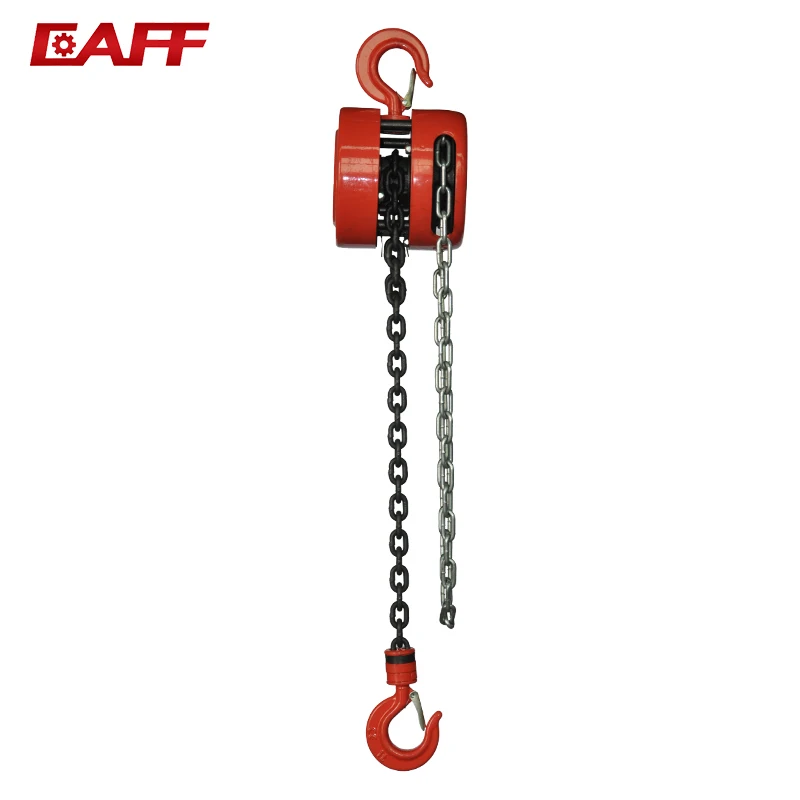

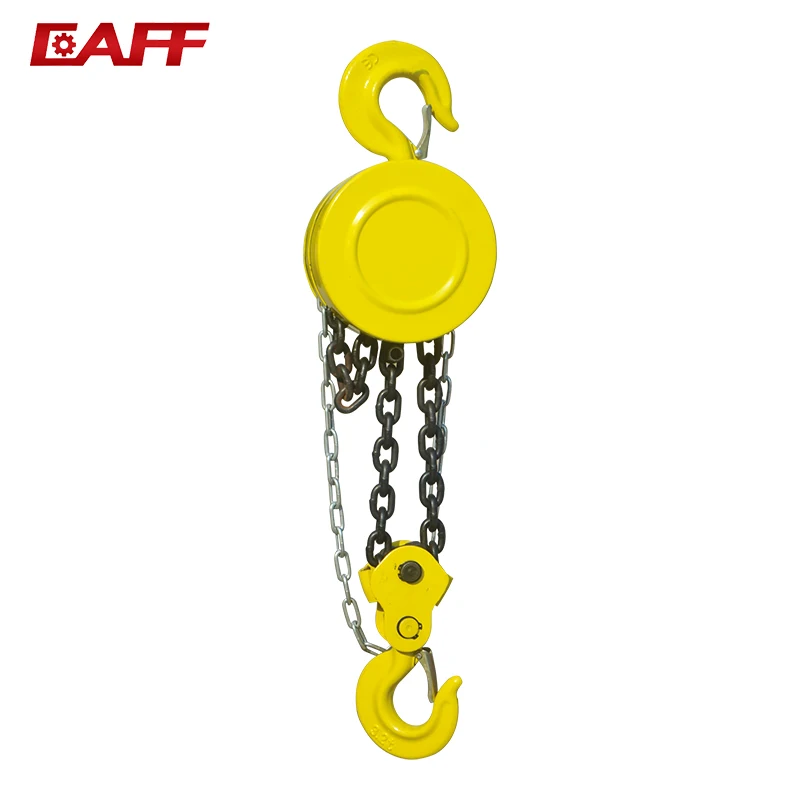

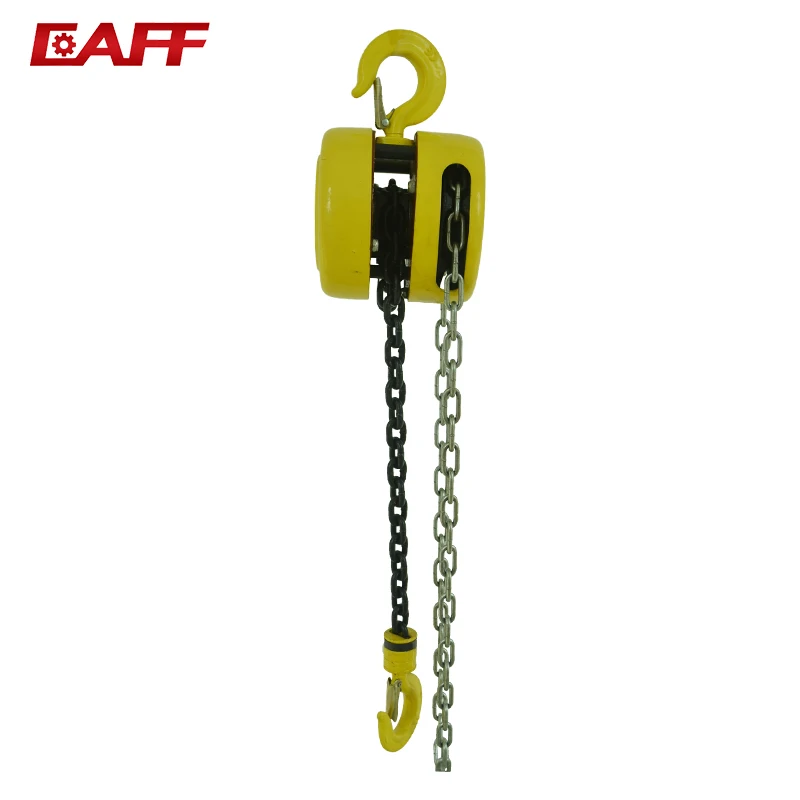

HSZ type chain hoist is widely used manual hoisting machinery which is easy to use and carry.
We manufacturer the products in accordance with national standard,use the symmetry arrayed two-stage gear driven structure ,it is design reasonable ,dainty material,advanced structure,beautiful appearance,small volume,light weight,big component strength,high toughness,safety and durability.The product has been selling well both at home and abroad.It can compete with well known brand all over the world.
Model | Unit | HSZ1.5 |
Capacity | t | 1.5 |
Standard lifting height | m | 3 |
Test load | t | 2.25 |
No.of load chain fall lines | 1 | |
Net weight | kg | 15 |
Dimensions | mm | 28*17*16 |
Gross weight | kg | 20 |
Lifting chain diameter | mm | 1 |
The advantages of our products:
1.Use double reinforcement.
2.Automatic double pawl brake system.
3.Obtain the CE certificate
4.Cross forged and heat treated hooks have
high strength and wear resistance.
high strength and wear resistance.
5.Reasonable design and Advanced structure
6.small,light,Portable and convenient
7.High strengthand high toughness of the main parts
8.Safty in use and nice appearance
9.G80 alloysteel lifting chain and galvanized pull chain as standard configuration.
7.High strengthand high toughness of the main parts
8.Safty in use and nice appearance
9.G80 alloysteel lifting chain and galvanized pull chain as standard configuration.
10.High quality fittings with high safety factor

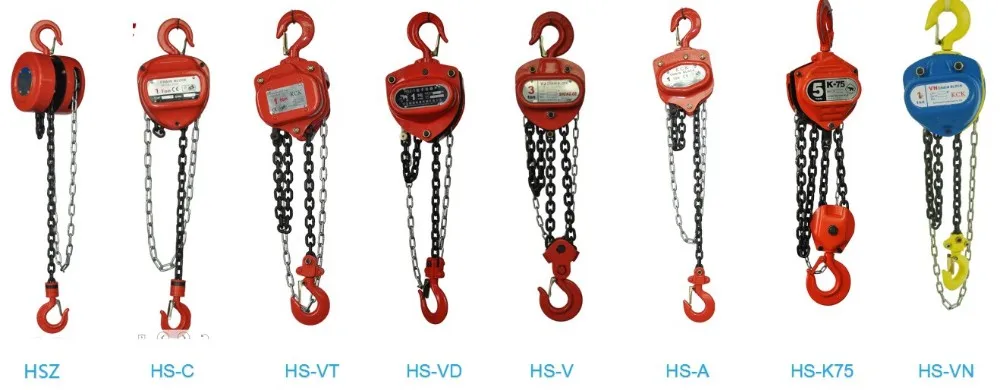

Our chain hoist series
Description of application effect
By pulling the chain and sprocket to rotate, the friction plate ratchet wheel and the brake seat are pressed together to rotate,
and the long tooth axis rotates the plate gear, the short tooth axis and the spline hole gear.In this way, the lifting sprocket on
the spline hole gear drives the lifting chain, thus lifting the weight smoothly.Ratchet friction disc one-way brake, under load
can self-braking, ratchet pawl in the role of spring and ratchet engagement, brake safety work.
and the long tooth axis rotates the plate gear, the short tooth axis and the spline hole gear.In this way, the lifting sprocket on
the spline hole gear drives the lifting chain, thus lifting the weight smoothly.Ratchet friction disc one-way brake, under load
can self-braking, ratchet pawl in the role of spring and ratchet engagement, brake safety work.
As the upgraded fixed pulley, the hand-pulled pulley completely inherits the advantages of the fixed pulley. At the same time, it
adopts the combination of the reverse and reverse brake reducer and the chain pulley block, which is symmetrical and arranged with
the two-stage spur gear rotation structure. It is simple, durable and efficient.
adopts the combination of the reverse and reverse brake reducer and the chain pulley block, which is symmetrical and arranged with
the two-stage spur gear rotation structure. It is simple, durable and efficient.
Size Information
Model | Unit | HSZ0.5 | HSZ1 | HSZ1.5 | HSZ2 | HSZ3 | HSZ5 | HSZ10 | HSZ20 |
Capacity | t | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 |
Standard lifting height | m | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 |
Test load | t | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 22.5 |
NO.of load chain fall lines | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
Diameter of load chain | mm | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 |
Net Weight | kg | 10 | 14 | 15 | 24 | 24 | 36 | 75 | 164 |
Gross weight | kg | 10 | 13 | 20 | 17 | 28 | 45 | 83 | 194 |
Detailed Images
1.Forged Hook
Forged top and bottom hook with the high strength. Bigger hook opening and fit for more requirements. All hooks are made of high quality alloy steel and forged.
2.Gearwheel
New symmetrical gear arrangement, high speed synchronizing. International standard gear steel. More wear-resistant than ordinary
gourds, smoother rotation
gourds, smoother rotation
3.Thick Cover
Thick cover with convex rib process, protect the inside parts effectively.High quality alloy, steel lifting chain, with the accurate transmission and high strength. Brake in double pawl, increase the safety factor in 2 times.The gear is made of the low alloy steel precision machining, and after carburizing heat treatment process, etc then do the final surface treatment.
4.G80 Chain and Hook
1.≤3T Chain Block products are with single chain, it increases the lifting efficiency in 25 times.
2.The special design in body
make the hand pulling force lighter 1/3.
3.The lifting chain is made of high quality alloy steel, and the broken is in 4 times
make the hand pulling force lighter 1/3.
3.The lifting chain is made of high quality alloy steel, and the broken is in 4 times
Packing&Shipping
FOCUS ON LIFTING EQUIPMENT MANUFACTURING FOR20 YEARS ,
STRONG SUPPLY CAPACITYSTRIVE TO CREATE HIGH-QUALITY PRODUCTS,
LET YOU BE FIRM WITH YOUR CHOICES!
After Sales Service
1.We can reply you within 24 hours.
2.We can provide OEM service,and design label for you.
3.We can pack the goods according to
your requirement(carton,wooden case,pallet). 4.We test the quality of all products before delivery.
your requirement(carton,wooden case,pallet). 4.We test the quality of all products before delivery.
5.Fast delivery.
6.Welcome to look througth our website:WWW.CAFFGLOBAL.COM
