·Move the blade up, down, right, left from the Comfort of Your Driver's Seat
·Big interface design, compact structure, with high working efficiency
·Wear-resisting rubber edge, with low friction coefficient and work resistance, featured with ground surface protection, low use-cost and convenient replacement
·Sharing tractor hydraulic system, featured with easy operation, quick mounting and dismounting
·Vertical hydraulic lifting and lowering, convenient operation and with high adaptability
·Horizontal swing angle can be adjusted mechanically or hydraulically, with convenience and reliablity
·Featured with rollover function when encounter obstacles, damage avoidability and automatic self-reset
·Tilted according to surface condition, with a certain adaptable ground-copying function
Techinical Parameters
| Model | For Tractor | TX150 | TX165 | TX180 | TX210 | TX230 | TX260 |
| For Front End Loader | TX150-TZ | TX165-TZ | TX180-TZ | TX210-TZ | TX230-TZ | TX260-TZ | |
| For Front Linkage | TX150-XG | TX165-XG | TX180-XG | TX210-XG | TX230-XG | TX260-XG | |
| Matching Tractor(hp) | 20-35 | 30-50 | 45-70 | 70-90 | 80-100 | 90-130 | |
| Blade Width(Overall width)(mm) | 1500 | 1650 | 1800 | 2100 | 2300 | 2600 | |
| Blade Height(mm) | 660 | 660 | 660 | 700 | 700 | 700 | |
| Cutting Wifth(mm) | 30°Angle | 1300 | 1430 | 1560 | 1820 | 2000 | 2250 |
| 26°Angle | 1350 | 1500 | 1620 | 1890 | 2070 | 2340 | |
| Hydraulic Controlling System | Share Tractor Hydraulic Valves(Standards) | ||||||
| One-way Valve/Mechanical Swing Doble-way Valve/Hydraulic Swing(Option) | |||||||
| Weight(kg) | 180-240 | 190-260 | 220-300 | 300-380 | 330-410 | 350-440 | |
If any information not be included in above sheet, pls kindly click here to know more.



You could click below photos to know more about other products we manufacture:
If any information not be included in above sheet, pls kindly click here to know more.
Various Farm Implements
Front end loader (include loader, 4 in 1 loader, forklift, woof fork, soft hand)
Backhoe, wood chipper and agricultural machinery (include disc harrow, Cultivator, Slasher Mower, Trailer,Plough, Disc plough, Disc harrow, Rotary tiller etc)

-Color
Any color can be acceptable.
-Warranty time and the Spare parts
1.We supply 18 months long warranty time.
2.The Easy-damage parts, we will send you together with the tractor for free.And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3.We will send you the tool box for free
-Payment terms:
1. 30% T/T as deposit ,70% T/T befroe shippment
2. L/C at sight

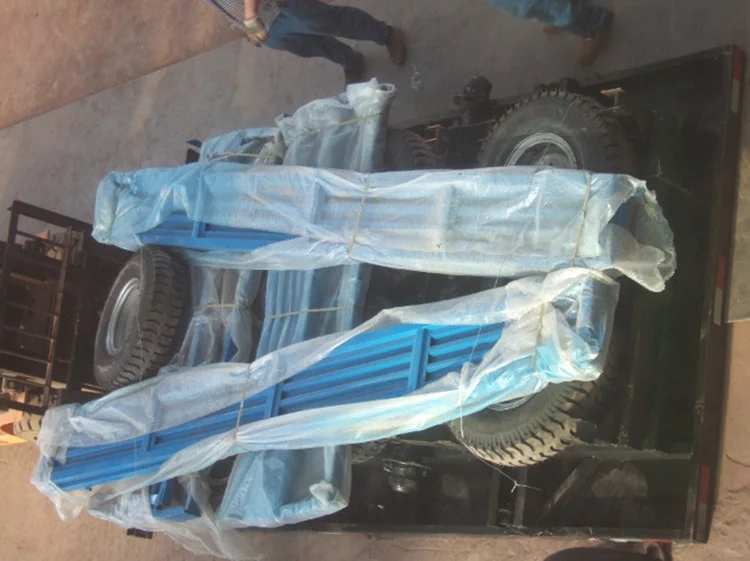

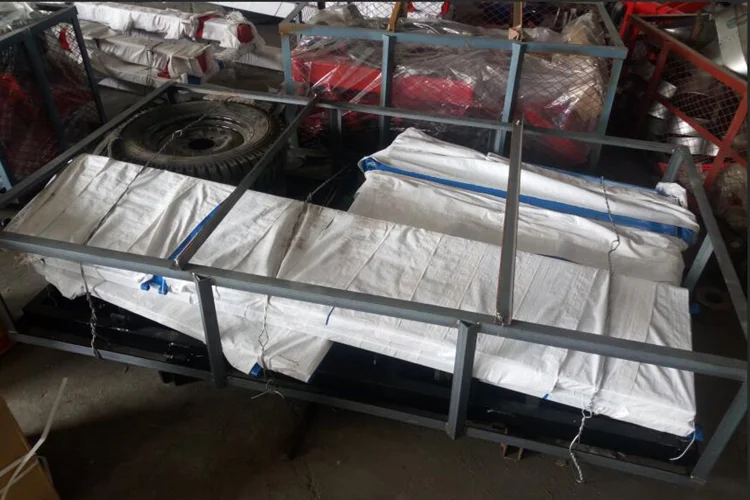

The snow blade will be packed by iron crate frame.


Weifang Rebon Group established in 2007 year, with more than 10 years' rich experience in production and export business.
Our main products are tractor,haverster,farm implements. All of our goods full passed ISO9001 International Quality Certification system and China 3C Quality system.
We are a professtional manufacturer of parts, set design,development,manufacturing as a professtional manufacture. We focus on a series of new styles, a wide range of diversity,resonable price and on-time delivery.

WHY Choose Rebon?
(1) 11 years Agriculture Machines Manufacturing and export Experiences.
(2) Quick and Safe Delivery.
(3) Experienced Service Team and Technology support.
(4) Provide OEM and ODM Services.
(5) Full range products for choice and one-stop purchase.
(6) Competitive Price Attractive designed, good performance High Good Quality.
