Product Overview
Description
Bagging Filling Scale, Bagging Machine Weighing Controller, Packaging Controller Manufacturer BST106-M10(BH)
Main Features:
² Suitable for Increment Ration Packing Scale with optional Single-hopper-weighing Mode, Single-bag-weighing Mode, Double-hopper-weighing with one bag-clamping Mode, Double-hopper-weighing with two bag-clampings Mode and Double-bag-weighing Mode.
² EMC design with high anti-jamming capability, suitable for industrial environment.
² Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.

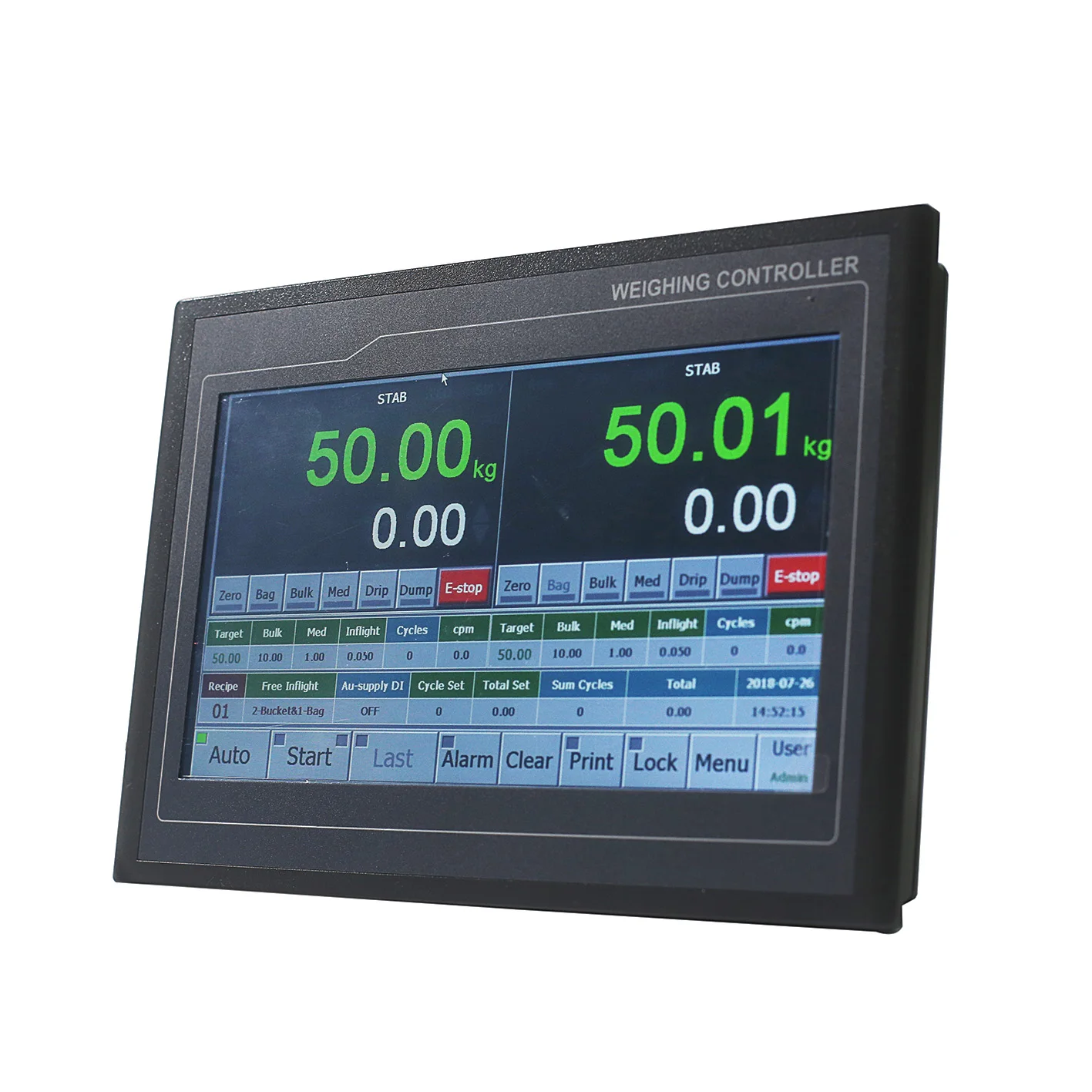

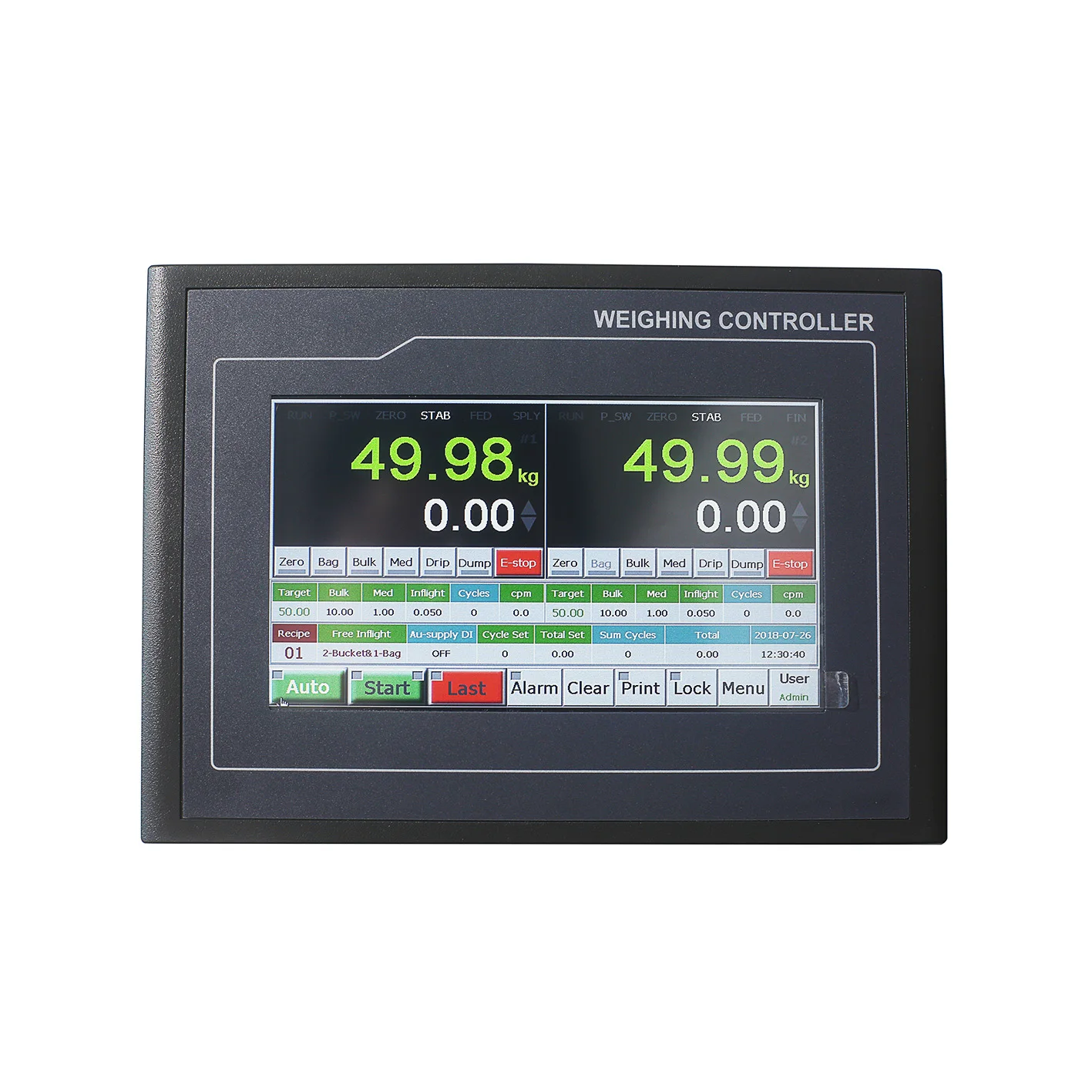

² 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
² Loadcell Interface
l 2 Loadcell ports. Max. Connection Quantity: 2×8 Loadcells (350Ω).
l 24-bit High-precision and high-speed ∑-A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.
l Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
² I/O Interface
l 9 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].
l Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
l 2 Definable analog signal AO[0~10V] for weight signal output or ‘High/Medium/Low Speed Feed’ control.
² Digital Communication Interface
l COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
l COM[RS232] for connecting RS232 Serial Printer.
l USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.

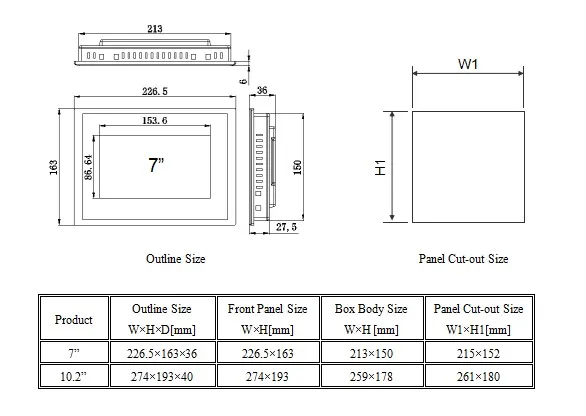

Outline Size

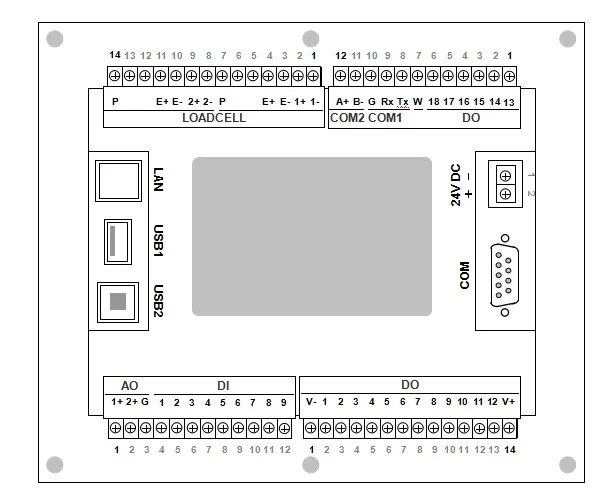

Terminal Diagram
System Diagram for APP1.3 Double-hopper-weighing with two Bag-clampings Mode
Delivery
Bagging Filling Scale, Bagging Machine Weighing Controller, Packaging Controller Manufacturer BST106-M10(BH)
