Low price monochrome supertwist stn 16x2 character lcd module
- Category: Character Display >>>
- Supplier: Changsha Sunman Electronics Co. Ltd.
Share on (62388139694):
Product Overview
Description
16x2 1602 hd44780 digit negative character lcd display module white on blue
Product Picture
Product Description
Applicaion | All kinds of meters to display |
| Interface | Parallel interface |
| Controller | Hd44780 |
| View direction | 6H |
| OEM/ODM | Accecpted |
| System design | Lcd module related system software and hardware design accepted |
Warranty | 12 moths free, payed warranty lifttime |
Packaging | One module in one bag, bags in foam box prorected, foam boxes in carton |
| carton size | 41.5x36x50cm |
| Sample lead time | 3-7 working days |
| Customize lead time | 15-30 working days |
| Production Lead time | 7 days for available designs,Customized: 35~40 days |
| Cetification | ISO,SGS |

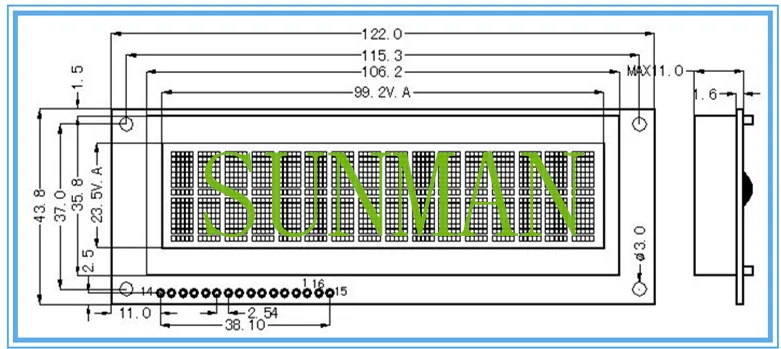

Mechanical Demesion
Pin Assignment
| Pin NO. | Pin Name | Pin Description |
| 1 | VSS | Negative voltage power supply,ground |
| 2 | VDD | Positive voltage power supply |
| 3 | V0 | Lcd driving voltage input |
| 4 | RS | Register Select-LOW=Instruction,HIGH=Data |
| 5 | R/W | Read/Write,LOW=MPU to LCM,HIGH=LCM to MPU |
| 6 | E | Enable,R/W=LOW:Data are talking over at falling edge R/W=HIGH:Data can be read at E=1 |
| 7 to 14 | DB0 to DB7 | Data Bus-Software Selectable 4 or 8 bit mode |
| 15 | BLA | Positive backlight power supply |
| 16 | BLK | Negative backlight power supply |
Product show
Product Application
Product
Our Advantages
INSPECTION PROCESS
Product Features
CUSTOMIZATION
| Standard Set | |
| Display | segement,graphic,character monochrome lcd module&TFT accectpted |
| Display mode | TN,STN,FSTN,HTN,transflective,reflective,transmissive,yellow green,blue,gray optional |
| Display type | COB,COG,TAB |
| Lcd thikness(cm) | 0.11,0.14 |
| backlight thickness(cm) | 2.8,3.0,3.3 |
| Interface | Parallel(8bit,4bit,16 bit,80mode,68mode),serial(i2c,spi,uart,usb) |
| Controller | Optional |
| IC | Die or packaged optional |
| Hardware or software | All accepted |
| Information given | All idear,sample,photo,drawing,use manual and so on are OK |
Contact us for free designing!
Related Items
Package
PACKING AND SHIPPING
| Packaging | Plastic bag +foam+cartom |
| Carton Size | 41.5cm*36.0cm*50cm or customized,100-300PCS/ carton |
| Gross weight | 15.0 -20KGS |
| MOQ | 100 PCS for Low price monochrome supertwist stn 16x2 character lcd module |
| Specitional packaging | negotiated |
| Shipping time | In 5 days to all area by DHL usually |
