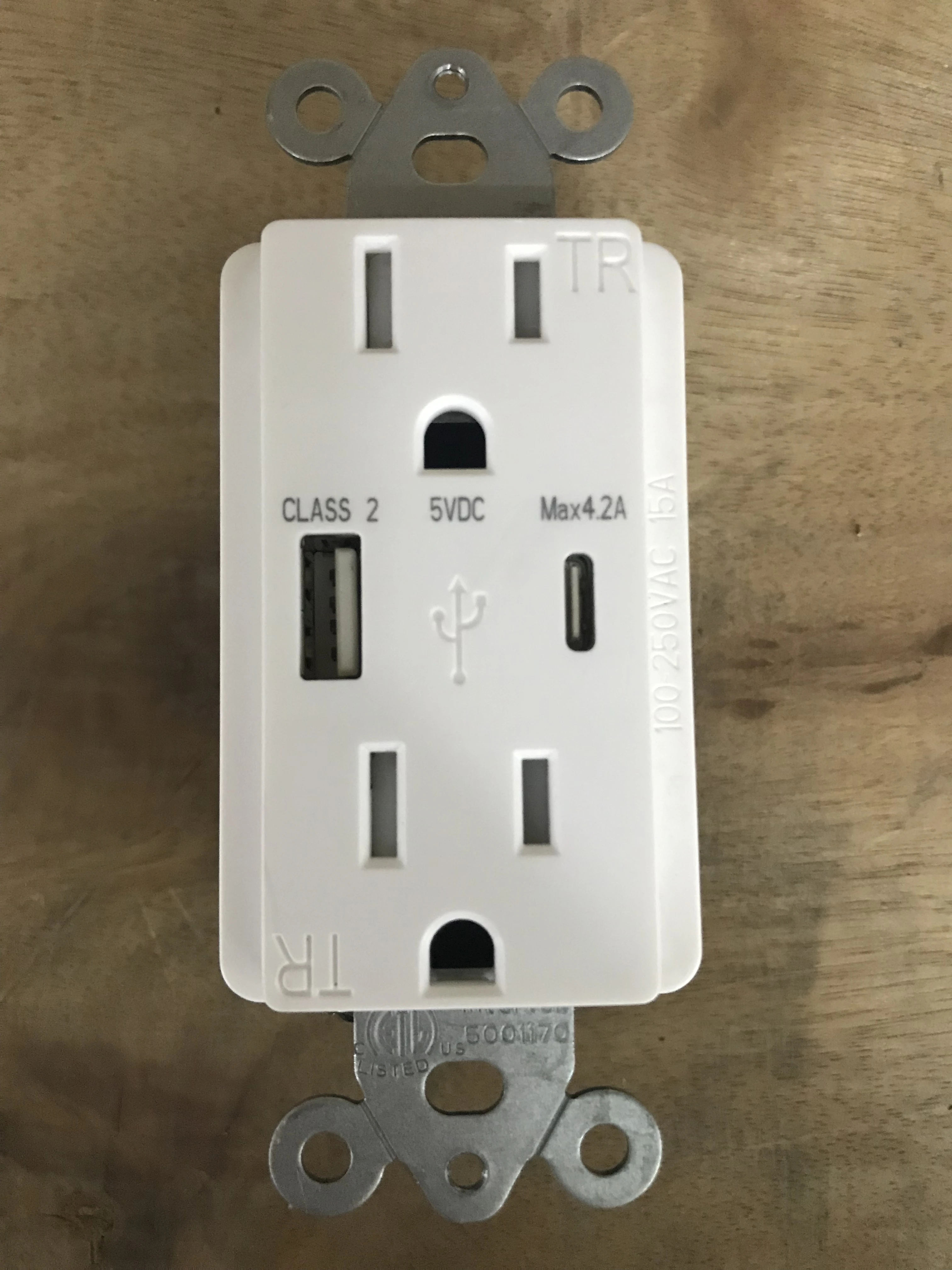

ETL Listed American Standard 125V 15A Type C USB Outlet
WIDE VOLTAGE
we can design to support 110V to 240V which can be used widely all South America and North America as well as other American standard areas.
INNER COPPER SHEET
0.8mm phosphor copper to keep the terminal low temperature and good conductivity.
Real materials ensure your safety.
we can design to support 110V to 240V which can be used widely all South America and North America as well as other American standard areas.
INNER COPPER SHEET
0.8mm phosphor copper to keep the terminal low temperature and good conductivity.
Real materials ensure your safety.
TAMPER RESISTANT
Complies with NEC ® requirement, all 15A and 20A receptacles installed in dwelling units should be with tamper-resistant. Receptacles with Shutter mechanism block access to the contacts unless the plug is fully inserted.
Complies with NEC ® requirement, all 15A and 20A receptacles installed in dwelling units should be with tamper-resistant. Receptacles with Shutter mechanism block access to the contacts unless the plug is fully inserted.
FAST CHARGING
One USB A port and one USB C port Max support 5V 4.2A.
One USB A port and one USB C port Max support 5V 4.2A.
Amperage | 15 Amp | Voltage | 110V（220V can do if need） |
Pole | 2 | Wire | 3 |
Grounding | General Grounded | Dielectric Voltage | Withstands 2000V per UL498 |
USB A+ USB C | 4.2A | Current Interrupting | 2KA |
Flammability | Rated V-2 per UL498 | Operating Temperature | -35°C to +66°C |
Face Material | 100% pure PC | Terminal Screws | Plated Steel |
Terminal Clamp | Brass | Line Contacts | Brass |
Grounding Screws | Plated steel | Mounting Strap Material | Galvanized Steel |
NEMA | WD-1 & WD-6 | Applicable Standards | UL 498,PSE |
OEM Service
Logo printing: MOQ500pcs, 1 color logo available for laser engraving or silk screen
Customized box: MOQ1000pcs, need to design the artwork according to our die cutter
Customized box: MOQ1000pcs, need to design the artwork according to our die cutter
Product | Packing size/Unit | Carton Size | Pack Options | Qty/CTN | Weight/CTN | Remark |
USB Outlet | 11.6*7.0*4.0cm | 20*17.3*10.6in 51*44*27cm | 1 pack | 112pcs | 17.9kg/39.5lb | Amazon/Ebay Package |
2 pack | 76pcs | 13.2kg/29.1lb | ||||
4 pack | 72pcs | 12.6kg/27.8lb | ||||
66 | 6 pack | 84pcs | 14.4kg/31.7lb | |||
10 pack | 100pcs | 17kg/37.5lb | ||||
15.4*11*10.2in 39*28*26cm | 1pack | 50pcs | 8.7kg/19.2lb | Standard package |
Recommend Products
ODM & OEM Case
We are ready for OEM & ODM service for you. Once you have an idea on electrical products, come to us, we'll help you make it come true.We have do it for some customers as Below:
About Us
1) Hooanke established : 2009
2) Location: Factory, R&D Center and main marketing in Pingshan Shenzhen ,1 agency in US
3) Main products: GFCI Outlet ;USB Outlet; Dimmer Switch ; Smart Socket & switches.
4) Stuff: 80
2) Location: Factory, R&D Center and main marketing in Pingshan Shenzhen ,1 agency in US
3) Main products: GFCI Outlet ;USB Outlet; Dimmer Switch ; Smart Socket & switches.
4) Stuff: 80
5)Factory Area:1600 sq.m.
6) Production capacity: 6000pcs /day
7) Serviced customers : 186 international brands+73 famous brands in domestic
8) Socket&switch one-stop purchase solution
6) Production capacity: 6000pcs /day
7) Serviced customers : 186 international brands+73 famous brands in domestic
8) Socket&switch one-stop purchase solution
Visit Us
Better known than seen
Customers visit us for projects, reselling, wholesale etc. You are warmly welcomed to visit us any time.
FAQ
Q：How dose the safe charging work? Dose it reduce output size or turn off when the phone reaches 100%?
A：The USB outlet is equipped with smart chip,Which reads the power needs of devices connected to the USB ports to deliver optimal power.Protect the devices from overcharging and overheating.
Q：Is it 4.2 amps total (which would be 2.1 per side), or is it 4.2 amps per side?
A:4.2A in total.
If you use one port, 4.2A Max
If you use 2 ports, the output is not average, it will depends on your devices required power.
Q: Does this actually work with apple or Samsung products for fast charging?
A：This product is large current output fast charging type.
It requires the device support fast charging, and the USB cable allowed large current power go through. We have PD3.0(5V 3A/9V2A/12V 1.5A) fast charging but not this type.
Q：Do these come with a white wall plate?
A：Yes, usb outlets receptacles with white wall plate. We have with screws and without screws for choosing.
A：The USB outlet is equipped with smart chip,Which reads the power needs of devices connected to the USB ports to deliver optimal power.Protect the devices from overcharging and overheating.
Q：Is it 4.2 amps total (which would be 2.1 per side), or is it 4.2 amps per side?
A:4.2A in total.
If you use one port, 4.2A Max
If you use 2 ports, the output is not average, it will depends on your devices required power.
Q: Does this actually work with apple or Samsung products for fast charging?
A：This product is large current output fast charging type.
It requires the device support fast charging, and the USB cable allowed large current power go through. We have PD3.0(5V 3A/9V2A/12V 1.5A) fast charging but not this type.
Q：Do these come with a white wall plate?
A：Yes, usb outlets receptacles with white wall plate. We have with screws and without screws for choosing.
We have our own facory and stable partners,provide OEM & ODM service in Shenzhen,China. Your are very welcomed to visit our factory when you come to China.
Q: What's your MOQ?
A: For the conventional products,Small order and sample accepted.
If you need customized service, we need evaluate and tell the cost and MOQ.
Q. What is the payment term?
A: Usually T/T 30% as deposit, and 70% before delivery. More payment terms can be negotiated based on the cooperation.
Q: What is your production capacity?
We can do 80K per month.We always ship the products on time.
