120kw high frequency sheet pile vibro hammer low price vibro hammer pile driver
120kw high frequency sheet pile vibro hammer low price vibro hammer pile driver
120kw high frequency sheet pile vibro hammer low price vibro hammer pile driver
120kw high frequency sheet pile vibro hammer low price vibro hammer pile driver
120kw high frequency sheet pile vibro hammer low price vibro hammer pile driver
120kw high frequency sheet pile vibro hammer low price vibro hammer pile driver
120kw high frequency sheet pile vibro hammer low price vibro hammer pile driver

120kw high frequency sheet pile vibro hammer low price vibro hammer pile driver

Share on (62388172816):


Price:$54,800.00

Quantity:


Product Overview

Description



Product Description


Product Application

1.It is a hammer with higher effective, widely applied to the work including piling with concrete, piling with broken stones, piling with lime, piling with sand bags, plastic sheet water discharging piling.
2. Assembled with our hydraulic clamp, it can extract steel piles and concrete piles, it is applicable for most regions in our own country. It is a good equipment for the foundations in building, road, highways, railways, airport, bridges, harbors and docks.





motor power
kw
120
frequency
r/min
1000
eccentric moment
Nm
700
centrifugal force
KN
786
amplitude
mm
12.2
Max.Extraction force
KN
400
dimension H
m
2.84
dimension L
m
1.72
dimension W
m
1.4
total weight
kg
7596
wire cable
mm²
70
clamp
sing/double
diameter of the pile
600-2000mm
generator capacity
kw
350
Min.crane capacity
t
70

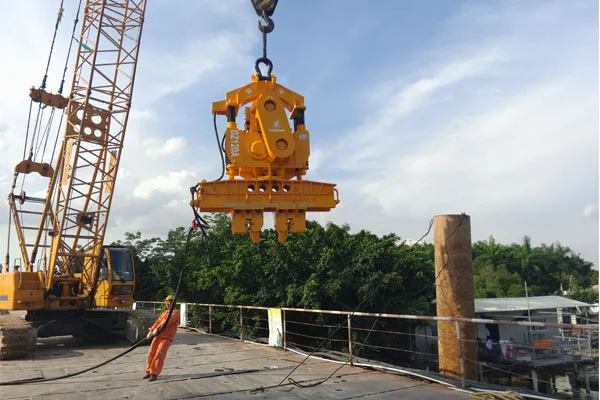

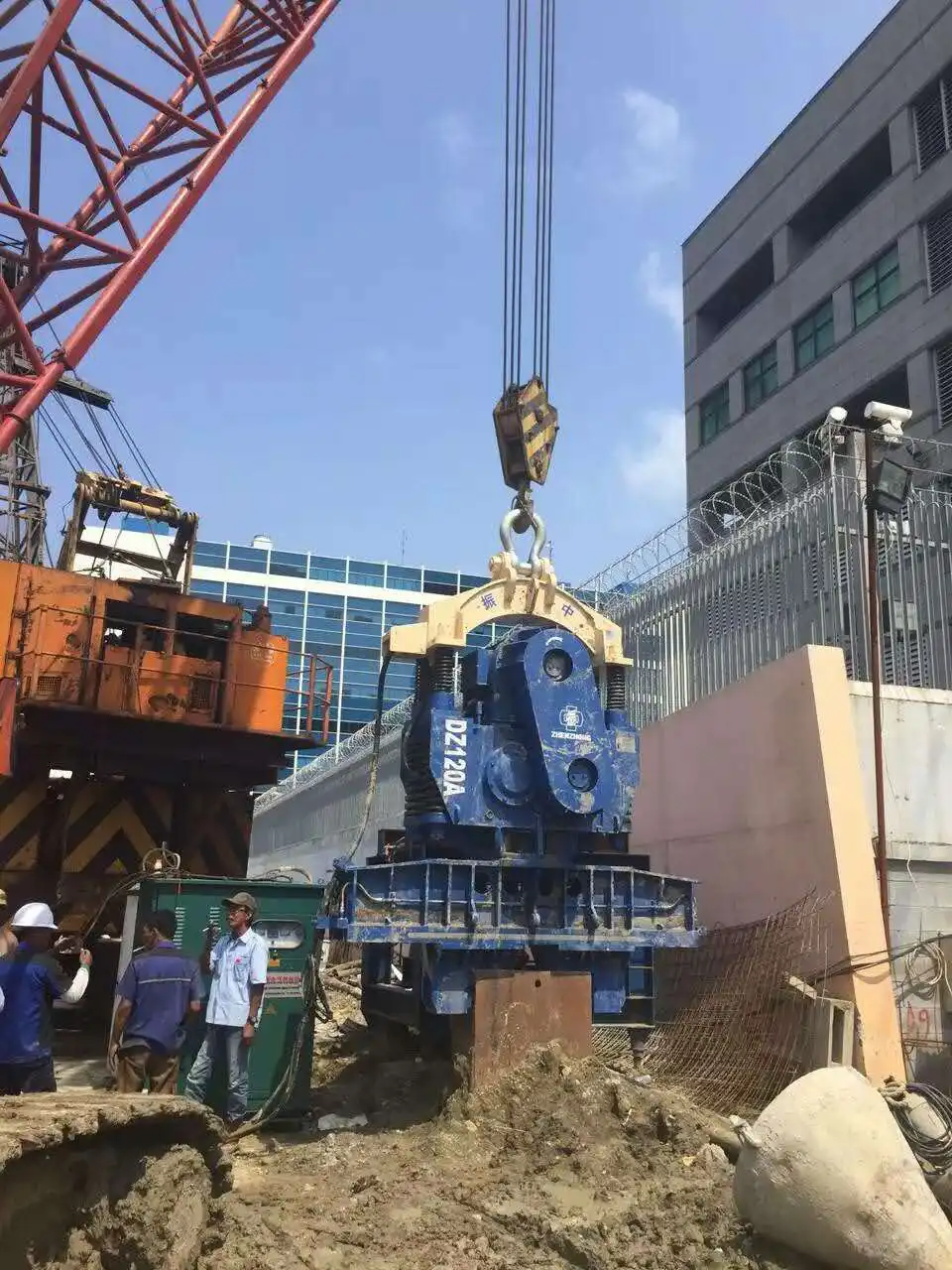

WORKING CASE




Certifications




Detailed Images

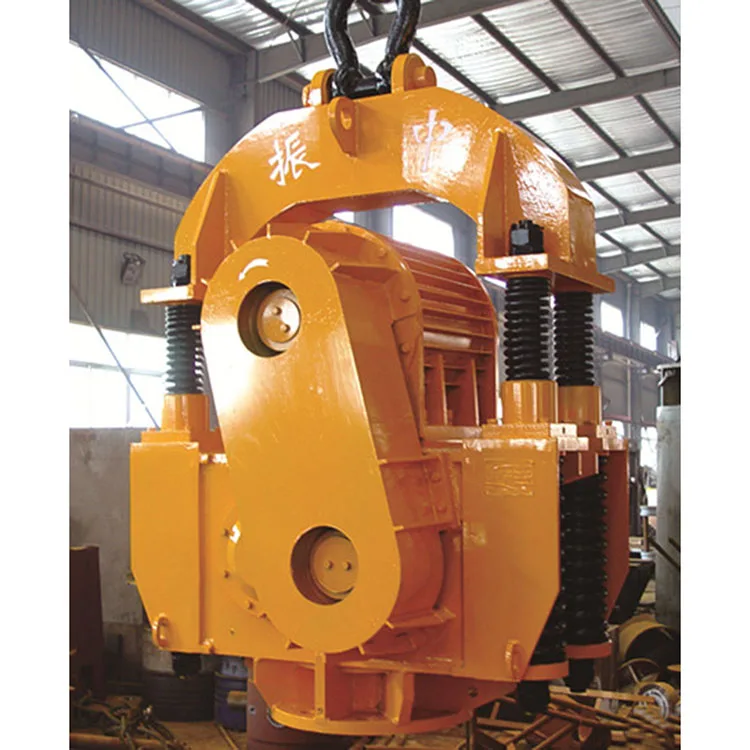

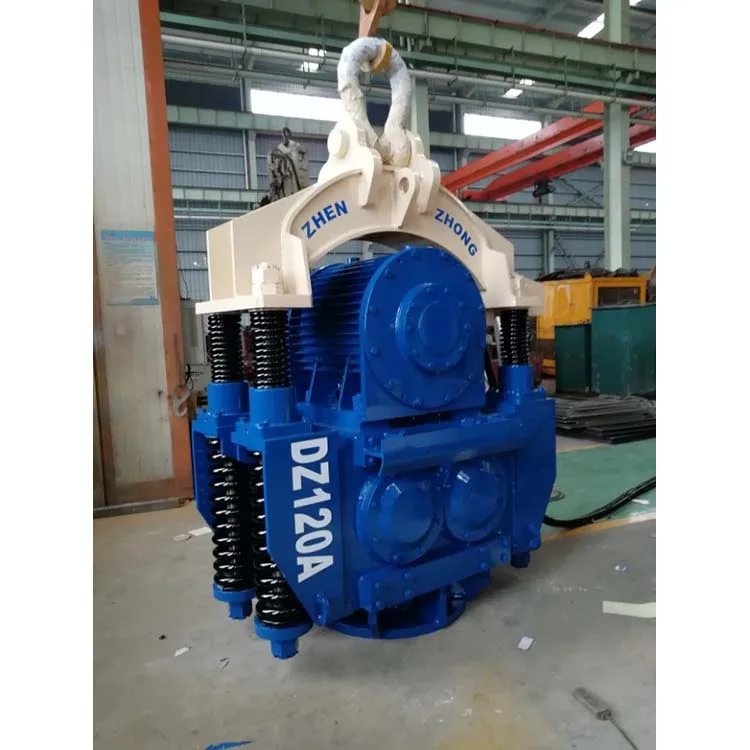

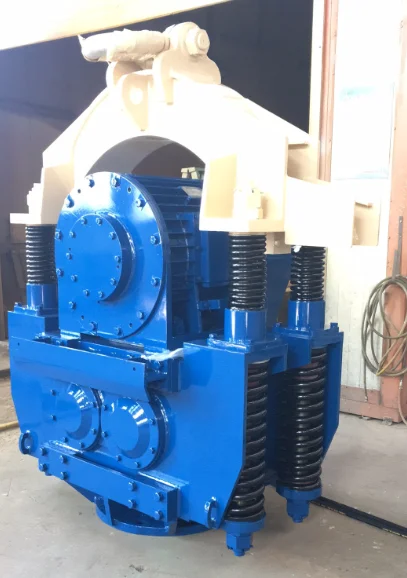

VIBRO HAMMER


Brand: ZHENZHONG


The vibro hammer are characterized by high acceleration of vibration, high vibration frequency, strong capability in penetrating the ground and outstanding performance in driving piles into the ground.

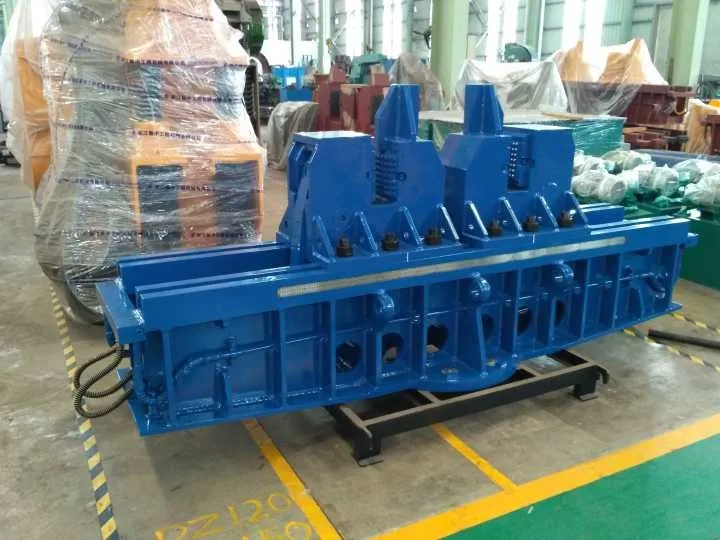

SINGLE CLAMP


Brand: ZHENZHONG

The vibro hammer can match with the single clamp or the double clamp.

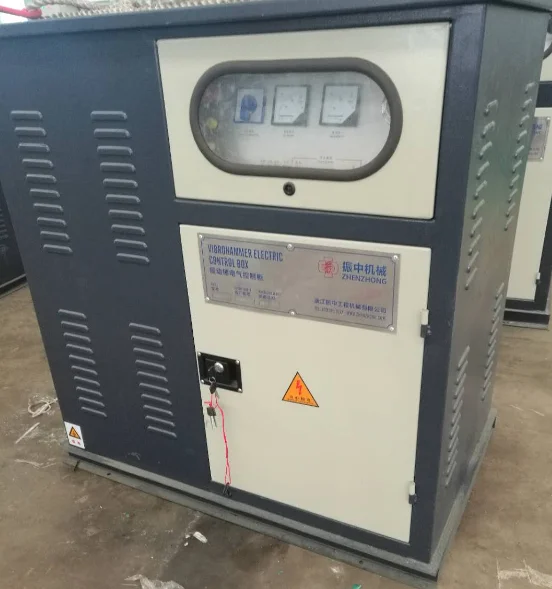

CONTROL BOX WITH INVERTER


Brand: ZHENZHONG
Control box with inverter can adjust the frequency of the vibro hammer and can protect the vibro hammer.



Our Service


Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.



Packing & Delivery


Packaging
Size
11.69m³
Weight
11150kg



Packaging Details
The normal package is iron pallets.
The vibro hammer dimension is 2840×1720×1400mm, the weight is 7400kg.
The double clamp dimension is 3050×800×1270mm.the weight is 2900kg.
The control box dimension is 1300×860×1570mm,the weight is 900kg.



Related Products


Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate



FAQ

Q. Can the price be discounted?
A. Products due to various configuration issues such as accessories, you can bargain, welcome to inquire
Q. Where are the products more advantageous?
A. Customer can choose the model they need, or they provide the pile dimension and ground condition report for us, we can
recommend the suitable product to them.
Q. Why choose you?
A. our company are specialized on the pile driver for 37 years, we have a lot of experience on it. So if you have technical
problems and difficulties on choosing the suitable machine, please find us.
Q. Can you customize?
A. we can do the OEM.
Q. Does the product have after sales service?
A. More services we can provided:
1, Great quality with reasonable price.
2,OEM Support.
3, After-sales Service Overseas.
