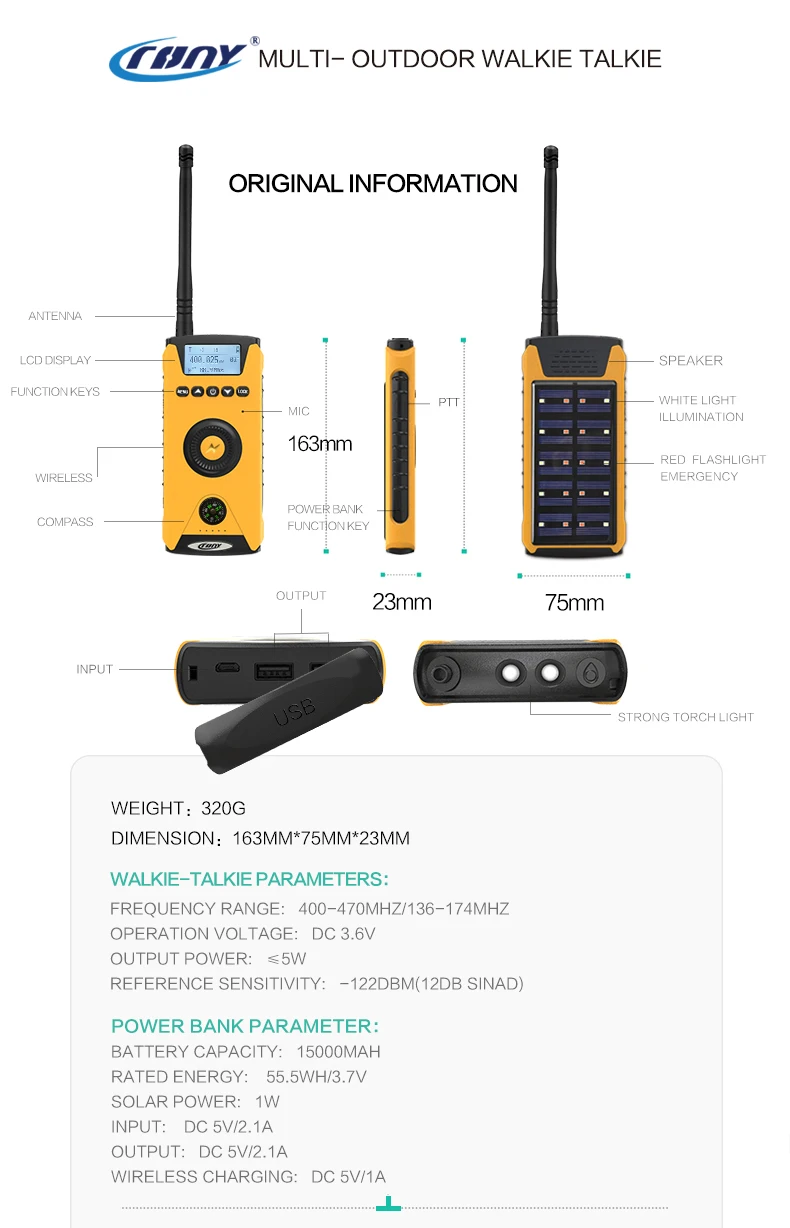

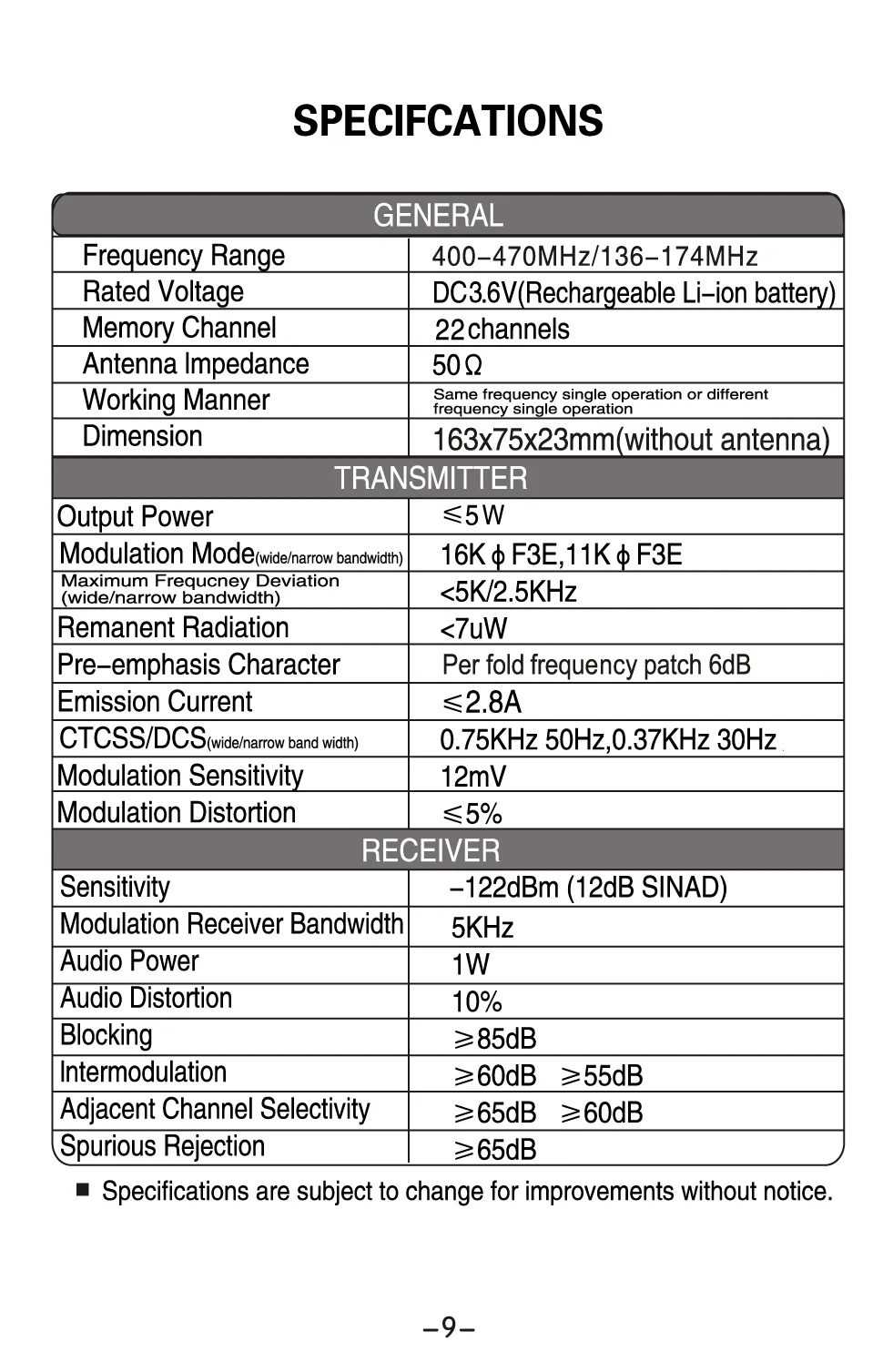

| SPECIFCATIONS | |
| GENERAL | |
| Fequency Range | 400-470MHz/136-174MHz |
| Rated Voltage | DC3.6V(Rechargeable Li-ion battery) |
| Memory Channel | 22channels |
| Antenna Impedance | 50Ω |
| Working Manner | Same frequency single operation or different frequency single operation |

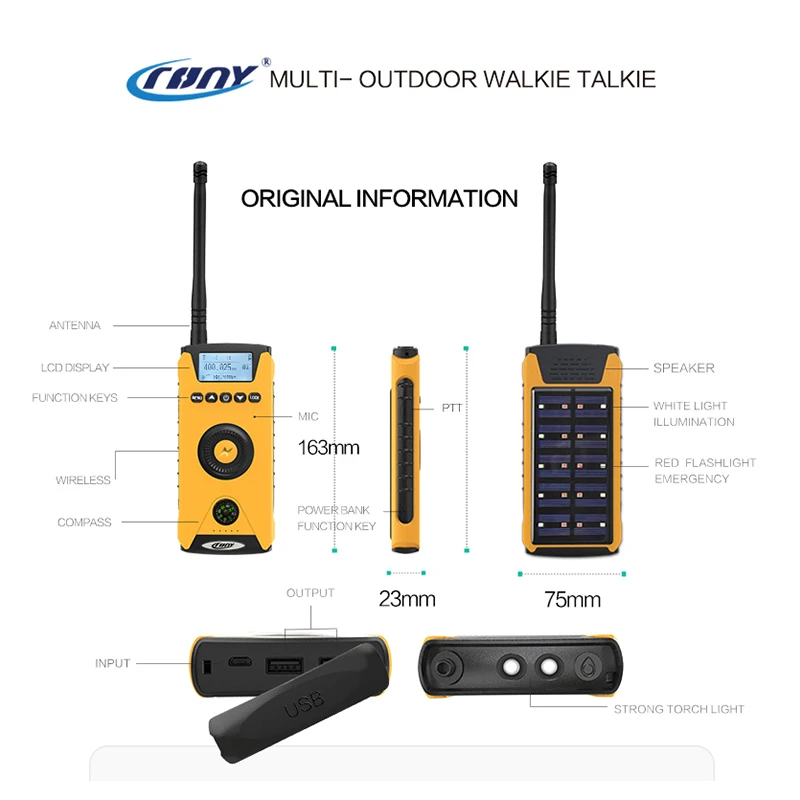

| Dimension | 163x75x23mm(without antenna) |
| TRANSMITTER | |
| Output Power | ≤5W |
| Modulation Mode (wide/narrow band width) | 16K Φ F3E, 11K Φ F3E |
| Maximum Frequency Deviation(wide/narrow band width) | <5K/2. 5KHZ |
| Remanent Radiation | <7uW |
| Pre-emphasis Character | Per fold frequency patch 6dB |
| Emission Current | ≤2.8A |

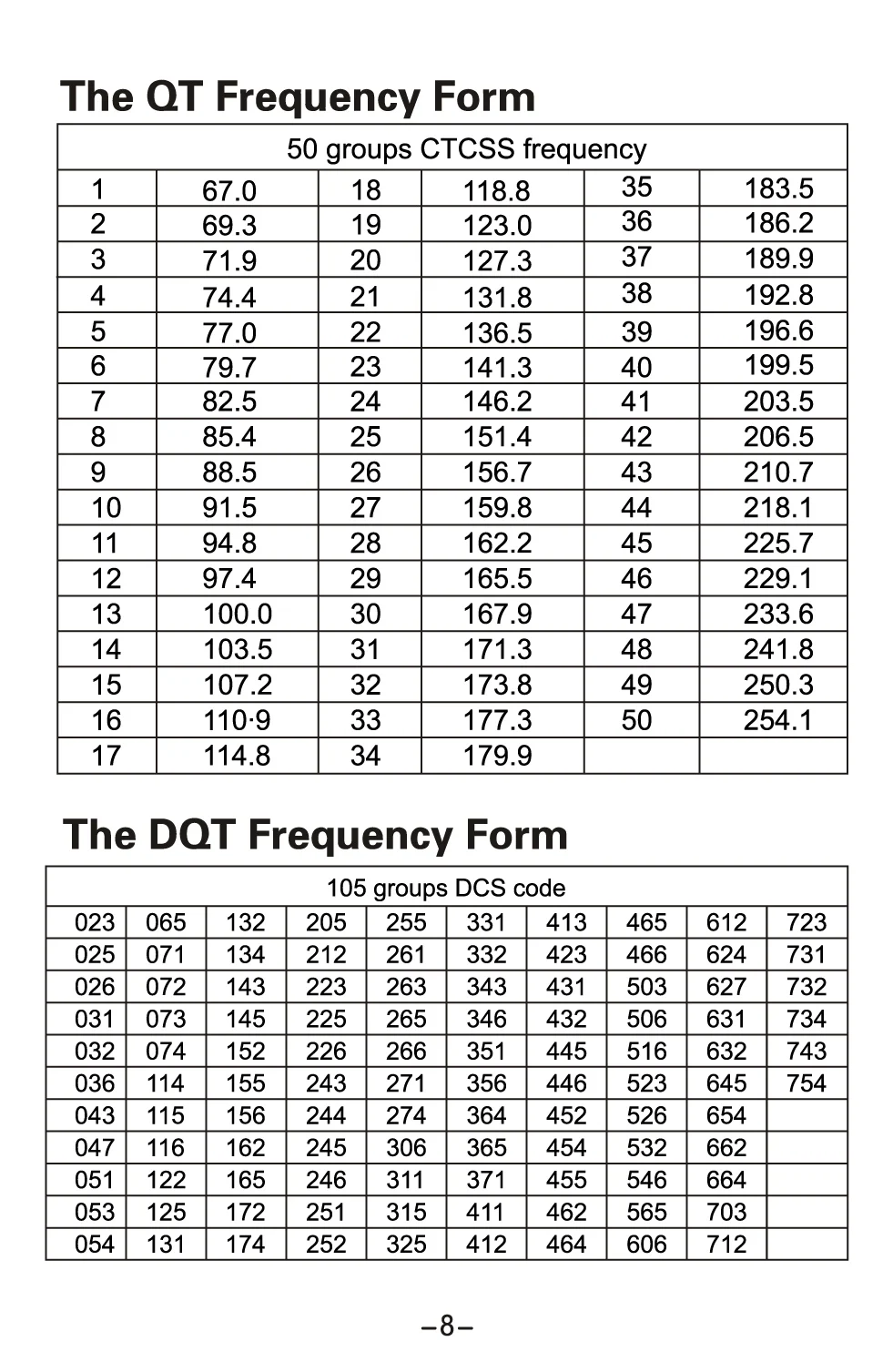

| CTCSS/DCS(wide/narrow band width) | 0.75KHz 50Hz, 0.37KHZ 30HZ |
| Modulation Sensitivity | 12mV |
| Modulation Distortion | ≤5% |
| RECEIVER | |
| Sensitivity | -122dBm(12dB SINAD) |
| Modulation Receiver Bandwidth | 5KHz |
| Audio Power | 1W |
| Audio Distortion | 10% |
| Blocking | ≥85dB |
| Intermodulation | ≥60dB ≥55dB |
| Adjacent Channel Selectivity | ≥65dB ≥60dB |
| Spurious Rejection | ≥65dB |
| Specifications are subject to change for improvements without notice. | |

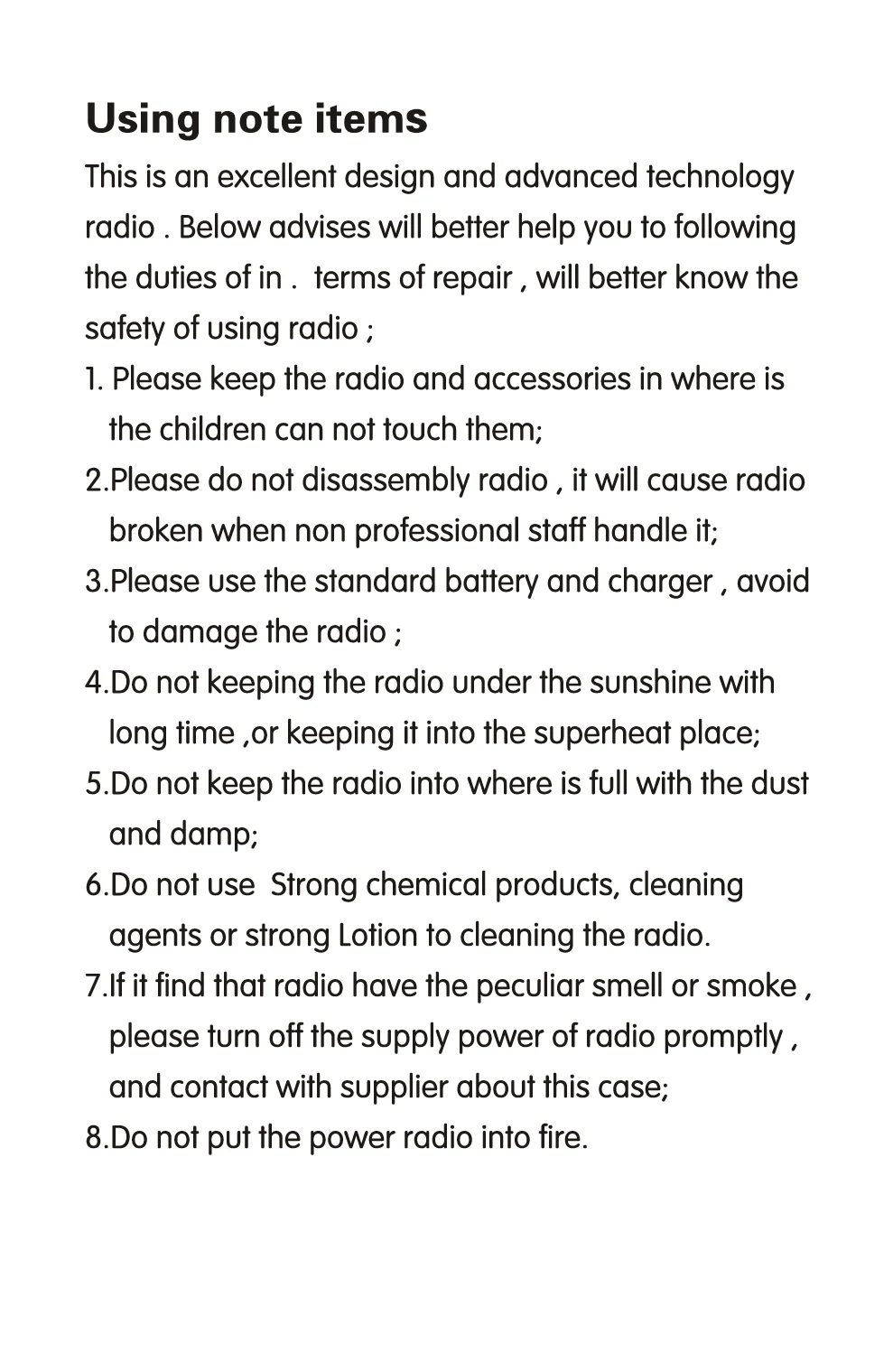

Using note items
This is an excellent design and advanced technology radio.
Below advises will better help you to following the duties of in.terms of repair , will better know the safety of using radio.
1 . Please keep the radio and accessories in where is the children can not touch them;
2 . Please do not disassembly radio , it will cause radiobroken when non professional staff handle it;
3 . Please use the standard battery and charger , avoid to damage the radio;
4 . Do not keeping the radio under the sunshine with long time , or keeping it into the superheat place;
5 . Do not keep the radio into where is full with the dusta nd damp;
6 . Do not use Strong chemical products , cleaning agents or strong Lotion to cleaning the radio;
7 . If it find that radio have the peculiar smell or smoke, please turn off the supply power of radio promptly, and contact with supplier about this case;
8 . Do not put the power radio into fire.
click the buttom and get more details
Fujian Crony Electronics Co.,Ltd,the same as Huian Zhenda Electronics Co.,Ltd,was founded in 1999 in Quanzhou City,Fujian Province of Southeast China,enjoyin an exclusive location of 30,000 square meters.
As an Alibaba 17th years Gold Supplier,our factory is specializing in the research,develop,manufacture,sale and service of various types of walkie talkie,wireless communication equipments and accessories with good quality and competitive price.
Base on the core value:''Integrity,Team-work,Win-win,Innovation,Responsibility'',our factory has achieved a great growth on CRONY brand and OEM business around the world,and obtained several patents and certifications.We are dedicated to provide all our customers with high quality product and excellent service,and sincerely welcome you come to establish a win-win business relationship together.Thanks.
Welcome to contact us!
1.OEM/ODM: OEM/ODM order are welcomed here at your special need.
2. Timely assistance.Any special need or assistance we promise to response at the earliest time, within 30 minutes.
3. Good suggestions to your choice if necessary.
4.Sample is available.
5.Phone service at 24 hours round.
6.Any questions you meet about the products,please feel free to contact with us.

1.How can I place order?
A: You can contact us by email about your order details, or place order on line.
2.How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and L/C and Western Union are the most usual ways we are using. Trade Assurrance Order is welcome, you can pay by the way which you are more convenient.
3.What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr-epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4.Can I visit your factory for OEM/ODM communication products?
A: Yes, you are welcomed to visit our factory and discuss more details as you wish.
5.Can I get your free product samples?
A: Frankly speaking, wer value and respect every worker's hard working and fruit. but to show our sincerity, we will send a few samples for your test. sample fee and express fee will pay from your account. And you will get the repay sample fee after your confirmed order.That means you can get sample free also.
6.How do you ensure on your products's quality?
A: 1)We are factory for walkie talkie and other electronic products for more than 25 years.We manage the material quality from the beginning.And all the materials of our products are environmentally-friendly.
2)We check the goods when they go into next step production procedure .
