Fin Evaporator End Tube Bending Machine
- Category: >>>
- Supplier: BOBO Machine Co. Ltd.
Share on (62388214123):
Product Overview
Description

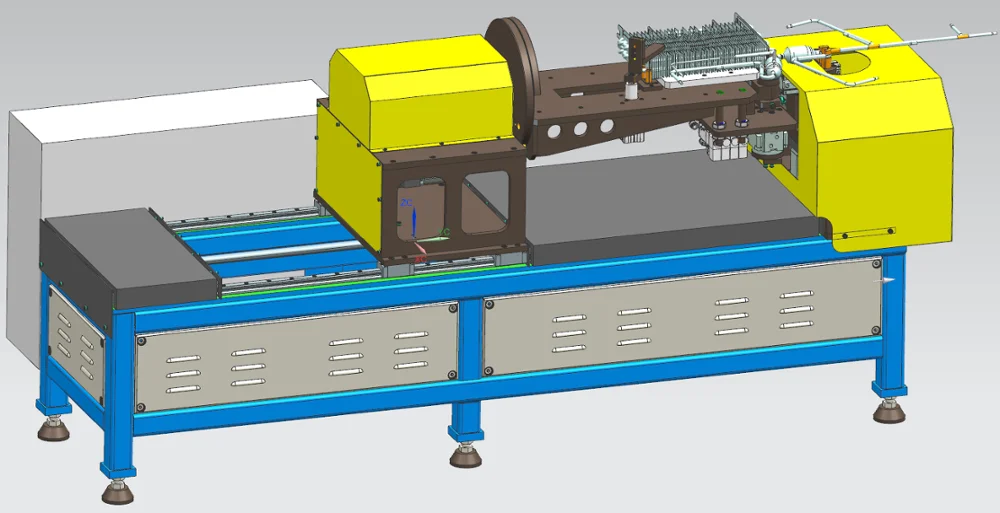

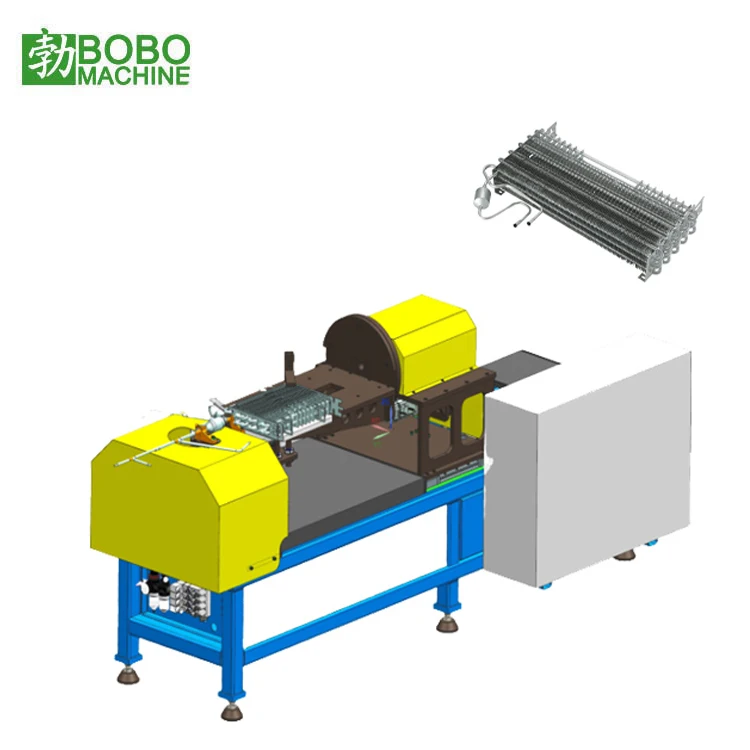

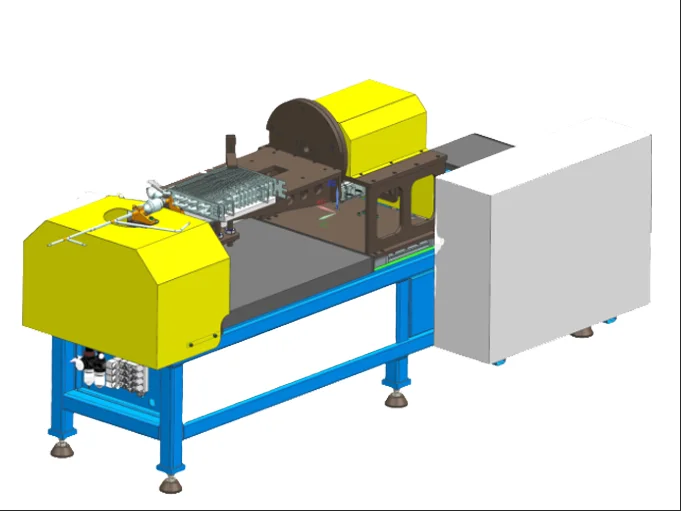

Fin Evaporator End Tube Bending Machine

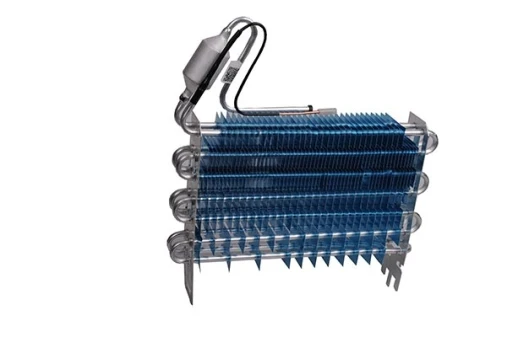

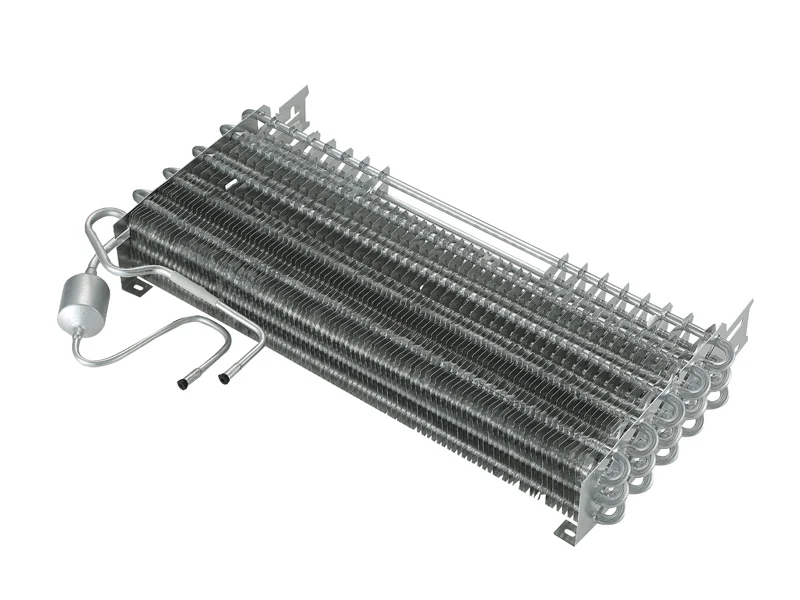

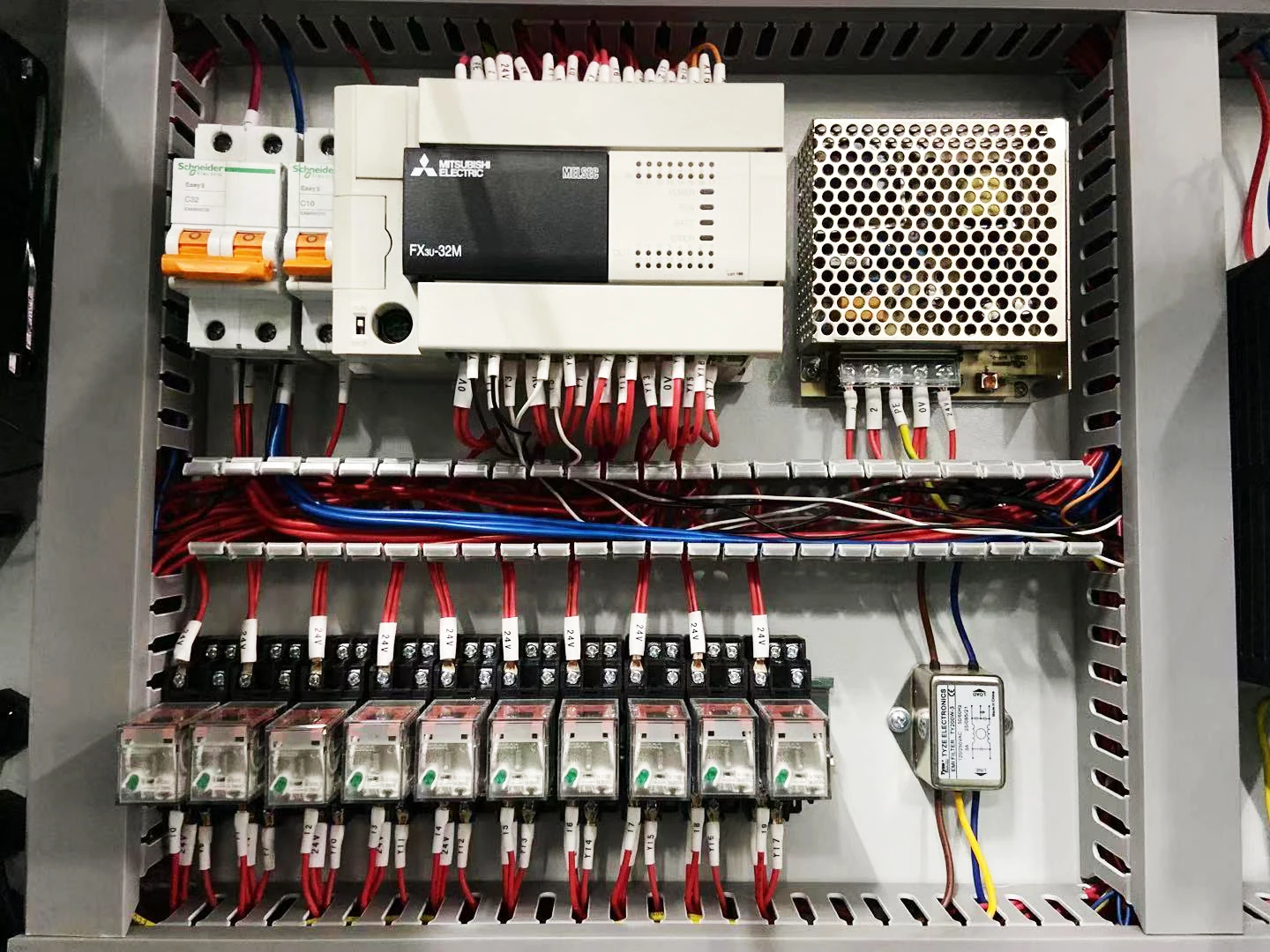

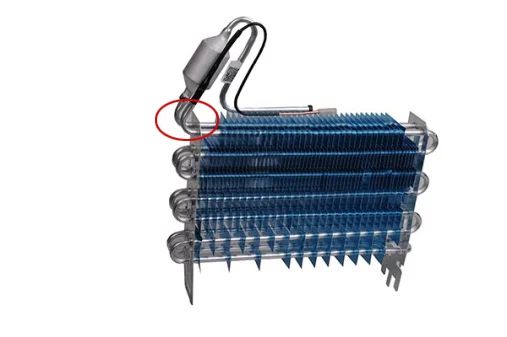

The fin evaporator end tube bending machine is used for aluminum tube bending on the two positions beside filter dryer, to get finished product automatically. The machine includes positioning device, clamping device, flexible bending roller device, worktable moving up and down device , feeding device and worktable rotating device, the main frame and control system.
Features:
1. Special designed bending roller to ensure the good bending profile, also be flexible to reject from tube bend.

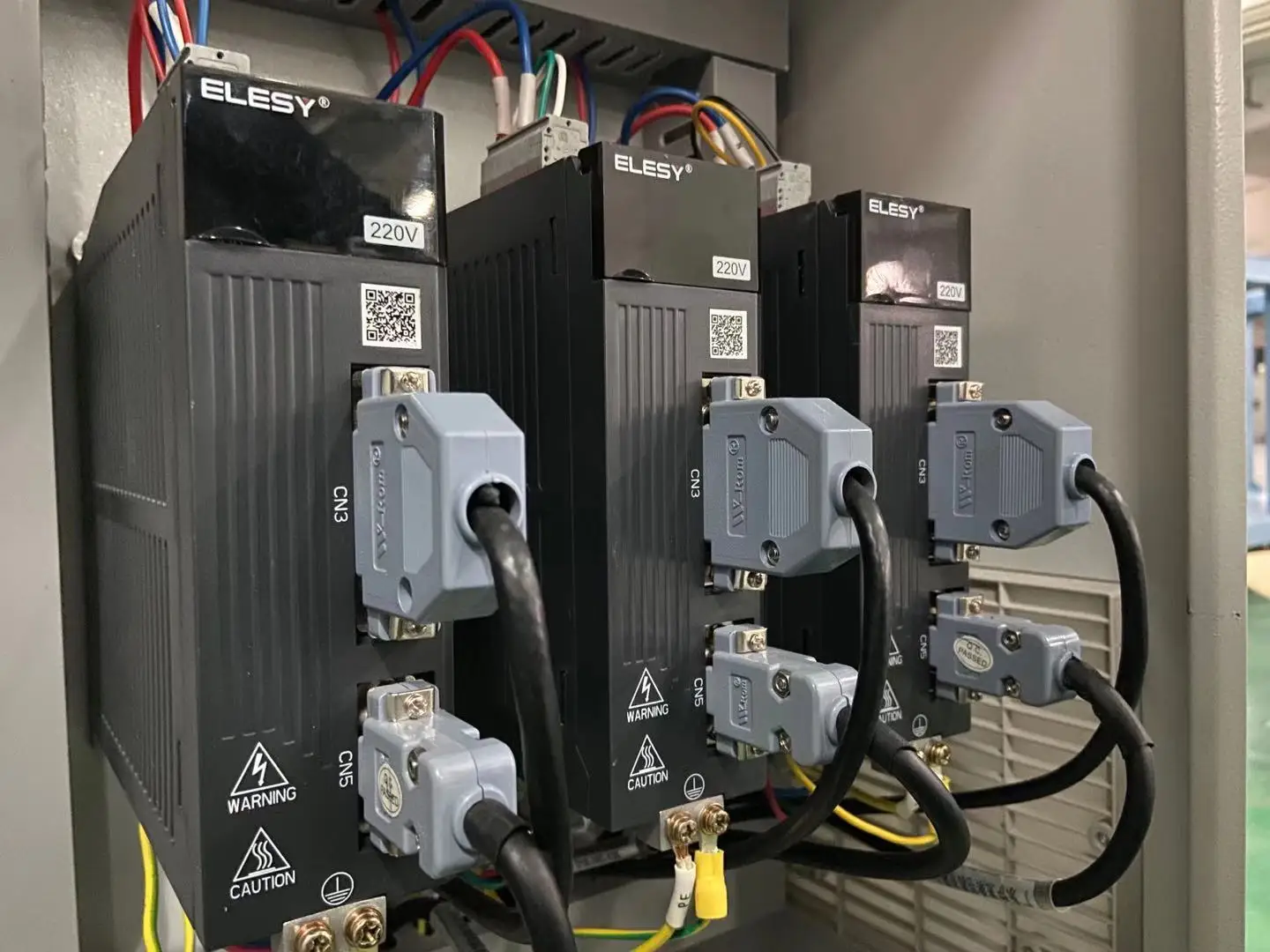

2. Servo motor control an screw thread transmission to get high accuracy.
3.Three axis working control to get exact bending profile automatically with high re-positioning precision.
4. Optimized structure design for smooth operation and easy maintenance.
2. Servo motor control an screw thread transmission to get high accuracy.
3.Three axis working control to get exact bending profile automatically with high re-positioning precision.
4. Optimized structure design for smooth operation and easy maintenance.
NO. | Parameter | Data |
1 | Tube Material | Aluminum tube |
2 | Tube Diameter | 8.0-8.5mm |
3 | Tube Wall Thickness | 0.7-1.0mm |
4 | Bending Capacity | 1 piece/cycle |
5 | Bending Angle | 1-180 degree |
6 | Bending Radius | R15-R50 |
7 | Bending Speed | 1-2 seconds/bend |
8 | Feeding length | 0-400mm(can be customized) |
9 | Worktable Size | 300x350mm |
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other
payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other
payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
