AP-DC2452-80C-2 esd overhead anti static ionizing air blower
US $285.00-$310.00
Мини антистатический Устранитель ионизирующий воздуходувка промышленный ионизатор воздуха
- Category: Garden Blower & Vacuum >>>
- Supplier: Shanghai Anping Static Technology Co. Ltd.
Share on (62388232880):
Product Overview
Description

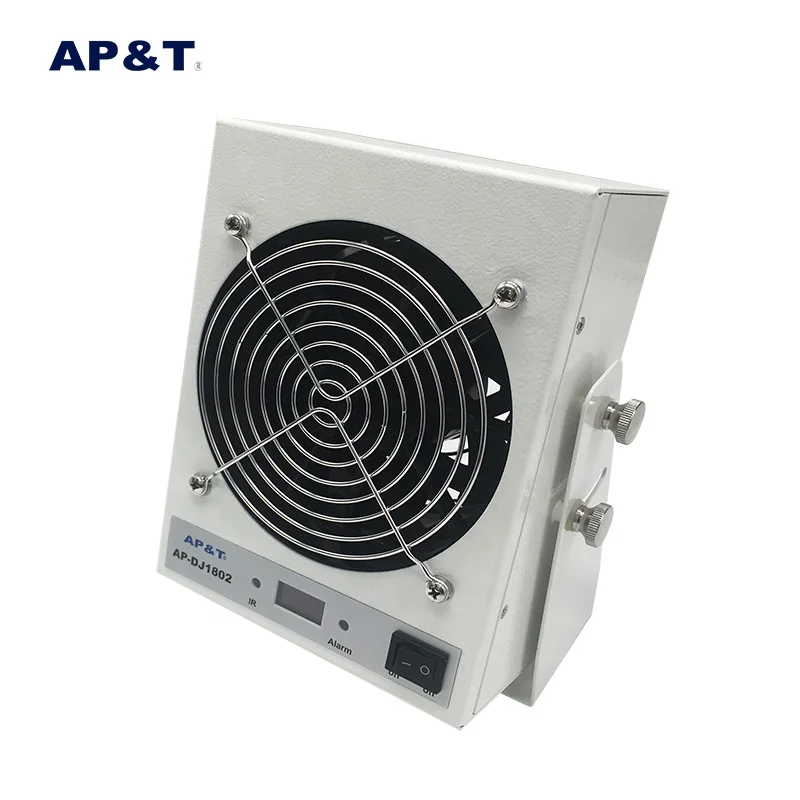

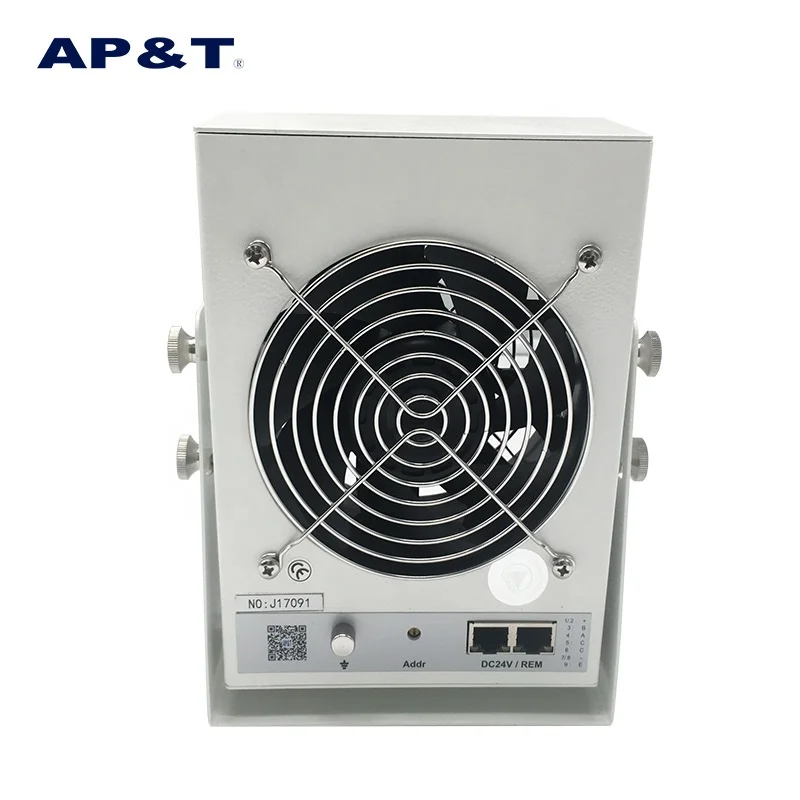

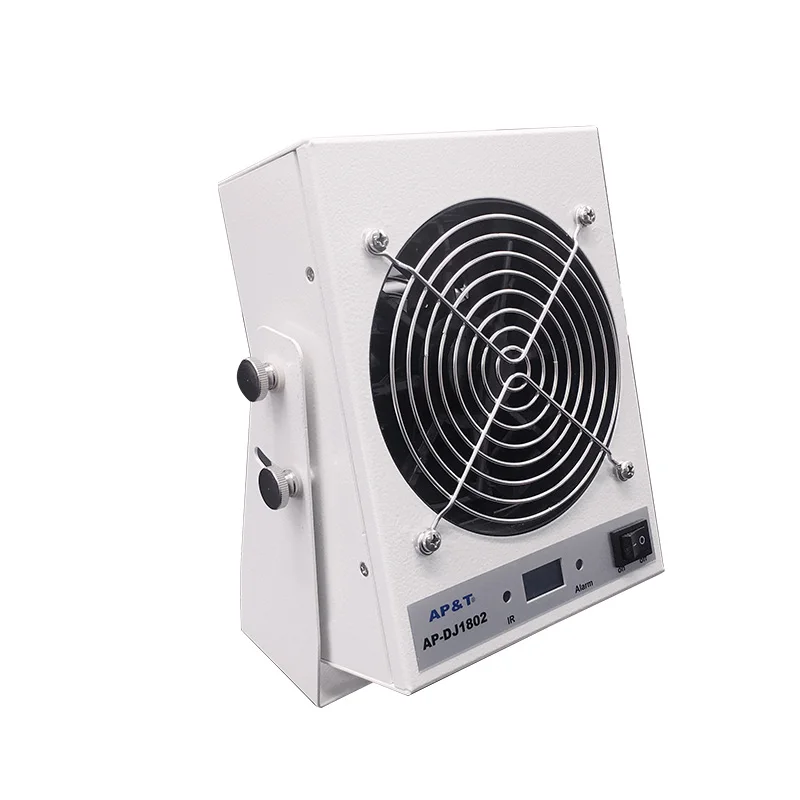

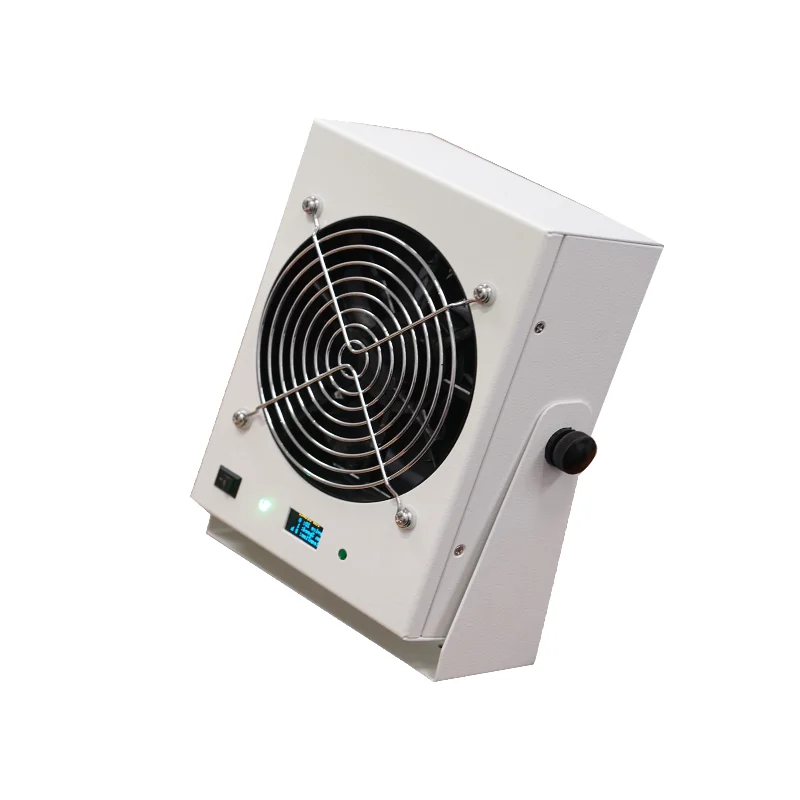

Mini Anti-stati eliminator Ionizing Air Blower industrial air ionizer
Product Description
Product Features
1.8 discharge electrodes, the amount of ions generated.
2.built-in pressurized axial fan, in addition to static speed.
3. with automatic boot brush function.
4. By default, the needle is automatically brushed once every 8 hours, eliminating the need for manual brush cleaning and maintenance.
5.fan five-speed speed regulation, stable performance.

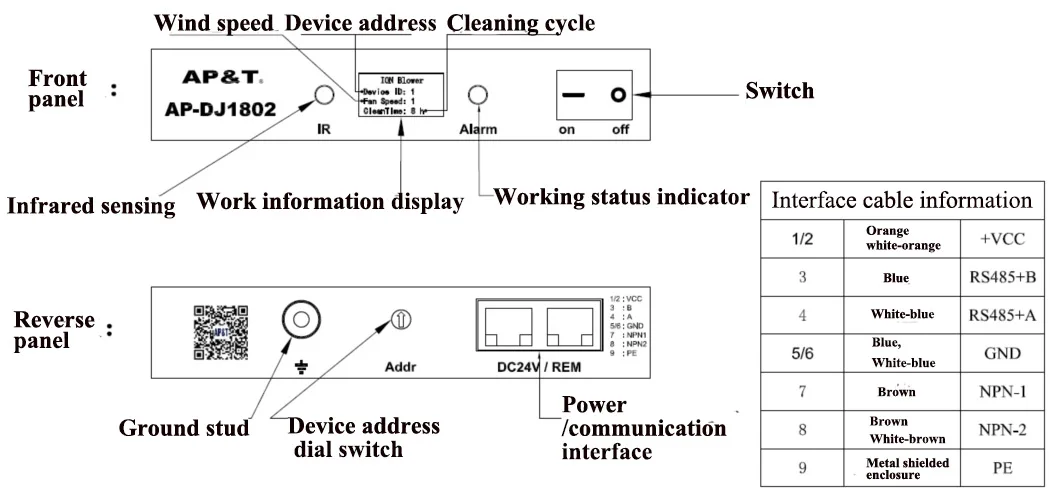

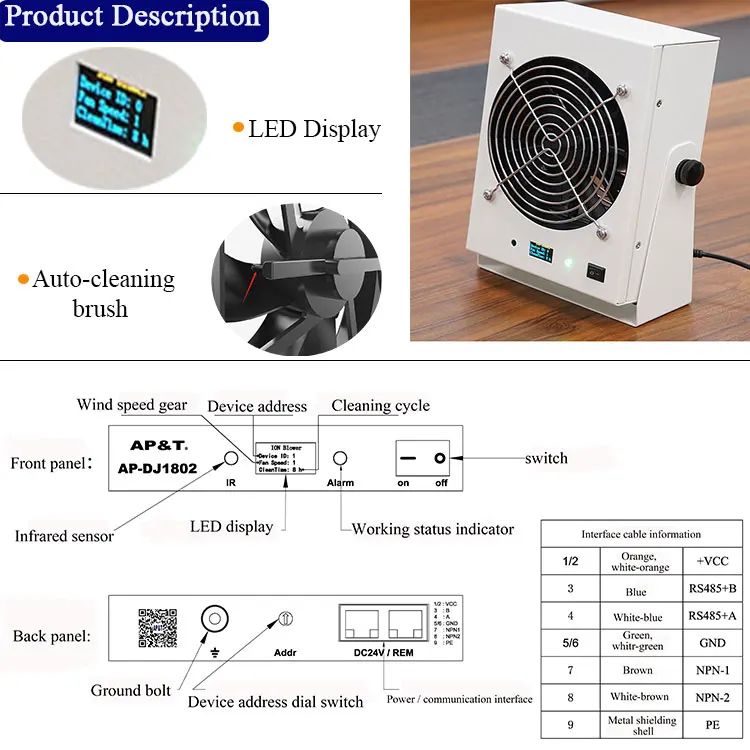

6.with LCD display, can display device address, wind speed gear, cleaning cycle, as shown below.
7.with ion self-balancing function, self-balancing range ± 10V.

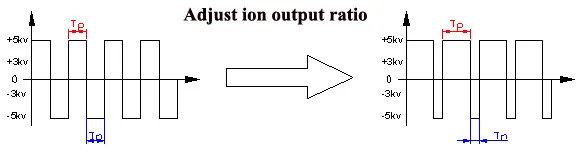

8.positive and negative ion output ratio adjustable, can be used for ion balance adjustment.
9. When the fan fails and the ion balance is abnormal, the sound and light alarms.
10. ion output characteristics, can be adjusted with the remote control.
11.It can realize online communication and monitor the working status of the fan.
12.Through the CE test, with electromagnetic protection, will not cause electromagnetic interference to other equipment; can also effectively avoid external electromagnetic interference affecting the normal operation of the fan.
13. The structure of the whole machine is modular, which is convenient for disassembly and maintenance.
Industry application
Can be widely used in electronics, semiconductor, optoelectronics and other industries.
Performance parameter
Type | AP-DJ1802 |
Input voltage | DC 24V (Double RJ45 interface) |
Input Current | <0.6A |
Output voltage | DC±5KV→±5.5KV |
Power | <14.5W |

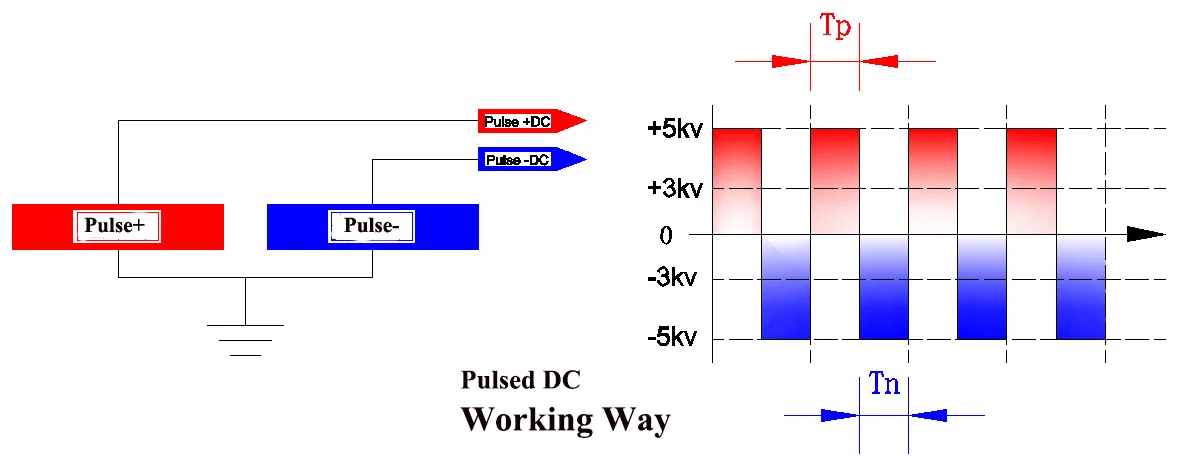

Ion emission | DC |
Transmitting electrode | Tungsten |
Discharge range | 750*300mm(L*W) |
Air volume | <179CFM |
Audio noise | <75dBA (150mm from the air outlet) |
Ozone concentration | ≤0.05ppm (150mm from the air outlet) |
Ion balance | ≤|±10V| |
Discharge time | ≤1.5S (300mm from the air outlet) |
Alarm indication | 1.At the moment of startup, clean operation - blue light flashes; 2.Normal work - green light (always in surveillance); 3.Fan alarm - the red light is always on; 4.Abnormal ion balance—red light flashes; 5.Blue flashing during infrared debugging |
Communication method | RS485 |
Operating temperature | 0℃-50℃ |
Working humidity | <70%RH |

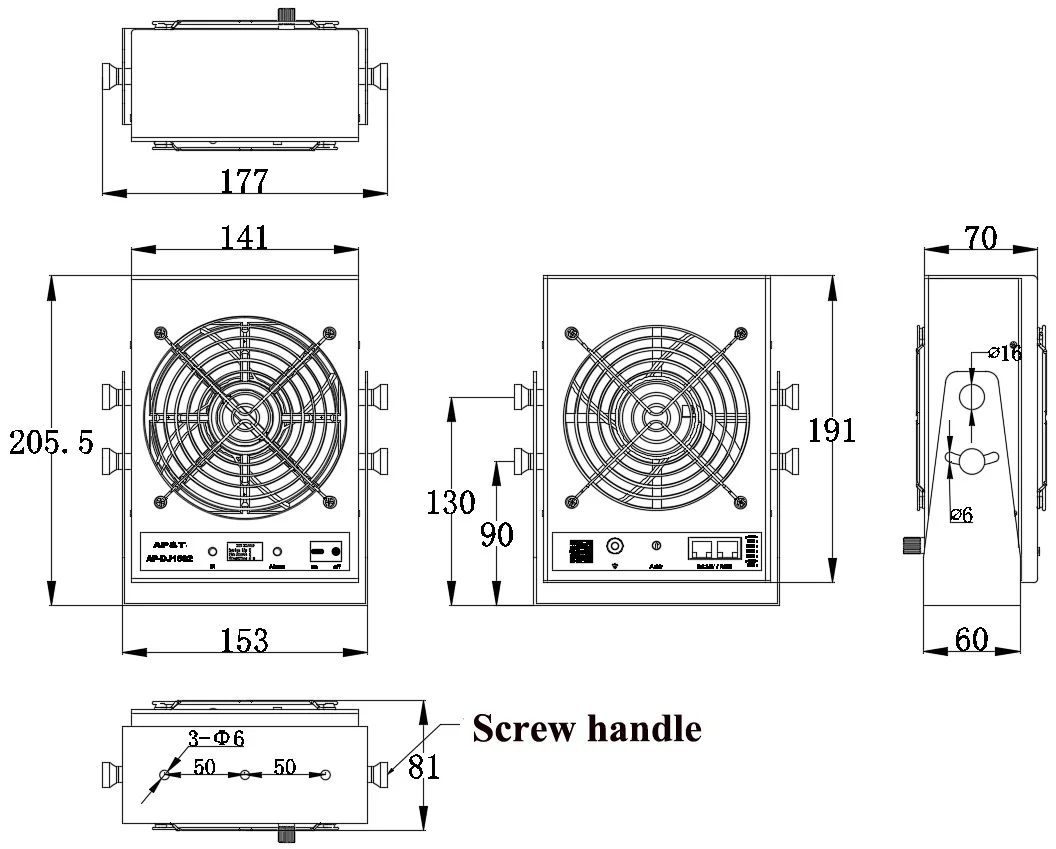

Dimensions | 177*81*205.5mm(L*W*H) |
Shell material | Aluminum dusting |
Mounting accessories | 1 pair of U-shaped aluminum dust spray mounting bracket, 2 pairs of stainless steel screw handles (M5×8) |
Adapter power supply | 1, Interface power supply (default standard): INPUT: AC100—240V 50/60Hz; OUTPUT: DC24V 2A (double RJ45 interface) 2, Jack-type power supply (customized models): INPUT: AC100—240V 50/60Hz; OUTPUT: DC24V 2A (5.5*2.5 single male) |
Integrated power supply (optional) | INPUT:AC100—250V 50/60Hz; OUTPUT: DC24V 2A (16 RJ45 connectors) With wireless communication / RS485 / LAN communication function |
Weight | Bare metal (with bracket) : 1125g |
Net weight (network cable, power cord, adapter, remote control) : 1590g | |
Gross weight : 2080g | |
Warranty | 1Year |
Certificate | CE |
